Graco Magnum X5 Electric Airless Sprayer Special

	TrueCoat 360	TrueCoat 360 DSP	TrueCoat 360 VSP	Magnum Project Painter Plus	Magnum X5	Magnum X7	Magnum ProX17	Magnum ProX19
Warranty	1 year	1 year	1 year	1 year	1 year	1 year	1 year	1 year
Recommended Annual Usage(Litres per year)*	95 litres	95 litres	95 litres	190 litres	475 litres	475 litres	1135 litres	1895 litres
Maximum Spray Tip Size	.015	.015	.015	.015	.015	.017	.017	.019
Max. pressure - bar (PSI)	103	103	103	193	207	207	207	207
Performance Rating (lpm=Litres per minute)	0.76	0.76	0.76	0.91	1.02	1.17	1.29	1.44
Maximum Hose Length (m)	N/A	N/A	N/A	15	23	30	46	46
Motor	AC	AC	AC	0.375 hp Universal	0.5 hp Universal	0.625 hp Universal	0.750 hp DC	0.875 hp DC
Sprayer Weight (kg)	1.6	1.6	1.8	4.5	5.9	10.4	12.2	17.2
Piston Pump	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Hardened Stainless Steel	Hardened Stainless Steel	ProX Power Piston Pump	ProX Power Piston Pump
Spray Gun	N/A	N/A	N/A	Metal SG2	Metal SG2	Metal SG2	Metal SG3	Metal SG3
Spray Tip	10 & 30 cm	10 & 30 cm	10 & 30 cm	515	515	515	515	515
Paint Hose	N/A	N/A	N/A	6.4 mm x 7.6 m	6.4 mm x 7.6 m	6.4 mm x 7.6 m	6.4 mm x 15 m	6.4 mm x 15 m
Pump Armor	No	No	No	Yes	Yes	Yes	Yes	Yes
Quick Start Guide	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Pulls directly from 1 to 15 Litre container				■	■	■	■	■
Fastest way to complete small painting projects	■	■	■
Variable Pressure Control			■	■	■	■	■	■
PushPrimeTM – Helps reduce priming problems due to debris/poor cleaning					■	■	■	■
Filter – Filter debris in paint to reduce Spray Tip plugs	■	■	■	■	■	■	■	■
Pump Filter – Extra filtration to improve finish							■	■
Can spray turp and white spirit based materials							■	■
On-the-job Pump Repair							■	■
Power Flush – Connect to garden hose for fast clean-up				■	■	■	■	■
	TrueCoat 360	TrueCoat 360 DSP	TrueCoat 360 VSP	Magnum Project Painter Plus	Magnum X5	Magnum X7	Magnum ProX17	Magnum ProX19

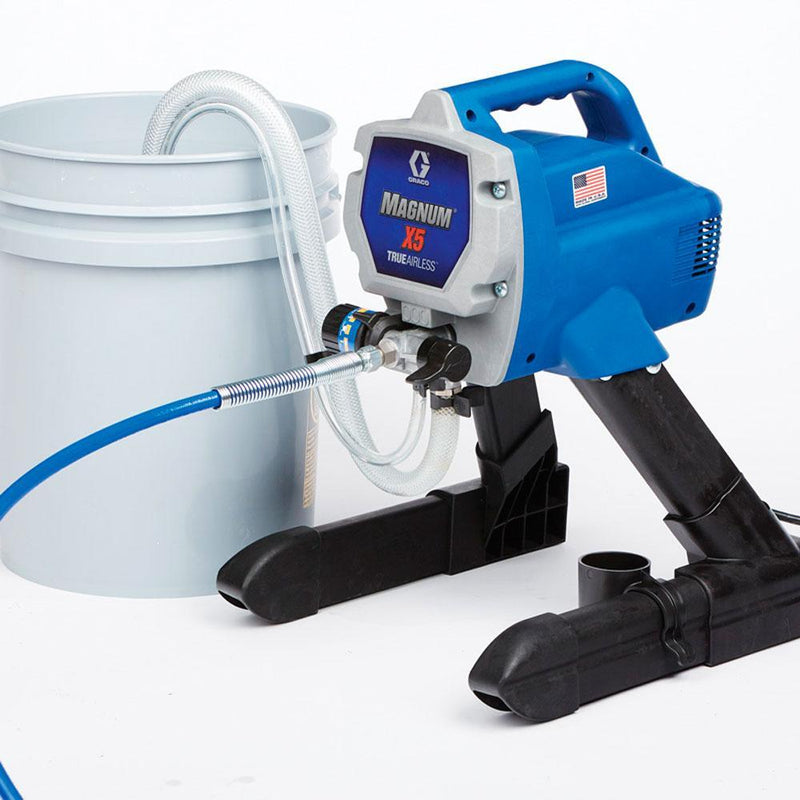

Graco Magnum X5 Electric Airless Sprayer now known as LTS 15

Not designed for commercial use. Not covered by commercial warranty.

LIGHT-DUTY Airless Paint Sprayer

• 1 Gun to 0.015Tip / 1.02 lpm / 3,000 psi
• 1/2 hp DC Motor
• SG2 Metal Gun
• 7.5m x 6.4mm Hose
• New quick prime feature
• Compact Stand Design
• Mas Hose length - 15m (please buy optional 15m hose here)
• Weighs only 8kg

Recommended Occasional use up to 500 ltrs/ year

Finish Projects Faster!

Magnum X5 provides spraying performance in a compact, portable design making it ideal for light-duty projects such as decks, fences, and other painting projects. The Magnum X5 supports longer hose lengths so you can extend your reach on the job, and the Piston Pump assures dependability and longer sprayer life. Magnum X5 is easy to clean, too. Simply connect it to a garden hose and clean the pump, hose and gun in minutes.

• For occasional use (4 to 6 times per year)
• Ideal for homeowners and handymen with periodic painting projects around the house
• Lightweight, portable, and easy to store
• Sprays light to medium coatings from stains to latex
• Pressure Control Knob allows you to easily set the proper pressure for spraying or rolling
• Hardened stainless steel piston pump, innovative single packing set, lifetime lubricated pad for maintenance-free operation

Includes everything you need to get started!

Features & Benefits:

Ideal uses for Magnum X5:

• Interiors/Exteriors
• Fences
• Houses
• Decks

What's in the box:

• SG2 Spray Gun
• 7.5 m DuraFlex airless hose
• 515 Reverse-A-Clean RAC IV tip
• Pump Armor storage fluid (8 oz.)
• Operational DVD and Quick Start-up Guide
