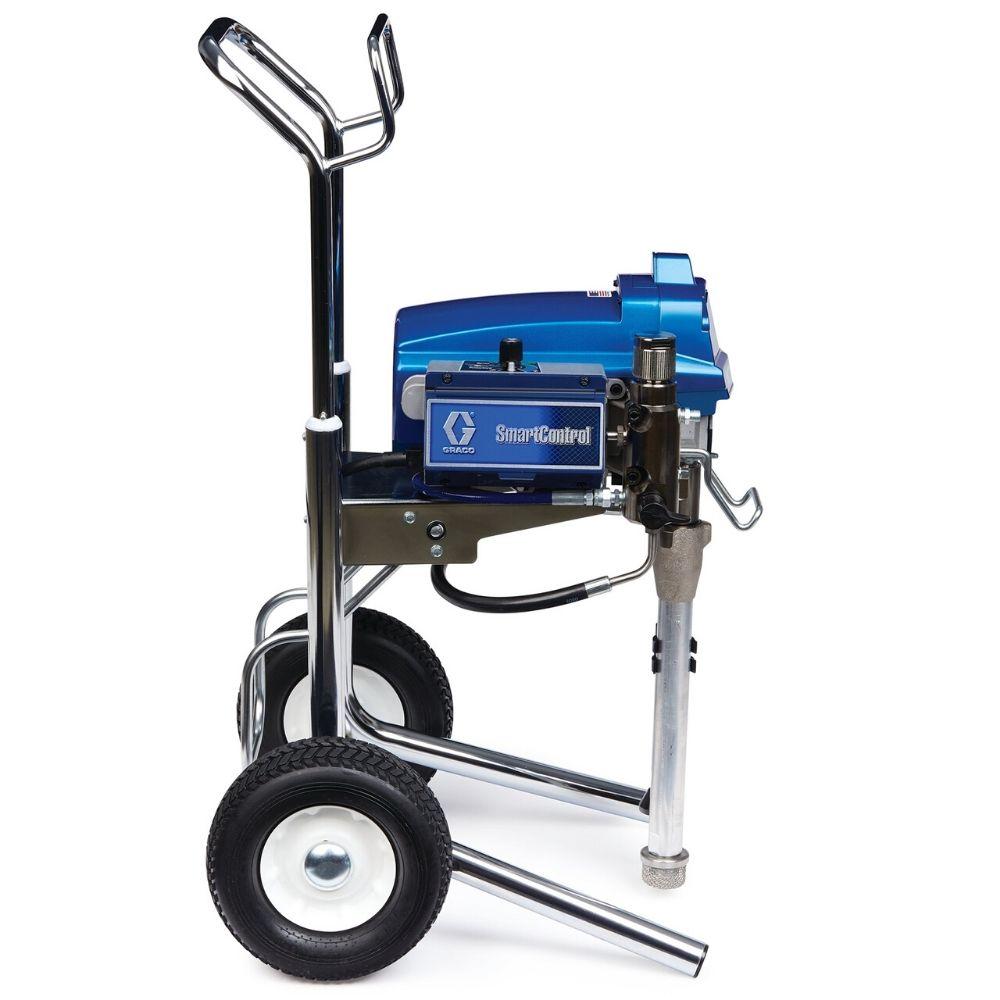

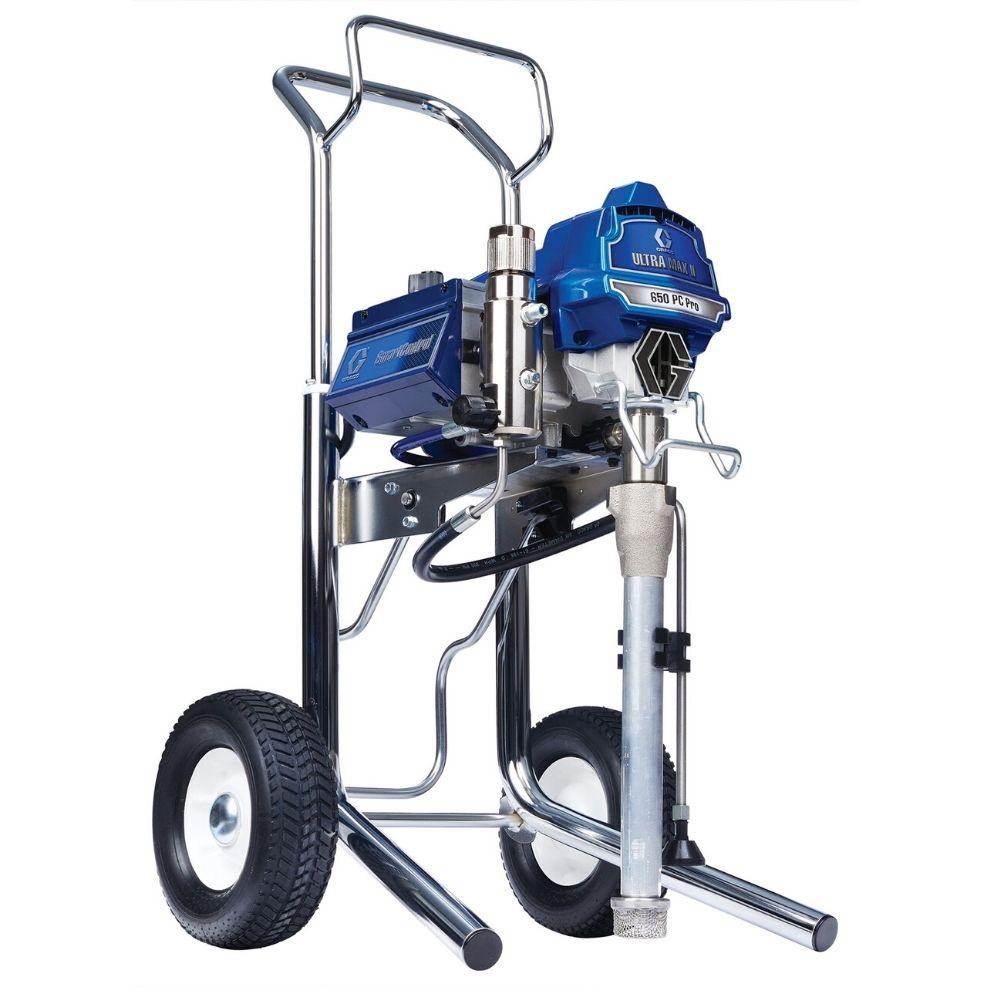

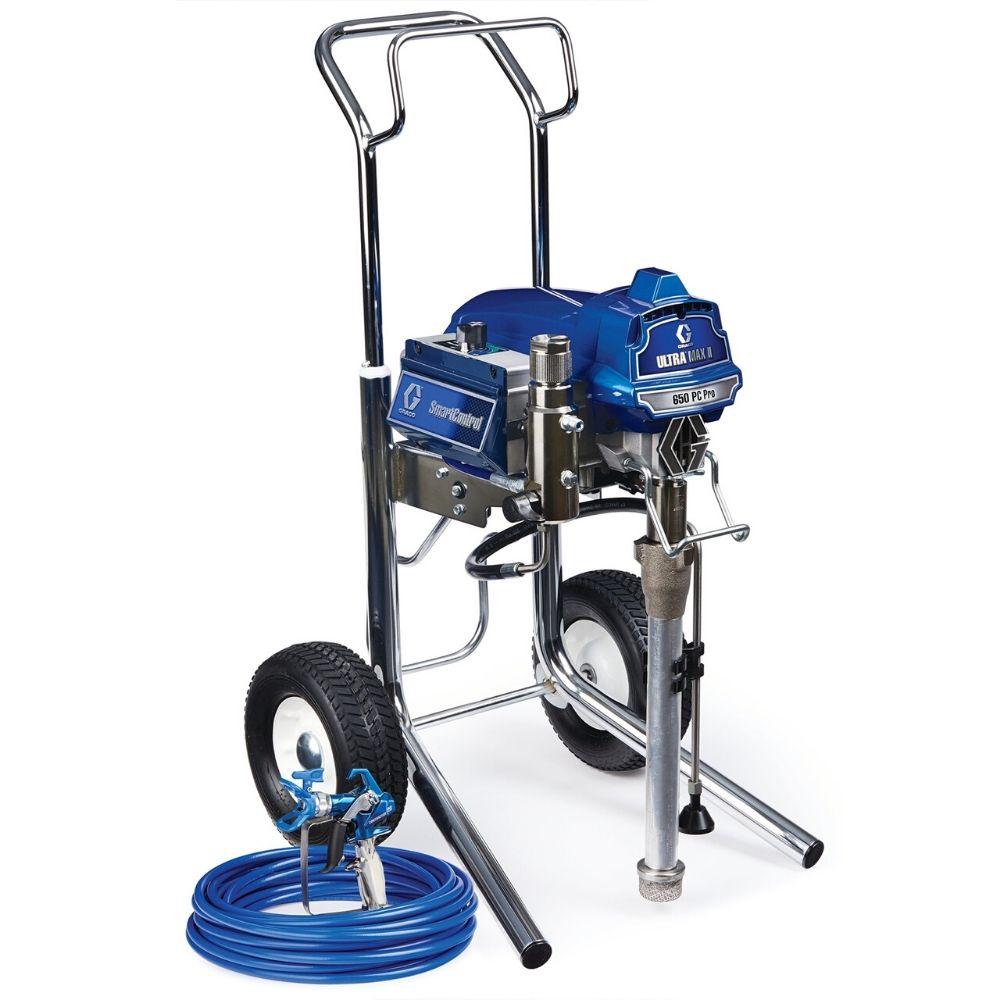

Graco Ultra Max II 650 PC Pro Hi-Boy Airless Sprayer - Combo Deal

Graco Ultra Max II 650 PC Pro Hi-Boy Airless Sprayer - Combo Deal

$4,804.00
financing available
Combo Deal Save more then $700.00 with our Combo Deal iQuip 4 Knot Duster Brush 100mm Oldfields Pro Series Paint Roller Covers 3Pack 15mm nap 270 mm Hyde Stainless Steel...
financing available

Combo Deal

Save more then $700.00 with our Combo Deal

  • iQuip 4 Knot Duster Brush 100mm
  • Oldfields Pro Series Paint Roller Covers 3Pack 15mm nap 270 mm
  • Hyde Stainless Steel Joint Knife with Hammer Head 152mm Cool Tool
  • Graco Airless Fine Finish RAC X FFLP 312 Switch-Tip Green
  • + $100 dollar (cashback)

The Lightest weight 2-gun electric airless sprayer

The new Graco Ultra Max II 650 PC Pro Electric Airless Sprayer is the lightest weight 2-gun electric airless sprayer. It is a true workhorse – delivering the perfect combination of quality, performance, portability and durability.



Ultra Max II 650 PC Pro Benefits:



  • 2-Gun Capability to Complete Jobs Faster
  • One-Person Portability
  • Increased Capability to Handle Heavier Coatings
  • Lower Cost of Ownership



EnduranceTM Piston Pump

  • Lasts 2X longer than competing pumps
  • Larger intake to handle heavier coatings
  • ProConnectTM— Fast and easy on-the-job pump replacement system



2-Hose Connection Manifold

  • 2-Gun capability— supports up to .019 in tips
  • Easy OutTM filter provides easy maintenance and less clogging



Small, Compact Frame


  • Balanced design for easy transport and maneuvering
  • Chrome over steel construction withstands jobsite abuse



MaxPower Motor and Advantage DriveTM



  • High-torque brushless design delivers worry-free performance
  • The longest lasting drive with a Lifetime Warranty



SmartControlTM with Digital Display

  • Constantly monitors performance and adjusts motor speed to match your tip size and spraying needs
  • FastFlushTM delivers 4X faster cleaning with 1/2 the water



Contractor PC Spray Gun

  • All-Day comfort and control
  • Lightest weight gun in its class
  • Up to 50% lighter trigger pull force



Lowest Cost of Ownership

  • Endurance pump lasts 2X longer than competing pumps
    • Chromex piston rod with longer stroke
    • Chrome-plated stainless steel sleeve
    • V-Max Blue Packings
  • Eliminate downtime with ProConnect – fast and easy on-the-job repair
  • MaxPower Motor and Advantage Drive offer maintenance-free performance and Lifetime Warranty






What is included



PART NO. DESCRIPTION QTY UNIT
17Y042 Contractor PC Airless Spray Gun with RAC X 517 SwitchTip 1 ea
LTX517 RAC X SwitchTip, 517 1 ea
246215 RAC X HandTite Tip Guard 1 ea
240794 BlueMax II Airless Hose, 1/4 in x 50 ft 1 ea
238049 TSL Throat Seal Liquid, 4 oz 1 ea



Technical specifications


Amperage (A) 15
Compatible Replacement Pump 19Y298
Engine Size (HP) 1.8
Features Endurance Chromex Pump, SmartControl 3.0, MaxPower Brushless, Advantage Drive, ProConnect, FastFlush, Easy Out Filter, Contractor PC Gun
Filter Mesh Size 60
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Frequency (Hz) 50/60
Hose Inlet Diameter (in) 1/4









490 PC PRO 495 PC PRO 595 PC PRO 650 PC PRO
Part Numbers: Stand 17E887 Stand 17E889 - Lo-Boy 17E891 - Hi-Boy 17E892 Lo-Boy 17E897 - Hi-Boy 17E896 Lo-Boy 26C979 - Hi-Boy 19Y424
Max. Tip Size 0.023 0.025 0.027 0.029
Maximum bar (psi) 227 (3300) 227 (3300) 227 (3300) 227 (3300)
Maximum (lpm) 2.0 2.3 2.6 3.0
Motor Hp 1.0 Brushless DC 1.2 Brushless DC 1.6 Brushless DC 1.8 Brushless DC
Weight - Kg 15 Stand 15 Stand 33 Hi-Boy 34 Hi-Boy
Pump Endurance Piston Endurance Piston Endurance Piston Endurance Piston
ProConnect
Pump Endurance Piston Endurance Piston Endurance Piston Endurance Piston
ProConnect
Hydraulic Gauge
BlueLink System
Control SmartControl 3.0 SmartControl 3.0 SmartControl 3.0 SmartControl 3.0
Motor MaxPower Brushless MaxPower Brushless MaxPower Brushless MaxPower Brushless
Gun Contractor PC Contractor PC Contractor PC Contractor PC
Hose 6.4 mm x 15 m (1/4 in x 50 ft) Blue Max II Airless 6.4 mm x 15 m (1/4 in x 50 ft) Blue Max II Airless 6.4 mm x 15 m (1/4 in x 50 ft) Blue Max II Airless 6.4 mm x 15 m (1/4 in x 50 ft) Blue Max II Airless
Tip RAC X LTX 517 - LP 315 RAC X LTX 517 - LP 315 RAC X LTX 517 - LP 315 RAC X LTX 517 - LP 315
How much paint do I need? Our Paint Calculator is a useful feature that calculates the amount of paint we require for a painting project. We will also soon be adding a feature that will allow you to calculate labour cost for the painting project.  Usually for a 3 bedroom unit/house it takes 20L of ceiling paint. In most cases it's flat (for bathroom ceilings it's best to use mould proof or simple low sheen paint, 30 liters for walls usually its low sheen, and 4-6 Litres for woodwork.) Coverage in most cases is around 1L per 7 -10 Square meters, again it's for previously painted surfaces only. For new plasterboard its around 7 squares per 1 L per one coat, and the new render is 5 square meters per liter again for one coat.
