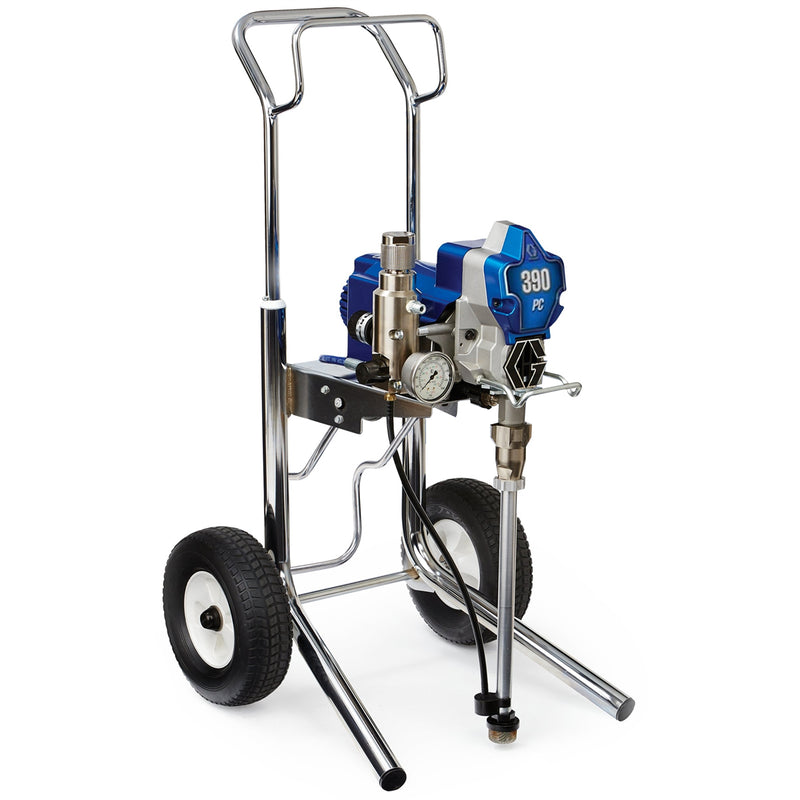

Graco Ultra 390PC Hi-Boy Cart Electric Airless Sprayer

The 390 is a workhorse sprayer built for the professional who demands performance and durability in a sprayer. Now on a convenient Hi-Boy cart, the 390 Hi-Boy can now be easily rolled in, on and around the jobsite. The 390 Hi-Boy also has the added benefit of direct immersion, allowing for quicker priming of all materials.

0.021'' Max Tip
3,300 psi / 2.0 lpm
5/8 HP DC Motor
Mechanical Pressure Control
Pressure Gauge
Contractor PC Gun
Swivel Inlet Suction Hose
EasyOut Pump Filter
Light weight and Portable
Weight - 15.6 kg
Makes spraying faster and easier!
  • Endurance Pump with long-life V-Max packings, Chromex rod and hardened stainless steel cylinder.
  • QuickAccess intake valve to easily clean or clear debris.
  • Consistent pressure control delivers quality spray pattern with minimal fluctuation.
  • Easy Out Pump Filter - reduces tip clogs and ensures quality finish.
  • Swivel Inlet Suction Hose - solid aluminium construction and no tools removal of hose.


Specifications

  • 390 Electric Airless Sprayer
  • Power Requirements100V/120V AC, 50/60 Hz, 11A, 1 phase230V AC, 50/60 hz, 7.5A, 1 phase
  • Generator Minimum Wattage 3000
  • Maximum Working Pressure 3300 psi
  • Maximum Delivery 253958, 253961, 254968, 254969, 256391, 262019, 8260840.47 gpm254998, 256392, 2620240.38 gpmMaximum
  • Tip Size 253958, 253961, 254968, 254969, 256391, 262019, 8260840.021254998, 256392, 2620240.019
  • Cycles 680 cycles per gallon
  • Fluid Outlet Size1/4 in.
  • Weight 30
  • lbsWeight (with gauge)31 lbs
  • Wetted Partszinc and nickel-plated carbon steel, nylon, stainless steel, PTFE, Acetal, leather, UHMWPE, aluminum, tungsten carbide
  • Dimensions (Stand)
  • Length 15.75 in
  • Width 14 in
  • Height 17 in
  • Noise Levels
  • Sound Power 100 dBa*
  • Sound Pressure 90 dBa** per ISO 3744; measure at 3.1 ft (1 m)

Features

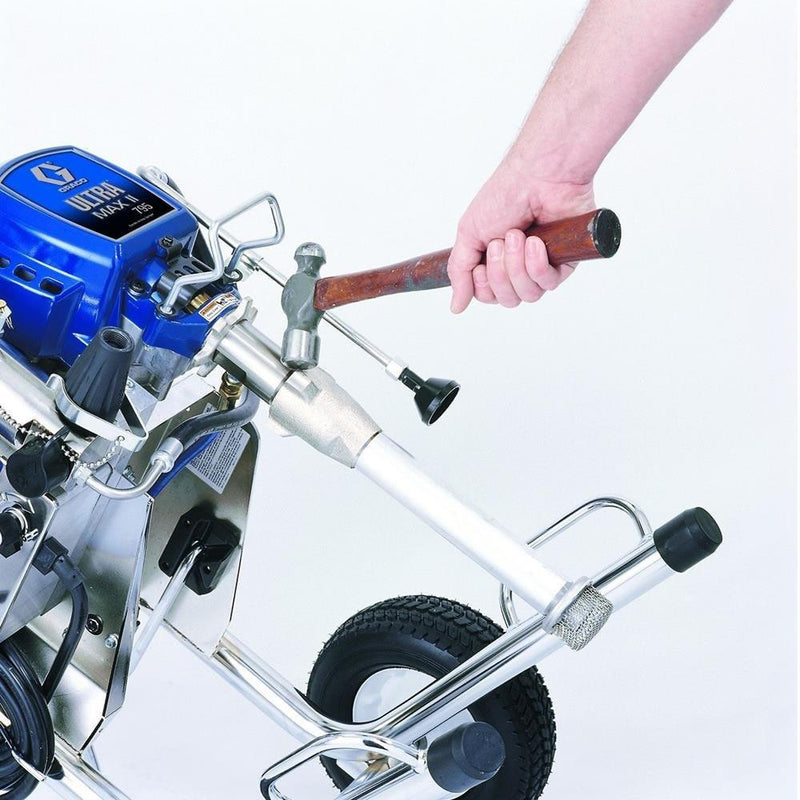

ProConnect

Fast and easy on-the-job Pump Replacement System

1-minute jobsite replacement in 3 simple steps

Endurance™ Now program available

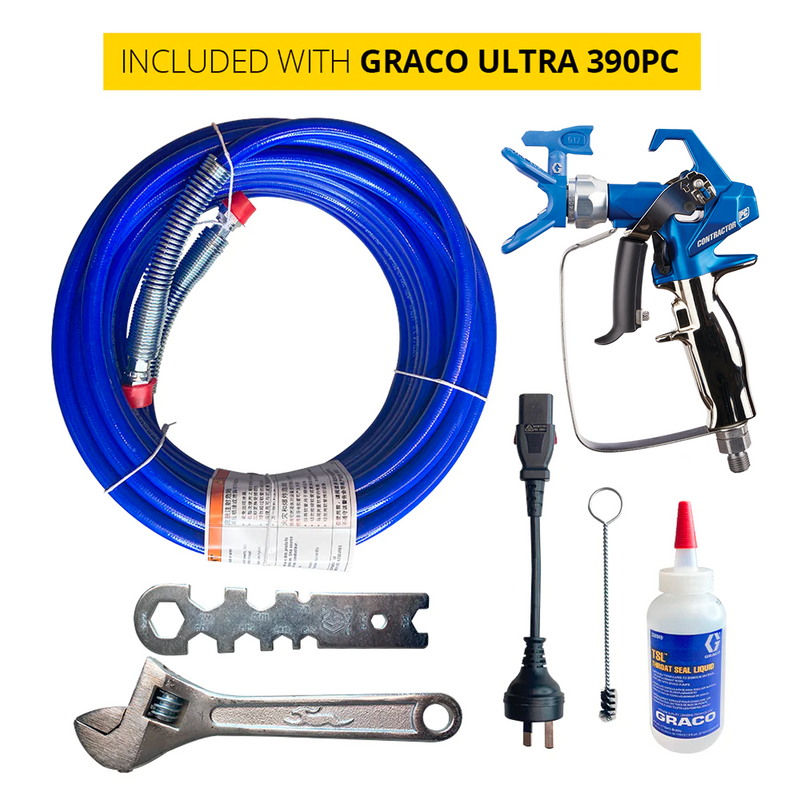

Units include:

Contractor PC

RAC X Guard & RAC X LTX 517 Switch Tip

1/4 in x 50 ft (6.4 mm x 15 m) BlueMax II Airless Hose
