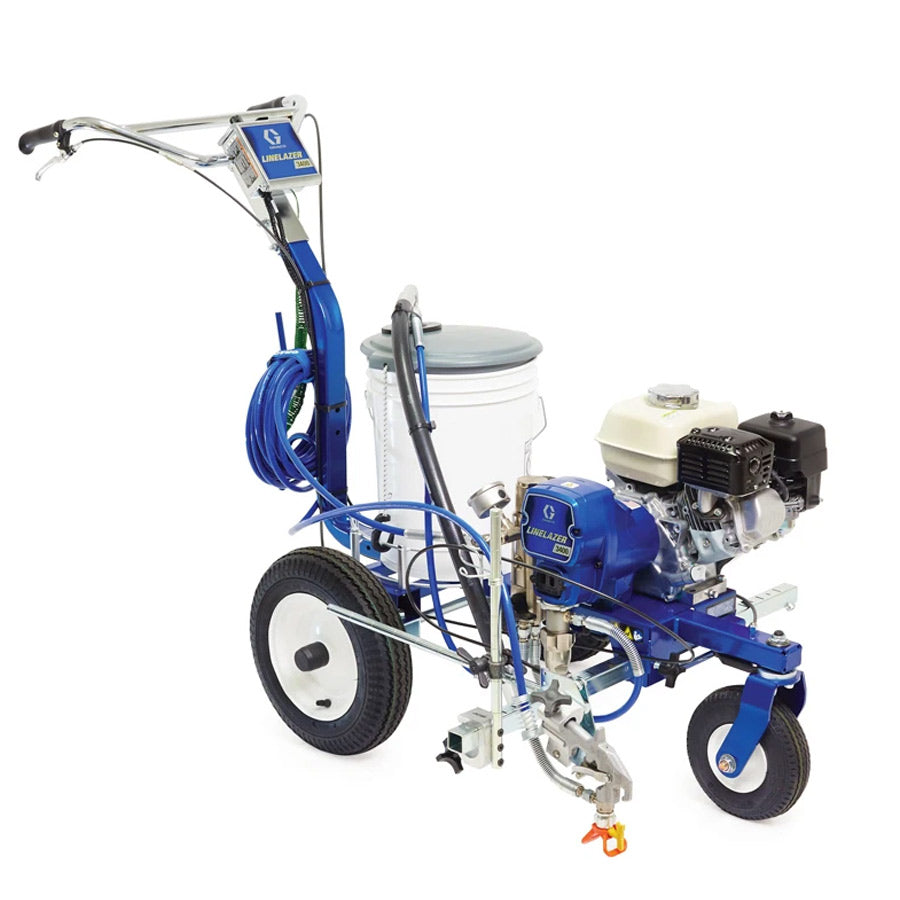

GRACO LineLazer 3400 Airless Line Marker Petrol Driven (25M224)

$10,813.00
SKU: 25M224

Quantity

Out of stock
Add to Cart
Out of stock
Add to Cart

Payment & Security | Refund Policy

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
GRACO LineLazer 3400 Airless Line Marker Petrol Driven (25M224)
$10,813.00

Description

GRACO LineLazer 3400 Airless Line Marker Petrol Driven 25M224

  • Airless Line Marker
  • The preferred choice of parking lot and seal coating contractors looking for professional performance in a one-gun machine.
  • The LineLazer 3400 is the proven performer for your re-stripe / line marking jobs.
  • As the preferred choice for 1-gun professional performance, the LineLazer 3400 is perfect for small parking lots, mini malls, seal coating contractors, schools and park and recreation departments.

Specifications

Dimensions

Width
Width
Height
Height
Length
Length
product
99.06 cm
129.54 cm
187.96 cm

Weight

Courier

May require help to carry

Total Weight 110.6764 kg

LineLazer 3400, FieldLazer S200 Airless Line Striper
Honda GX120 Engine
ANSI Power Rating @ 3600 rpm
4.0 Horsepower
Maximum working pressure
3300 psi
Noise Level
Sound power
100 dBa per ISO 3744
Sound pressure
86 dBa measured at 3.1 ft
Vibration Level measured per ISO 5349 Based on 8 hr daily exposure
Left hand
3.89 m/sec²
Right hand
4.94 m/sec²
Maximum delivery rating
0.75 gpm
Maximum tip size
1 gun with 0.027 in tip
Inlet paint strainer
12 mesh stainless steel screen, reusable
Outlet paint filter
60 mesh stainless steel screen, reusable
Pump inlet size
1¼-12 unf-2b
Fluid outlet size
¼ npsm from fluid filter
Wetted parts
PTFE, Nylon, polyurethane, UHMW polyethylene, FKM, acetal, leather, tungsten carbide, nickel-plated carbonsteel, stainless steel, chrome plating
Dimensions
Weight
150 lb
Height
40.5 in
Width
32 in
Length
61.5 in

Features

New Frame

  • 3 inches longer than the previous version for greater stability and straighter lines
  • Now accepts the 15-gallon hopper and the EZ Bead system

EasyMark Gun Adjustment System

  • "G" clamp system allows for quick movement of gun and guide marks for perfect gun alignment every time

Handle Bar System

  • Adjustable design, allows for optimal ergonomics and reduced vibration for all-day striping comfort with less fatigue

Rear Mount Hose Wrap

  • Provides easy on and off for stencilling applications

Easy Reach Controls

  • Operator controls are located on the handle bars allowing adjustments to be made without stopping

Honda Engine

  • Contractor preferred, excellent power and proven reliability

Endurance Pump

  • Industry-best pump performance in this field-proven design

Advantage Drive

  • With hardened steel gears, this is the longest lasting drive in the industry

EasyOut Pump Filter

  • Large filtering area reduces tip clogs and ensures paint quality

Includes

  • Flex Plus Striping Gun
  • LineLazer RAC 5 SwitchTip and Guard
  • 1/4 in x 50 ft BlueMax II Airless Hose

What's Included

  • Flex Plus Striping Gun
  • LineLazer RAC 5 SwitchTip and Guard
  • 1/4 in x 50 ft BlueMax II Airless Hose
