Graco Ultra QuickShot (20B479)
$1,980.00
Description
"The Fastest Way To Complete All Small Jobs"

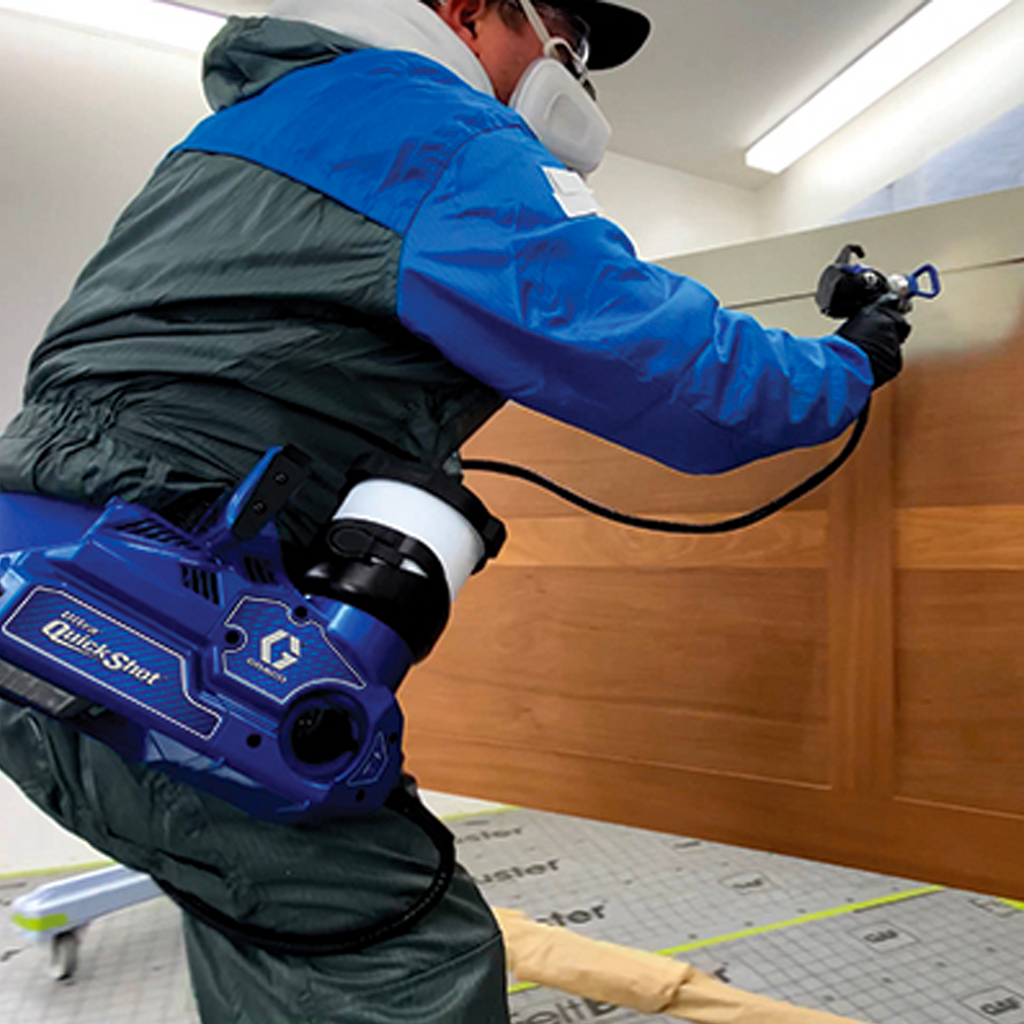

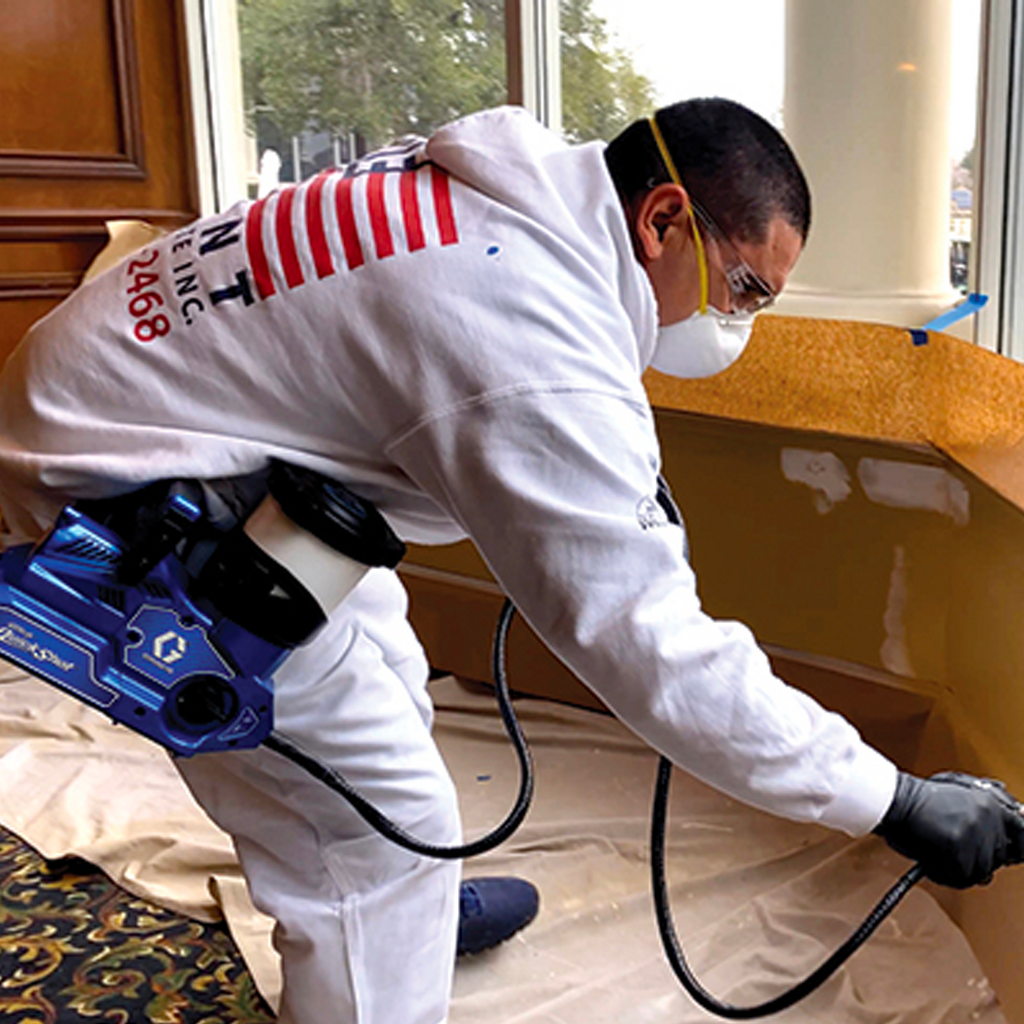

The Ultra QuickShot is breakthrough technology from Graco which they say is "designed to deliver a high quality finish on all small jobs". Graco have designed the Ultra QuickShot with portability in mind. The QuickShot is a battery operated airless sprayer which allows the user to paint in tight spaces while retaining the precision and control of a paint sprayer.
This brand new product is only available on pre-order for now!
Features:
- Fantastic spray control with an ability to quickly adjust pressure for every application.
- Capacity to spray a wide range of paints and other coatings including paints and solvents.
- Ideal for small jobs including window and door frames, and furniture.
- Instant-response electric sprayer that virtually eliminates "spits".
- Light trigger-pull which reduces fatigue
And the spray gun isn't just Graco's smallest and lightest, it's the smallest and lightest airless paint sprayer gun ever built. It also has Graco's on-demand precision flow-control system for quick adjustment and easy dial-in of desired pressure (100-2,000 psi)
Includes:- Ultra QuickShot unit
- Spray gun
- 2m flexible hose for full reach and easy hose management
- Durable, long-life triple piston pump with ProConnect

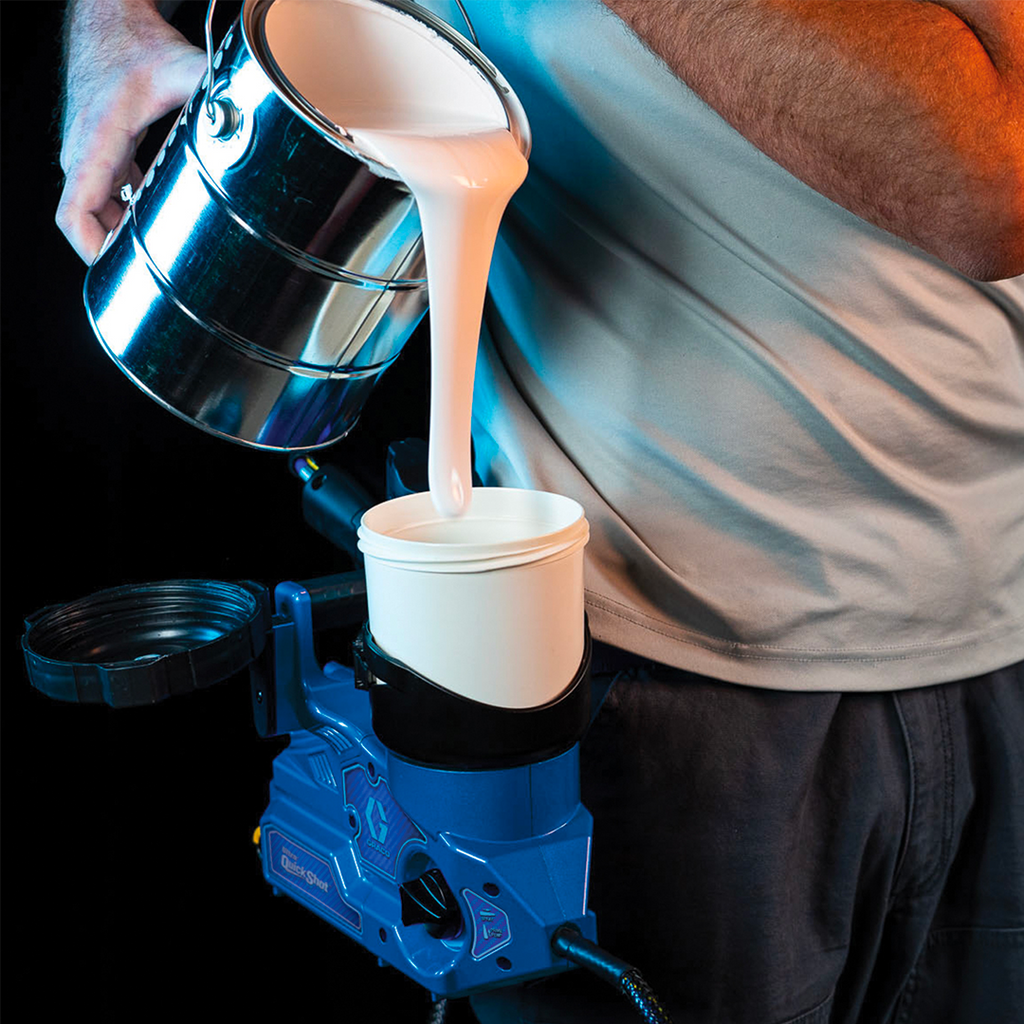

- 0.94 litre Pour-N-Go cup
- 2 x DEWALT 18V Lithium-ion batteries
- DEWALT Lithium Ion Battery Charger
- Fine Finish Low Pressure RAC X FF LP SwitchTip (514)
- Fine Finish Low Pressure RAC X FF LP SwitchTip (210)
- RAC X HandTite Tip Guard
- Storage Case
- Belt and Holster Attachment
Technical Specifications:
| Battery Voltage (V) | 20 |
|---|---|
| Maximum Operating Temperature (°C) | 32 |
| Maximum Storage Temperature (°C) | 45 |
| Maximum Tip Size (in) | .016 |
| Maximum Working Pressure (MPa) | 14 |
| Maximum Working Pressure (bar) | 138 |
| Maximum Working Pressure (psi) | 2000 |
| Minimum Operating Temperature (°C) | 4 |
| Minimum Storage Temperature (°C) | 0 |
| Model | Ultra |
| Overall Height (cm) | 26.7 |
| Overall Length (cm) | 30.5 |
| Overall Width (cm) | 15.2 |
| Power Source | Battery Powered |
| Series | QuickShot |
| Sound Pressure Level (dB(A)) | 83 |
| Type | Airless Spray Package |
| Weight (kg) | 2.9 |
Compare Table
Click here to open table |
 |
 |
 |
 |
| ULTRA® AIRLESS HANDHELD AC | ULTRA® AIRLESS HANDHELD DC | ULTRAMAX® AIRLESS HANDHELD DC | ULTRA® QUICKSHOT CORDLESS | |
| Warranty | 1 year | 1 year | 1 year | 1 year |
| Part Numbers: | 17M362 | 17N221 | 17N225 | 20B479 |
| Max. Tip Size | 0.016" | 0.016" | 0.016" | 0.016" |
| Motor | AC | DC | DC Brushless | DC Brushless |
| Max. pressure - bar (PSI) | 138 (2000) | 138 (2000) | 138 (2000) | 138 (2000) |
| Weight - kg (lbs) | <2.1kg | 2.4kg | 2.4kg | 2.9kg |
| Material and Solvent compatibility | Waterbased | Waterbased | Water-Solvent | Water-Solvent |
| Repairable | ■ | ■ | ■ | ■ |
| SmartControlTM | ■ | ■ | ■ | ■ |
| Speed Selector | ProControlTM II | ProControlTM II | ProControlTM II | On Demand Pressure and Flow control |
| Cup system | Throw-away | Throw-away | Throw-away | Reusable |
| Tips | 514 | 514 | 210 + 514 | 210 + 514 |
| Guard | RAC XTM - | RAC XTM - | RAC XTM - 17P573 | RAC XTM - 17P573 |
| Inlet filter | 60 | 60 | 60 + 100 | 60 + 100 |
| Power supply | 3m power cable | 2 x 18V DEWALT® battery | 2 x 18V DEWALT® battery | 2 x 18V DEWALT® battery |
| Battery charger | ■ | ■ | ■ | |
| Cup + lid | 1 L (1 cup, 1 lid) | 1 L (1 cup, 1 lid) | 1 L (1 cup, 1 lid) | 1 L (1 cup, 1 lid) |
| Cup liners | 4 | 4 | 4 | |
| Storage bag/case | Bag | Bag | Bag | Bag |
| Hot Solvent Compatible | ■ | ■ | ||
| Pressure Control | Yes | Yes | Yes | Yes |
| Pressure Range | 34 to 135 bar | 34 to 135 bar | 34 to 135 bar | 34 to 135 bar |
| Tip Type Supported | RAC X FF LP | RAC X FF LP | RAC X FF LP | RAC X FF LP |
| Batteries Included | 2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion | 2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion | 2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion | |
| Filter Mesh Included | 60 & 100 Mesh | 60 & 100 Mesh | 60 & 100 Mesh | 60 & 100 Mesh |
| Fully Repairable | Yes | Yes | Yes | Yes |
| ProConnect System | Yes | Yes | Yes | Yes |
| Storage Bag Included | Yes | Yes | Yes | Yes |
|
|
|
|
|
| ULTRA® AIRLESS HANDHELD AC | ULTRA® AIRLESS HANDHELD DC | ULTRAMAX® AIRLESS HANDHELD DC | ULTRA® QUICKSHOT CORDLESS | |
| Warranty | 1 year | 1 year | 1 year | 1 year |
| Part Numbers: | 17M362 | 17N221 | 17N225 | 20B479 |
| Max. Tip Size | 0.016" | 0.016" | 0.016" | 0.016" |
| Motor | AC | DC | DC Brushless | DC Brushless |
| Max. pressure - bar (PSI) | 138 (2000) | 138 (2000) | 138 (2000) | 138 (2000) |
| Weight - kg (lbs) | <2.1kg | 2.4kg | 2.4kg | 2.9kg |
| Material and Solvent compatibility | Waterbased | Waterbased | Water-Solvent | Water-Solvent |
| Repairable | ■ | ■ | ■ | ■ |
| SmartControlTM | ■ | ■ | ■ | ■ |
| Speed Selector | ProControlTM II | ProControlTM II | ProControlTM II | On Demand Pressure and Flow control |
| Cup system | Throw-away | Throw-away | Throw-away | Reusable |
| Tips | 514 | 514 | 210 + 514 | 210 + 514 |
| Guard | RAC XTM - | RAC XTM - | RAC XTM - 17P573 | RAC XTM - 17P573 |
| Inlet filter | 60 | 60 | 60 + 100 | 60 + 100 |
| Power supply | 3m power cable | 2 x 18V DEWALT® battery | 2 x 18V DEWALT® battery | 2 x 18V DEWALT® battery |
| Battery charger | ■ | ■ | ■ | |
| Cup + lid | 1 L (1 cup, 1 lid) | 1 L (1 cup, 1 lid) | 1 L (1 cup, 1 lid) | 1 L (1 cup, 1 lid) |
| Cup liners | 4 | 4 | 4 | |
| Storage bag/case | Bag | Bag | Bag | Bag |
| Hot Solvent Compatible | ■ | ■ | ||
| Pressure Control | Yes | Yes | Yes | Yes |
| Pressure Range | 34 to 135 bar | 34 to 135 bar | 34 to 135 bar | 34 to 135 bar |
| Tip Type Supported | RAC X FF LP | RAC X FF LP | RAC X FF LP | RAC X FF LP |
| Batteries Included | 2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion | 2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion | 2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion | |
| Filter Mesh Included | 60 & 100 Mesh | 60 & 100 Mesh | 60 & 100 Mesh | 60 & 100 Mesh |
| Fully Repairable | Yes | Yes | Yes | Yes |
| ProConnect System | Yes | Yes | Yes | Yes |
| Storage Bag Included | Yes | Yes | Yes | Yes |
Specifications
Dimensions
product
19.05 cm
31.75 cm
44.45 cm
Weight
Easy To Carry
Total Weight:
6.8039 kg
