GRACO GH 300 ProContractor Petrol Hydraulic Airless Paint Sprayer (24W936)

GRACO

$16,590.00

SKU: 24W936

Title

Quantity

Out of stock

Pay in 4 interest-free payments with

Payment & Security | Refund Policy

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

GRACO GH 300 ProContractor Petrol Hydraulic Airless Paint Sprayer (24W936)

$16,590.00

Description

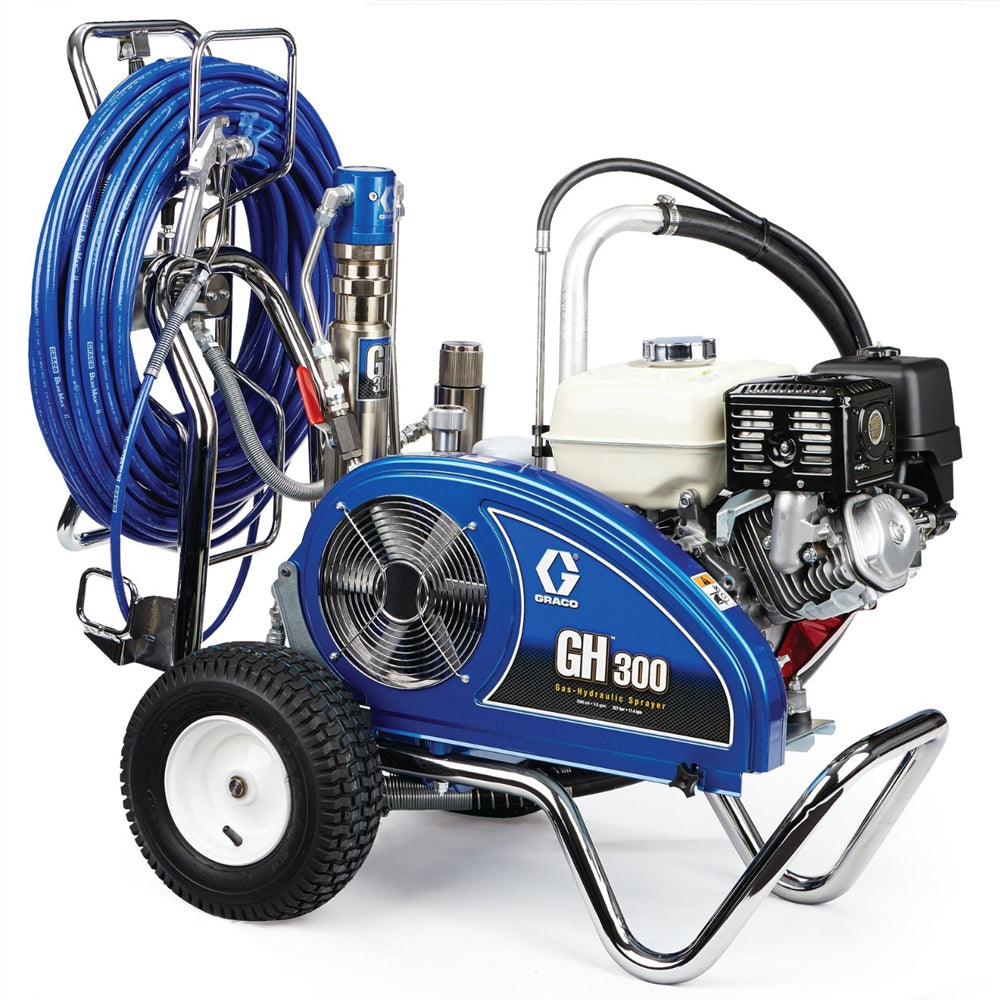

GRACO GH 300 ProContractor Petrol Hydraulic Airless Paint Sprayer

The GH 300 is one of the most powerful hydraulic sprayers for high production contractors who are spraying a wide range of materials including latex, elastomerics, and block fillers on large commercial jobs. It is designed for the most demanding applications with unparalleled reliability. It has a durable Honda engine, long-lasting Endurance MaxLife pump, and high-tech hydraulic system for consistent spray pressure and long life service.

With productivity-enhancing capabilities such as the QuikReel hose management system and ProConnect pump replacement, the GH 300 is designed to get you spraying for longer and completing the job quicker with less down-time.

Specifications

GH 300

Fluid Pressure - 227 bar

Hydraulic Reservoir Capacity - 4.75 l

Maximum Hydraulic Pressure - 128 bar

Engine - kW 9.0

Maximum Delivery - 11.3 lpm

Maximum Tip Size - 0.057

Fluid Inlet 12 UN-ZA

Hose Connection; npsm(m) - 3/8

Fluid Outlet; npt(f) - 3/8

Sound Pressure - 96 dB(A)

Sound Power - 110 dB(A)

Weight - 75.6 kg

Width - 61 cm

Length - 121.92 cm

Features

Endurance MaxLife Piston Pump

Lasts 6X longer between repacks with innovative MaxLife technology

Oversized passages minimize pressure drops for high velocity flow

High-Efficiency Hydraulic Motor

Rock-solid performance time after time keeps you up and running

Faster, more responsive changeover

O-ring sealed fittings and form-fitted hydraulic lines prevent leaks

Fewer moving parts mean less maintenance and longer life

High-Capacity Cooling System

Innovative design allows the pump to run cooler and more efficiently

Hydraulic reservoir is tapered on the bottom

Provides easier and more thorough fluid changes

Cooling fins on reservoir deflect heat away from sprayer

QuikReel Hose Management System

Easy hose management

Deploy and rewind up to 300 feet (90 meters) of hose in seconds

No twisting, kinking and coiling

Use only the hose you need — the rest stays on the reel

ProConnect Pump Replacement System

Pump swaps in 1-minute or less – no tools, pins or parts to lose

Eliminate costly downtime

Honda® Engine

Reliable, powerful & easy-to-start

Oil Alert shuts down engine to prevent damage if oil level drops too low

Contractor Preferred

Crushproof Inlet Strainer

Durable filtration

Stands up to harsh impacts to maintain even flow through filter

Additional Features:

Easy Out Pump Filter

Heavy-Duty Prime Valve

Rugged, Durable Cart Design

Ready to Work

Includes everything you need to get spraying:

Silver Plus Airless Spray Gun

RAC X SwitchTips and Guard

100 feet (30 meters) of BlueMax II Airless Hose

What's Included

Silver Plus Airless Gun
RAC X 517 SwitchTip and Guard
3/8 in x 50 ft (9.5 mm x 15.2 m) BlueMax II Hose
1/4 in x 3 ft (6.4 mm x .9 m) BlueMax II Whip Hose

Reviews

FAQ

What is the number one rule when using airless spray guns?

The number one rule when using airless spray guns is: Never point the spray gun at yourself or anyone else, and never place any part of your body in front of the spray tip. This is due to the fact that airless spray guns use very high pressures—high enough to push paint or other fluids directly under your skin, which may cause severe injury or need emergency treatment. This is injection injury, which is dangerous even if it appears to be just a tiny puncture. Always follow proper safety procedures: Use protective gear (gloves, goggles, coveralls). Keep the spray gun trigger locked when not spraying. Relieve pressure in the system before cleaning or servicing. Safety first, always.

What to know about airless paint sprayers?

Airless paint sprayers use high pressure to spray paint without air, giving fast, smooth coverage—great for large surfaces. Always wear safety gear, never point the gun at yourself, and make sure to depressurize and maintain the sprayer properly after each use.

Do you have to clean Graco sprayer between coats?

If you're working with the same color of paint and taking a quick break, you don’t need to clean it thoroughly—simply cover the tip and maintain the primed condition. On a longer break (several hours), flush the sprayer or at least the tip and nozzle to prevent clogging.

Is Graco a good airless paint sprayer?

Graco is a top brand most commonly known for its airless paint sprayers. Graco sprayers are long-lasting and a high-quality performer, although they do need occasional servicing to remove clogs. In general, Graco has a variety of airless sprayers that produce professional-grade finishes for a wide range of painting projects.
