Description
DAN’S HVLP Paint Sprayer — AC, 20V DC & 3-in-1 Models
Choose the right spray system for your project with the DAN’S HVLP Electric Paint Sprayer range. Available in corded AC, cordless DC and multifunction 3-in-1 models, this versatile electric paint spray gun delivers controlled material flow for painting furniture, cabinets, doors, fences, walls and other compatible surfaces.
Each model includes multiple interchangeable copper nozzles, a 650ml paint container and essential cleaning accessories. Adjustable spray controls help you match the spray output to different project sizes and compatible coating viscosities.
Choose from:
-

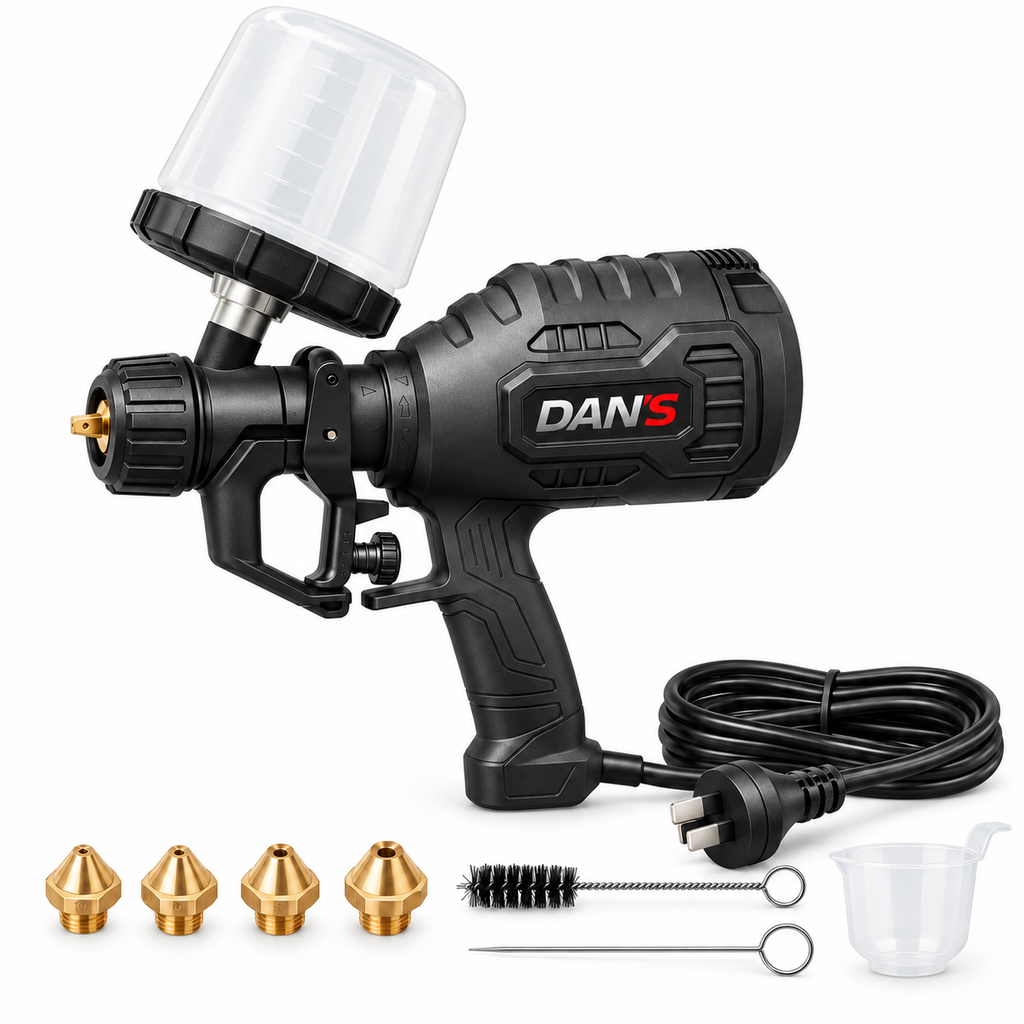

AC 800W Corded: Powerful everyday HVLP paint sprayer with five nozzle sizes and an Australian SAA power plug.
-

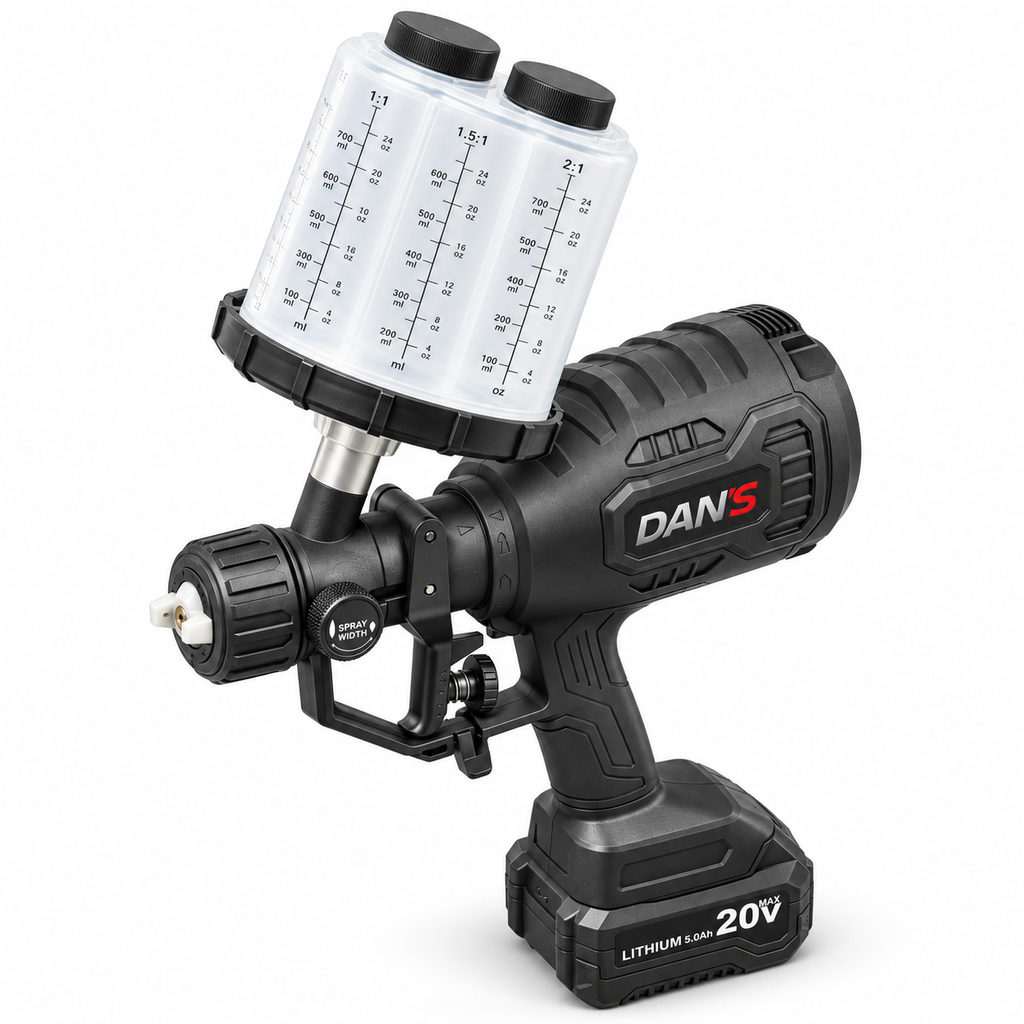

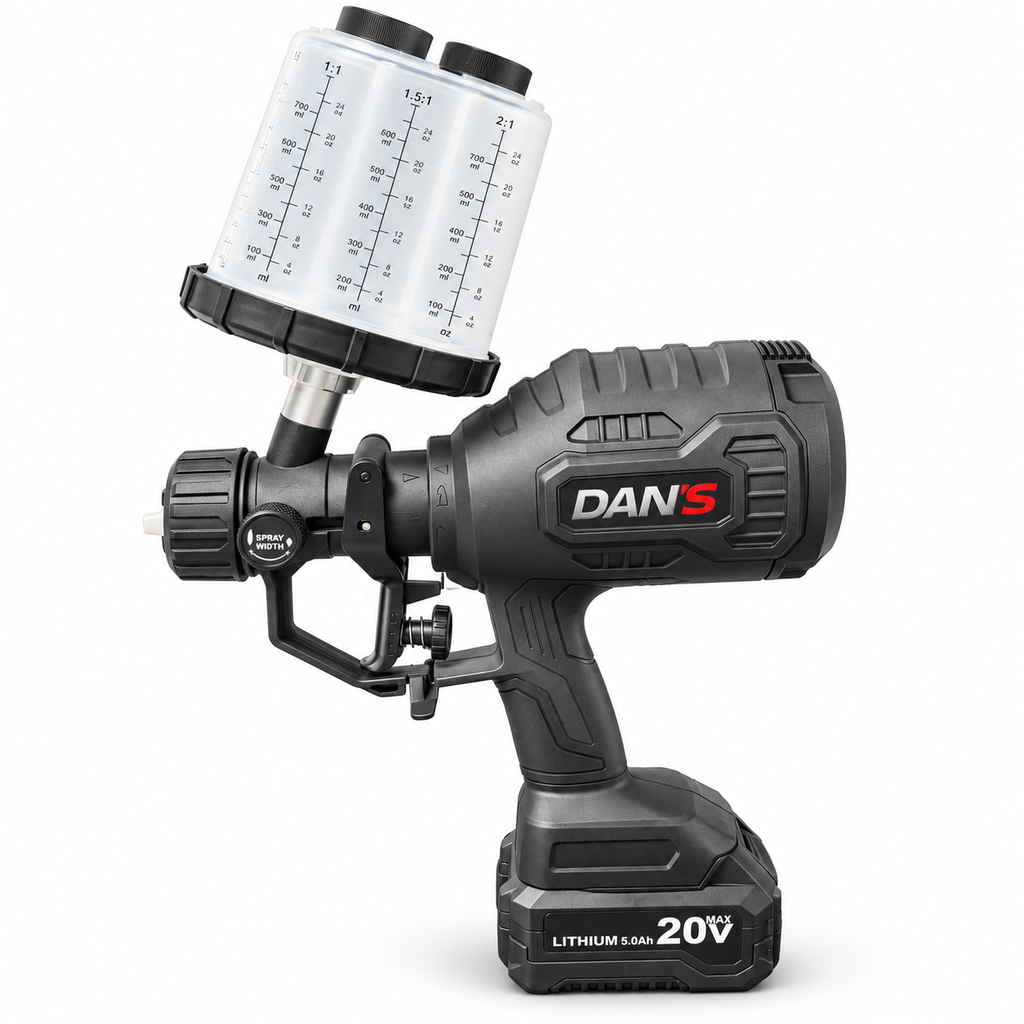

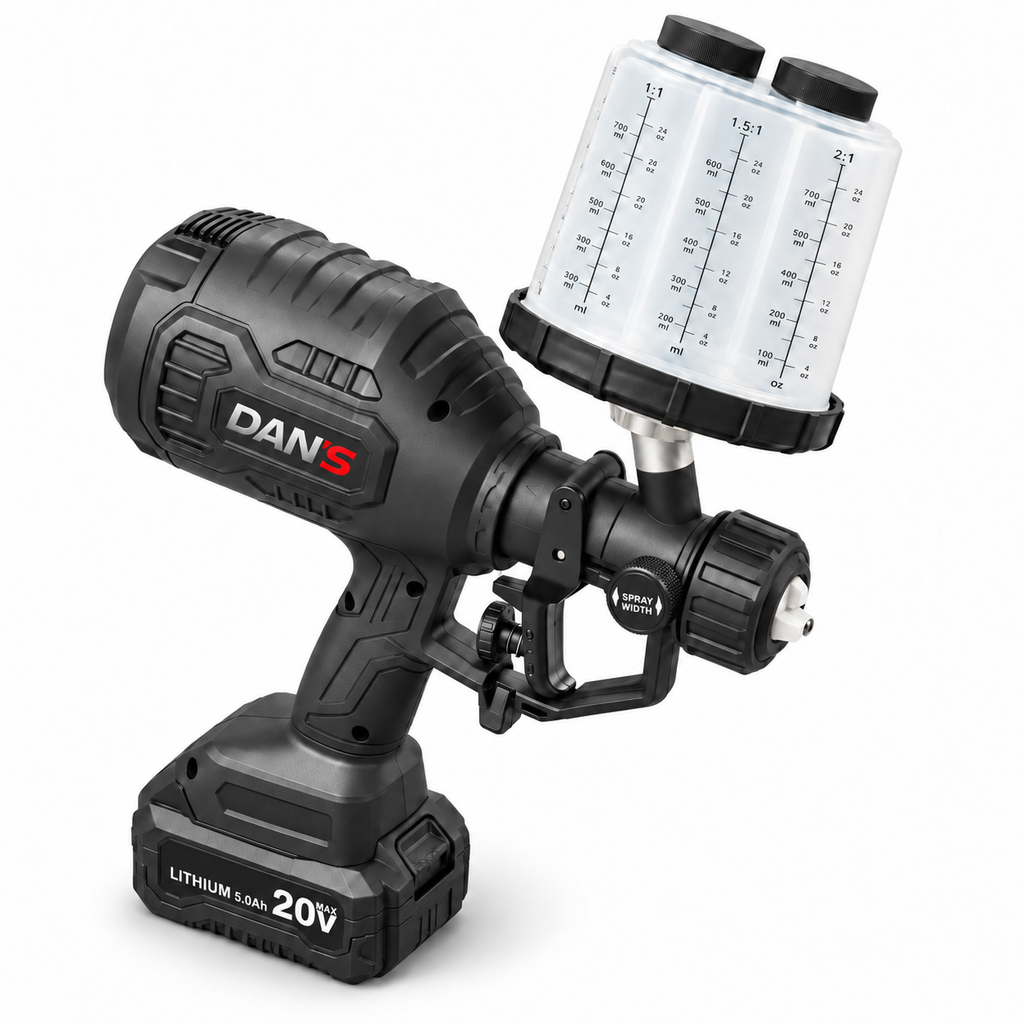

DC 20V Cordless: Portable bare-tool paint sprayer compatible with selected Makita-style 20V battery packs. Battery and charger are not included.
-

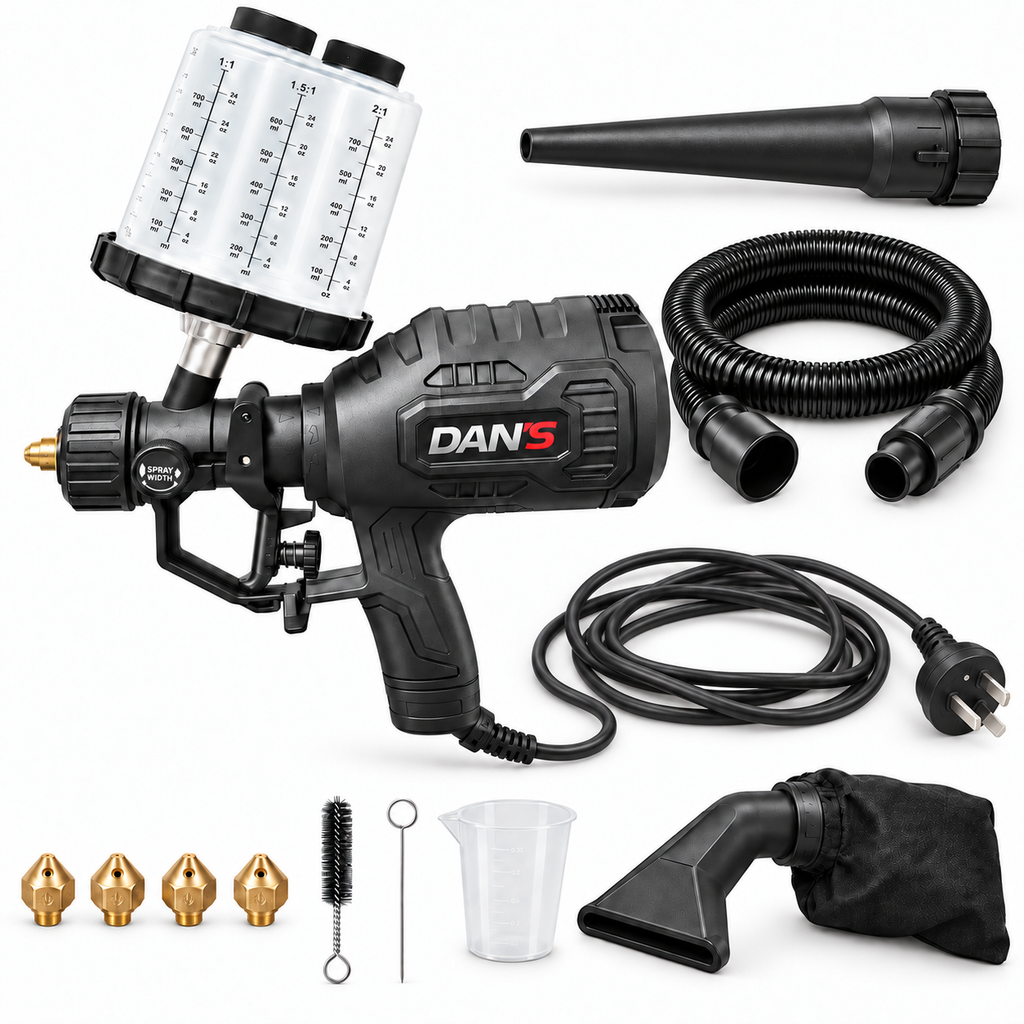

3-in-1 800W Corded: Multifunction spray, blower and vacuum system with a 2m air hose, adjustable spray width and three spray patterns.
Key features
-
HVLP electric paint spraying technology
-
Three model options for different applications
-
650ml removable paint container
-
Maximum flow rate up to 1000ml/min
-
Handles compatible materials up to 150 DIN/s
-
Interchangeable copper nozzle system
-
Three selectable spray patterns
-
Adjustable material flow and spray width
-
Suitable for furniture, cabinets, doors, fences and general painting
-
Cleaning brush, cleaning needle and viscosity cup included
-
Australian 230V corded models supplied with a 2m SAA power cable
-
Cordless model available for convenient portable spraying
Model specifications
| Specification | AC 800W Corded | DC 20V Cordless | 3-in-1 800W Corded |
|---|---|---|---|
| Power source | 230V mains power | Compatible battery pack | 230V mains power |
| Voltage | 230V–50Hz | 20V DC | 230V–50Hz Australian configuration |
| Rated power | 800W | Not specified | 800W |
| Motor type | Brushed | Brushed | Brushed |
| Maximum flow rate | 1000ml/min | 700ml/min | 1000ml/min |
| Maximum viscosity | 150 DIN/s | 120 DIN/s | 150 DIN/s |
| Paint container capacity | 650ml | 650ml | 650ml |
| Nozzle sizes | 1.0, 1.5, 1.8, 2.2 and 2.6mm | 1.5, 1.8, 2.2 and 2.6mm | 1.0, 1.5, 1.8, 2.2 and 2.6mm |
| Pre-installed nozzle | 1.8mm | 1.8mm | 1.8mm |
| Spray patterns | 3 | 3 | 3 |
| Adjustable spray width | Yes | Yes | Yes |
| Power cable | 2m with SAA plug | Not applicable | 2m with SAA plug |
| Air hose | Not included | Not included | 2m air hose |
| Blower function | No | No | Yes |
| Vacuum function | No | No | Yes |
| Battery included | Not applicable | No | Not applicable |
| Charger included | Not applicable | No | Not applicable |
Package contents
| Included item | AC 800W Corded | DC 20V Cordless | 3-in-1 800W Corded |
|---|---|---|---|
| HVLP paint sprayer | 1 | 1 | 1 |
| 650ml paint container | 1 | 1 | 1 |
| 1.0mm copper nozzle | 1 | — | 1 |
| 1.5mm copper nozzle | 1 | 1 | 1 |
| 1.8mm copper nozzle, pre-installed | 1 | 1 | 1 |
| 2.2mm copper nozzle | 1 | 1 | 1 |
| 2.6mm copper nozzle | 1 | 1 | 1 |
| Cleaning brush | 1 | 1 | 1 |
| Cleaning needle | 1 | 1 | 1 |
| Viscosity measuring cup | 1 | 1 | 1 |
| 2m air hose | — | — | 1 |
| Blower accessory | — | — | 1 |
| Vacuum accessory | — | — | 1 |
| Battery | Not required | Not included | Not required |
| Charger | Not required | Not included | Not required |
Selecting a nozzle
-
1.0mm: Thin compatible coatings and detailed applications
-
1.5mm: Stains, sealers and lighter coatings
-
1.8mm: General-purpose spraying
-
2.2mm: Thicker compatible paints and primers
-
2.6mm: Higher-viscosity compatible coatings
Always follow the coating manufacturer’s thinning, nozzle and safety recommendations. Test the spray pattern on scrap material before beginning the main project.
Important cordless-model information

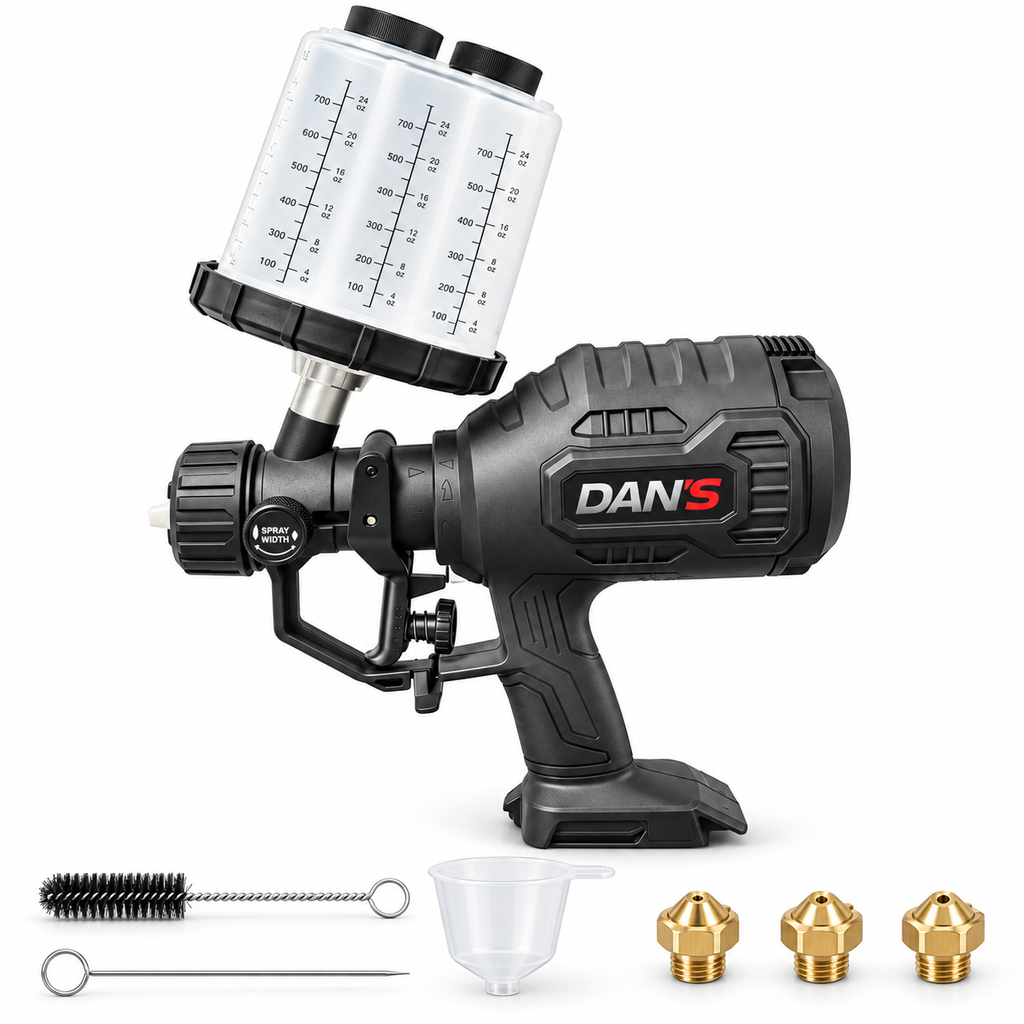

The DC model is supplied as a bare tool only. Battery and charger are not included. It is intended for use with selected compatible Makita-style 20V battery packs. Confirm the precise battery series and connection before purchase.
Safety and use
Disconnect the power supply or remove the battery before changing nozzles or cleaning the sprayer. Do not exceed the stated maximum viscosity. Use only coatings approved for the sprayer and work in a well-ventilated area while wearing appropriate personal protective equipment.
