Graco Airless LineLazer RAC 5 Switch-Tip Yellow
$64.90

Description

Graco Airless LineLazer RAC 5 Switch-Tip Yellow

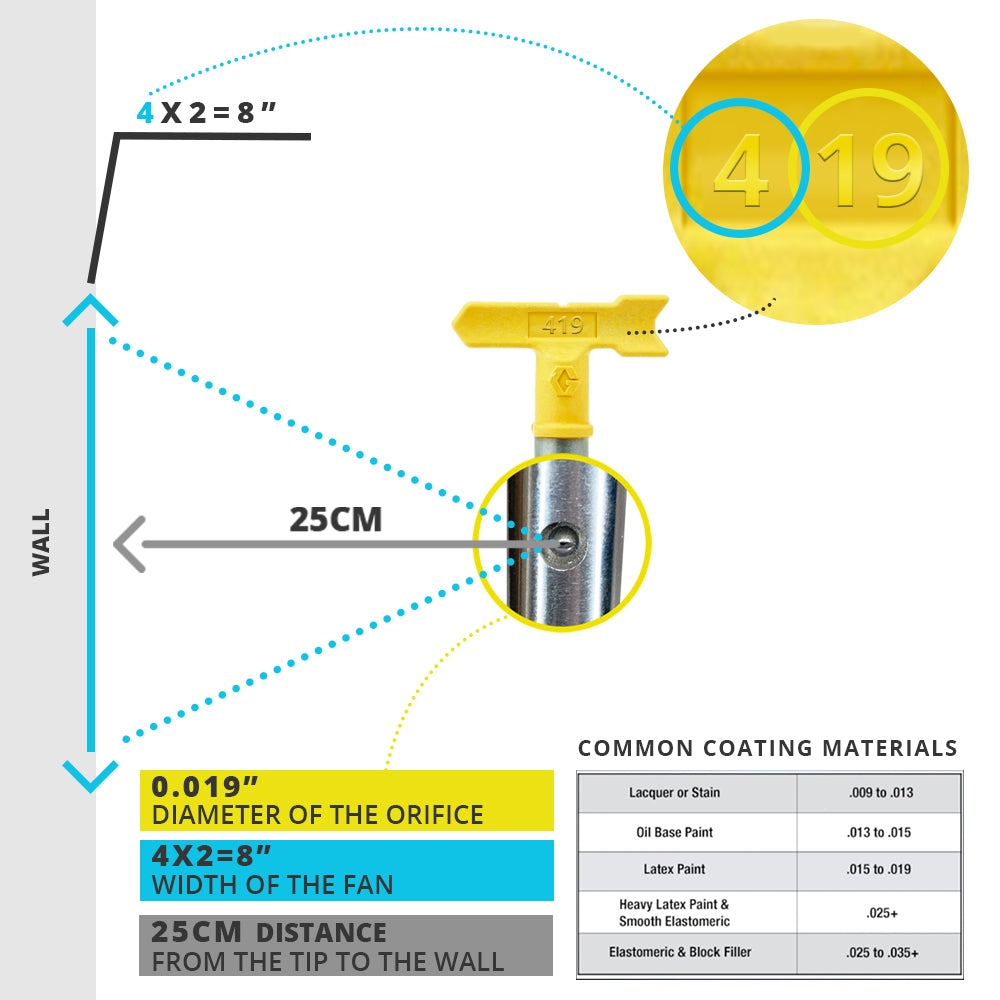

Quick Guide to Understanding Airless Spray Tips: E.g. 517. 5 is the fan size in inches and is doubled (ie. 10 inches). 17 is the orifice size in thousandths of an inch. So a 517 will spray 10 inches wide through an orifice the size of 17 thousandths of an inch. Using that formula, a 413 tip would spray 8 inches wide through an orifice of 13 thousandths of an inch. Choosing the right tip for the right job is crucial!


Water @ 2000 psi (138 bar, 13.8 MPa) - paints with a higher viscosity will decrease the flow rate

Example: for a tip with a .015 orifice and a 102 mm (4 in) pattern, order LL5215.
Fan width of a spray pattern is measured at 152 mm (6 in) from the surface

For resources, guides, instruction manuals, and more click below:

SPRAY TIP APPLICATION GUIDE: WHICH TIP TO USE FOR WHAT PAINT/SURFACE

MAGNUM SPRAYER TIP SELECTOR GUIDE

Specifications

***DUE TO THE VAST AMOUNT OF DIFFERENT TIP OPTIONS, WE DO NOT CARRY ALL IN STOCK SO PLEASE ALLOW AT LEAST 7 DAYS FOR SHIPPING. PLEASE INQUIRE BEFORE ORDERING IF NEEDED URGENTLY.***
<style>.table-wrapper{overflow: scroll; }</style>
<div class="table-wraper">
<table class="table table-bordered TipTable"style="width: 700px; border: 1px solid black;"><tbody><tr class="TipHead"style="height: 22px;"><td style="height: 22px; width: 100px;"></td><td style="height: 22px; width: 70px;"></td><td class="TipHead"colspan="4"style="height: 22px; text-align: center; width: 466px;">Fan Width (mm)</td></tr><tr style="height: 44px; background-color: #c2c2c2;"><td class="Orifice"style="width: 100px; height: 44px; text-align: center; background-color: #c2c2c2;">Orifice (1/1000 in.)</td><td class="Flow"style="height: 44px; text-align: center; background-color: #c2c2c2; width: 70px;">Flow Lpm</td><td class="Fan"style="height: 44px; text-align: center; background-color: #c2c2c2; width: 59px;">102-152</td><td class="Fan"style="height: 44px; text-align: center; background-color: #c2c2c2; width: 59px;">152-203</td><td class="Fan"style="height: 44px; text-align: center; background-color: #c2c2c2; width: 59px;">203-254</td><td class="Fan"style="height: 44px; text-align: center; background-color: #c2c2c2; width: 59px;">254-305</td></tr><tr style="height: 22px;"><td class="Orifice"style="height: 22px; text-align: center; width: 100px;">.013</td><td class="Flow"style="height: 22px; text-align: center; width: 70px;">.69</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">213</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td></tr><tr style="height: 22px;"><td class="Orifice"style="height: 22px; text-align: center; width: 100px;">.015</td><td class="Flow"style="height: 22px; text-align: center; width: 70px;">.90</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">215</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">315</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td></tr><tr style="height: 22px;"><td class="Orifice"style="height: 22px; text-align: center; width: 100px;">.017</td><td class="Flow"style="height: 22px; text-align: center; width: 70px;">1.15</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">217</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">317</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">417</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td></tr><tr style="height: 22px;"><td class="Orifice"style="height: 22px; text-align: center; width: 100px;">.019</td><td class="Flow"style="height: 22px; text-align: center; width: 70px;">1.5</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">219</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">319</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">419</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td></tr><tr style="height: 22px;"><td class="Orifice"style="height: 22px; text-align: center; width: 100px;">.021</td><td class="Flow"style="height: 22px; text-align: center; width: 70px;">1.8</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">321</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">421</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">621</td></tr><tr style="height: 22px;"><td class="Orifice"style="height: 22px; text-align: center; width: 100px;">.023</td><td class="Flow"style="height: 22px; text-align: center; width: 70px;">2.15</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">323</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">423</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">623</td></tr><tr style="height: 22px;"><td class="Orifice"style="height: 22px; text-align: center; width: 100px;">.025</td><td class="Flow"style="height: 22px; text-align: center; width: 70px;">2.5</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">325</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">425</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">625</td></tr><tr style="height: 22px;"><td class="Orifice"style="height: 22px; text-align: center; width: 100px;">.027</td><td class="Flow"style="height: 22px; text-align: center; width: 70px;">2.96</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">327</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">427</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">627</td></tr><tr style="height: 22px;"><td class="Orifice"style="height: 22px; text-align: center; width: 100px;">.029</td><td class="Flow"style="height: 22px; text-align: center; width: 70px;">3.42</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">329</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">429</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">629</td></tr><tr style="height: 22px;"><td class="Orifice"style="height: 22px; text-align: center; width: 100px;">.031</td><td class="Flow"style="height: 22px; text-align: center; width: 70px;">3.90</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">331</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">431</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">631</td></tr><tr style="height: 22px;"><td class="Orifice"style="height: 22px; text-align: center; width: 100px;">.033</td><td class="Flow"style="height: 22px; text-align: center; width: 70px;">4.42</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">333</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td></tr><tr style="height: 22px;"><td class="Orifice"style="height: 22px; text-align: center; width: 100px;">.035</td><td class="Flow"style="height: 22px; text-align: center; width: 70px;">4.98</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">335</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">435</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">635</td></tr><tr style="height: 22px;"><td class="Orifice"style="height: 22px; text-align: center; width: 100px;">.039</td><td class="Flow"style="height: 22px; text-align: center; width: 70px;">6.18</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">339</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">439</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">639</td></tr><tr style="height: 22px;"><td class="Orifice"style="height: 22px; text-align: center; width: 100px;">.043</td><td class="Flow"style="height: 22px; text-align: center; width: 70px;">7.51</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">343</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">443</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">643</td></tr><tr style="height: 22px;"><td class="Orifice"style="height: 22px; text-align: center; width: 100px;">.055</td><td class="Flow"style="height: 22px; text-align: center; width: 70px;">12.29</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td><td class="Tip"style="height: 22px; text-align: center; width: 59px;">355</td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td><td class="Tip"style="height: 22px; text-align: center; width: 59px;"></td></tr></tbody></table>
</div>

Features

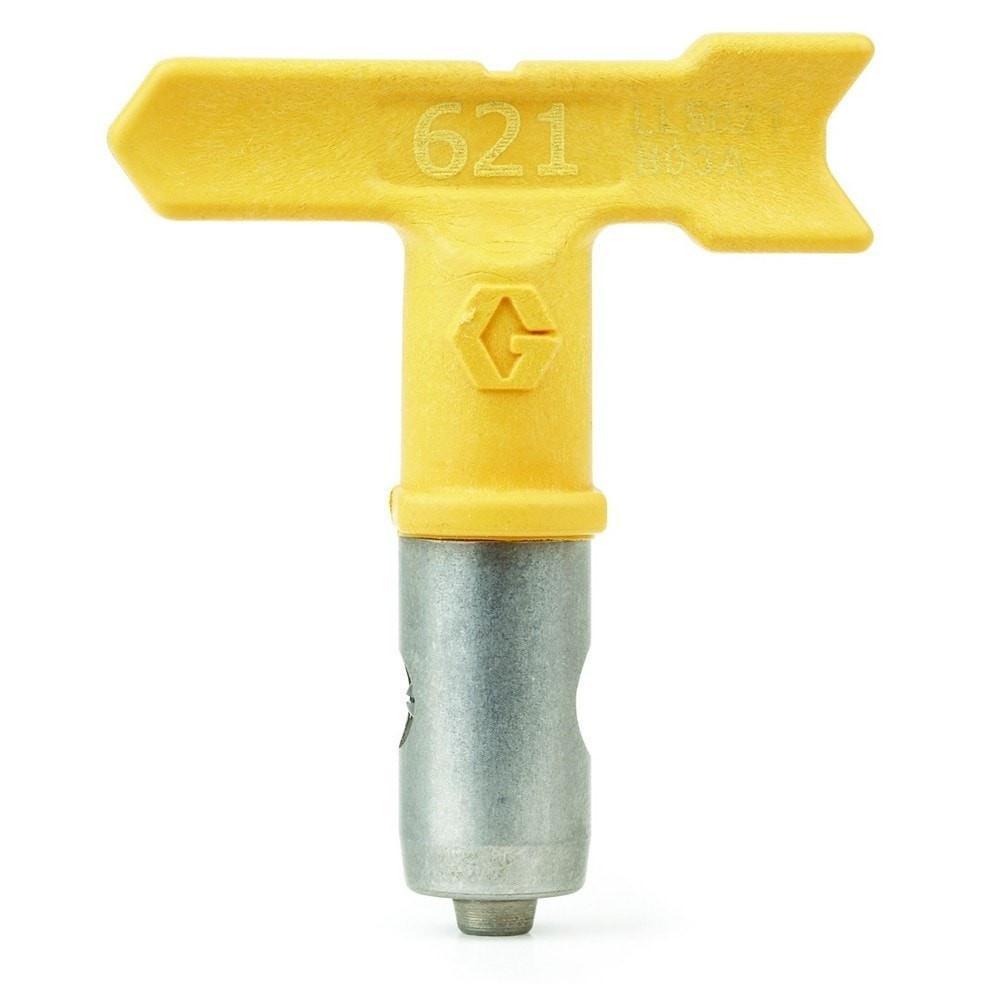

LineLazer' RAC 5 SwitchTip (Yellow Handle)

' Creates clean, laser-sharp lines with no fuzzy edges or thin spots.
' Designed specifically for parking lots, roads, warehouse floors, crosswalks and athletic fields.
' Sprays heavy water-base to thin alkyd traffic paints.
' Ensures consistent paint thickness, from edge to edge, less overspray and long-lasting lines.
