Graco Airless RAC 5 Switch-Tip Black

$50.00
Vendor: GRACO
Graco RAC 5 Switch Tips Most widely used reversible spray tip. The #1 selling tip on the market!• Used for commercial and residential paint spraying applications• Includes the patented OneSeal for most common coatings•...

Graco RAC 5 Switch Tips

Most widely used reversible spray tip. The #1 selling tip on the market!
• Used for commercial and residential paint spraying applications
• Includes the patented OneSeal for most common coatings
• Huge selection of different tip sizes available
• Laser stamped tip size is easy to identify
• Solvent seal available when using extremely hot solvents

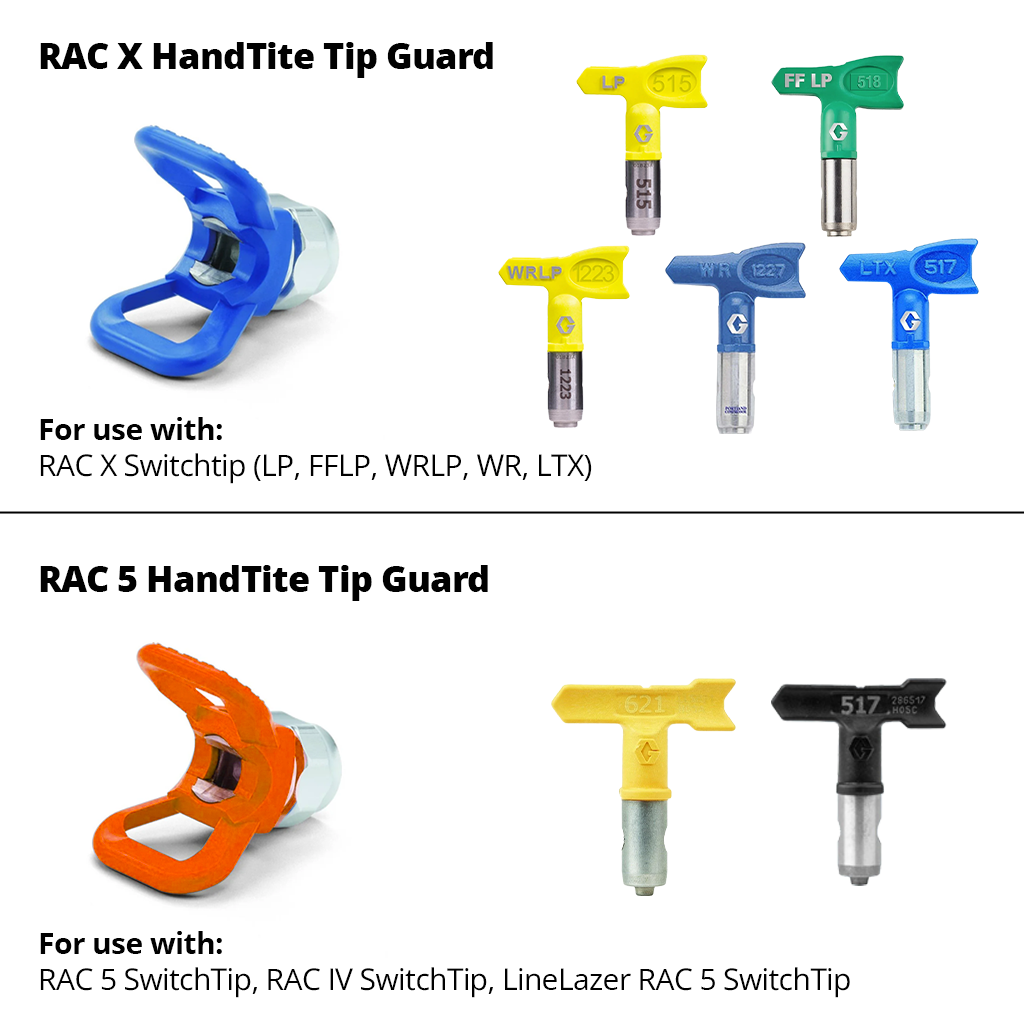

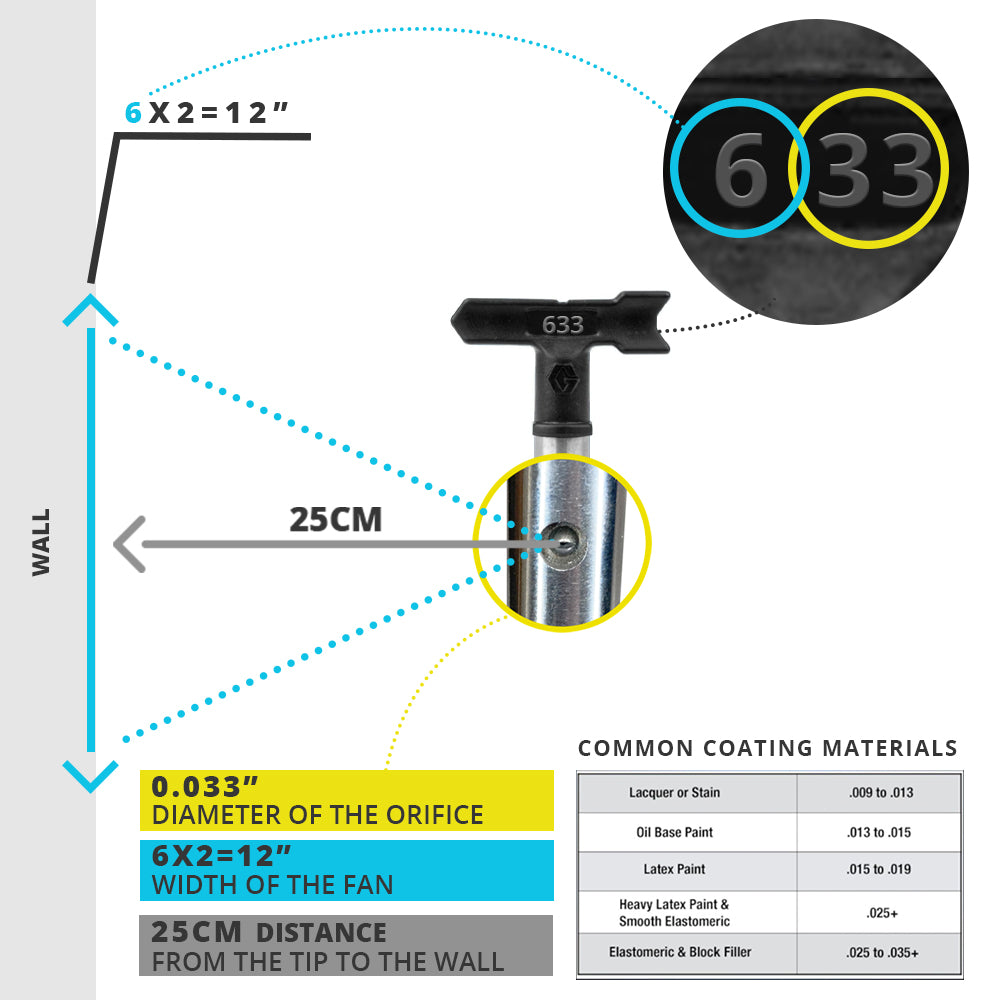

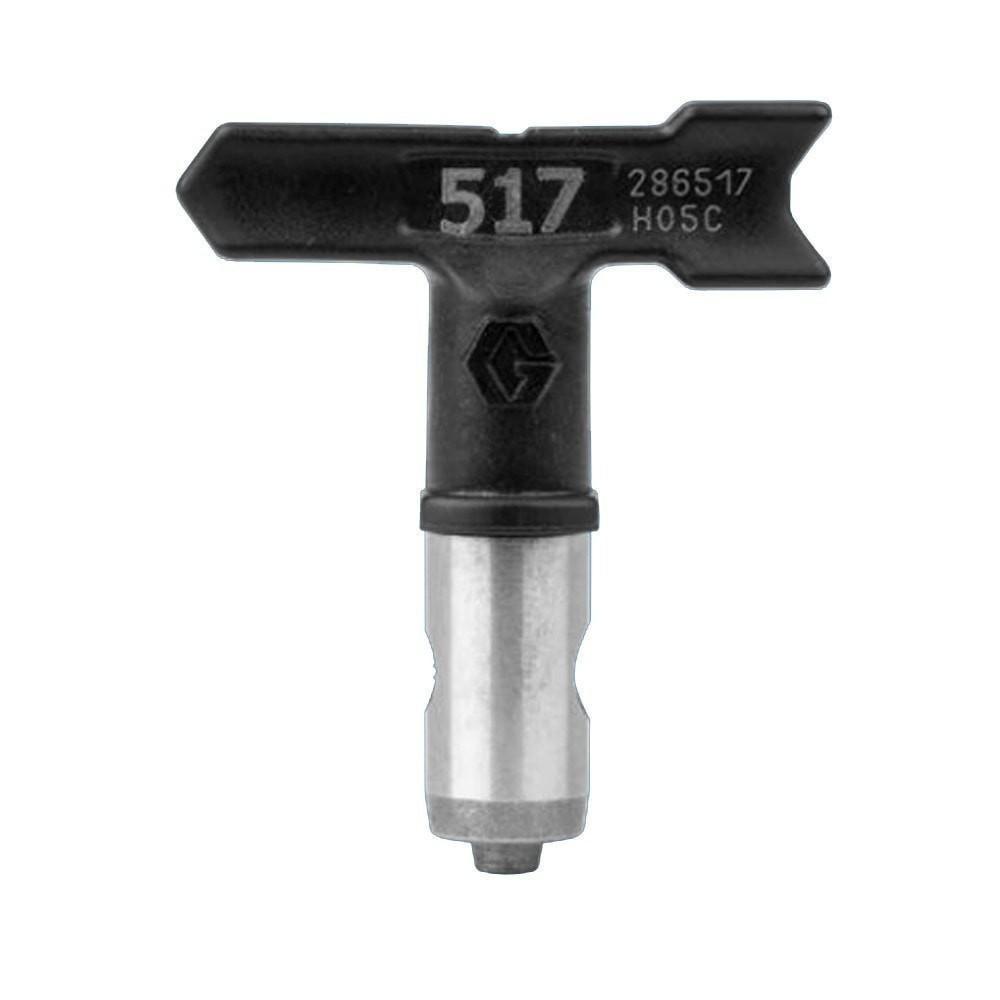

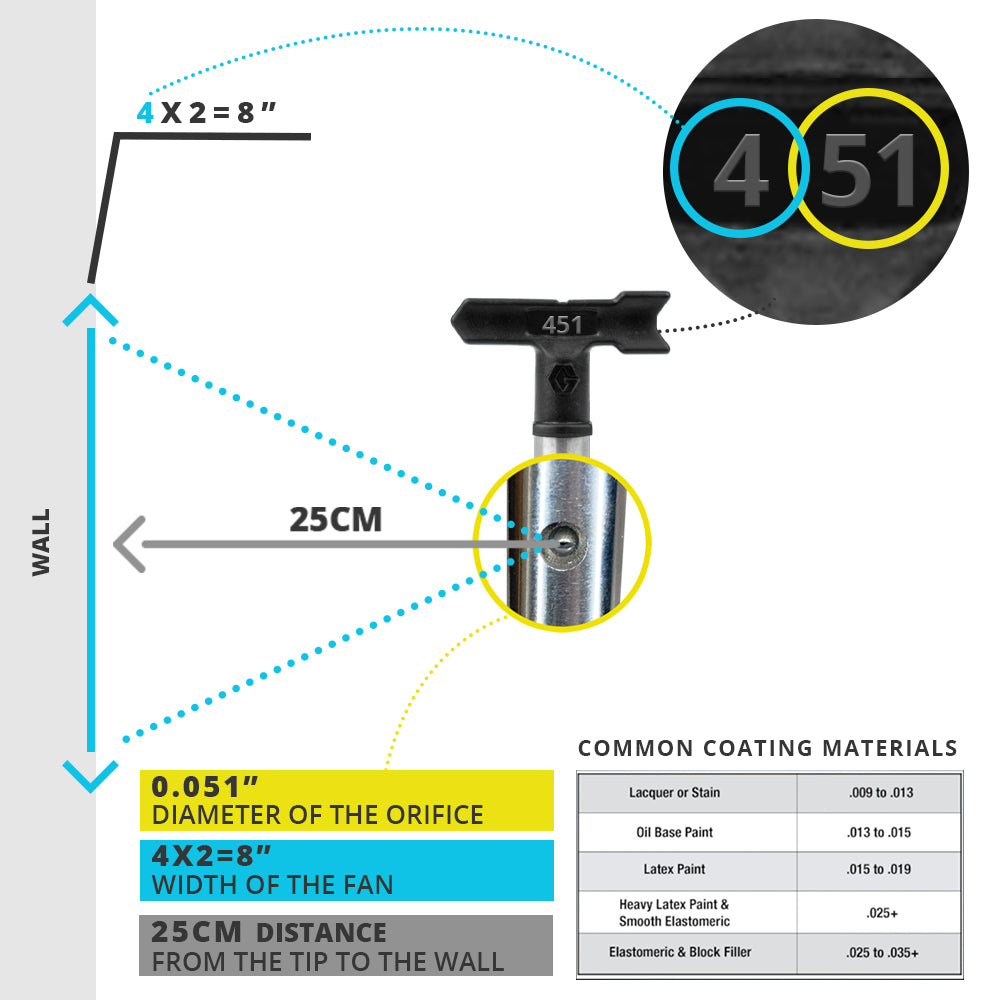

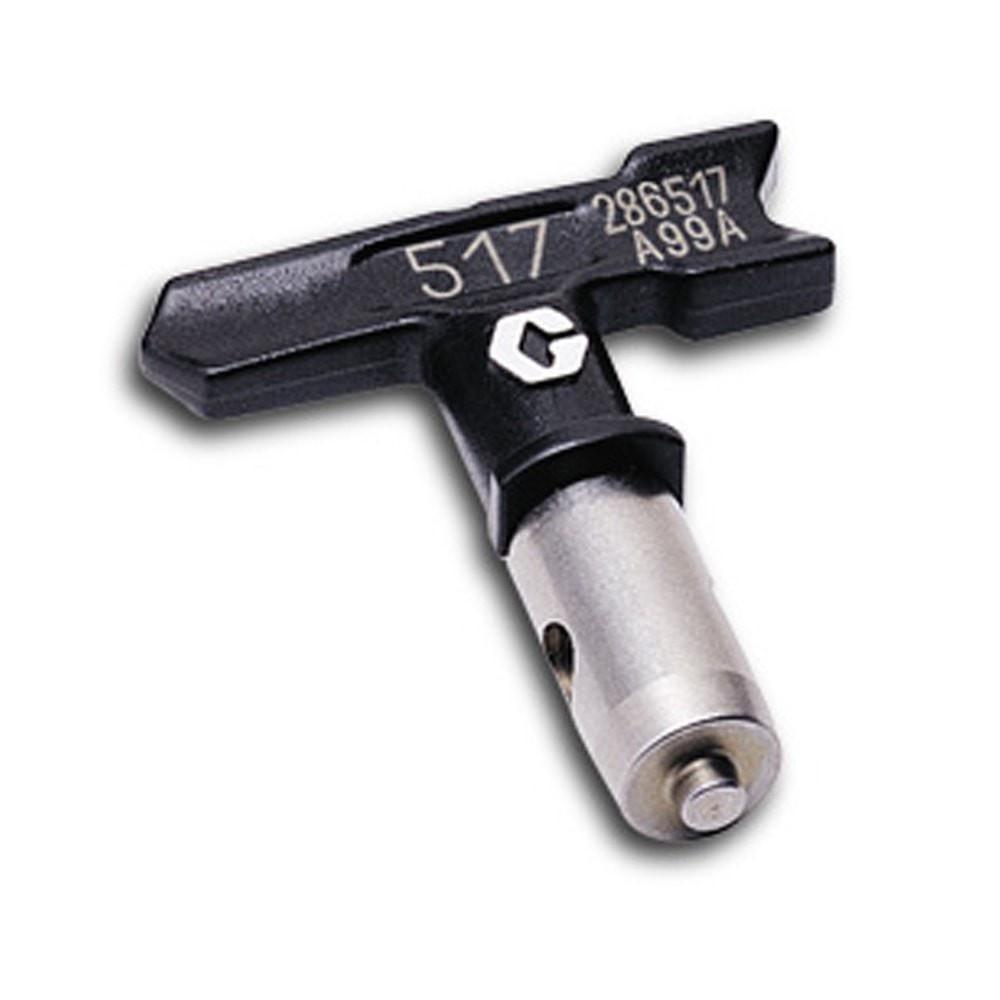

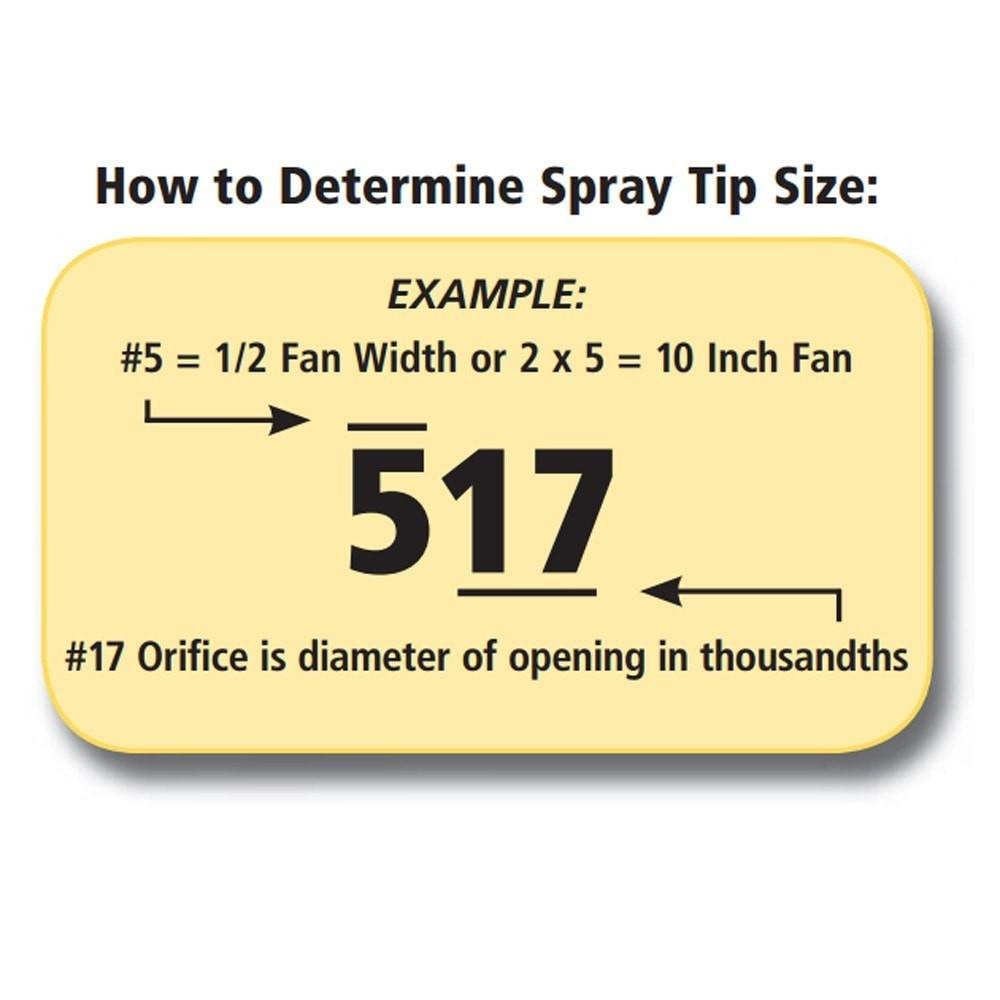

Quick Guide to Understanding Airless Spray Tips: E.g. 517. 5 is the fan size in inches and is doubled (ie. 10 inches). 17 is the orifice size in thousandths of an inch. So a 517 will spray 10 inches wide through an orifice the size of 17 thousandths of an inch. Using that formula, a 413 tip would spray 8 inches wide through an orifice of 13 thousandths of an inch.  Choosing the right tip for the right job is crucial!

***DUE TO THE VAST AMOUNT OF DIFFERENT TIP OPTIONS, WE DO NOT CARRY ALL IN STOCK SO PLEASE ALLOW AT LEAST 7 DAYS FOR SHIPPING. PLEASE INQUIRE BEFORE ORDERING IF NEEDED URGENTLY.***



  Fan Width (mm)
Orifice     (1/1000 in.) Flow Lpm 51-102 102-152 152-203 203-254 254-305 305-356 356-406 406-457 457-508
.007 .20 207 307
.009 .33 109 209 309 409 509 609
.011 .49 111 211 311 411 511 611
.013 .69 113 213 313 413 513 613
.015 .90 115 215 315 415 515 615 815
.017 1.15 217 317 417 517 617 817 917
.019 1.5 119 219 319 419 519 619 819
.021 1.8 121 221 321 421 521 621 721 821
.023 2.15 223 323 423 523 623 723
.025 2.5 225 325 425 525 625 725
.027 2.96 327 427 527 627 827
.029 3.42 429 529 629 729
.031 3.90 331 531 631 831
.033 4.42 433 533 633 833
.035 4.98 235 435 535 635 735 835 935
.039 6.18 439
.043 7.51 443 543
.045 8.23 645
.051 10.67 451 551
.055 12.29 455 555 655
.063 16.13 563
.065 17.17 665

Water @ 2000 psi (138 bar, 13.8 MPa) - paints with a higher viscosity will decrease the flow rate.

Example: for a tip with a .011 orifice and a 152 mm (6 in) pattern, order 286311
