Graco Airless RAC X LTX Switch-Tip Blue
$65.90

Description

Graco RAC X Switch Tips

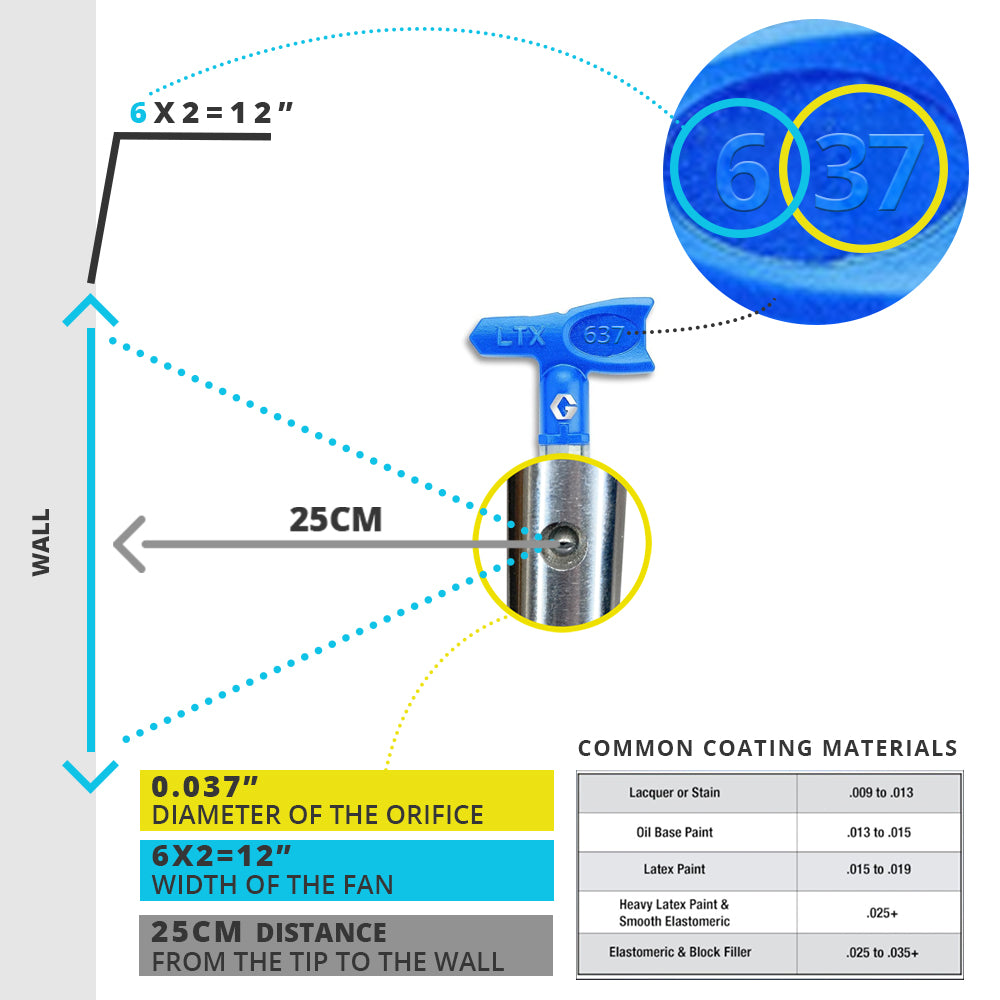

Quick Guide to Understanding Airless Spray Tips: E.g. 517. 5 is the fan size in inches and is doubled (ie. 10 inches). 17 is the orifice size in thousandths of an inch. So a 517 will spray 10 inches wide through an orifice the size of 17 thousandths of an inch. Using that formula, a 413 tip would spray 8 inches wide through an orifice of 13 thousandths of an inch. Choosing the right tip for the right job is crucial!

***DUE TO THE VAST AMOUNT OF DIFFERENT TIP OPTIONS, WE DO NOT CARRY ALL IN STOCK SO PLEASE ALLOW AT LEAST 7 DAYS FOR SHIPPING. PLEASE INQUIRE BEFORE ORDERING IF NEEDED URGENTLY.***



Water @ 2000 psi (138 bar, 13.8 MPa) - paints with a higher viscosity will decrease the flow rate .

Example: for a tip with a .015 orifice and a 152 mm (6 in) pattern, order LTX315



For resources, guides, instruction manuals, and more, click below:

SPRAY TIP APPLICATION GUIDE: WHICH TIP TO USE FOR WHAT PAINT/SURFACE

MAGNUM SPRAYER TIP SELECTOR GUIDE

EVERYTHING YOU NED TO KNOW ABOUT TIPS BY GRACO - FROM GRACO

MORE GRACO LITERATURE ABOUT SPRAYERS

Specifications

Compatible Material - Lacquer to Mastic, Latex Paint

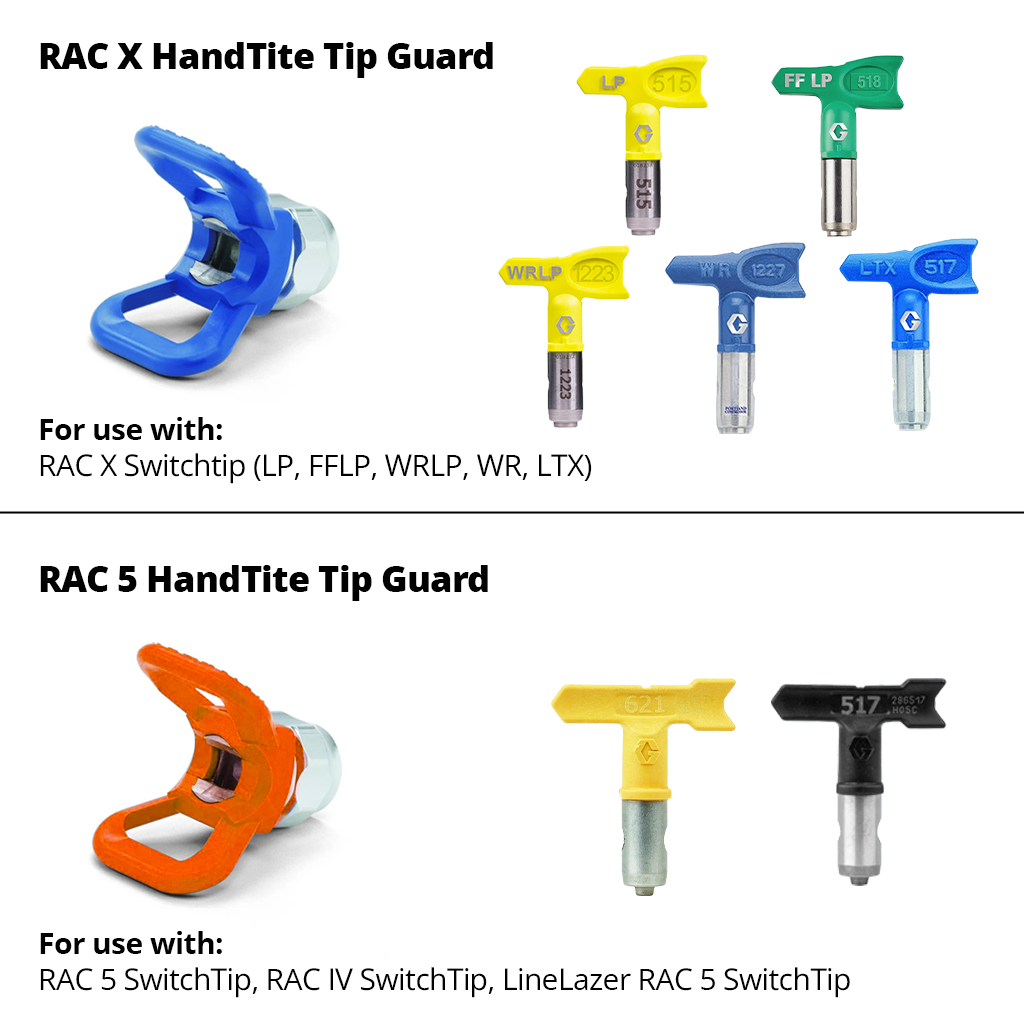

For Use With - RAC X HandTite Tip Guard

Maximum Flow Rate (l/min) - 7.50

Maximum Working Pressure (bar) - 280

Maximum Working Pressure (kPa) - 28000

Maximum Working Pressure (psi) - 4050

Fan Width (mm)
Orifice (1/1000 in.) Flow Lpm 51-102 102-152 152-203 203-254 254-305 305-356 356-406 406-457
.007 .20 207
.009 .33 109 209 309 409 509
.011 .49 111 211 311 411 511 611
.013 .69 213 313 413 513 613
.015 .90 115 215 315 415 515 615
.017 1.15 217 317 417 517 617 817
.019 1.5 219 319 419 519 619 819
.021 1.8 221 321 421 521 621 721 821
.023 2.15 323 423 523 623 723
.025 2.5 225 325 425 525 625
.027 2.96 227 327 427 527 627 827
.029 3.42 329 429 529 629 729
.031 3.90 231 331 431 531 631 831
.033 4.42 433 533 633 833
.035 4.98 235 335 435 535 635 735 835
.037 5.56 537 637
.039 6.18 439 539 639
.041 6.83 441 541 641
.043 7.51 443 543 643
.045 8.23 445 545 645
.047 8.98 547 647
.051 10.67 451 551 651
.055 12.29 455 555 655
.061 15.12 561 661
.065 17.17 665
.071 20.48 671

Features

Superior Tip Design' The tip "snaps" in two different positions: spray or reverse.


' Tip is locked securely in guard with the locking tab.


' When using extemely hot solvents, a solvent Seal is available.


' No tools needed to install the OneSeal' tip.
