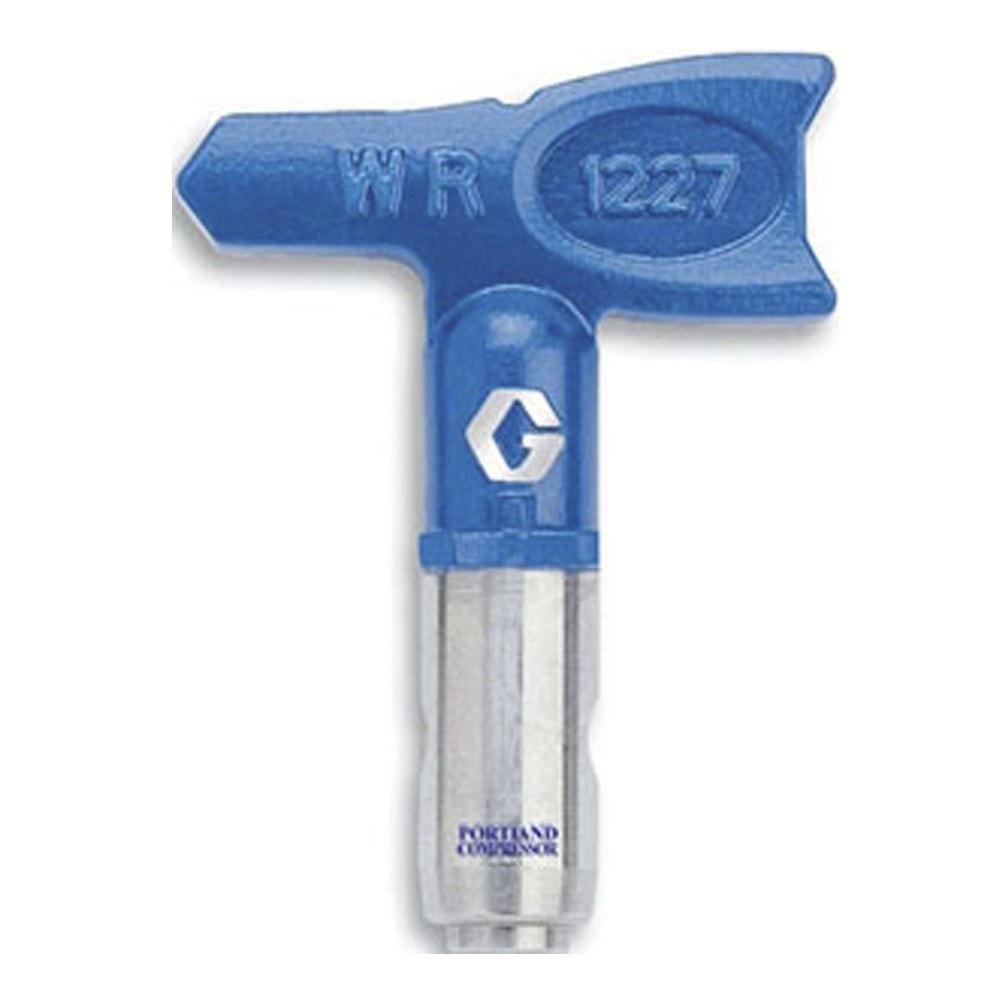

Graco Airless WideRAC X WR Switch-Tip Blue
Graco WideRAC X Switch Tips

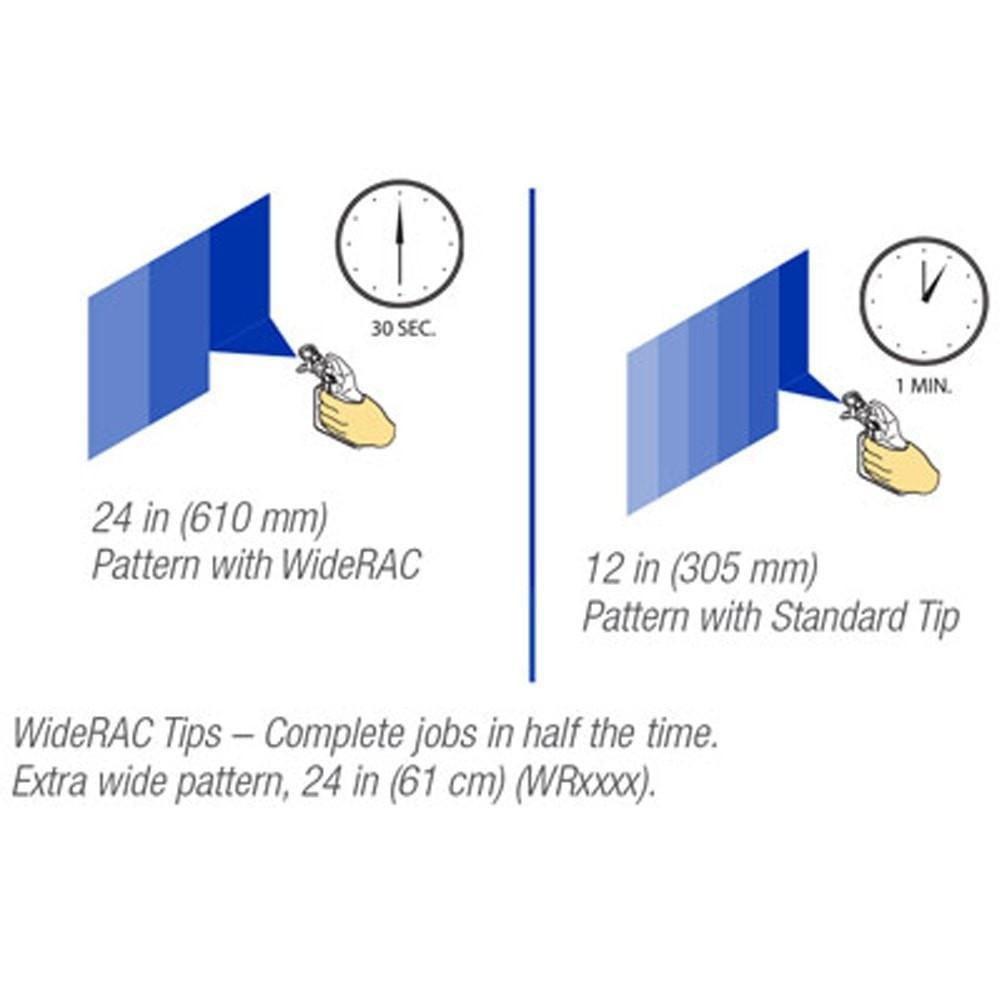

WideRAC greatly improves productivity by creating a wider spray pattern and covers double the area of a regular RAC tip.
• WideRAC tips are made for larger airless sprayers for bigger, industrial-sized jobs.
• Wide spraying is more difficult to control and the wide spray tips are not always available in all sizes.
When you use WideRAC, be sure to increase the flow rate of the tip to ensure the same ml build and rate of application (arm speed). Also, make sure your airless sprayer can support the larger tip size.

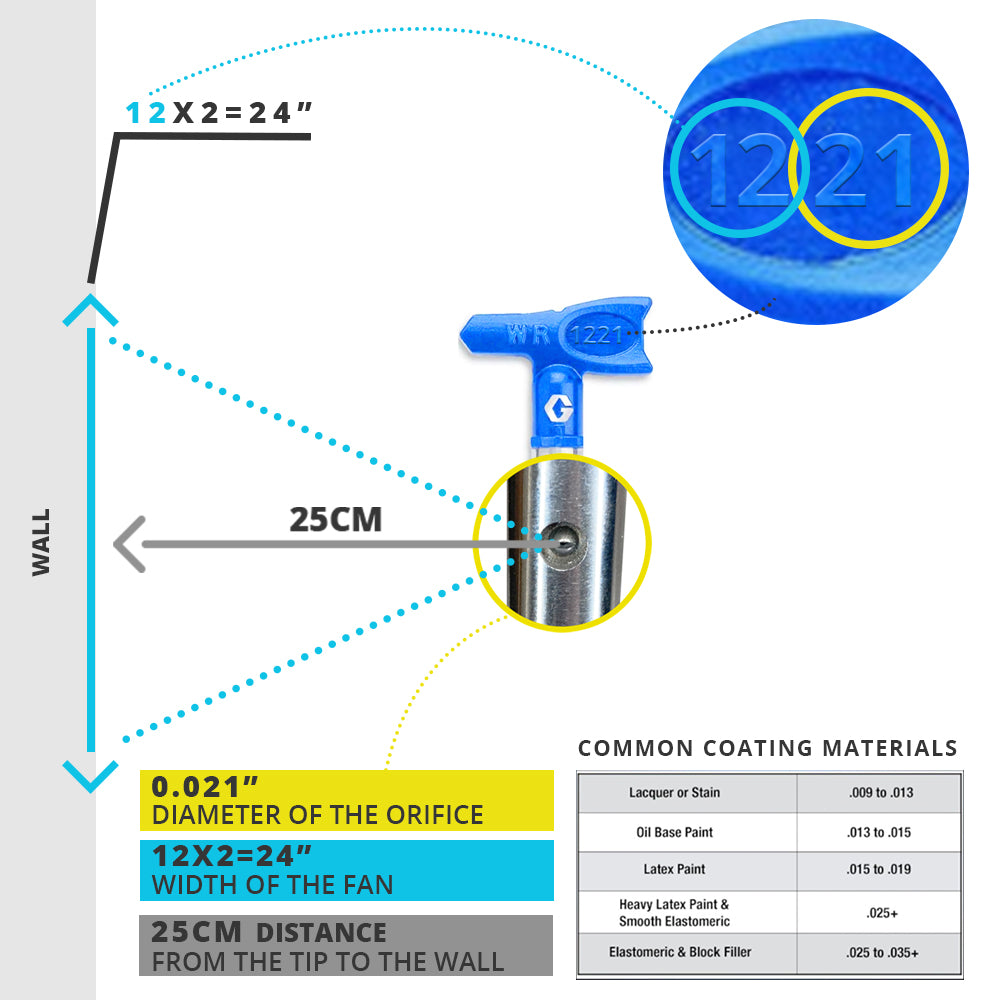

Quick Guide to Understanding Airless Spray Tips: E.g. 517. 5 is the fan size in inches and is doubled (ie. 10 inches). 17 is the orifice size in thousandths of an inch. So a 517 will spray 10 inches wide through an orifice the size of 17 thousandths of an inch. Using that formula, a 413 tip would spray 8 inches wide through an orifice of 13 thousandths of an inch. Choosing the right tip for the right job is crucial!
***DUE TO THE VAST AMOUNT OF DIFFERENT TIP OPTIONS, WE DO NOT CARRY ALL IN STOCK SO PLEASE ALLOW AT LEAST 7 DAYS FOR SHIPPING. PLEASE INQUIRE BEFORE ORDERING IF NEEDED URGENTLY.***
Tip Orifice Size - Inches
|Fan Width 24 Inches / 610mm
|Flow Rate lpm||1.79||2.15||2.54||2.96||3.42||3.90||4.42||4.98||5.56||6.18|
|RAC5 or RAC X||WideRAC|
|415 or 515||1221 or 1223|
|417 or 517||1223 or 1225|
|419 or 519||1225 or 1227|
|421 or 621||1229 or 1231|
|523 or 623||1233 or 1235|
|525 or 625||1235 or 1237|
Water @ 2000 psi (138 bar, 13.8 MPa) - paints with a higher viscosity will decrease the flow rate .
Example: for a tip with a .027 orifice and a 610 mm (24 in) pattern, order WR1227
