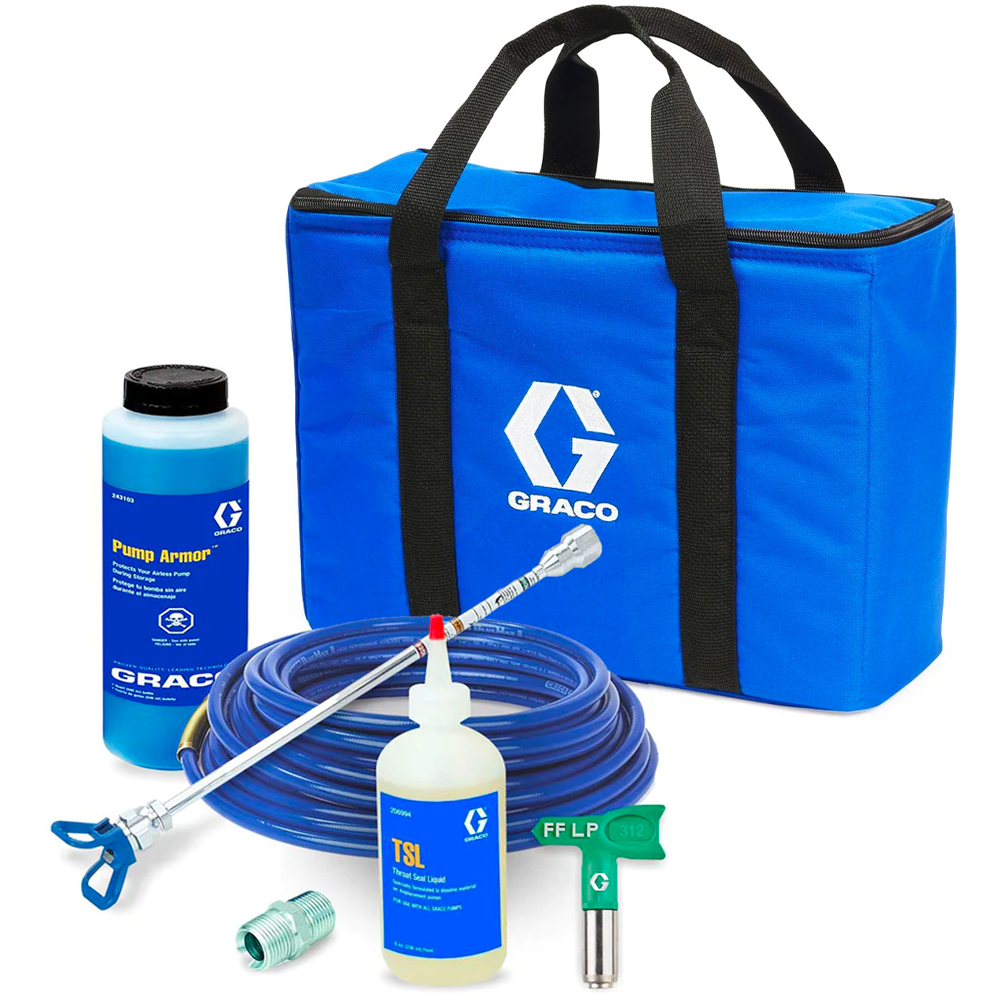

Graco Deal Combo Accessories Bag - Paint Access
1 - GRACO Storage Bag - 17M883
1 - Pump Armor 1L (Single) - 243103
1 - 25cm Tip Extension w/ RAC X Guard (10") - 287019

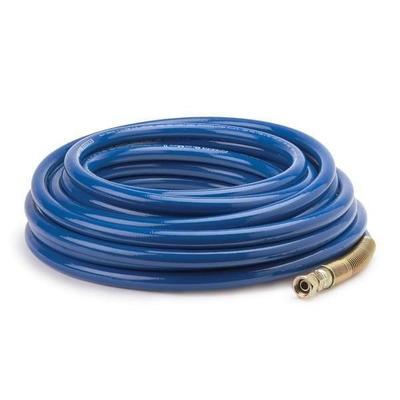

1 - 7.5m Airless Hose (1/4") 6.4mm 3300 PSI - 240793
1 - Hose Fitting, 1/4 in x 1/4 in - 156971
1 - Graco Airless Fine Finish RACX FFLP SwitchTip Green 312 - FFLP312
1 - TSL Throat seal liquid - 206994

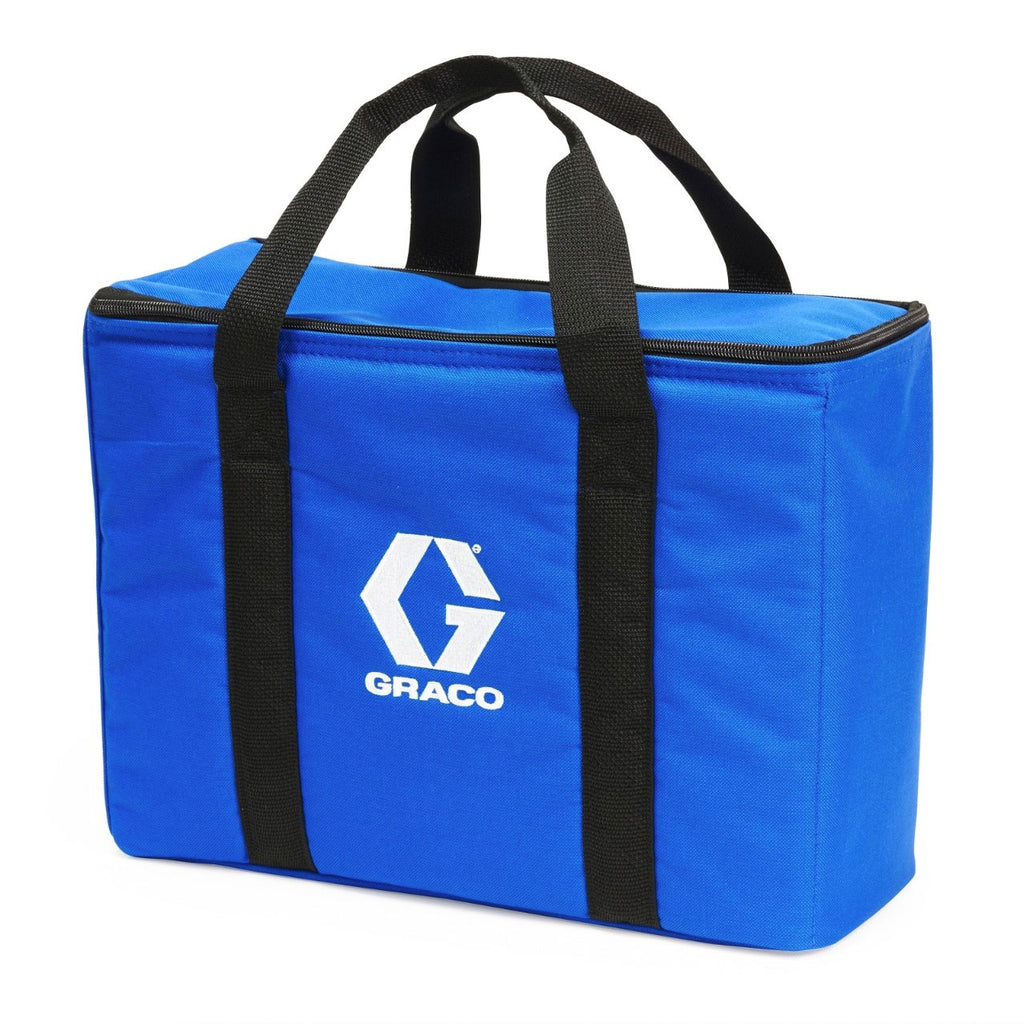

1- GRACO Storage Bag
The Graco Storage Bage keep your Graco handheld sprayer and accessories protected and in one place with this a durable storage bag.
- Suit to Ultra Handheld Airless Sprayers
- Durable material

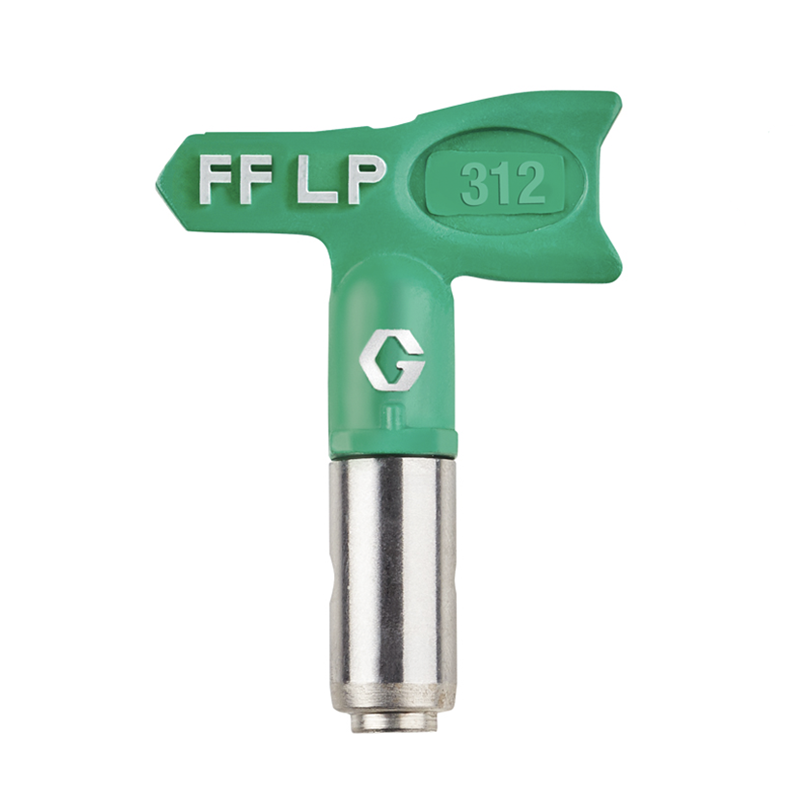

1 - Graco Airless Fine Finish Low Pressure 312 RAC X FFLP SwitchTips Green
Graco Fine Finish RAC X Switch Tips
Superior Tip Design
' RAC X Fine Finish SwitchTips spray at lower pressures than standard tips and Fine Finish RAC 5 tips
' There is a tighter, more consistent fan pattern and less overspray
' Pre-Orifice design makes it less likely to plug and easier to clean due to diffuser design
' RAC X Fine Finish SwitchTips offer finer atomisation and soft edges easier for overlapping
' Turns your Graco airless sprayer into a high production fine finish sprayer
' Also includes solvent seal for extremely hot solvents
Quick Guide to Understanding Airless Spray Tips: E.g. 517. 5 is the fan size in inches and is doubled (ie. 10 inches). 17 is the orifice size in thousandths of an inch. So a 517 will spray 10 inches wide through an orifice the size of 17 thousandths of an inch. Using that formula, a 413 tip would spray 8 inches wide through an orifice of 13 thousandths of an inch. Choosing the right tip for the right job is crucial!
Typical Applications: Cabinetry, wood working, metal and fine finish surfaces
Materials: Dyes, Ink, Stains, Lacquers, Oils, Enamels, Urethanes, Auto finishes
Corresponding Guards: RAC X 246125, Flat Tip 220251, Flat Tip 220247
***DUE TO THE VAST AMOUNT OF DIFFERENT TIP OPTIONS, WE DO NOT CARRY ALL IN STOCK SO PLEASE ALLOW AT LEAST 7 DAYS FOR SHIPPING. PLEASE INQUIRE BEFORE ORDERING IF NEEDED URGENTLY.***
For resources, guides, instruction manuals, and more, click below:
2 - Graco Whip Hose provides more flexibility for Airless Gun Operation
At PaintAccess.com.au we have largest selection of Graco Whip Hoses - professional approach gives you more flexibility for spraying and release pressure from your arm.
The BlueMax II Whip Hose provides more flexibility and increased operator control at the gun.

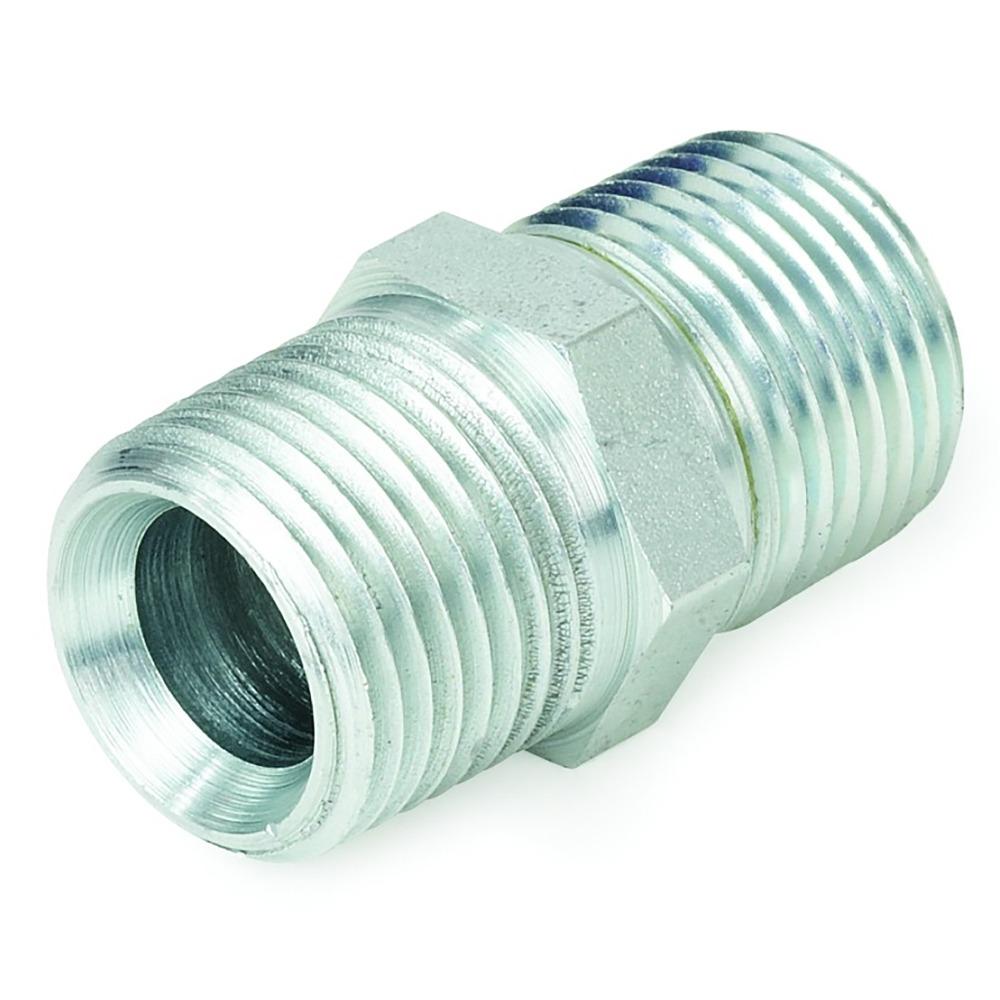

3 - Graco 1/4″ to 1/4″ Hose Joiner
Quality hose connector from Graco high pressure spraying hose
4 - Graco fluids and protectants keep your equipment in top-performing condition and are approved for use in all airless pumps
Prevents paint and coatings from drying onto the displacement rod and packings
Extends pump life
- Specially formulated to dissolve material on displacement rods
- For use with Graco pumps

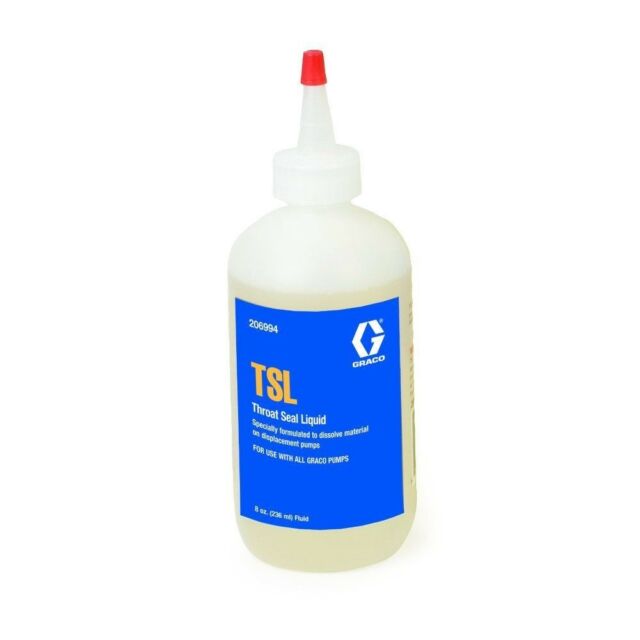

Throat seal liquid:
Graco TSL is specially formulated to dissolve material on displacement rods and prevent friction, wear or an abrasion from dried pigment particles. Motor oil not a substitute for TSL.
Portable pimps: Fill wet cup 1/2in. (13mm) fixed pumps: Fill wet cup 2/3 full
- 24 Liter (8 ounces)
Proven Quality. Leading Technology

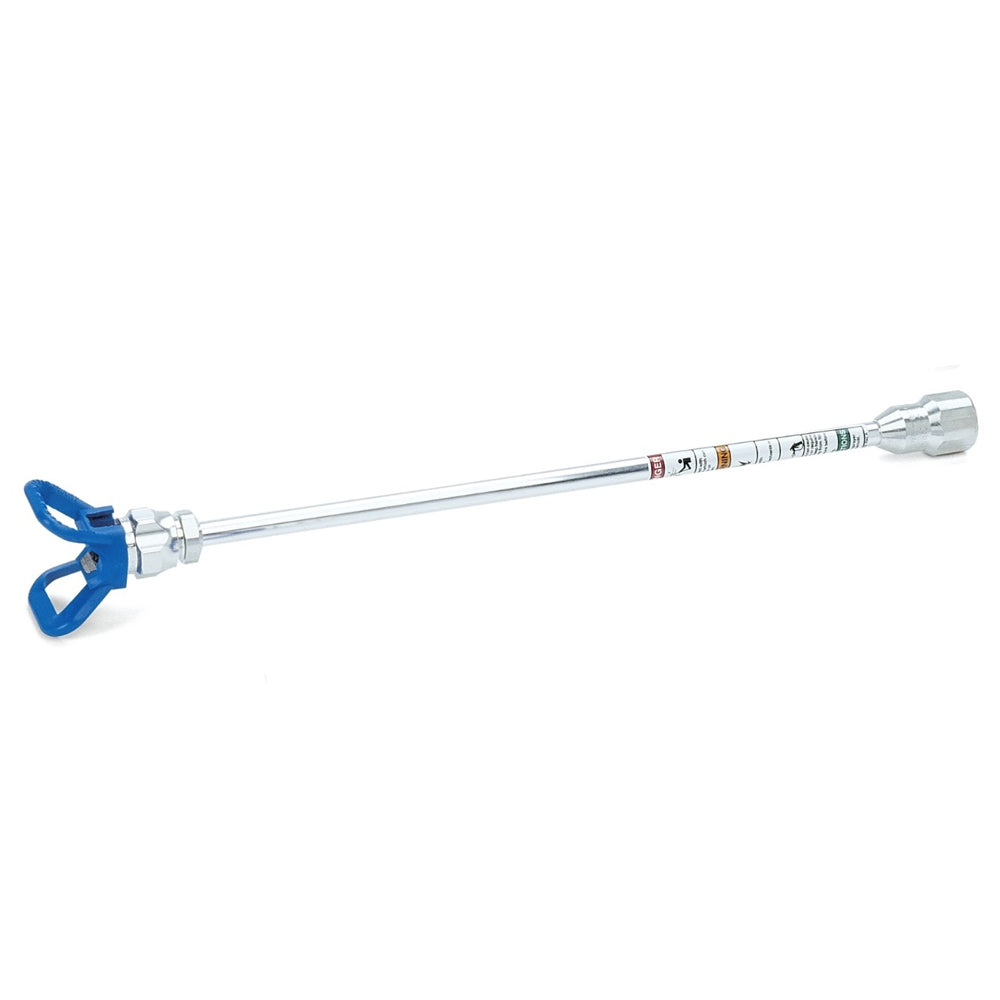

5 - RAC X Tip Extensions
Maximum WPR: 4050 psi, (280 bar, 28.0 MPa)
- Includes: RAC X HandTite Guard standard with 7/8 in (22 mm) gun nut and OneSeal
- Can be combined for extended reach up to 6 ft (1.8 m):
- 287019 Extension Pole 10 in (25 cm)
- 287021 Extension Pole 20 in (50 cm)
- 287020 Extension Pole 15 in (38 cm)
- 287022 Extension Pole 30 in (75 cm)
Extend your reach. A full range of accessories has been developed to highly increase the comfort, the speed and the productivity that you need to paint hard-to-reach areas.
Airless Tip Extensions can be attached directly to an airless gun making them ideal for spraying ceilings, overhangs and decks. A CleanShot Valve can be attached directly to any extension and provides a clean fluid shutoff at the tip eliminating spitting.
These extension tips will fit most airless sprayer guns with 7/8" thread
For resources on replacement kits and other instruction manuals, click below:

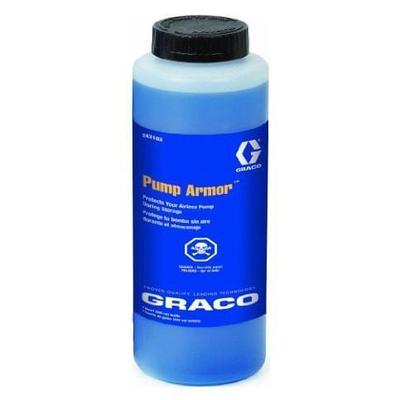

6 - Graco 243103 Pump Armor Storage Fluid for Airless Paint Spray Gun
- Wide-mouth bottle conveniently fits most pump intake tubes: no waste
- Easy to use
Helps to eliminate damage due to corrosion during long-term storage. Fill your pump and leave until you use your sprayer again. Freeze-proof to -30-Degree F.
Graco 243103 Pump Armor Storage Fluid for Airless Paint Spray Gun
