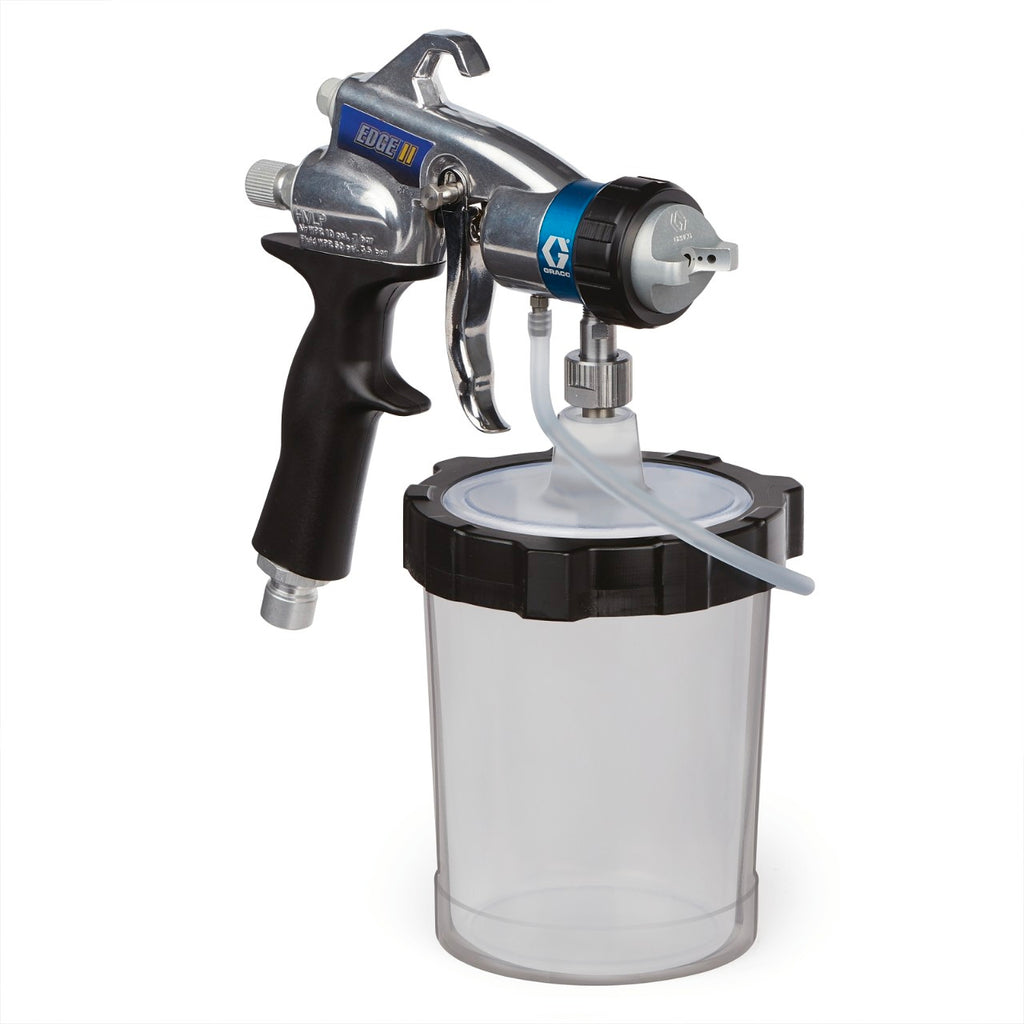

Graco Edge II Gun with FlexLiner System

The GRACO EDGE II HVLP Spray Gun with FlexLiner System is an advanced, high-performance finishing gun engineered to deliver the ultimate control and maximum material flow for professional fine-finish applications. Loaded with cutting-edge technology, it integrates material and airflow adjustments into a single intuitive control dial, allowing tradespeople to achieve a pristine, factory-quality layout on cabinets, trims, and furniture.

Quick Needle Replacement Guide (Toolless):

Remove the front air cap and fluid nozzle.
Slide the integrated trigger lever back to release the needle assembly.
Pull the needle straight out from the front of the gun.

Ideal Applications:

Premium kitchen cabinetry and architectural woodworking trim coatings.
Automotive components, metal railings, and custom metal fabrications.
High-end furniture upcycling, staining, and clear lacquering.

Specifications

Compatible Material - Varnish, Enamel, Latex, Stains
For Use With - FinishPro HVLP Sprayers
Gun Activation - Manual
Gun Type - HVLP Gun
Includes - 1 qt FlexLiner Cup, #3 Quick Release Fluid Set
Maximum Air Inlet Pressure (MPa) - 0.07
Maximum Air Inlet Pressure (bar) - 0.7
Maximum Air Inlet Pressure (kPa) - 70
Maximum Air Pressure (MPa) - 0.07
Maximum Air Pressure (bar) - 0.7

Features

Integrated Flow Control: Combines material fluid volume and air pressure into one simple, highly accurate control knob. Features a 360° rotating indicator dial for perfectly repeatable spray settings.
3-Position Adjustable Air Cap: Conveniently located at the front of the gun to change your spray pattern from horizontal to vertical or round instantly.
EasyGlide 2-Finger Trigger: Offers an incredibly light trigger pull—up to 75% lighter than competing models—giving you superior ergonomic control and reducing hand strain over extended use.
Quick Release Needle Design: Swap out needle/nozzle fluid sets from the front of the gun with just a single click—no complex teardown tools required.
FlexLiner Fluid System: Allows you to spray at any angle—even completely upside down—without losing prime, while providing fast clean-up with disposable cup liners.
