Graco FinishPro™ HVLP 7.0 Standard Series (17R074)

GRACO

$2,221.00

SKU: 17R074

Quantity

Out of stock

Pay in 4 interest-free payments with

Payment & Security | Refund Policy

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Graco FinishPro™ HVLP 7.0 Standard Series (17R074)

$2,221.00

Description

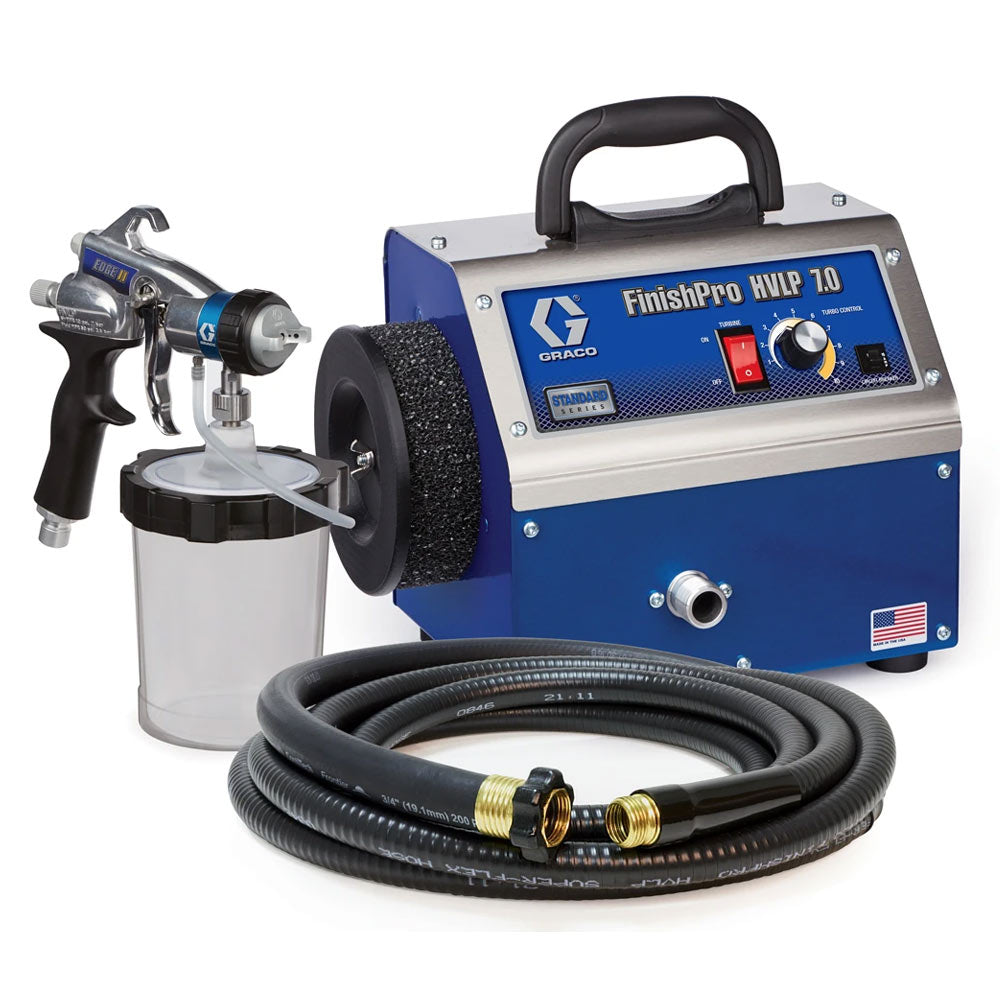

Graco FinishPro™ HVLP 7.0 Standard Series – 3-Stage Turbine Sprayer

The Graco FinishPro™ HVLP 7.0 Standard Series is a highly reliable, 3-stage turbine sprayer designed for professionals and serious decorators who need a high-quality fine finish on small to medium-sized projects. Built for Everyday Reliability, this system utilizes exclusive TurboForce™ Technology to generate more air pressure through each stage, allowing for higher production speeds with significantly less material thinning.Equipped with the EDGE II Gun, the HVLP 7.0 provides superior control over fluid and airflow through a single, patented user interface. The compact "Tough Box" design ensures the unit is easy to transport while protecting the motor from the rigors of the jobsite. With the FlexLiner™ Bag System, you can spray at any angle—even upside down—making it the perfect tool for intricate trim, furniture, and cabinetry work.

Compare Table

Click here to open table


	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5
SPECIFICATIONS
Part numbers	17R074	17R075	17R078	17R079	17R080	17R081
Warranty	3 years	3 years	3 years	3 years	3 years	3 years
Turbine stages	3	5	3	5	5	5
Motor Watts/HP	1200/1.63	1300/1.77	1200/1.63	1300/1.77	1600/2.18	1800/2.45
Max. air working pressure - bar (PSI)	0.48 (7)	0.6 (9)	0.5 (7)	0.62 (9)	0.7 (9.5)	0.7 (9.5)
Weight - kg (lbs)	8.1 (18)	8.6 (19)	10.4 (23)	10.8(24)	11.7 (26)	13.6 (30)
FEATURES
TurboForceTM II technology	■	■	■	■	■	■
SmartStart			■	■	■	■
TCS System	■	■	■	■	■	■
Quick release needle	■	■	■	■	■	■
Flex LinerTM System	■	■	■	■	■	Remote Cup
Air flow control at the gun	Preset Ratio	Preset Ratio	■	■	■	■
Material volume control at the gun	■	■	■	■	■	■
Spray fan size control at the gun	■	■	■	■	■	■
Needle nozzle storage			■	■	■	■
Air filtration	Foam	Foam	Automotive	Automotive	Automotive	Automotive
COMPOSITION
Needle nozzle-kit	#3	#3	#3	#3, #4	#3, #4, #5	#3, #4, #5
Gun	EDGE® II	EDGE® II	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus
Hose	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159
Whip hose					Super-FlexTM Air 1.2M - 17R299	Super-FlexTM Air 1.2M - 17R299
Whip hose					■	■
	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5


	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5
SPECIFICATIONS
Part numbers	17R074	17R075	17R078	17R079	17R080	17R081
Warranty	3 years	3 years	3 years	3 years	3 years	3 years
Turbine stages	3	5	3	5	5	5
Motor Watts/HP	1200/1.63	1300/1.77	1200/1.63	1300/1.77	1600/2.18	1800/2.45
Max. air working pressure - bar (PSI)	0.48 (7)	0.6 (9)	0.5 (7)	0.62 (9)	0.7 (9.5)	0.7 (9.5)
Weight - kg (lbs)	8.1 (18)	8.6 (19)	10.4 (23)	10.8(24)	11.7 (26)	13.6 (30)
FEATURES
TurboForceTM II technology	■	■	■	■	■	■
SmartStart			■	■	■	■
TCS System	■	■	■	■	■	■
Quick release needle	■	■	■	■	■	■
Flex LinerTM System	■	■	■	■	■	Remote Cup
Air flow control at the gun	Preset Ratio	Preset Ratio	■	■	■	■
Material volume control at the gun	■	■	■	■	■	■
Spray fan size control at the gun	■	■	■	■	■	■
Needle nozzle storage			■	■	■	■
Air filtration	Foam	Foam	Automotive	Automotive	Automotive	Automotive
COMPOSITION
Needle nozzle-kit	#3	#3	#3	#3, #4	#3, #4, #5	#3, #4, #5
Gun	EDGE® II	EDGE® II	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus
Hose	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159
Whip hose					Super-FlexTM Air 1.2M - 17R299	Super-FlexTM Air 1.2M - 17R299
Whip hose					■	■
	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5

Specifications

Turbine Stages: 3-Stage
Max Pressure: 7 PSI (0.48 bar)
Motor: 1200 Watts / 1.63 HP
Series Type: Air-Powered Standard Series
Warranty: 3-Year Limited Warranty

Features

TurboForce™ Technology: Proprietary turbine design builds more pressure to provide 4X the fluid flow at the needle compared to traditional systems.
Turbo Control System: Adjust the turbine speed to match your material; reduces heat, runs quieter, and extends the overall life of the system.
EDGE II Gun: Features a 75% lighter trigger pull than competitors and a quick-release needle system that allows for front-loading changes with a single click.
FlexLiner™ Bag System: Replaces traditional hard cups; allows for 360-degree spraying and makes cleanup as simple as tossing or reusing the liner.
Super-Flex™ Air Hose: A 6 m (20 ft) air hose that is 15% lighter than other leading brands, offering better maneuverability at the gun.
Standard Filtration System: Washable automotive-grade filter outperforms foam filters and provides toolless removal for easy maintenance.

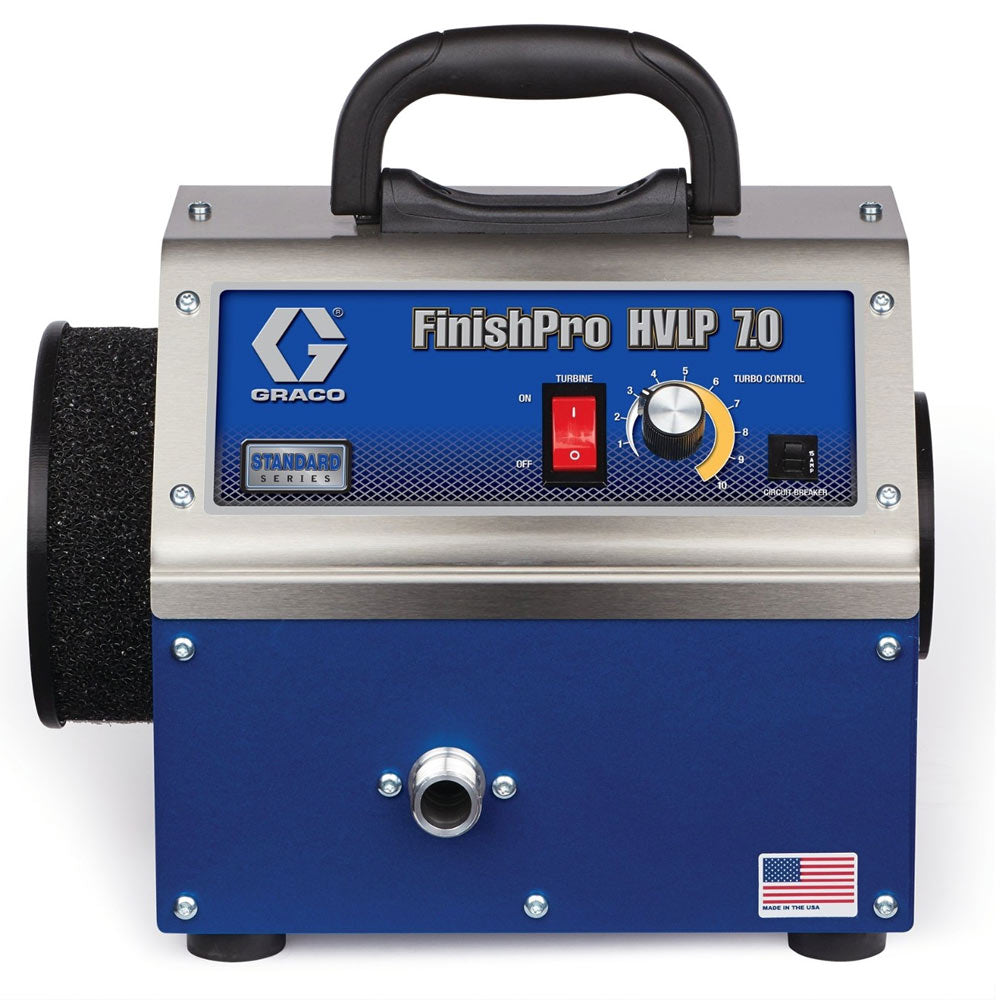

Compact "Tough Box": Rugged all-steel enclosure protects the internal turbine; 50% smaller and 30% lighter than previous models.
