Graco FinishPro HVLP 9.0 5-Stage Turbine ProContractor Series Sprayer (17R079)
$4,350.00

Description

Graco FinishPro™ HVLP 9.0 ProContractor Series – 5-Stage Turbine Sprayer

The Graco FinishPro™ HVLP 9.0 ProContractor Series is a top-tier, 5-stage turbine sprayer designed for professionals who demand the ultimate fine-finish quality on small-to-medium projects. As part of the ProContractor Series, this unit is engineered with advanced automation and precision controls to provide unmatched convenience and a superior spray finish.The heart of the system is the TurboForce™ 5-stage turbine, delivering 9 PSI of consistent air pressure. Innovative SmartStart™ technology automatically shuts the turbine off when you aren't spraying, drastically reducing jobsite noise, heat buildup, and physical fatigue while extending the overall life of the motor. Coupled with the EDGE II Plus gun, this system provides absolute control over material volume, airflow, and fan size for professional-grade results every time.

Compare Table

Click here to open table
HVLPTM STANDARD 7.0 HVLPTM STANDARD 9.0 HVLPTM PROCONTRACTOR 7.0 HVLPTM PROCONTRACTOR 9.0 HVLPTM PROCONTRACTOR 9.5 HVLPTM PROCOMP 9.5
SPECIFICATIONS
Part numbers 17R074 17R075 17R078 17R079 17R080 17R081
Warranty 3 years 3 years 3 years 3 years 3 years 3 years
Turbine stages 3 5 3 5 5 5
Motor Watts/HP 1200/1.63 1300/1.77 1200/1.63 1300/1.77 1600/2.18 1800/2.45
Max. air working pressure - bar (PSI) 0.48 (7) 0.6 (9) 0.5 (7) 0.62 (9) 0.7 (9.5) 0.7 (9.5)
Weight - kg (lbs) 8.1 (18) 8.6 (19) 10.4 (23) 10.8(24) 11.7 (26) 13.6 (30)
FEATURES
TurboForceTM II technology ■ ■ ■ ■ ■ ■
SmartStart ■ ■ ■ ■
TCS System ■ ■ ■ ■ ■ ■
Quick release needle ■ ■ ■ ■ ■ ■
Flex LinerTM System ■ ■ ■ ■ ■ Remote Cup
Air flow control at the gun Preset Ratio Preset Ratio ■ ■ ■ ■
Material volume control at the gun ■ ■ ■ ■ ■ ■
Spray fan size control at the gun ■ ■ ■ ■ ■ ■
Needle nozzle storage ■ ■ ■ ■
Air filtration Foam Foam Automotive Automotive Automotive Automotive
COMPOSITION
Needle nozzle-kit #3 #3 #3 #3, #4 #3, #4, #5 #3, #4, #5
Gun EDGE® II EDGE® II EDGE® II Plus EDGE® II Plus EDGE® II Plus EDGE® II Plus
Hose Super-FlexTM Air 6M - 17R300 Super-FlexTM Air 6M - 17R300 Super-FlexTM Air 9M - 257159 Super-FlexTM Air 9M - 257159 Super-FlexTM Air 9M - 257159 Super-FlexTM Air 9M - 257159
Whip hose Super-FlexTM Air 1.2M - 17R299 Super-FlexTM Air 1.2M - 17R299
Whip hose ■ ■
HVLPTM PROCONTRACTOR 7.0
HVLPTM PROCONTRACTOR 9.0
HVLPTM PROCONTRACTOR 9.5
HVLPTM PROCOMP 9.5

Specifications

  • Turbine Stages: 5-Stage
  • Max Pressure: 9 PSI (0.62 bar)
  • Motor: 1300 Watts / 1.77 HP
  • Weight: Professional Grade / Portable
  • Warranty: 3-Year Limited Warranty

Features

  • SmartStart™ Turbine: Automatically shuts off when the trigger is released; reduces noise and extends turbine life.
  • TurboControl System: Features an LED display allowing you to adjust turbine speed to match the performance required for different coatings.
  • EDGE II Plus Gun: Offers 4X increased fluid flow and a 75% lighter trigger pull than the competition. Needles can be changed from the front with a single click.
  • 5-Stage Power: 1300 Watt/1.77 HP motor provides the pressure needed for thicker materials with less thinning.
  • Dual Filtration System: Uses automotive-grade filters that outperform traditional foam or paper filters for industry-leading air purity.
  • Rugged Steel Enclosure: Compact all-steel body with a built-in utility toolbox for needle storage and an on-board gun holder.
  • Super-Flex™ Air Hose: Includes a 30 ft (9 m) hose that is 50% longer than standard hoses for improved jobsite mobility.

What's Included

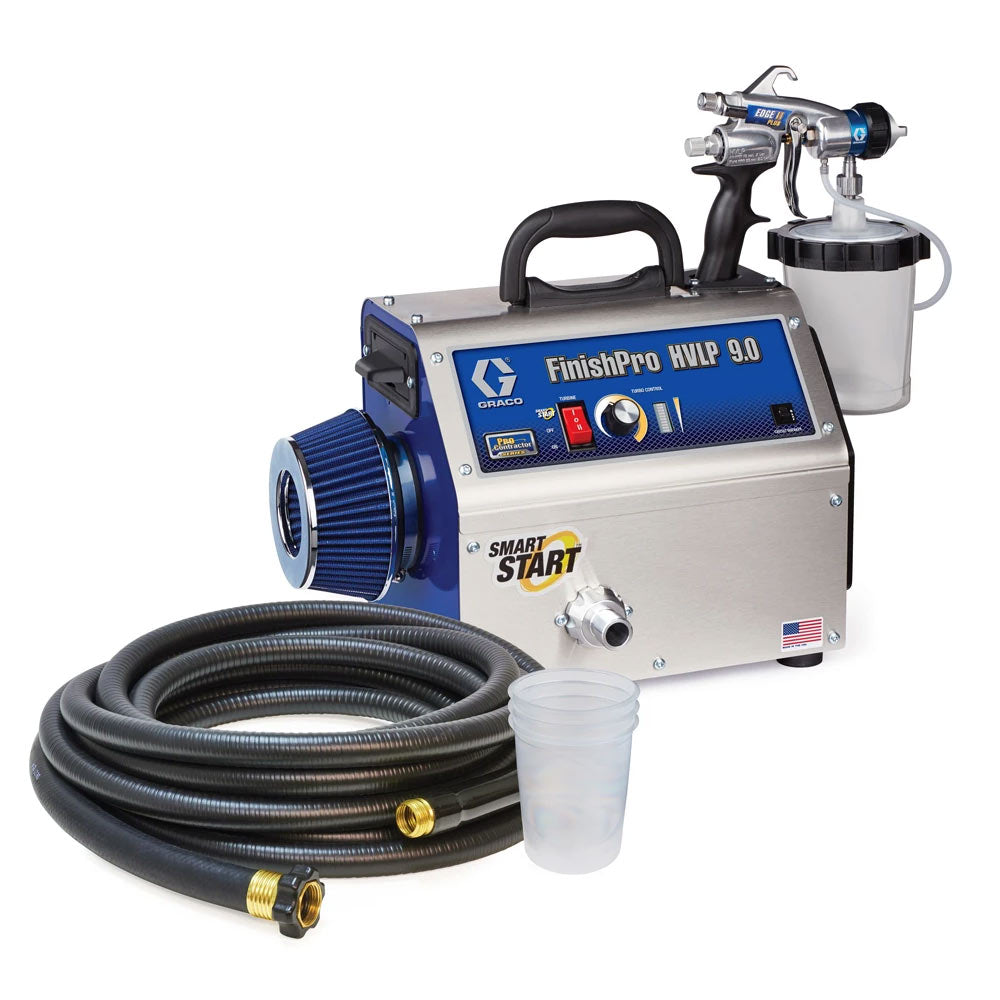

  • FinishPro HVLP 9.0 ProContractor Turbine
  • EDGE II Plus Spray Gun
  • 1 Litre (1 qt) Cup with FlexLiner™ System
  • #3 & #4 Quick Release Fluid Sets
  • 30 ft (9 m) Super-Flex™ Air Hose

Reviews

Dimensions

Width
Width
Height
Height
Length
Length
product
39.37 cm
50.80 cm
48.26 cm

Weight

Courier

Easy To Carry

Total Weight: 18.14 kg

Guides & Documents

HVLP_Sprayer_Manual_Part2.pdf Graco_HVLP_Brochure.pdf Edge_II_Gun_Manual.pdf HVLP_Sprayer_Manual_Part1.pdf
