Graco FinishPro HVLP 9.0 5-Stage Turbine Standard Series Sprayer (17R075)

Graco FinishPro HVLP 9.0 5-Stage Turbine Standard Series Sprayer (17R075)

GRACO

$3,510.00

SKU: 17R075

Quantity

Out of stock

Pay in 4 interest-free payments with

Payment & Security | Refund Policy

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Graco FinishPro HVLP 9.0 5-Stage Turbine Standard Series Sprayer (17R075)

$3,510.00

Description

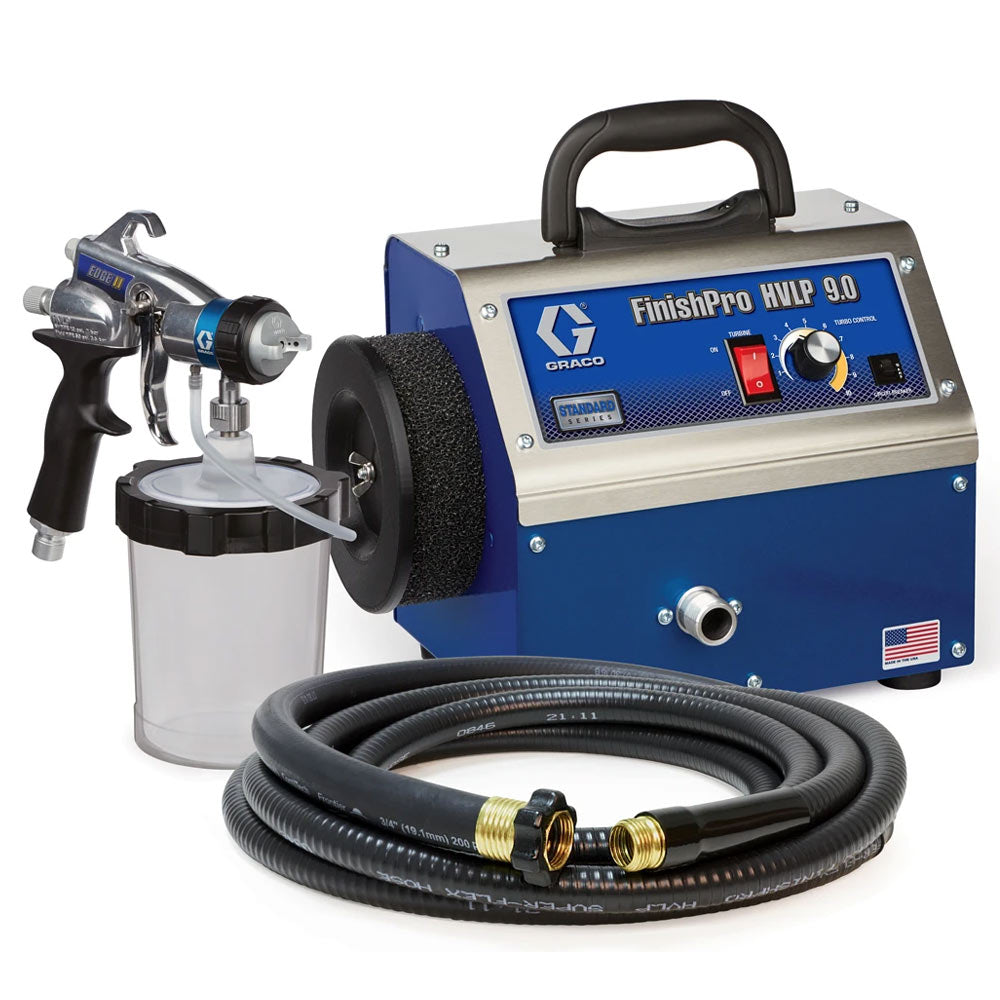

Graco FinishPro™ HVLP 9.0 Standard Series – 5-Stage Turbine Sprayer

The Graco FinishPro™ HVLP 9.0 Standard Series is engineered for professionals who need high-performance fine-finish power for smaller projects without unnecessary complexity. This 5-stage turbine system utilizes exclusive TurboForce™ Technology, building more pressure through each stage to atomize materials with less thinning.Designed for Everyday Reliability, the Standard Series is one of the coolest-running and longest-lasting HVLP systems available. It features a compact and durable steel "Tough Box" enclosure that is 50% smaller and 30% lighter than previous versions, ensuring it is easy to transport while protecting the motor on the jobsite. Equipped with the EDGE II Gun and the versatile FlexLiner™ system, this sprayer delivers professional results at any angle.

Compare Table

Click here to open table


	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5
SPECIFICATIONS
Part numbers	17R074	17R075	17R078	17R079	17R080	17R081
Warranty	3 years	3 years	3 years	3 years	3 years	3 years
Turbine stages	3	5	3	5	5	5
Motor Watts/HP	1200/1.63	1300/1.77	1200/1.63	1300/1.77	1600/2.18	1800/2.45
Max. air working pressure - bar (PSI)	0.48 (7)	0.6 (9)	0.5 (7)	0.62 (9)	0.7 (9.5)	0.7 (9.5)
Weight - kg (lbs)	8.1 (18)	8.6 (19)	10.4 (23)	10.8(24)	11.7 (26)	13.6 (30)
FEATURES
TurboForceTM II technology	■	■	■	■	■	■
SmartStart			■	■	■	■
TCS System	■	■	■	■	■	■
Quick release needle	■	■	■	■	■	■
Flex LinerTM System	■	■	■	■	■	Remote Cup
Air flow control at the gun	Preset Ratio	Preset Ratio	■	■	■	■
Material volume control at the gun	■	■	■	■	■	■
Spray fan size control at the gun	■	■	■	■	■	■
Needle nozzle storage			■	■	■	■
Air filtration	Foam	Foam	Automotive	Automotive	Automotive	Automotive
COMPOSITION
Needle nozzle-kit	#3	#3	#3	#3, #4	#3, #4, #5	#3, #4, #5
Gun	EDGE® II	EDGE® II	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus
Hose	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159
Whip hose					Super-FlexTM Air 1.2M - 17R299	Super-FlexTM Air 1.2M - 17R299
Whip hose					■	■
	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5


	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5
SPECIFICATIONS
Part numbers	17R074	17R075	17R078	17R079	17R080	17R081
Warranty	3 years	3 years	3 years	3 years	3 years	3 years
Turbine stages	3	5	3	5	5	5
Motor Watts/HP	1200/1.63	1300/1.77	1200/1.63	1300/1.77	1600/2.18	1800/2.45
Max. air working pressure - bar (PSI)	0.48 (7)	0.6 (9)	0.5 (7)	0.62 (9)	0.7 (9.5)	0.7 (9.5)
Weight - kg (lbs)	8.1 (18)	8.6 (19)	10.4 (23)	10.8(24)	11.7 (26)	13.6 (30)
FEATURES
TurboForceTM II technology	■	■	■	■	■	■
SmartStart			■	■	■	■
TCS System	■	■	■	■	■	■
Quick release needle	■	■	■	■	■	■
Flex LinerTM System	■	■	■	■	■	Remote Cup
Air flow control at the gun	Preset Ratio	Preset Ratio	■	■	■	■
Material volume control at the gun	■	■	■	■	■	■
Spray fan size control at the gun	■	■	■	■	■	■
Needle nozzle storage			■	■	■	■
Air filtration	Foam	Foam	Automotive	Automotive	Automotive	Automotive
COMPOSITION
Needle nozzle-kit	#3	#3	#3	#3, #4	#3, #4, #5	#3, #4, #5
Gun	EDGE® II	EDGE® II	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus
Hose	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159
Whip hose					Super-FlexTM Air 1.2M - 17R299	Super-FlexTM Air 1.2M - 17R299
Whip hose					■	■
	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5

Specifications

Turbine Stages: 5-Stage
Max Pressure: 9 PSI (0.6 bar)
Motor: 1300 Watts / 1.77 HP
Series Type: Air-Powered Standard Series
Weight: Compact & Portable (30% lighter than previous)
Warranty: 3-Year Limited Warranty

Features

TurboForce™ Technology: Proprietary turbine design generates more air flow and pressure, leading to higher production and longer tool life.

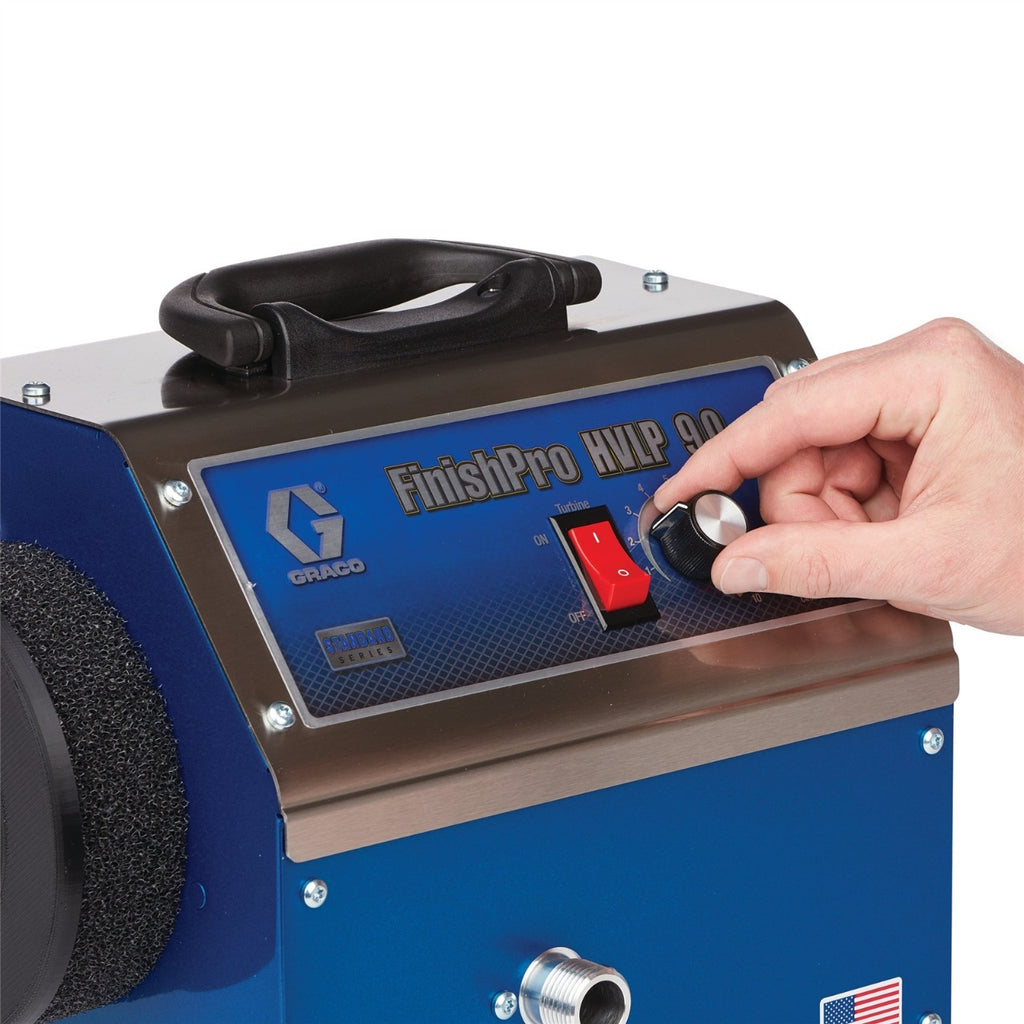

Turbo Control System: Allows you to adjust the turbine speed to match your material, reducing heat buildup and noise.
EDGE II Gun: Features a patented single-user control for material and air flow. The design provides 4X the fluid flow and a 75% lighter trigger pull.
FlexLiner™ Bag System: Spray in any direction—even upside down—with no adjustment. Disposable or reusable liners make cleanup fast and easy.
Standard Filtration System: Features a washable, high-performance filter that outperforms foam alternatives and requires no tools for removal.
Super-Flex™ Air Hose: Includes a 6 m (20 ft) air hose that is 15% lighter than other leading brands for better control at the gun.

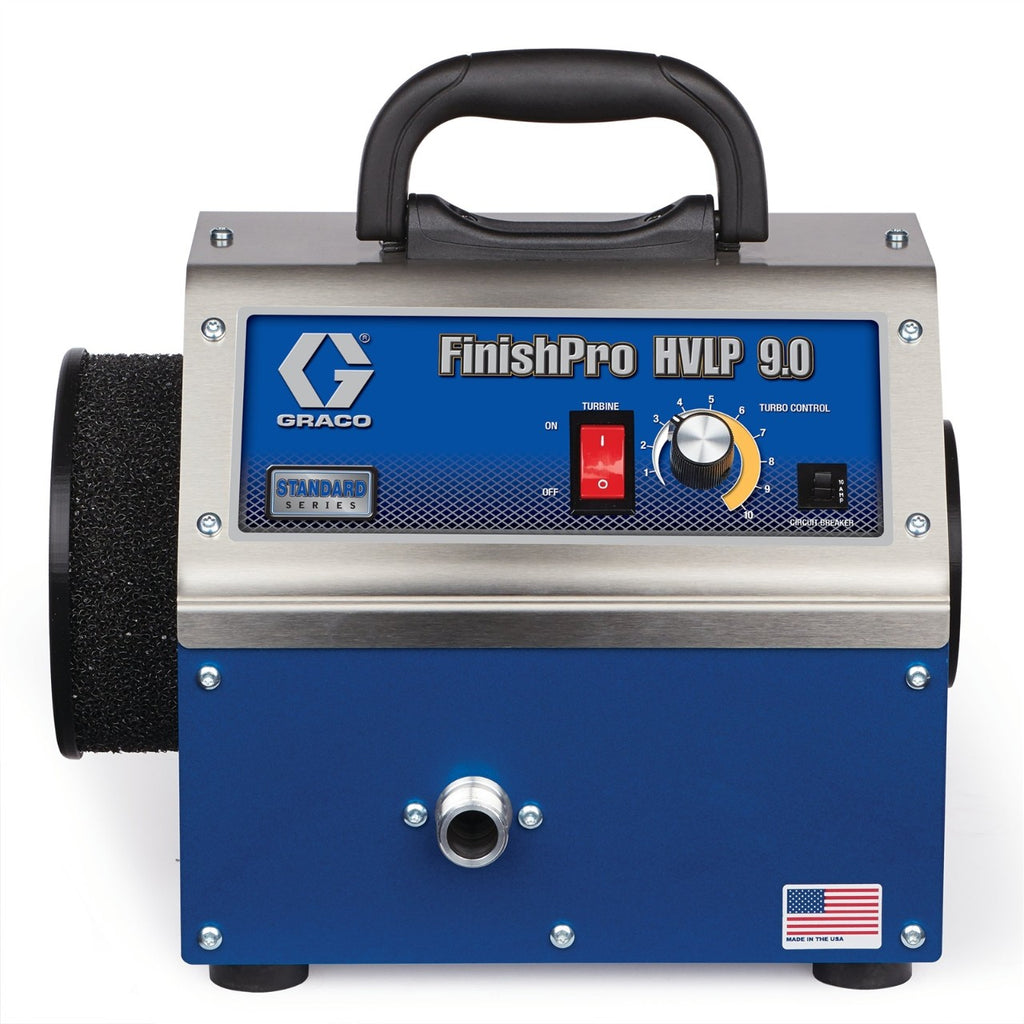

Steel "Tough Box" Design: A rugged, compact all-steel enclosure protects the internal turbine during transport and operation.
