Graco FinishPro HVLP 9.5 5-Stage Turbine ProComp Series Sprayer (17R081)

Graco FinishPro HVLP 9.5 5-Stage Turbine ProComp Series Sprayer (17R081)

GRACO

$6,170.00

SKU: 17R081

Quantity

Out of stock

Pay in 4 interest-free payments with

Payment & Security | Refund Policy

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Graco FinishPro HVLP 9.5 5-Stage Turbine ProComp Series Sprayer (17R081)

$6,170.00

Description

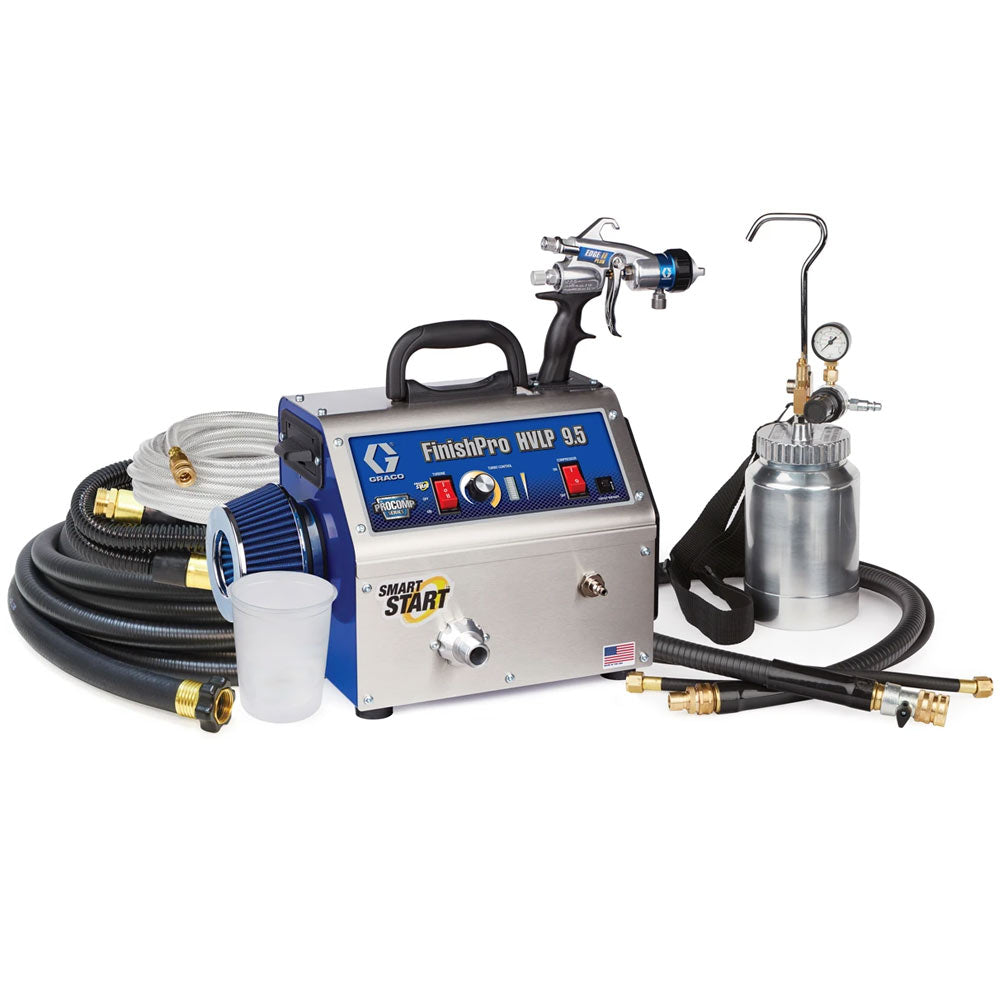

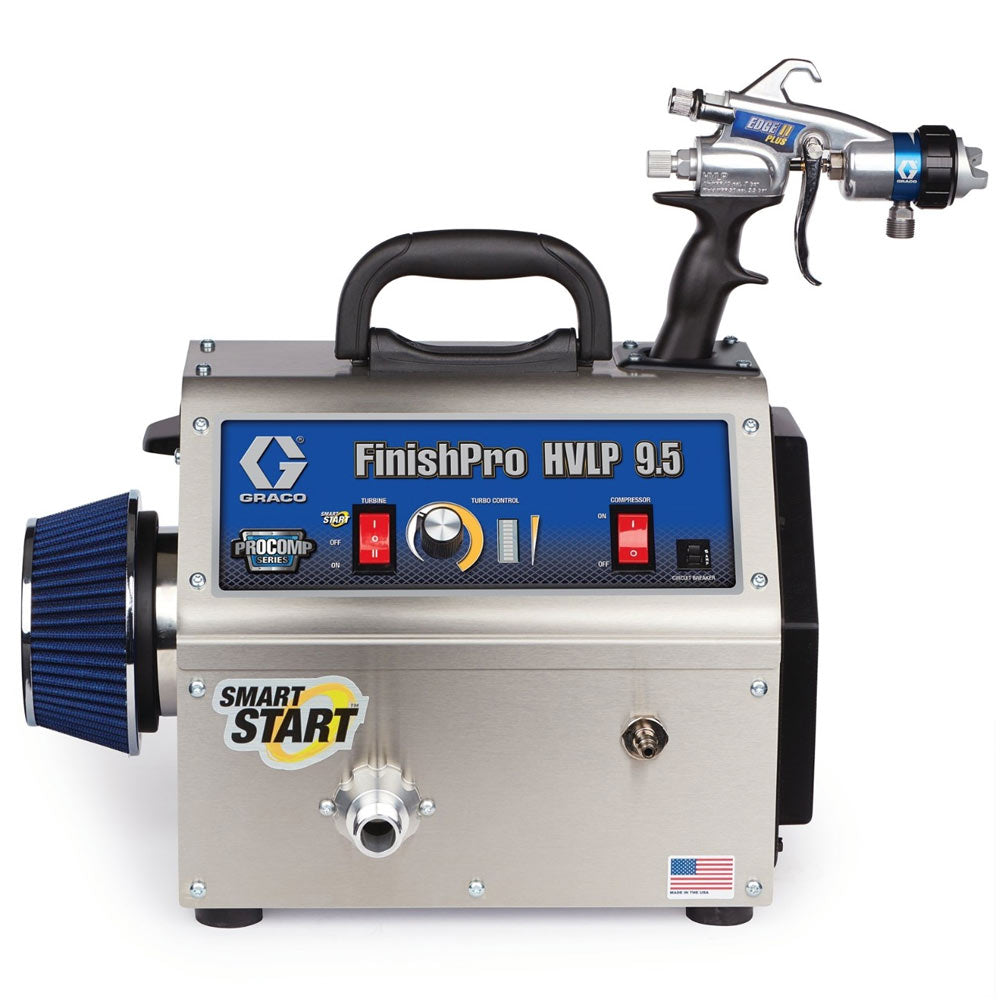

Graco FinishPro™ HVLP 9.5 ProComp Series – 5-Stage Turbine with Integrated Compressor

The Graco FinishPro™ HVLP 9.5 ProComp Series is the ultimate power solution for professionals tackling medium-to-large fine finish projects. This top-tier system combines a massive 1800 Watt (2.45 HP) 5-stage turbine with a powerful, built-in compressor, allowing you to spray thicker materials with unmatched productivity and control.The ProComp Series stands out by offering double the fluid capacity of standard units, featuring a 2-quart (1.9L) remote cup with a shoulder strap. This design separates the material cup from the gun, significantly reducing hand weight for longer, fatigue-free spraying sessions. With the integrated SmartStart™ system and FlexLiner™ technology, the HVLP 9.5 ProComp delivers a superior finish on every job while maximizing site efficiency.

Compare Table

Click here to open table


	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5
SPECIFICATIONS
Part numbers	17R074	17R075	17R078	17R079	17R080	17R081
Warranty	3 years	3 years	3 years	3 years	3 years	3 years
Turbine stages	3	5	3	5	5	5
Motor Watts/HP	1200/1.63	1300/1.77	1200/1.63	1300/1.77	1600/2.18	1800/2.45
Max. air working pressure - bar (PSI)	0.48 (7)	0.6 (9)	0.5 (7)	0.62 (9)	0.7 (9.5)	0.7 (9.5)
Weight - kg (lbs)	8.1 (18)	8.6 (19)	10.4 (23)	10.8(24)	11.7 (26)	13.6 (30)
FEATURES
TurboForceTM II technology	■	■	■	■	■	■
SmartStart			■	■	■	■
TCS System	■	■	■	■	■	■
Quick release needle	■	■	■	■	■	■
Flex LinerTM System	■	■	■	■	■	Remote Cup
Air flow control at the gun	Preset Ratio	Preset Ratio	■	■	■	■
Material volume control at the gun	■	■	■	■	■	■
Spray fan size control at the gun	■	■	■	■	■	■
Needle nozzle storage			■	■	■	■
Air filtration	Foam	Foam	Automotive	Automotive	Automotive	Automotive
COMPOSITION
Needle nozzle-kit	#3	#3	#3	#3, #4	#3, #4, #5	#3, #4, #5
Gun	EDGE® II	EDGE® II	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus
Hose	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159
Whip hose					Super-FlexTM Air 1.2M - 17R299	Super-FlexTM Air 1.2M - 17R299
Whip hose					■	■
	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5


	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5
SPECIFICATIONS
Part numbers	17R074	17R075	17R078	17R079	17R080	17R081
Warranty	3 years	3 years	3 years	3 years	3 years	3 years
Turbine stages	3	5	3	5	5	5
Motor Watts/HP	1200/1.63	1300/1.77	1200/1.63	1300/1.77	1600/2.18	1800/2.45
Max. air working pressure - bar (PSI)	0.48 (7)	0.6 (9)	0.5 (7)	0.62 (9)	0.7 (9.5)	0.7 (9.5)
Weight - kg (lbs)	8.1 (18)	8.6 (19)	10.4 (23)	10.8(24)	11.7 (26)	13.6 (30)
FEATURES
TurboForceTM II technology	■	■	■	■	■	■
SmartStart			■	■	■	■
TCS System	■	■	■	■	■	■
Quick release needle	■	■	■	■	■	■
Flex LinerTM System	■	■	■	■	■	Remote Cup
Air flow control at the gun	Preset Ratio	Preset Ratio	■	■	■	■
Material volume control at the gun	■	■	■	■	■	■
Spray fan size control at the gun	■	■	■	■	■	■
Needle nozzle storage			■	■	■	■
Air filtration	Foam	Foam	Automotive	Automotive	Automotive	Automotive
COMPOSITION
Needle nozzle-kit	#3	#3	#3	#3, #4	#3, #4, #5	#3, #4, #5
Gun	EDGE® II	EDGE® II	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus
Hose	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159
Whip hose					Super-FlexTM Air 1.2M - 17R299	Super-FlexTM Air 1.2M - 17R299
Whip hose					■	■
	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5

Specifications

Turbine Stages: 5-Stage
Max Pressure: 9.5 PSI (0.7 bar)
Motor: 1800 Watts / 2.45 HP
Remote Cup Capacity: 1.9 Litres (2 Quarts)
Series Type: Air-Powered ProComp Series
Warranty: 3-Year Limited Warranty

Features

Integrated Compressor: Powerful built-in compressor provides the extra air pressure needed to atomize heavy-bodied coatings without excessive thinning.
Remote Cup System: Separates the gun from the material source with a 2-quart (1.9L) remote cup, halving the weight in your hand and doubling capacity between refills.
SmartStart™ Turbine: Automatically shuts off when the trigger is released, reducing jobsite noise and extending the lifespan of the 5-stage motor.
FlexLiner™ Conversion Kit: Includes a kit to switch to a gun-mounted 1-quart (0.95L) cup, allowing you to spray at any angle—even upside down.
Super-Flex™ Air Hose & Whip: Includes a 9 m (30 ft) main hose that is 15% lighter than competitors, plus a 1.2 m (4 ft) whip hose for maximum wrist maneuverability.
Stainless Steel “Tough Box”: Rugged all-steel enclosure protects the turbine during transport and includes a built-in toolbox for needle and nozzle storage.
High Performance Fluid Sets: Comes standard with #3, #4, and #5 quick-release fluid sets to handle a wide range of coatings.
