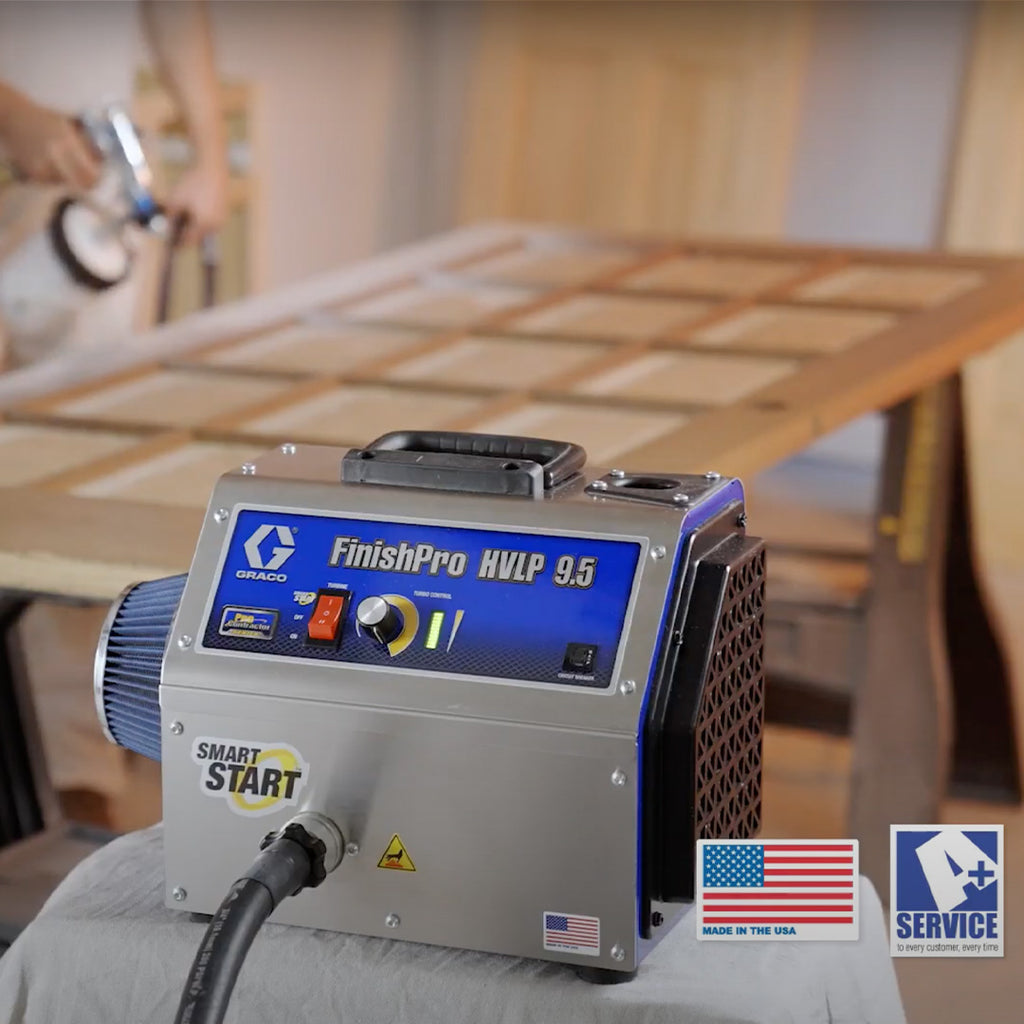

The FinishPro HVLP 9.5 ProContractor Series sprayer is loaded with features that provide the on-demand power control and easier operation with independent material, air and spray fan controls to increase productivity on medium-sized fine finish jobs.
Work Smarter, Finish More Jobs. Graco HVLP ProContractor Series sprayers include all Standard Series features plus additional features that offer the longest life, more convenience and greater control to improve profitability and produce a superior spray finish.

PROCONTRACTOR SERIES

Ideal sprayer for small-to-medium jobs
Offers unmatched life with SmartStart
Loaded with features that offer convenience, control and produce a superior spray finish

Available models:

FinishPro HVLP 7.0 ProContractor, includes:
- EDGE II Plus Gun
- 1 qt (1 l) Cup with FlexLiner
- #3 Quick Release Fluid Set
- 30 ft (9 m) Super-Flex Air Hose

FinishPro HVLP 9.0 ProContractor, includes:
- EDGE II Plus Gun
- 1 qt (1 l) Cup with FlexLiner
- #3 & #4 Quick Release Fluid Sets
- 30 ft (9 m) Super-Flex Air Hose

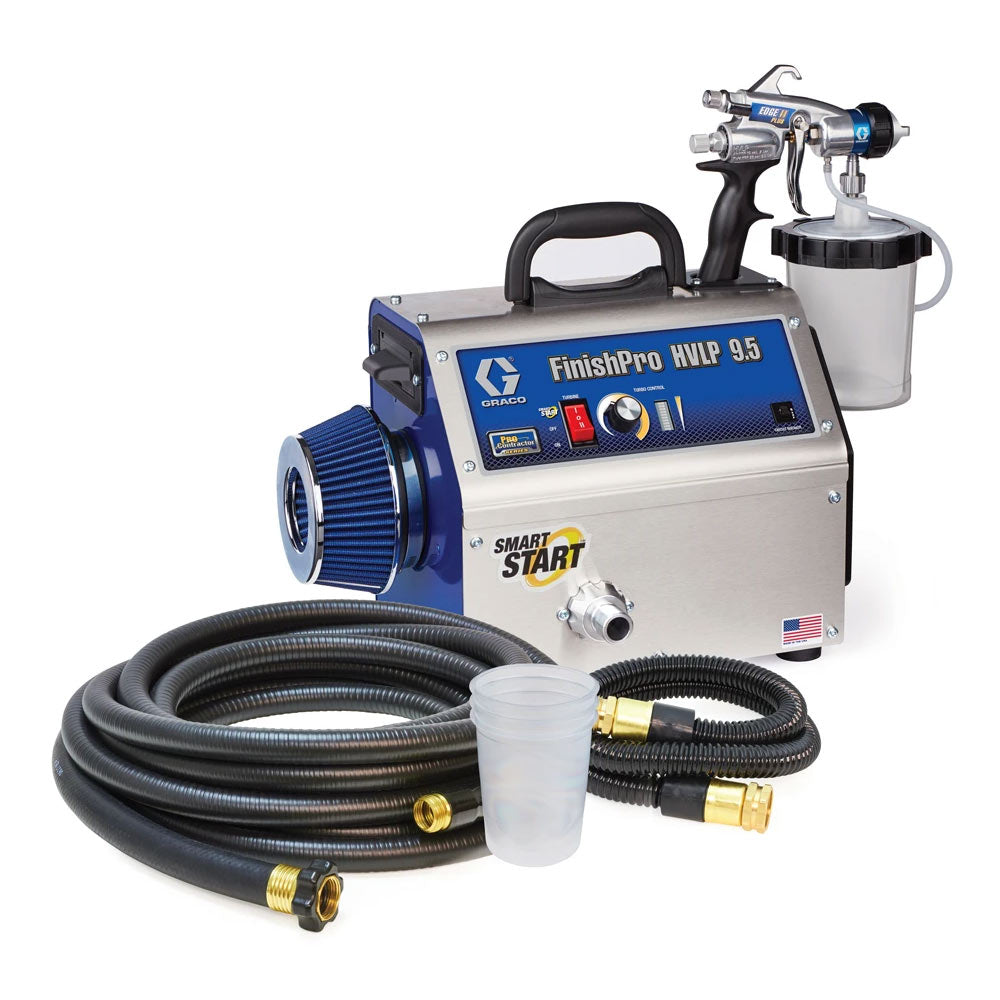

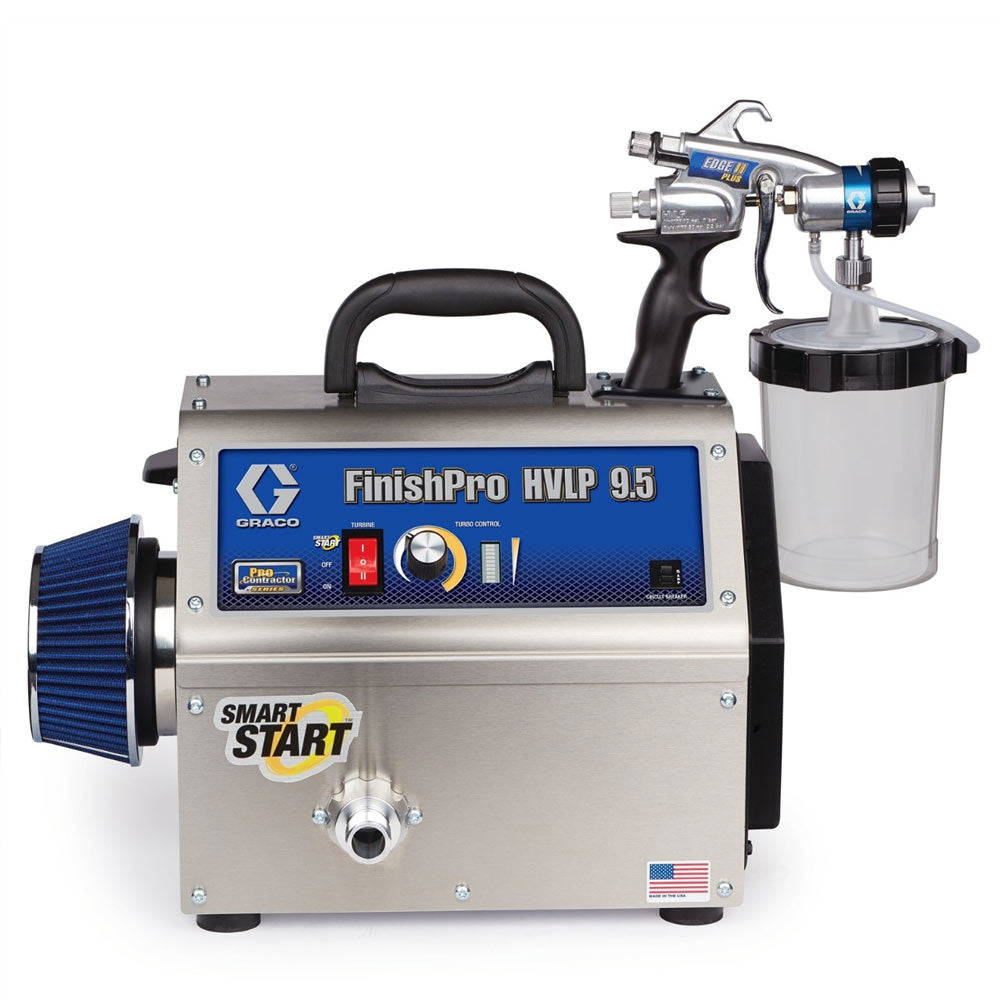

FinishPro HVLP 9.5 ProContractor, includes:
- EDGE II Plus Gun
- 1 qt (1 l) Cup with FlexLiner
- #3, #4 & #5 Quick Release Fluid Sets
- 30 ft (9 m) Super-Flex Air Hose
- 4 ft (1.2 m) Whip Hose

PROCONTRACTOR SERIES includes Standard features plus

SmartStart Turbine

Automatically shuts off when not in use so if you're not spraying, it's not running
Reduces jobsite noise, resulting in less fatigue
Automatic shut-off reduces heat and extends turbine life

TurboControl System with LED Display

Adjust the TurboForce turbine speed to match the performance you require
Reduces heat build up
Runs quieter
Extends turbine system life
50% longer hoses

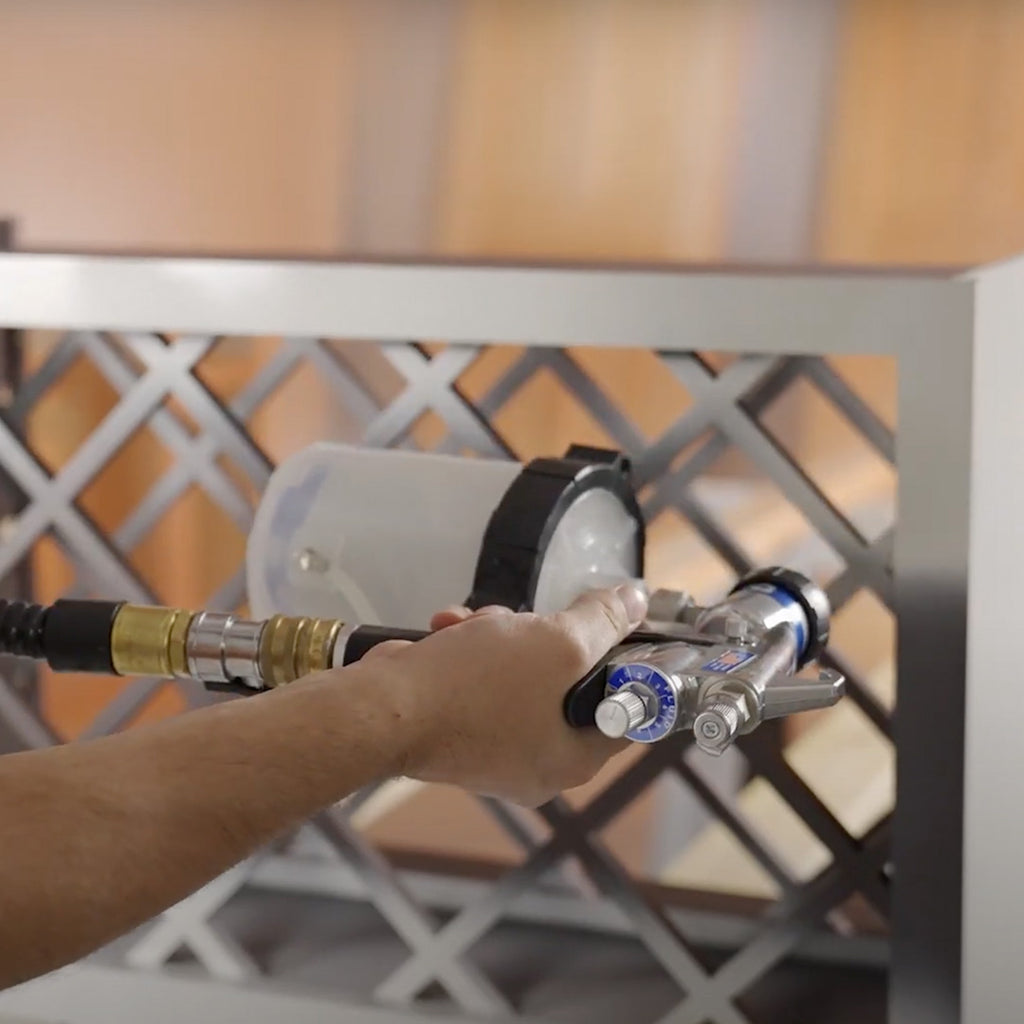

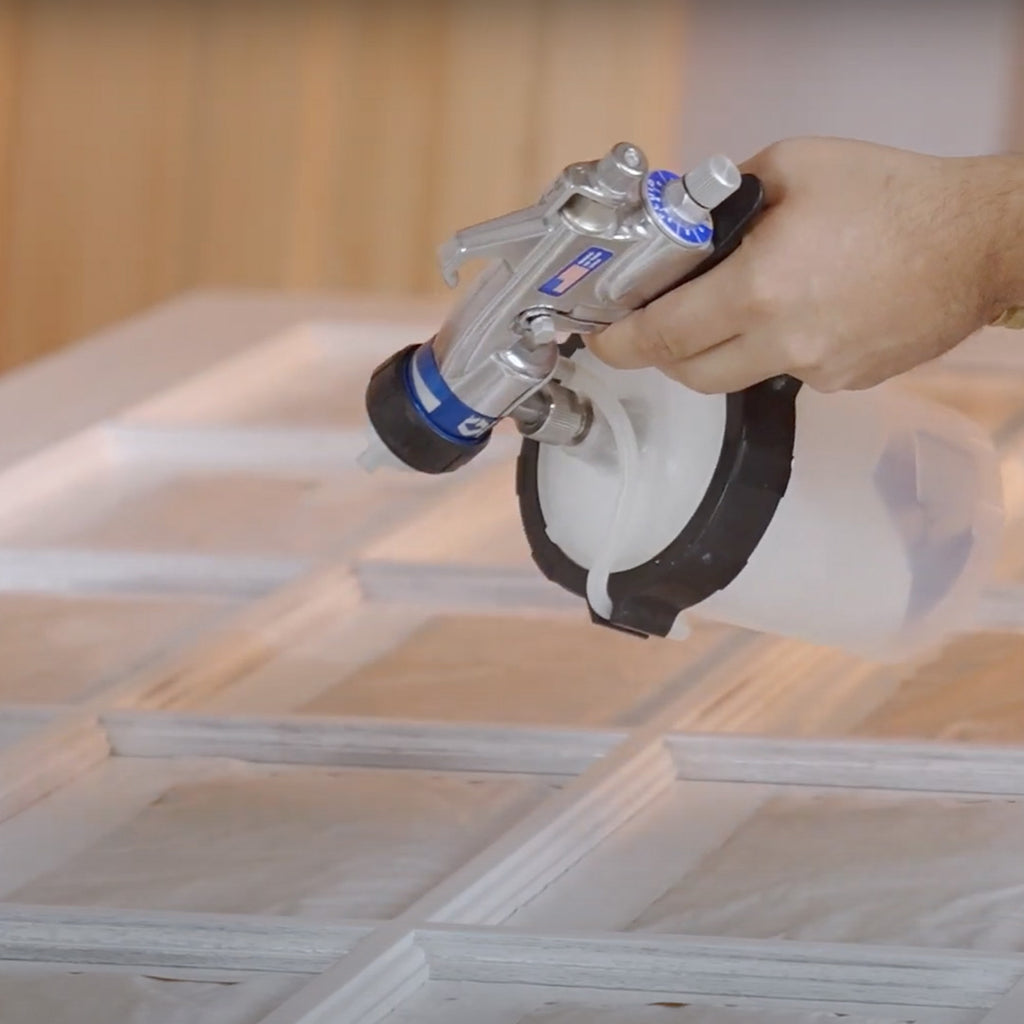

EDGE II Plus Gun

Ultimate control with independent user controls for material volume, air flow, and spray fan size
Exclusive Graco air cap design increases the fluid flow in every need by 4X
Change out needles from the front of the gun with just a click
75% lighter trigger pull than the competition with EasyGlide

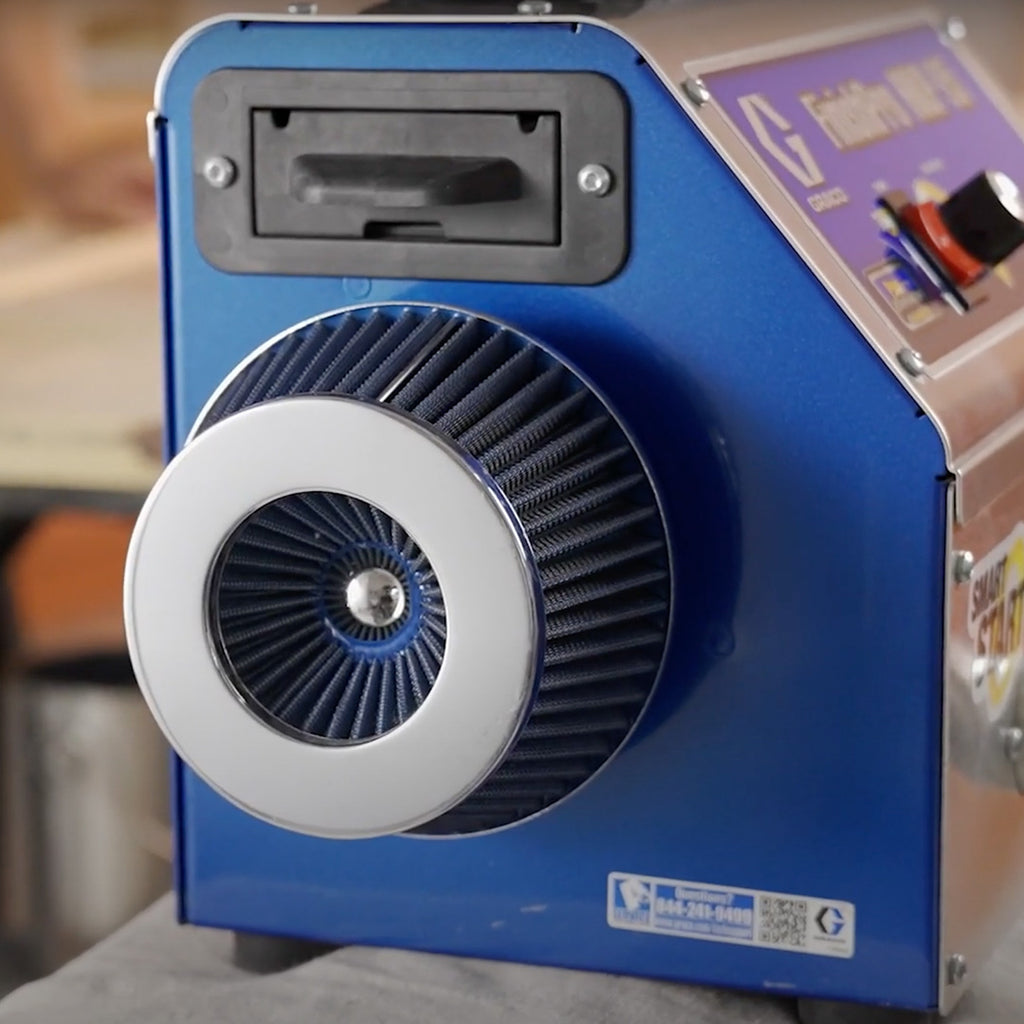

Dual Filtration System

Premium automotive-grade filter provides industry-leading, high performance filtration
Outperforms foam and traditional paper filters used on most HVLP systems

Compact and Durable Body

Rugged all steel enclosure protects the turbine on the job and during transport
On-board gun and cup holder allows for easy transport and paint refills with less spills

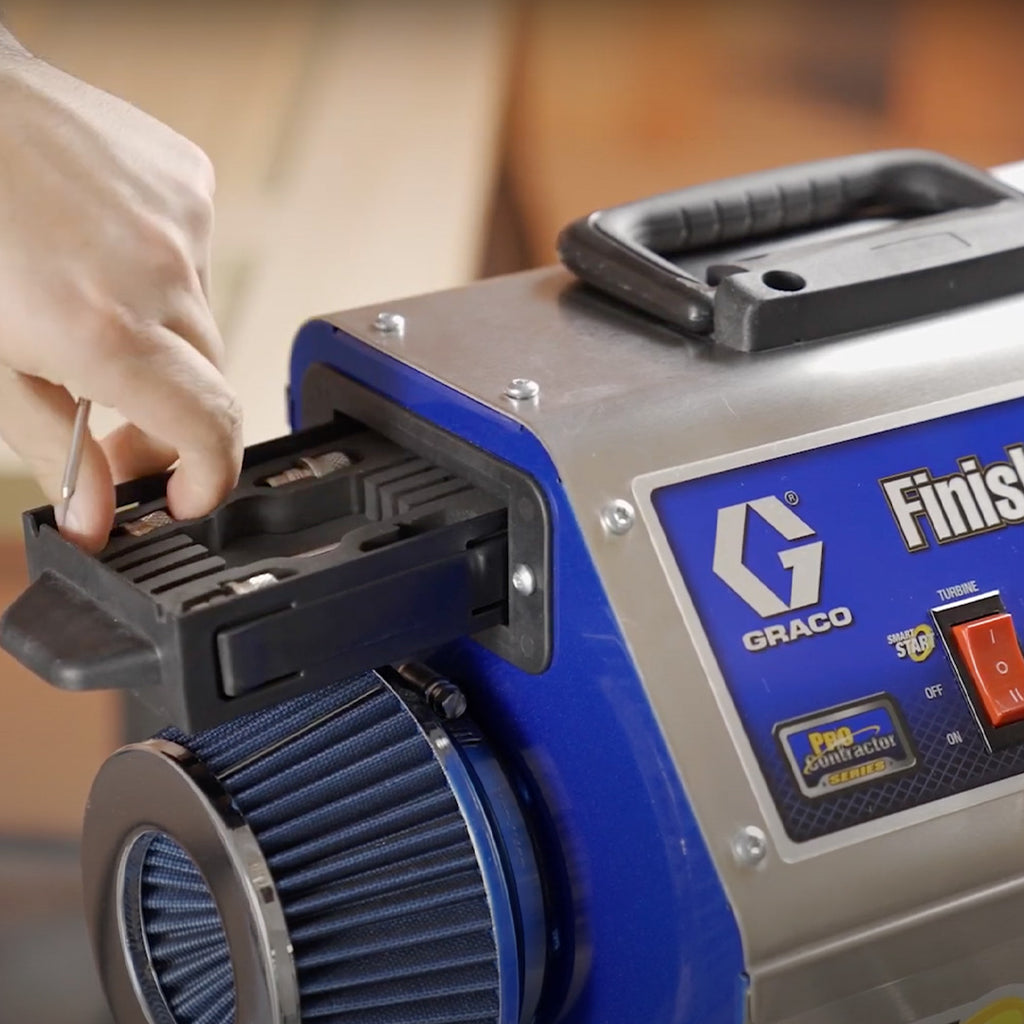

Separate utility toolbox built-in for needle storage

Manual HVLP SPRAYS

Fine Finish Solutions Brochure


	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5
SPECIFICATIONS
Part numbers	17R074	17R075	17R078	17R079	17R080	17R081
Turbine stages	3	5	3	5	5	5
Max. air working pressure - bar (PSI)	0.48 (7)	0.6 (9)	0.5 (7)	0.62 (9)	0.7 (9.5)	0.7 (9.5)
Weight - kg (lbs)	8.1 (18)	8.6 (19)	10.4 (23)	10.8(24)	11.7 (26)	13.6 (30)
FEATURES
TurboForceTM II technology	■	■	■	■	■	■
SmartStart			■	■	■	■
TCS System	■	■	■	■	■	■
Quick release needle	■	■	■	■	■	■
Flex LinerTM System	■	■	■	■	■	Remote Cup
Air flow control at the gun	Preset Ratio	Preset Ratio	■	■	■	■
Material volume control at the gun	■	■	■	■	■	■
Spray fan size control at the gun	■	■	■	■	■	■
Needle nozzle storage			■	■	■	■
Air filtration	Foam	Foam	Automotive	Automotive	Automotive	Automotive
COMPOSITION
Needle nozzle-kit	#3	#3	#3	#3, #4	#3, #4, #5	#3, #4, #5
Gun	EDGE® II	EDGE® II	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus
Hose	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159
Whip hose					Super-FlexTM Air 1.2M - 17R299	Super-FlexTM Air 1.2M - 17R299
Whip hose					■	■
