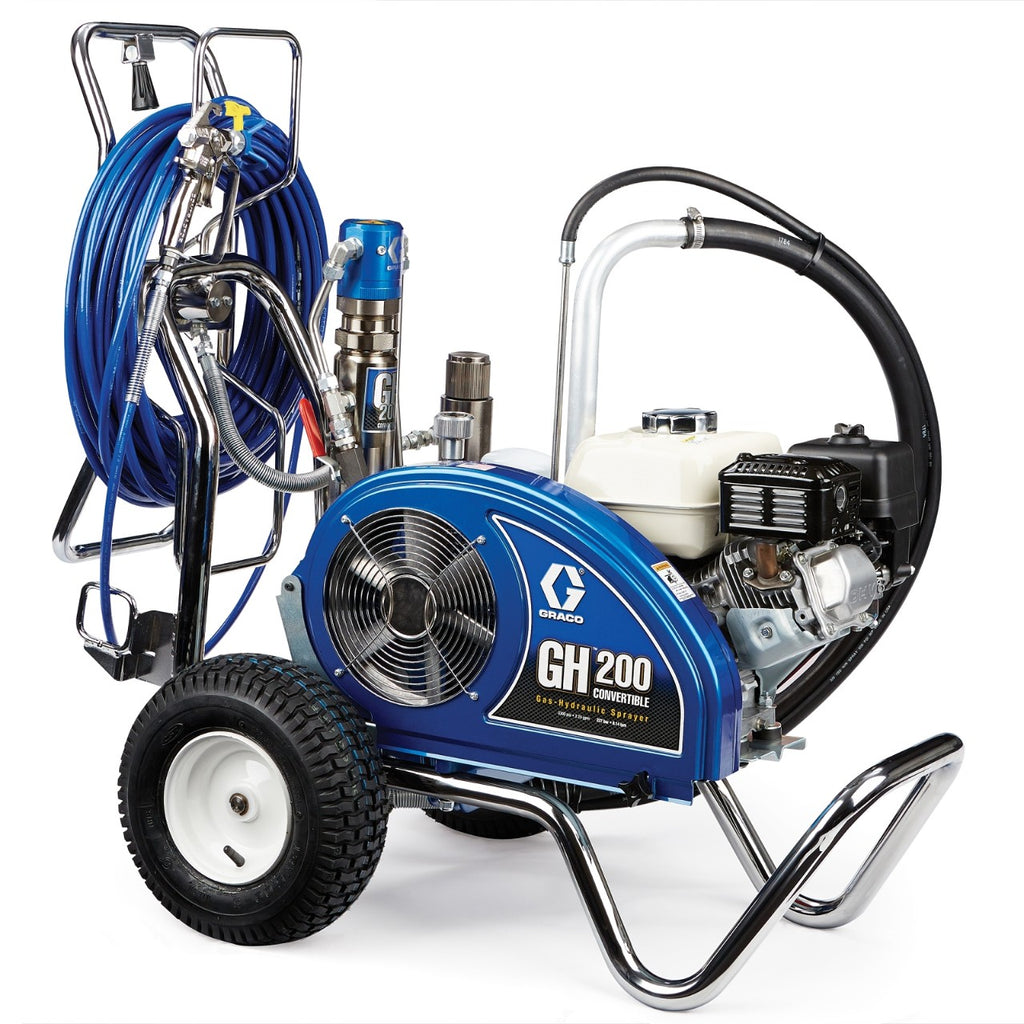

GRACO GH 200 ProContractor Petrol Hydraulic Airless Paint Sprayer (24W927)

GRACO
$14,850.00
SKU: 24W927

Quantity

Out of stock
Add to Cart
Out of stock
Add to cart
seen it cheaper

Pay in 4 interest-free payments with

Payment & Security | Refund Policy

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
GRACO GH 200 ProContractor Petrol Hydraulic Airless Paint Sprayer (24W927)
$14,850.00

Description

GH 200 Convertible ProContractor Series Gas Hydraulic Airless Sprayer

The Graco GH 200 Convertible ProContractor Series is the high-performance solution for medium-to-large projects requiring the unstoppable reliability of hydraulic power. Engineered for maximum uptime, this unit combines the raw power of a Honda® engine with advanced jobsite features designed to eliminate downtime and increase profitability.

As part of the ProContractor Series, the GH 200 features the QuikReel™ hose management system and the ProConnect™ pump replacement system, allowing for 1-minute pump swaps in the field. Its unique convertible design allows you to switch from petrol to electric power in seconds without tools, making it the most versatile hydraulic sprayer for both indoor and outdoor professional use.

Videos

Specifications

  • Compatible Electric Motor Kits: 248949, 248950 (CSA)
  • Compatible Material: Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer
  • Compatible Replacement Pump: 24W996
  • Convertible: Yes
  • Fluid Inlet Size (in): 1-5/16
  • Fluid Inlet Size (mm): 33.34
  • Fluid Inlet Thread Type: UN-2A
  • Fluid Outlet Size (in): 3/8
  • Fluid Outlet Size (mm): 3.75
  • Fluid Outlet Thread Type: FNPT
  • Frame Configuration: Cart
  • Hose Reel Type: QuikReel
  • Maximum Flow Rate (l/min): 8.1
  • Maximum Hose Length (m): 92
  • Maximum Sound Pressure Level (dB(A)): 96
  • Maximum Tip Size (in): 0.047
  • Maximum Tip Size 1 Gun (in): 0.047
  • Maximum Tip Size 1 Gun - Electric Motor (in): 0.031
  • Maximum Tip Size 2 Guns (in): 0.034
  • Maximum Tip Size 2 Guns - Electric Motor (in): 0.017
  • Maximum Tip Size 3 Guns (in): 0.027
  • Maximum Tip Size 4 Guns (in): 0.023
  • Maximum Working Pressure (MPa): 22.8
  • Maximum Working Pressure (bar): 228
  • Maximum Working Pressure (kPa): 22800
  • Model: GH
  • Number of Guns: 4
  • Outlet Paint Filter: Easy Out
  • Overall Height (cm): 97.8
  • Overall Height (mm): 978
  • Overall Length (cm): 113.8
  • Overall Length (mm): 1138
  • Overall Width (cm): 64.3
  • Overall Width (mm): 643
  • Power Rating (W): 4101
  • Power Rating (cc): 160
  • Power Rating (kW): 4.10
  • Power Source: Gas Hydraulic
  • Product Series: ProContractor
  • Pump Mount Type: ProConnect
  • Pump Rod Type: MaxLife
  • Pump Sleeve Material: MaxLife
  • Pump Type: Endurance
  • Series: 200
  • Type: Airless Sprayer
  • Weight (kg): 85
  • Wetted Materialж: Acetal, Aluminium, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel

Features

  • ProContractor Series Upgrades: Includes the QuikReel™ system for managing up to 90m (300ft) of hose in seconds and the ProConnect™ system for tool-free, 1-minute pump replacements.
  • Endurance™ MaxLife™ Piston Pump: Innovative MaxLife technology provides a service life 6X longer between repacks. Oversized passages ensure minimal pressure drops even with heavy materials.
  • Tool-Free Convertible Power: Quickly swap the gas engine for an electric motor kit (sold separately) for exhaust-free indoor operation.
  • High-Efficiency Hydraulic Motor: Features a faster changeover and fewer moving parts than traditional motors, resulting in less maintenance and rock-solid performance.
  • High-Capacity Cooling System: Tapered reservoir with integrated cooling fins deflects heat away from the sprayer, allowing for continuous, efficient operation.
  • Crushproof Inlet Strainer: An ultra-durable filtration system designed to withstand harsh impacts while maintaining even material flow.
  • Honda® GX Engine: Reliable, contractor-preferred power plant with Oil Alert™ to protect against engine damage.
  • Ready to Work: Comes fully equipped with 100 feet (30 meters) of BlueMax™ II hose and a Contractor Airless Spray Gun.

What's Included

  • RAC X HandTite Tip Guard
  • BlueMax II Airless Hose, 1/4 in x 50 ft
  • Low Pressure RAC X LP SwitchTip, 517

Reviews

Dimensions

Width
Width
Height
Height
Length
Length
product
73.66 cm
114.30 cm
139.70 cm

Weight

Courier

May require help to carry

Total Weight: 112.4908 kg

Guides & Documents

334558EN.pdf 311254EN-P.pdf 334654EN-D.pdf 311861EN-R.pdf
