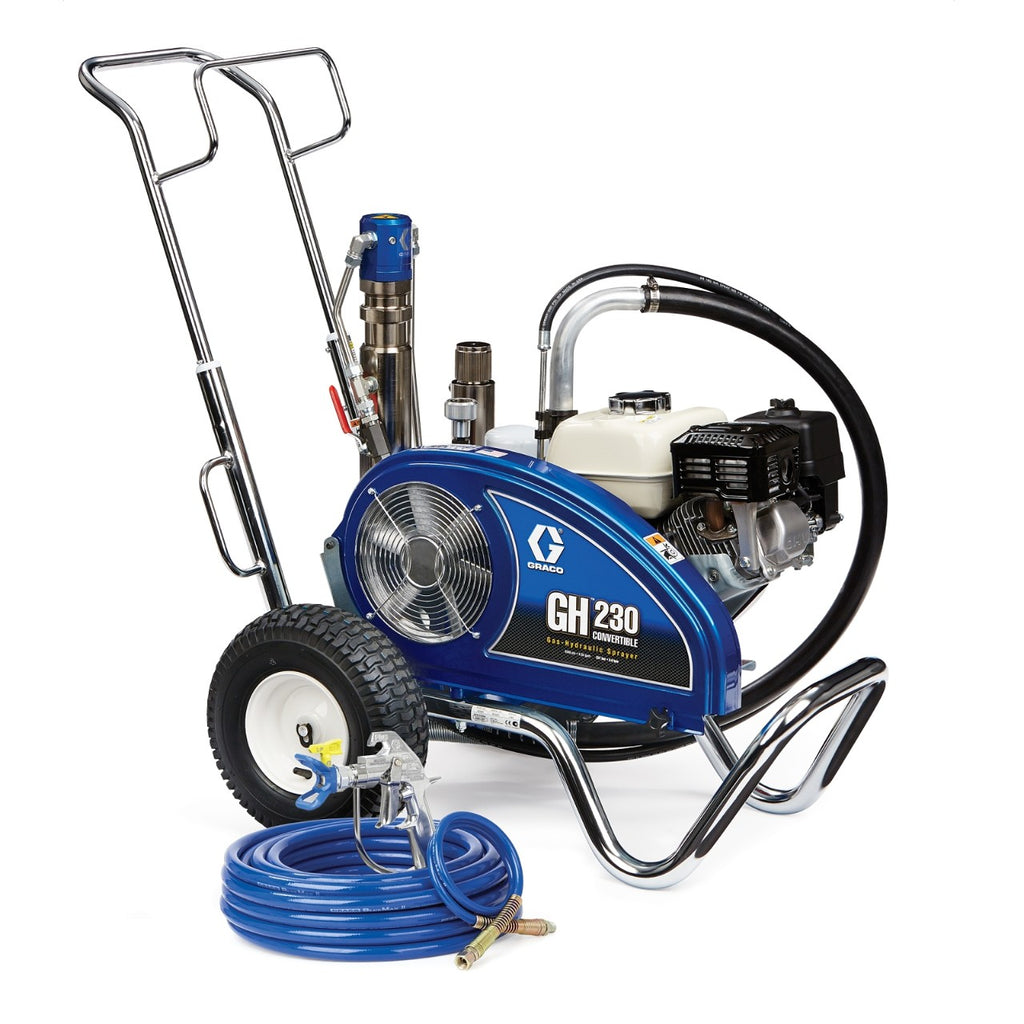

GRACO GH 230 Standard Petrol Hydraulic Airless Paint Sprayer (24W929)

GRACO

$14,700.00

SKU: 24W929

Quantity

Out of stock

Pay in 4 interest-free payments with

Payment & Security | Refund Policy

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

GRACO GH 230 Standard Petrol Hydraulic Airless Paint Sprayer (24W929)

$14,700.00

Description

GH 230 Convertible Standard Series Gas Hydraulic Airless Sprayer

The Graco GH 230 Convertible is the ultimate workhorse for professional contractors tackling large-scale commercial and residential construction projects. Engineered for extreme versatility, this hydraulic sprayer offers the raw power needed to spray the heaviest materials—including elastomerics, block fillers, gypsum, and dry fall—while maintaining the flexibility to operate in any environment.

The GH 230 is uniquely designed to convert from a petrol engine to an electric motor in seconds without the use of tools, making it ideal for moving between outdoor sites and indoor areas where exhaust-free operation is required. With its high-capacity cooling system and high-efficiency hydraulic motor, this unit is built to deliver rock-solid, leak-free performance under the most demanding jobsite conditions.

Specifications

Compatible Electric Motor Kits: 248949, 248950 (CSA)
Compatible Material: Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer
Compatible Replacement Pump: 24W997
Convertible: Yes
Fluid Inlet Size (in): 1-5/16
Fluid Inlet Size (mm): 33.34
Fluid Inlet Thread Type: UN-2A
Fluid Outlet Size (in): 3/8
Fluid Outlet Size (mm): 3.75
Fluid Outlet Thread Type: FNPT
Frame Configuration: Cart
Maximum Flow Rate (l/min): 8.9
Maximum Hose Length (m): 92
Maximum Sound Pressure Level (dB(A)): 96
Maximum Tip Size (in): 0.053
Maximum Tip Size 1 Gun (in): 0.053
Maximum Tip Size 1 Gun - Electric Motor (in): 0.031
Maximum Tip Size 2 Guns (in): 0.038
Maximum Tip Size 2 Guns - Electric Motor (in): 0.017
Maximum Tip Size 3 Guns (in): 0.032
Maximum Tip Size 4 Guns (in): 0.028
Maximum Tip Size 5 Guns (in): 0.024
Maximum Working Pressure (MPa): 22.8
Maximum Working Pressure (bar): 228
Maximum Working Pressure (kPa): 22800
Model: GH
Number of Guns: 5
Outlet Paint Filter: Easy Out
Overall Height (cm): 104.1
Overall Height (mm): 1041
Overall Length (cm): 121.92
Overall Length (mm): 1219.2
Overall Width (cm): 61
Overall Width (mm): 610
Power Rating (W): 4847
Power Rating (cc): 200
Power Rating (kW): 4.85
Power Source: Gas Hydraulic
Product Series: Standard
Pump Mount Type: QuikChange
Pump Rod Type: Chromex
Pump Sleeve Material: Stainless Steel
Pump Type: Endurance
Series: 230
Type: Airless Sprayer
Weight (kg): 76

Features

Tool-Free Convertible Power: Easily swap the petrol engine for an electric motor kit (sold separately) to transition between indoor and outdoor applications.
High-Efficiency Hydraulic Motor: A faster, more responsive design with fewer moving parts for reduced maintenance and a longer service life.
Endurance™ Chromex™ Piston Pump: Delivers 2X longer life than the next leading brand and features a QuikChange™ design for effortless on-site pump swaps.
Innovative Cooling System: Features a tapered hydraulic reservoir with cooling fins that actively deflect heat, ensuring the pump runs cooler and more efficiently.
Honda® GX Engine: Contractor-preferred engine that is reliable and easy to start, featuring Oil Alert™ to prevent engine damage.
Easy Out™ Pump Filter: A vertical, inside-out design prevents filter collapse and ensures a clean, high-quality finish with less mess during maintenance.
Rugged Steel Cart: Built with thick chrome over welded steel to withstand harsh environments, featuring pneumatic wheels for vibration absorption and a retractable handle.
Silver Plus™ Spray Gun: Includes the premium Silver Plus gun, rated for high-pressure applications and heavy materials.
