GRACO GH 300 Standard Petrol Hydraulic Airless Sprayer (24W935)

$16,600.00

Description

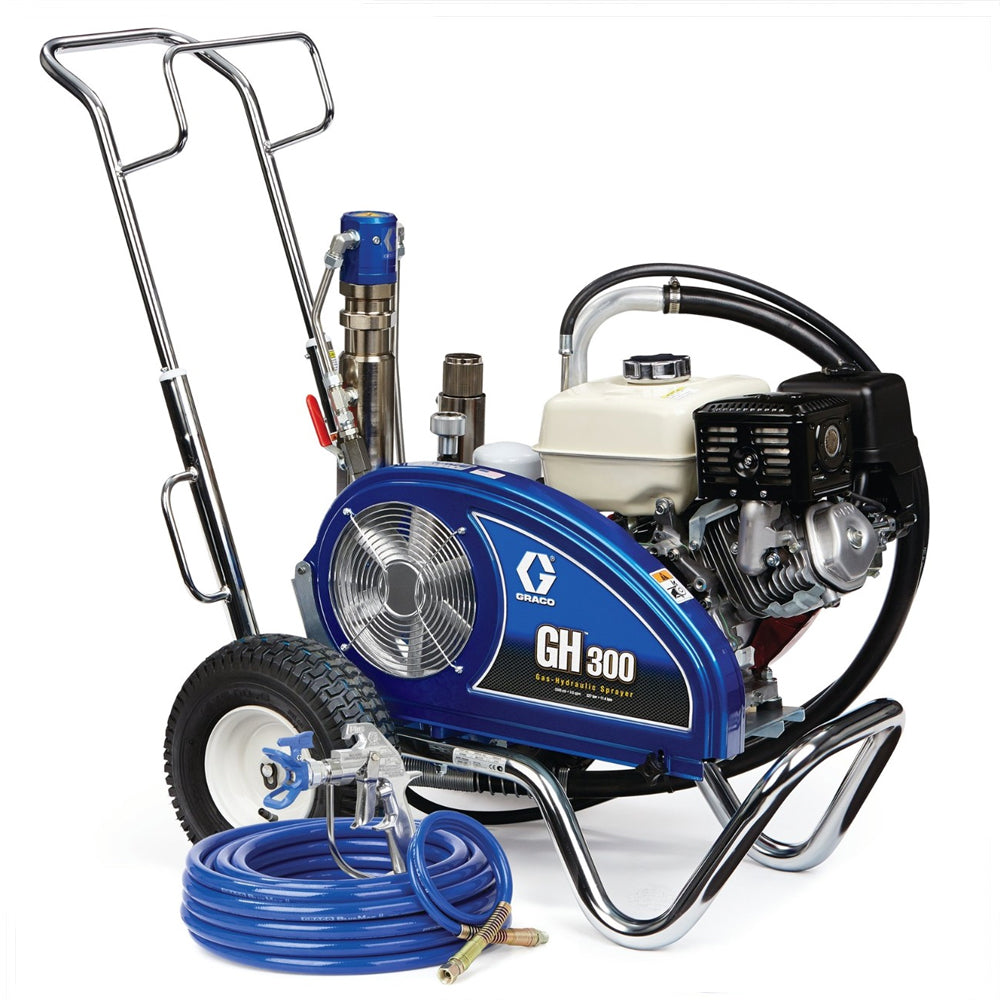

GRACO GH 300 Standard Petrol Hydraulic Airless Sprayer

The Graco GH 300 stands as one of the most powerful hydraulic sprayers in the Graco lineup, specifically engineered for high-production contractors. Designed to dominate large commercial jobsites, it possesses the raw hydraulic power required to spray a vast range of heavy materials, including latex, elastomerics, and block fillers, with absolute consistency.

Built for maximum durability, the GH 300 features a Honda® GX engine and a high-efficiency hydraulic motor designed with fewer moving parts to minimize maintenance and maximize uptime. Its innovative cooling system ensures that even under the most demanding conditions, the pump runs efficiently, making it the premier choice for professionals who need a "no-excuses" workhorse for high-volume applications.

Specifications

Compatible Material: Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer
Compatible Replacement Pump: 24W997
Convertible: No
Fluid Inlet Size (in): 1-5/16
Fluid Inlet Size (mm): 33.34
Fluid Inlet Thread Type: UN-2A
Fluid Outlet Size (in): 3/8
Fluid Outlet Size (mm): 3.75
Fluid Outlet Thread Type: FNPT
Frame Configuration: Cart
Maximum Flow Rate (l/min): 11.3
Maximum Hose Length (m): 92
Maximum Sound Pressure Level (dB(A)): 96
Maximum Tip Size (in): 0.057
Maximum Tip Size 1 Gun (in): 0.057
Maximum Tip Size 2 Guns (in): 0.039
Maximum Tip Size 3 Guns (in): 0.033
Maximum Tip Size 4 Guns (in): 0.029
Maximum Tip Size 5 Guns (in): 0.025
Maximum Working Pressure (MPa): 22.8
Maximum Working Pressure (bar): 228
Maximum Working Pressure (kPa): 22800
Model: GH
Number of Guns: 5
Outlet Paint Filter: Easy Out
Overall Height (cm): 104.1
Overall Height (mm): 1041
Overall Length (cm): 121.92
Overall Length (mm): 1219.2
Overall Width (cm): 61
Overall Width (mm): 610
Power Rating (W): 6711
Power Rating (cc): 270
Power Rating (kW): 6.71
Power Source: Gas Hydraulic
Product Series: Standard
Pump Mount Type: QuikChange
Pump Rod Type: Chromex
Pump Sleeve Material: Stainless Steel
Pump Type: Endurance
Series: 300
Type: Airless Sprayer
Weight (kg): 89
Wetted Material: Acetal, Aluminium, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel

Features

Unmatched Hydraulic Power: Delivers rock-solid performance for high-velocity spraying of heavy-bodied coatings and long hose runs.
Endurance™ Chromex™ Piston Pump: Field-proven to last 2X longer than the next leading brand. Includes a QuikChange™ design for fast on-the-job swaps and a QuikAccess™ intake valve for rapid cleaning.
High-Efficiency Hydraulic Motor: Optimized for faster, more responsive changeover with O-ring sealed fittings to prevent leaks.
High-Capacity Cooling System: A tapered hydraulic reservoir with integrated cooling fins deflects heat away from the unit, ensuring the system stays cool during continuous use.
Honda® GX Engine: Reliable, easy-to-start power plant with Oil Alert™ to automatically protect the engine from low oil levels.
Easy Out™ Pump Filter: Features a vertical, inside-out design that won't collapse and keeps the jobsite cleaner during filter changes.
Silver Plus™ Airless Spray Gun: Comes standard with the high-pressure Silver Plus gun, preferred by contractors for its durability and ease of use with heavy materials.
Heavy-Duty Cart: Welded steel frame with thick chrome plating and pneumatic wheels to handle the roughest jobsite terrain.
