Graco Hose Fittings

$37.13
SKU: 159239

Title

Quantity

Out of stock
Add to Cart
Out of stock
Add to Cart

Payment & Security | Refund Policy

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Graco Hose Fittings
$37.13

Description

Graco Hose Fittings

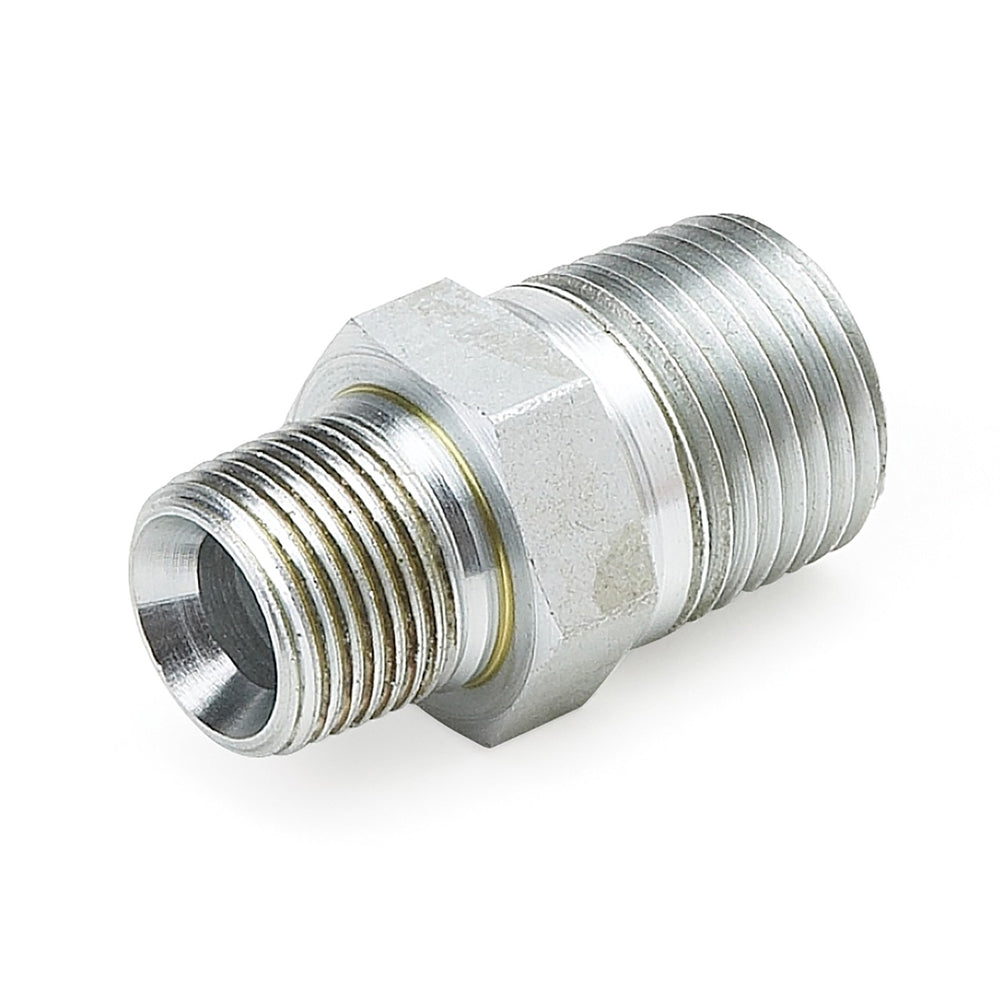

Hose Fitting, 3/8 in x 1/2 in 159239

Connect a 3/8 inch diameter hose to a 1/2 inch diameter hose with this fitting.

 Type - Adaptor

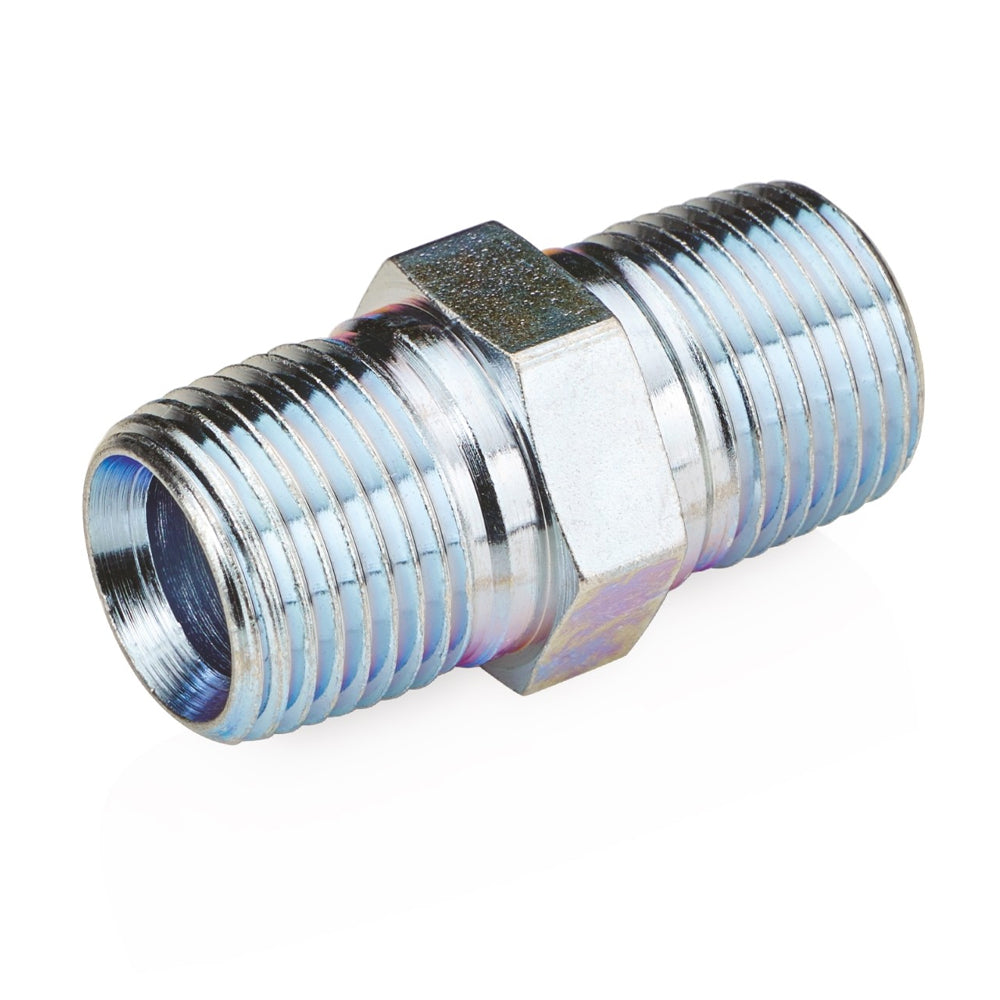

Hose Fitting, 3/8 in x 3/8 in 156849

Connect two 3/8 inch diameter hoses together with this hose fitting.

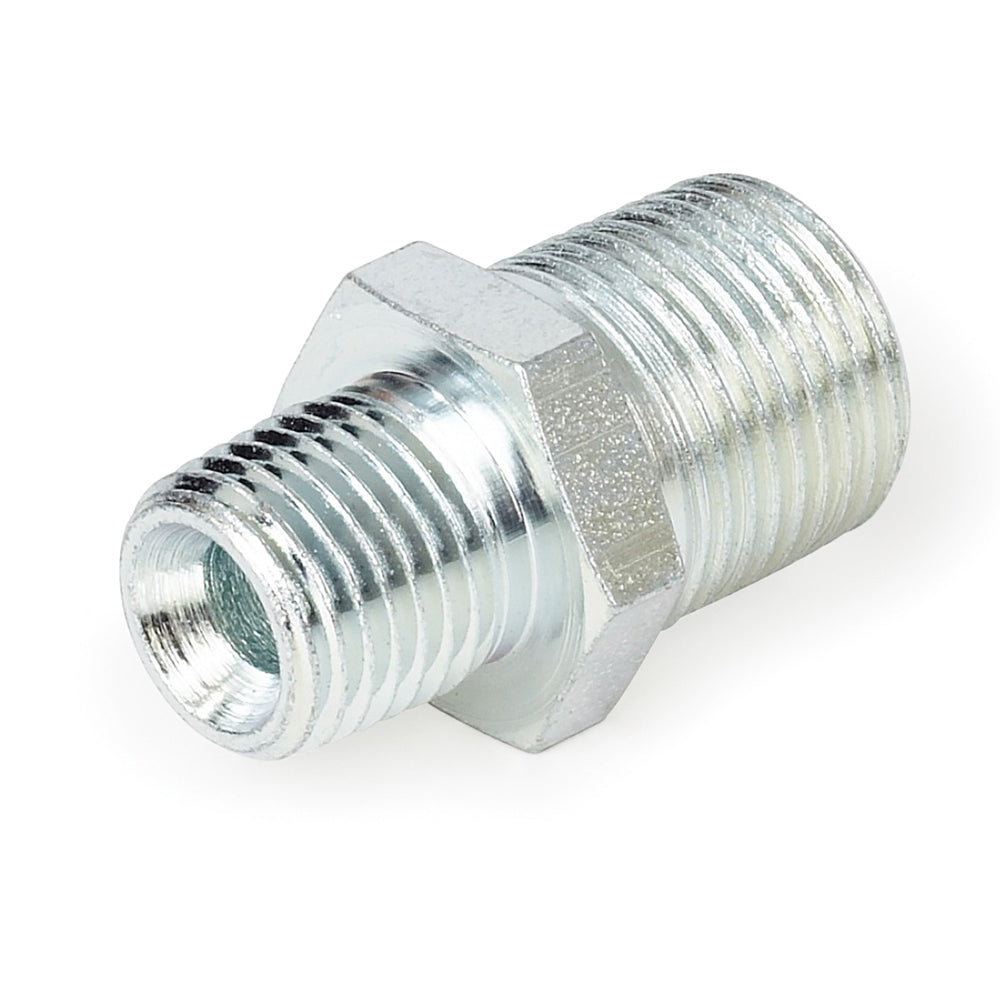

Hose Fitting, 1/4 in x 3/8 in 157350

Connect a 1/4 inch diameter hose to a 3/8 inch diameter hose with this fitting. When coupling hoses together, connect the larger diameter hose to the sprayer and the small diameter hose to the gun for maximum pressure when spraying.

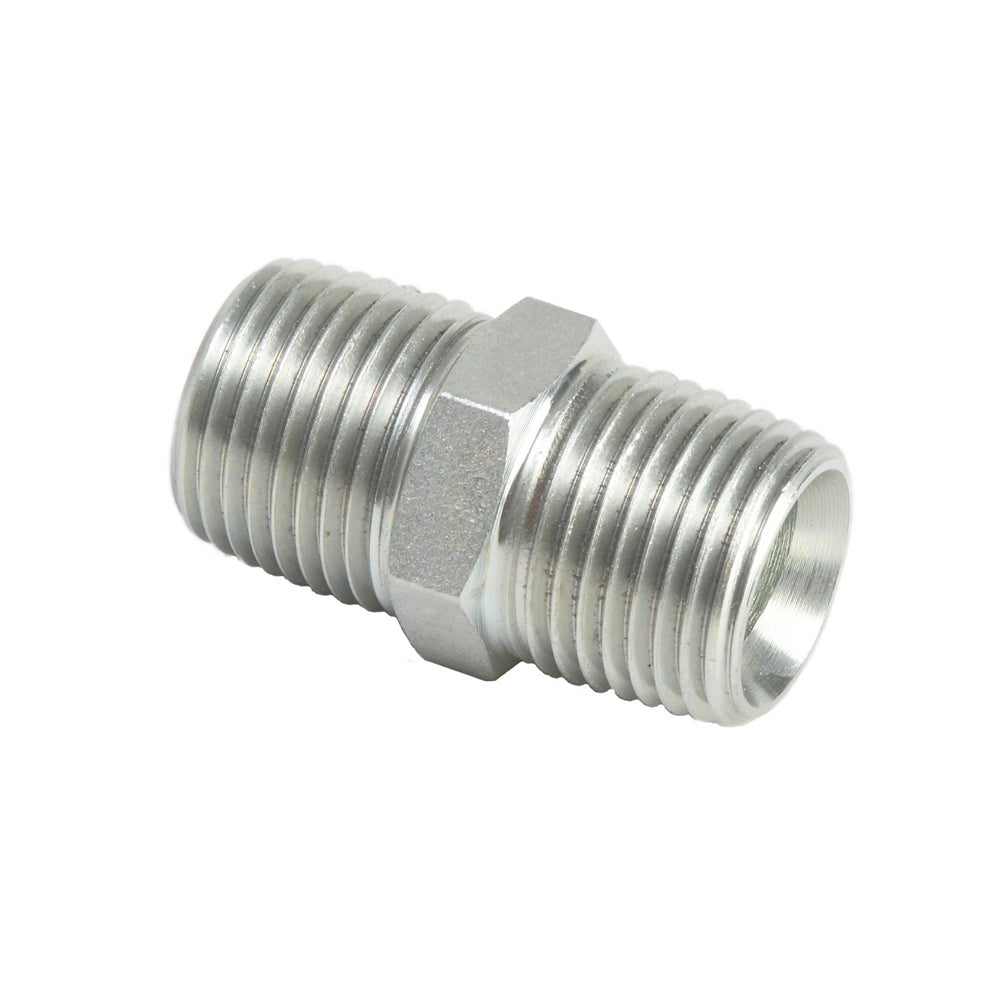

Hose Fitting, 1/2 in x 1/2 in 158491

Connect two 1/2 inch diameter hoses together with this hose fitting.

Fittings

PART # DESCRIPTION

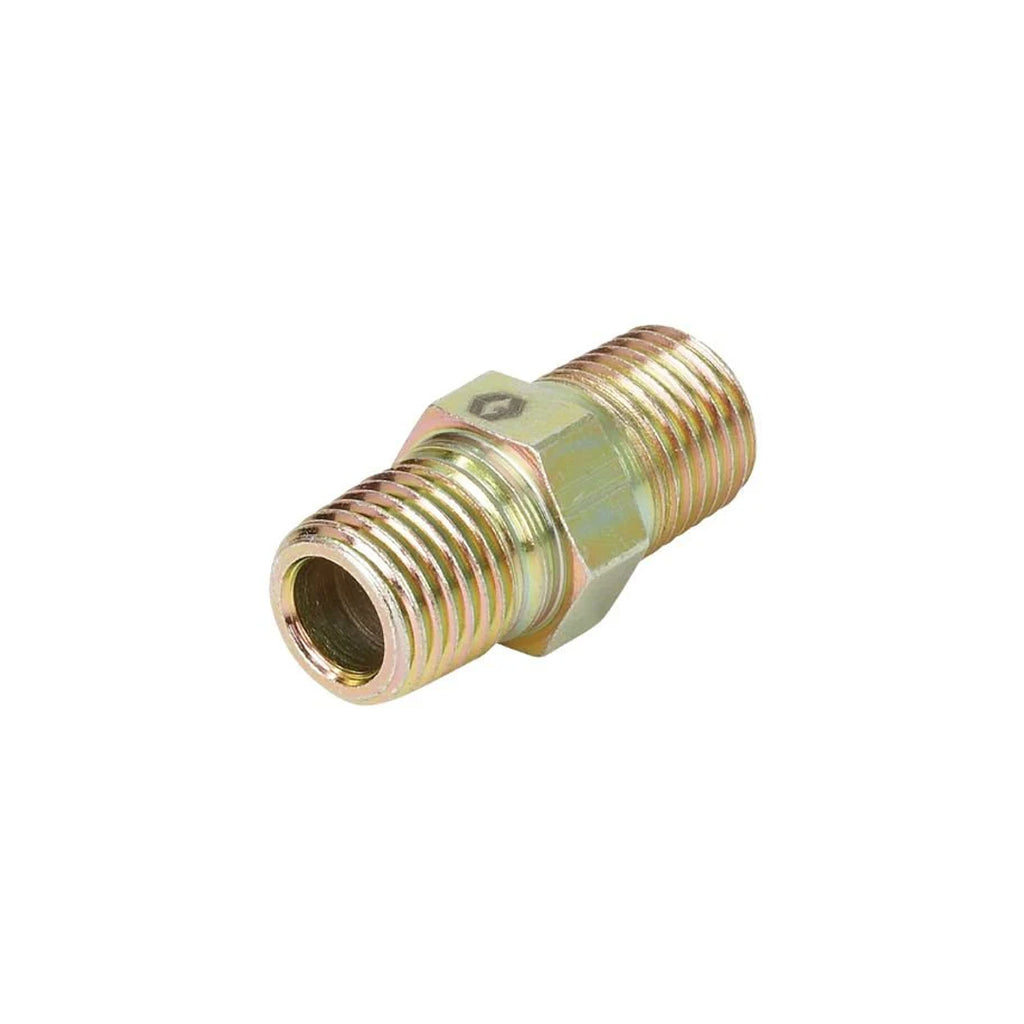

156971 1/4 in npt x 1/4 in npt (6.4 mm x 6.4 mm) — MBE
Maximum Working Pressure: 7500 psi (517 bar, 51.7 MPa)
156849 3/8 in npt x 3/8 in npt (9.5 mm x 9.5 mm) — MBE
Maximum Working Pressure: 6000 psi (420 bar, 42.0 MPa)
158491 1/2 in npt x 1/2 in npt (13 mm x 13 mm) — MBE
Maximum Working Pressure: 6700 psi (462 bar, 46.2 MPa)
157350 1/4 in npt x 3/8 in npt (6.4 mm x 9.5 mm) — MBE
Maximum Working Pressure: 5000 psi (345 bar, 34.5 MPa)
159239 1/2 in npt x 3/8 in npt (13 mm x 9.5 mm) — MBE
Maximum Working Pressure: 5000 psi (345 bar, 34.5 MPa)

Specifications

Hose Fitting, 3/8 in x 3/8 in 156849

Connection Type - Threaded


For Use With - Pipe


Material - Carbon Steel


Size A (mm) - 9.525


Size B (mm) - 9.525


System of Measurement - Imperial


Thread Gender - Male


Thread Type - NPT


Type - Nipple

Hose Fitting, 1/4 in x 3/8 in 157350

Connection Type - Threaded


Material - Steel


Maximum Working Pressure (bar) - 345


Maximum Working Pressure (kPa) - 34500


Size A (mm) - 6.35


Size B (mm) - 9.525


System of Measurement - Imperial


Thread Type - NPT


Type - Nipple

Hose Fitting, 1/2 in x 1/2 in 158491

Connection Type - Threaded

Maximum Working Pressure (bar) - 462

Maximum Working Pressure (kPa) - 46200

System of Measurement - Imperial

Thread Type - NPT

Type - Nipple

Features

When coupling hoses together, connect the larger diameter hose to the sprayer and the small diameter hose to the gun for maximum pressure when spraying.

Reviews

Dimensions

Width
Width
Height
Height
Length
Length
product
2.286 cm
4.191 cm
2.032 cm

Weight

Courier

Easy To Carry

Total Weight: 0.0680 kg
Width
Width
Height
Height
Length
Length
product
1.905 cm
2.159 cm
3.683 cm

Weight

Courier

Easy To Carry

Total Weight: 0.0386 kg
Width
Width
Height
Height
Length
Length
product
11.43 cm
3.556 cm
5.207 cm

Weight

Courier

Easy To Carry

Total Weight: 0.0431 kg
Width
Width
Height
Height
Length
Length
product
2.413 cm
4.572 cm
2.413 cm

Weight

Courier

Easy To Carry

Total Weight: 0.0612 kg
