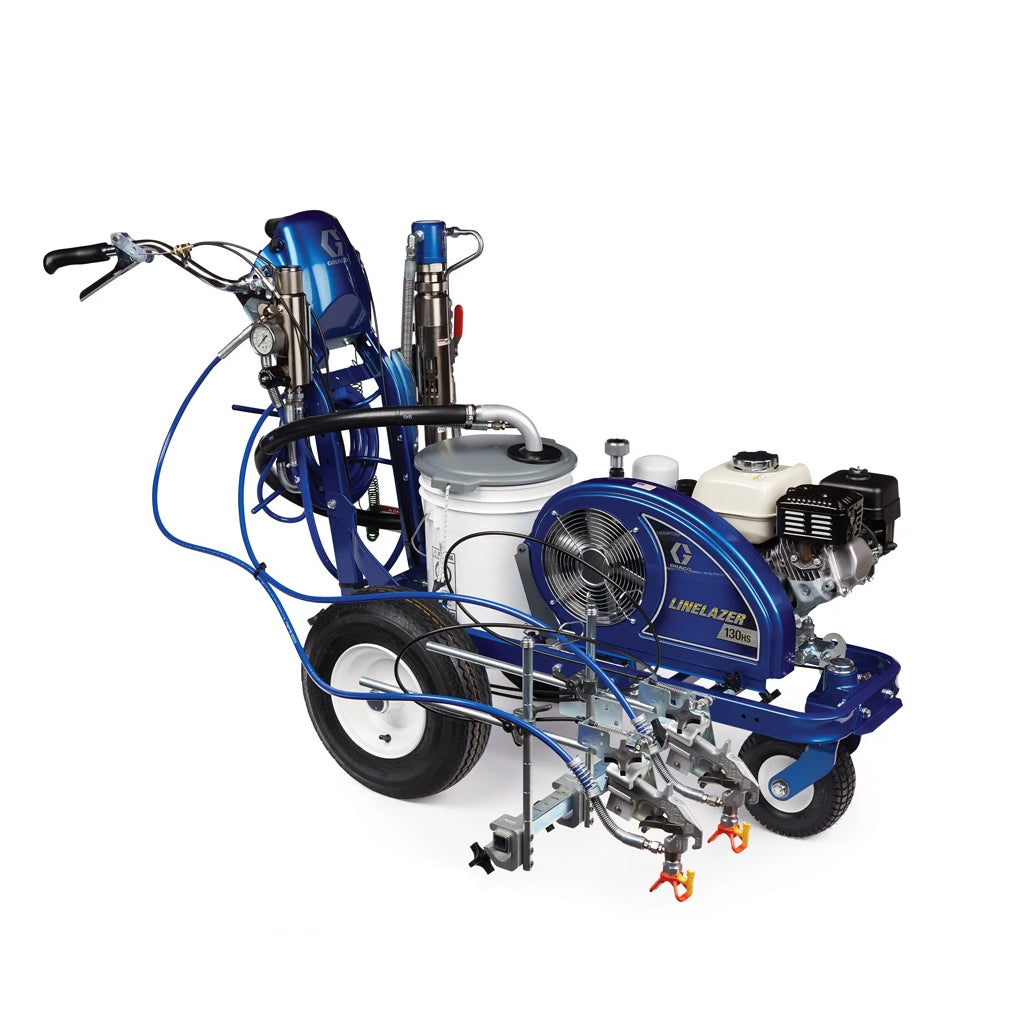

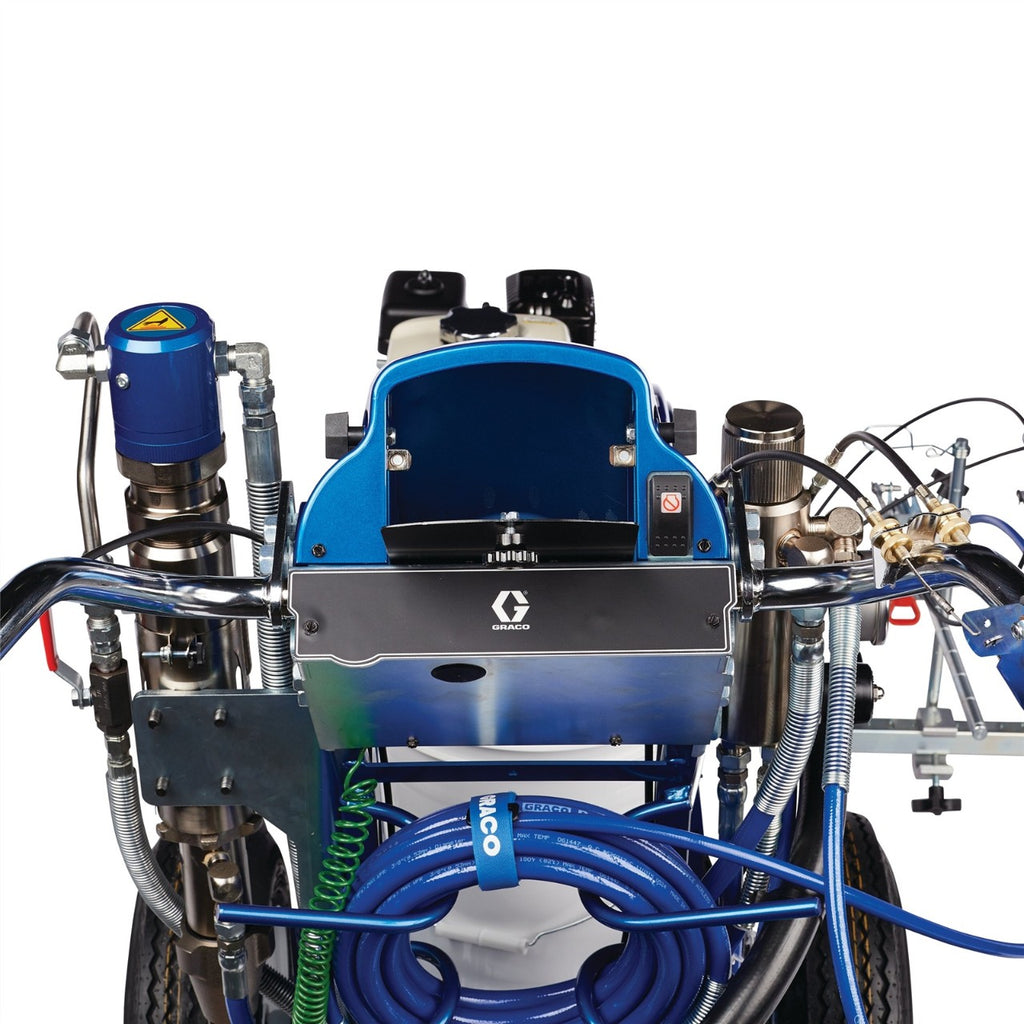

GRACO LineLazer 130HS Airless Line Marker Petrol Hydraulic Driven 17H448
- Hydraulic Airless Line Marker
- The LineLazer 130 HS is a workhorse hydraulic airless line marker for everyday pavement marking.
- The LineLazer 130HS is the ultimate hydraulic airless striping unit that contractors rely on for their most challenging line marking jobs.
- Professional line marking contractors wanting hydraulic performance and proven power cannot go wrong with the LineLazer 130HS.
- As the preferred hydraulic line marker for everyday jobs, it consistently delivers solid performance day in and day out.
Kit Contains
- Flex Plus Gun x 2
- LineLazer RAC 5 319 Spray Tip x 2
- LineLazer RAC 5 421 Spray Tip x 2,
- RAC 5 Tip Guard x 2
- 3/8 in x 22 ft BlueMax II Airless Hose
- 3/8 in x 3 ft BlueMax II Airless Whip Hose
- TSL, 4 oz
Features
- EasyMark Gun Adjustment System—Simple guide mark and gun placement system allows for perfect gun set up every time
- High-capacity Cooling System—Keeps the system running cool
- Storage Compartment—Storage area for tips, guards and miscellaneous items
- DualComfort Handle Bar System—Fits all users and is easy to adjust
- EZ Align Front Wheel System—Intuitive design keeps unit tracking straight
- QuickSelect Gun Selector—Chrome gun lever for ease of use and dependable operation
- Honda Engine—Excellent power and proven reliability
- Endurance Paint Pump—Industry best performance and proven design with 25 years of success
Specifications:
| LineLazer 130HS Airless Paint Line Marker, Repair - Parts | |
| Honda GX160 Engine | |
| Power Rating @ 3600 rpm |
4.0 Horsepower
|
| Maximum working pressure | |
|
3300 psi
|
|
| Noise Level | |
| Sound power |
103 dBa, per ISO 3744
|
| Sound pressure |
88 dBa, measured at 3.1 ft
|
| Vibration Level measured per ISO 5349 based on 8 hour daily exposure | |
| Left hand |
2.90 m/sec2
|
| Right hand |
2.83 m/sec2
|
| Cycles | |
|
104/gal
|
|
| Maximum delivery | |
|
1.3 gpm
|
|
| Maximum tip size | |
| 1 gun |
0. 037 in tip
|
| Inlet paint strainer | |
|
16 mesh stainless steel screen, reusable
|
|
| Outlet paint strainer | |
|
60 mesh stainless steel screen, reusable
|
|
| Pump inlet size | |
|
1 in npsm(m)
|
|
| Fluid outlet size | |
|
3/8 npt(f)
|
|
| Hydraulic reservoir capacity | |
|
1.25 gal
|
|
| Hydraulic pressure | |
|
1510 psi
|
|
| Weight (dry, without packaging) | |
|
242 lb
|
|
| Height | |
|
40 in
|
|
| Length | |
|
65 in
|
|
| Width | |
|
32 in
|
|
| Wetted parts | |
|
PTFE, Nylon, polyurethane, V-Max™ UHMWPE polyethylene, fluoroelastomer, acetal, leather, tungsten carbide,stainless steel, chrome plating, nickel-plated carbon steel
|
|
| LineLazer 130HS Airless Paint Line Marker | |
| Honda GX120 Engine |
ANSI – 4.0 Horsepower
|
| Maximum Working Pressure |
3300 psi
|
| Cycles |
104/gal
|
| Maximum Delivery |
1.3 gpm
|
| Maximum Tip Size 1 Gun |
With 0.037 in. tip
|
| Inlet Paint Strainer |
16 mesh stainless steel screen, reusable
|
| Outlet Paint Filter |
60 mesh stainless steel screen, reusable
|
| Pump Inlet Size |
1 in npsm
|
| Fluid Outlet Size |
3/8 npt(f)
|
| Hydraulic Reservoir Capacity |
1.25 gal
|
| Hydraulic Pressure |
1510 psi
|
| Weight (dry, without packaging) |
242 lb
|
| Height |
40 in
|
| Length |
65 in
|
| Width |
32 in
|
| Wetted Parts |
PTFE, Nylon, polyurethane, V-Max UHMWPE polyethylene, fluoroelastomer, acetal, leather, tungsten carbide, stainless steel, chrome plating, nickel-plated carbon steel, ceramic
|
| Noise Level | |
| Sound Power |
103 dBa per ISO 3744
|
| Sound Pressure |
88 dBa measured at 3.1 ft
|
| Vibration Level | |
| Left Hand (Vibration measured per ISO 5249 based on 8 hr daily exposure) |
2.90 m/sq sec
|
| Right Hand (Vibration measured per ISO 5249 based on 8 hr daily exposure) |
2.83 m/sq sec
|
SHOP |
PRICE |
|---|
| PaintAccess | $15,635.00 |
