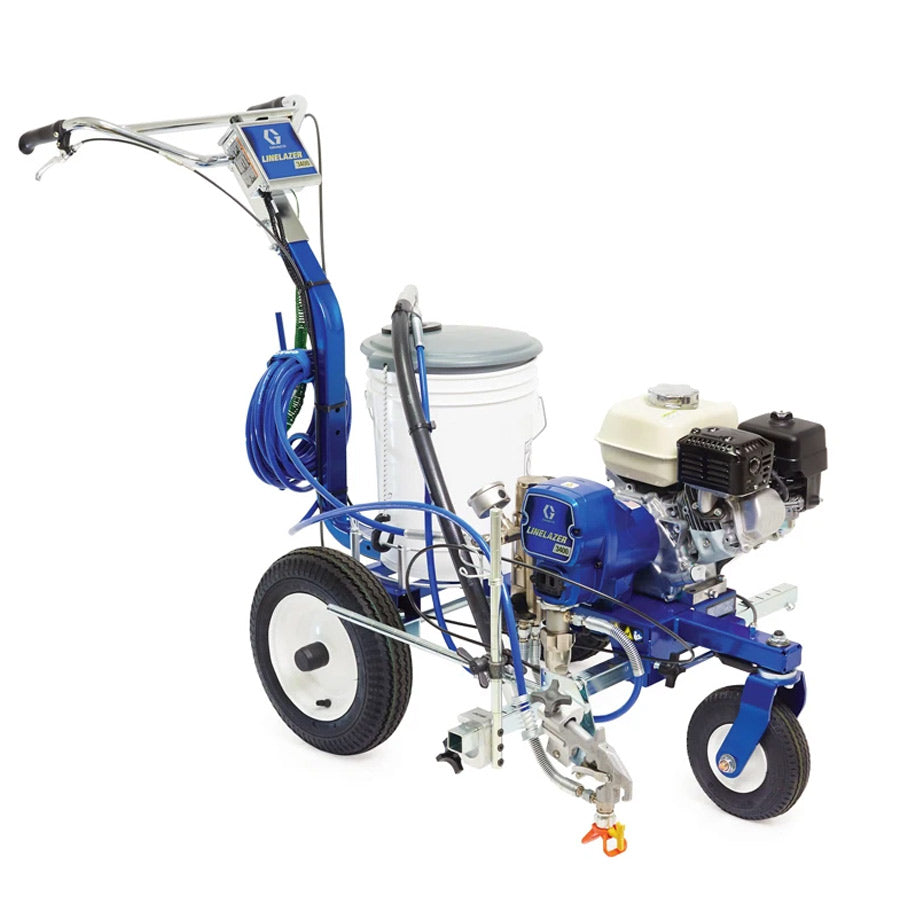

GRACO LineLazer 3400 Airless Line Marker Petrol Driven 25M224





GRACO LineLazer 3400 Airless Line Marker Petrol Driven 25M224

  • Airless Line Marker
  • The preferred choice of parking lot and seal coating contractors looking for professional performance in a one-gun machine.
  • The LineLazer 3400 is the proven performer for your re-stripe / line marking jobs.
  • As the preferred choice for 1-gun professional performance, the LineLazer 3400 is perfect for small parking lots, mini malls, seal coating contractors, schools and park and recreation departments.


New Frame

  • 3 inches longer than the previous version for greater stability and straighter lines
  • Now accepts the 15-gallon hopper and the EZ Bead system

EasyMark Gun Adjustment System

  • "G" clamp system allows for quick movement of gun and guide marks for perfect gun alignment every time

Handle Bar System

  • Adjustable design, allows for optimal ergonomics and reduced vibration for all-day striping comfort with less fatigue

Rear Mount Hose Wrap

  • Provides easy on and off for stencilling applications

Easy Reach Controls

  • Operator controls are located on the handle bars allowing adjustments to be made without stopping

Honda Engine

  • Contractor preferred, excellent power and proven reliability

Endurance Pump

  • Industry-best pump performance in this field-proven design

Advantage Drive

  • With hardened steel gears, this is the longest lasting drive in the industry

EasyOut Pump Filter

  • Large filtering area reduces tip clogs and ensures paint quality


  • Flex Plus Striping Gun
  • LineLazer RAC 5 SwitchTip and Guard
  • 1/4 in x 50 ft BlueMax II Airless Hose


    LineLazer 3400, FieldLazer S200 Airless Line Striper
    Honda GX120 Engine
    ANSI Power Rating @ 3600 rpm
    4.0 Horsepower
    Maximum working pressure
    3300 psi
    Noise Level
    Sound power
    100 dBa per ISO 3744
    Sound pressure
    86 dBa measured at 3.1 ft
    Vibration Level measured per ISO 5349 Based on 8 hr daily exposure
    Left hand
    3.89 m/sec²
    Right hand
    4.94 m/sec²
    Maximum delivery rating
    0.75 gpm
    Maximum tip size
    1 gun with 0.027 in tip
    Inlet paint strainer
    12 mesh stainless steel screen, reusable
    Outlet paint filter
    60 mesh stainless steel screen, reusable
    Pump inlet size
    1¼-12 unf-2b
    Fluid outlet size
    ¼ npsm from fluid filter
    Wetted parts
    PTFE, Nylon, polyurethane, UHMW polyethylene, FKM, acetal, leather, tungsten carbide, nickel-plated carbonsteel, stainless steel, chrome plating
    150 lb
    40.5 in
    32 in
    61.5 in
