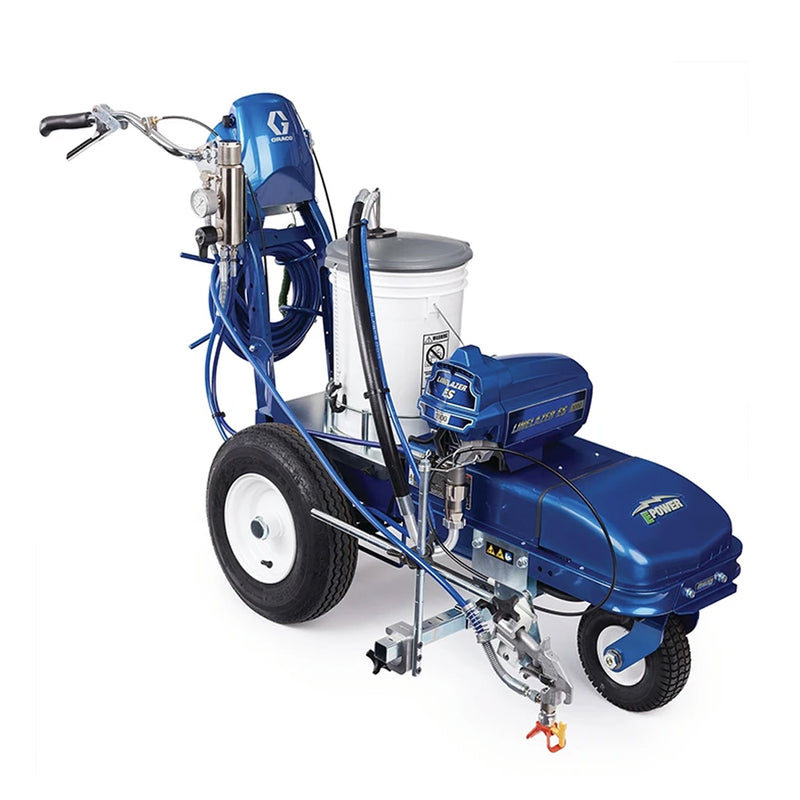

GRACO LineLazer ES 1000 Electric Battery-Powered Airless Line Striper 25M228

The industry's first electric striper, the LineLazer ES 1000 is powered by a 100AH AGM battery and provides quiet, fume-free striping that is safe to use indoors while having the power and performance for outdoor jobs.

Kit Contains:
  • Graco Flex Plus Gun (248157)
  • LineLazer Rac 5 319 Spray Tip (LL5319)
  • LineLaxer Rac 5 421 Spray Tip (LL5421)
  • Rac 5 Tip Guard (243161)
  • 1/4" x 15m BlueMax II Airless Spray Hose (240794)
  • TSL Throat Seal Liquid 240mL (4oz) (238049)



Maintenance-Free Battery

  • Quiet, Reliable Power
  • Sealed Lead-Acid 100AH AGM Battery
  • Stripe up to 60 gallons per charge with a second battery

Onboard 120V Inverter/Charger

  • Simple, Plug-in Charging
  • 240V wall power for stationary applications

SmartControl 2.5

  • Consistent Spray Fan
  • Eliminates pressure fluctuation for unmatched line quality

FastFlush System

  • Fast Cleaning Now Even FASTER
  • Faster motor speed
  • Clean the pump 4X faster with only ½ the water

MaxPower DC Motor & Advantage Drive

  • Maintenance-Free Power
  • Field proven brushless design
  • The longest lasting drive
  • Improved jobsite conditions with extremely quiet operation

EasyMark Gun Adjustment System

  • Easy Gun Adjustments
  • Perfect gun alignment every time with easy-to-use guide mark system
  • 2-gun capability with QuikSelect gun selector

EZ Align Wheel System

  • Perfect Striper Tracking
  • Simple front wheel alignment, no special tools needed

DualComfort Handlebar System

  • Easy Handlebar Adjustment

Endurance Chromex Pump

  • Reliable, Long-Life Pump
  • Industry-best pump performance — field-proven design
  • Handle the most demanding materials with long-life rod treatment
  • 4X harder than ordinary chrome

Additional Features

  • Exclusive LineLazer Cart
  • QuikSelect Gun Selector
  • Easy Out Pump Filter

Typical Applications

  • Factories and Warehouses: Indoor striping where exhaust fumes are not allowed.
  • Nighttime: Outdoor striping where noise can be a concern
  • Sports Field Marking: for painting lines and logos on sports fields
  • Parking Garages: Where exhaust fumes and noise can be a concern in enclosed environments


Bead System Optional
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Gun Activation Manual
Includes Flex Plus Gun, LineLazer RAC 5 319 Spray Tip, LineLazer RAC 5 421 Spray Tip, RAC 5 Tip Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL, 4 oz
Maximum Flow Rate (L/min) 2.27
Maximum Sound Pressure Level (dB(A)) 85.3
Maximum Tip Size (cm) 0.0635
Maximum Tip Size (mm) 0.635
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Model LineLazer
Number of Colors One Color
Number of Guns 1
Number of Pumps 1
Overall Height (cm) 113.03
Overall Height (mm) 1130.3
Overall Length (cm) 174.63
Overall Length (mm) 1746.3
Overall Width (cm) 86.99
Overall Width (mm) 869.9
Power Rating (AH) 100
Power Source Battery Powered
Pump Type Endurance
Recommended Annual Usage Up to 250 gallons per week
Series ES 1000
Type Walk-Behind Line Striper
Weight (kg) 154.2
