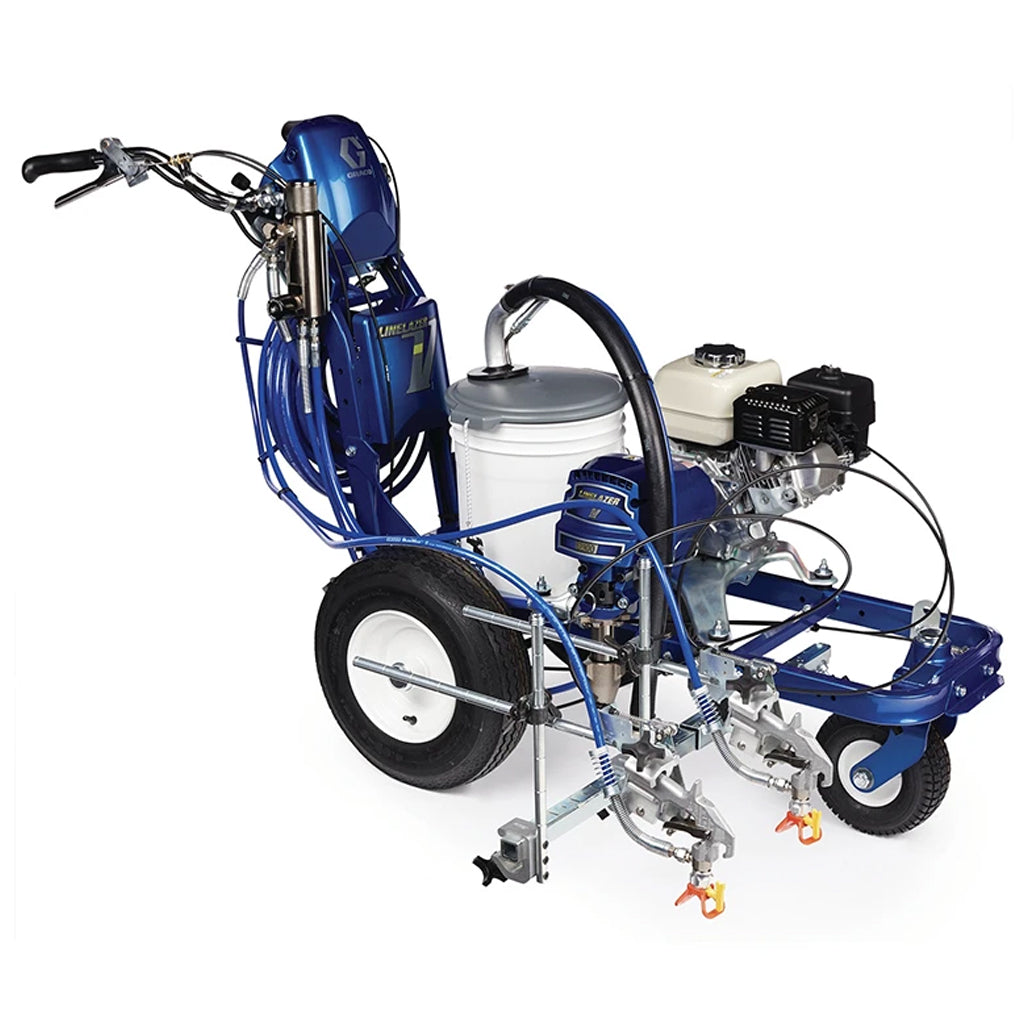

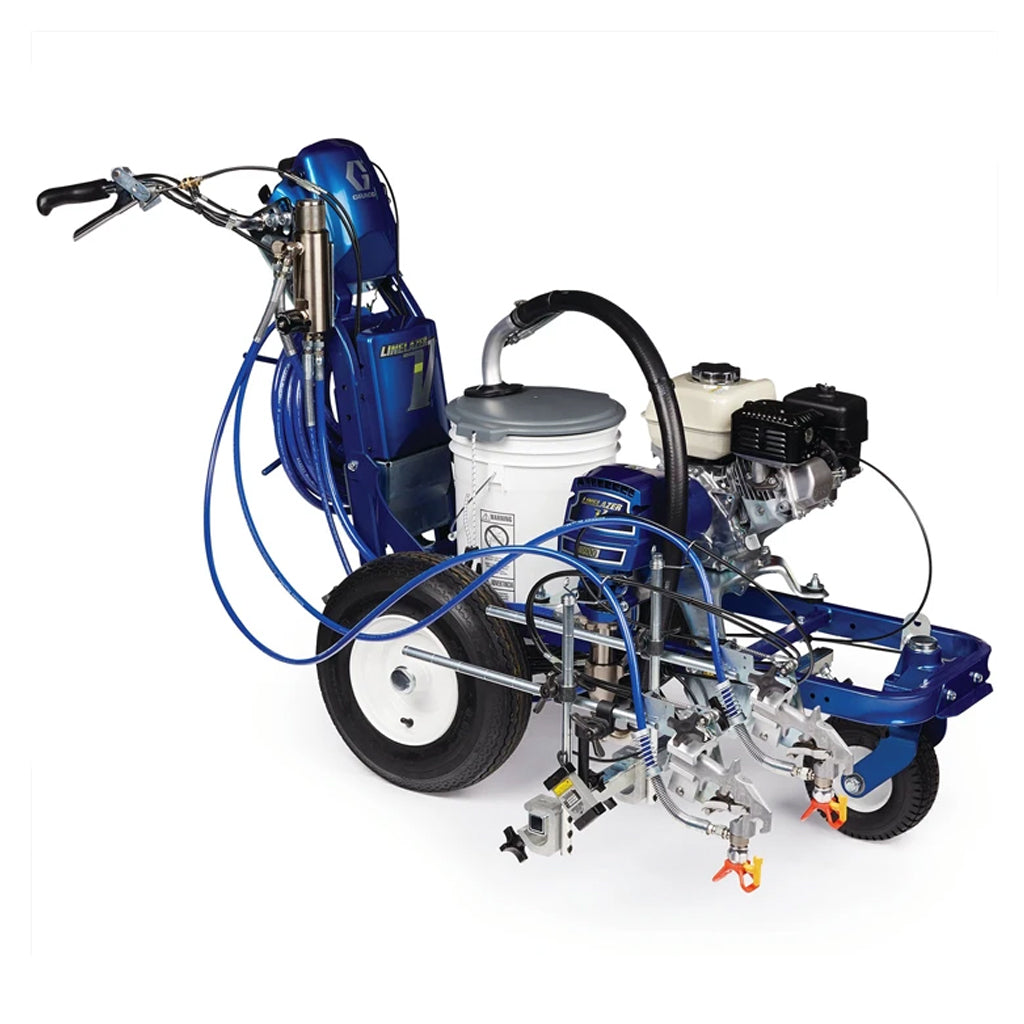

GRACO LineLazer V 3900 Airless Line Marker Petrol Driven Range





GRACO LineLazer V 3900 Airless Line Marker Petrol Driven Range

When it’s time for 1 or 2-gun airless line striping performance, the LineLazer V 3900 Standard Series striper is an excellent choice. These durable striping machines deliver consistent lines for all your basic striping needs.


Standard Series Features:

LiveLook Display with SmartControl
  • Striping Information At-A-Glance
  • Track, measure and control every aspect of your job
  • Accessible proof-of-job data from the J-Log System with USB Download
  • Consistent spraying pressure for perfect lines
Honda® GX Engine
  • Reliable, Easy-to-Start Power
  • Contractor-preferred - excellent power and proven reliability
  • Oil Alert shuts down engine to prevent damage if oil level drops too low
EasyMark Gun Adjustment
  • Easy Gun Adjustments
  • Perfect gun alignment every time with easy-to-use guide mark system
  • 2-gun capability with QuikSelect gun selector
EZ Align Wheel System
  • Perfect Striper Tracking
  • Simple front wheel alignment, no special tools needed
DualComfort Handlebar System
  • Easy Handlebar Adjustment
QuikSelect Gun Selector
  • Simple Gun Control
  • Independently control of two guns with one lever - solid/skip
Endurance Chromex Pump
  • Reliable, Long-Life Pump
  • Industry-best pump performance - field-proven design
  • Handle the most demanding materials with long-life rod treatment
  • 4X harder than ordinary chrome
Easy Out Pump Filter
  • Easy Pump Maintenance & Less Clogging
  • Inside-out design means less mess with fewer tip clogs

HP Automatic Series Includes All Standard Series Features PLUS:

  • Automatic Guns: Push button control for accurate stripes every time
  • Auto-Layout II: Cuts layout time in half, Exclusive Green Laser Guidance (country dependant)
  • Data Logging with J-Log System: On-board job information for proof of completion
  • On-Board Power: 12V battery for all your accessory items

Technical Specifications

Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX120
Fuel Tank Capacity (L) 2.5
Gun Activation Manual
Includes Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
Maximum Flow Rate (L/min) 4.7
Maximum Sound Pressure Level (dB(A)) 85.5
Maximum Tip Size (cm) 0.0635
Maximum Tip Size (mm) 0.6350
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 2270
Model LineLazer V
Number of Colors One Color
Number of Guns 2
Number of Pumps 1
Overall Height (cm) 113.03
Overall Height (mm) 1130.3000
Overall Length (cm) 173.36
Overall Length (mm) 1733.55
Overall Width (cm) 87.0
Overall Width (mm) 869.9500
Power Rating (HP) 4
Power Rating (kW) 2.98
Power Source Gas
Pump Type Endurance
Recommended Annual Usage Up to 500 gallons per week
Series 3900
Standards Met CE
Type Walk-Behind Line Striper
Weight (kg) 104
