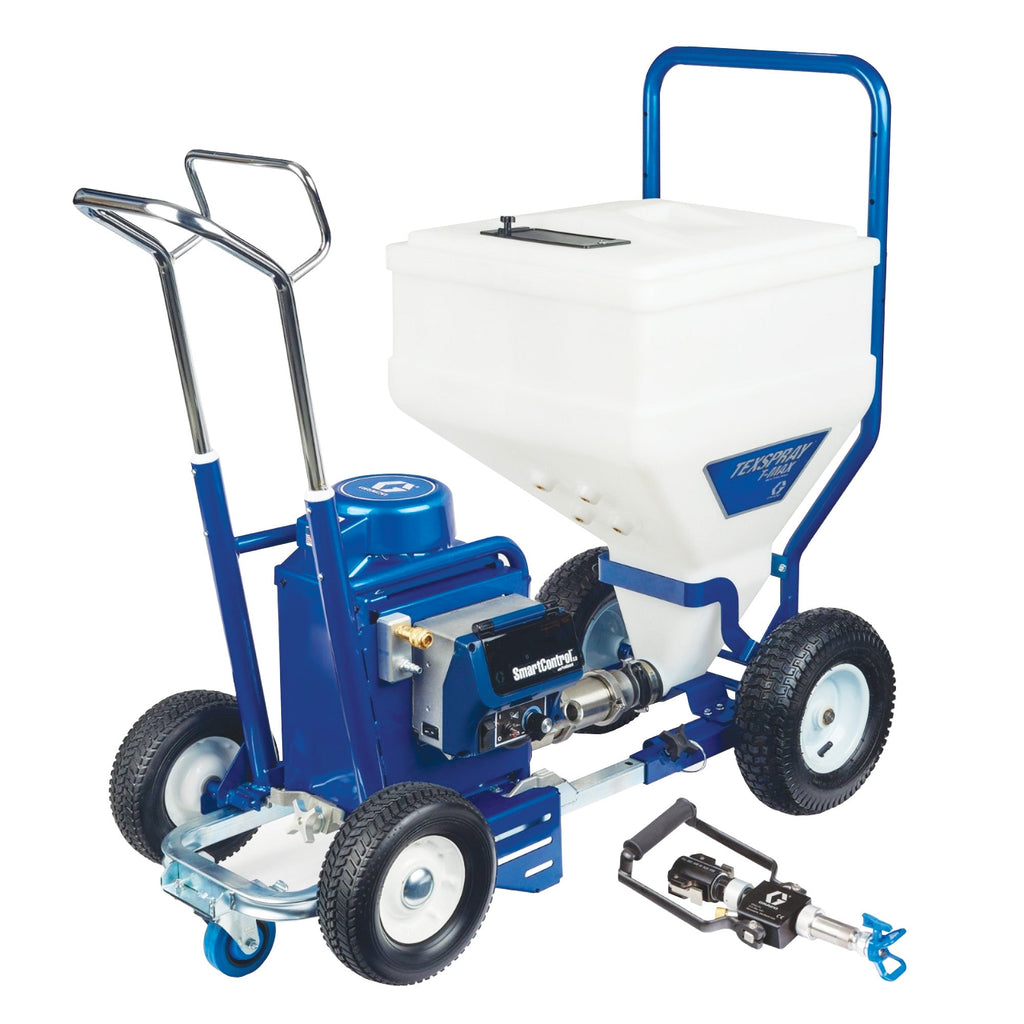

Graco TexSpray T-MAX 6912 Electric Airless Texture Sprayer (17X987)


Graco TexSpray T-MAX 6912 Electric Airless Texture Sprayer, Lance Gun, 230V, Multi

The Graco T-MAX 6912 provides the capability and performance to spray almost all interior and exterior texture applications – whether you're spraying smooth compounds for interior skim coats and decorative finishes or aggregate-based materials for exterior jobs.

Superior versatility to spray nearly all your texture applications & materials with even material flow and minimal pack-out. Airless spraying to easily apply skimcoats and decorative finishes. Air-Assisted spraying to spray heavy aggregates up to 2mm (separate air compressor required).




    Compatible Material Textured Acrylics, Synthetic Stucco, EIFS, Acoustics, Joint Compound, Plaster, Decorative Finish, Heavy Aggregates
    Convertible Non-Convertible
    Engine Size (HP) 2.8 Brushless DC
    Engine Size (kW) 2
    Features Endurance Pump, SmartControl 3.0, LED Display, Modular Split Frame, Flow and Pressure Selector
    Fluid Hose Inside Diameter (in) 1
    Fluid Outlet Size (in) 1
    Fluid Outlet Thread Type Camlock
    Frame Configuration Cart with Integrated Hopper
    Frequency (Hz) 50
    Hopper Capacity (gal) 12.1440
    Hose Diameter (in) 1
    Inlet Paint Strainer None
    Maximum Flow Rate (gpm) 3.17
    Maximum Fluid Working Pressure (psi) 1000
    Maximum Sound Pressure Level (dB(A)) 80.7
    Maximum Tip Size (in) 0.071
    Maximum Tip Size 1 Gun (in) 0.071
    Maximum Working Pressure (MPa) 6.9
    Maximum Working Pressure (psi) 1000
    Minimum Generator Power (W) 7000
    Minimum Generator Power (kW) 0
    Model TexSpray
    Motor Type Brushless DC
    Number of Guns 1
    Overall Height (in) 46
    Overall Length (in) 46
    Overall Width (in) 23
    Phase 1
    Power Rating (HP) 2.8
    Power Rating (kW) 2.0
    Power Source Electric
    Pressure Control Type SmartControl 3.0
    Pump Rod Type Hard Chrome
    Pump Sleeve Material Hard Chrome
    Pump Type Displacement Pump
    Series T-MAX 6912
    Spray Gun Type T-Max Lance
    Spray Type Airless, Air-Assisted Airless
    Type Airless Sprayer
    Voltage (V) 230
    Weight (lb) 190
    Wetted Material Buna-N, Aluminium, Brass, Polyethylene, Neoprene, Stainless Steel, Chrome-Plated Carbon Steel, Nickel-Plated Carbon Steel, Fluoroelastomer, Nickel-Plated Iron, Wool Felt, Tungsten Carbide, PTFE


    58 cm
    117 cm
    117 cm



    May require help to carry

    Total Weight: 86 kg

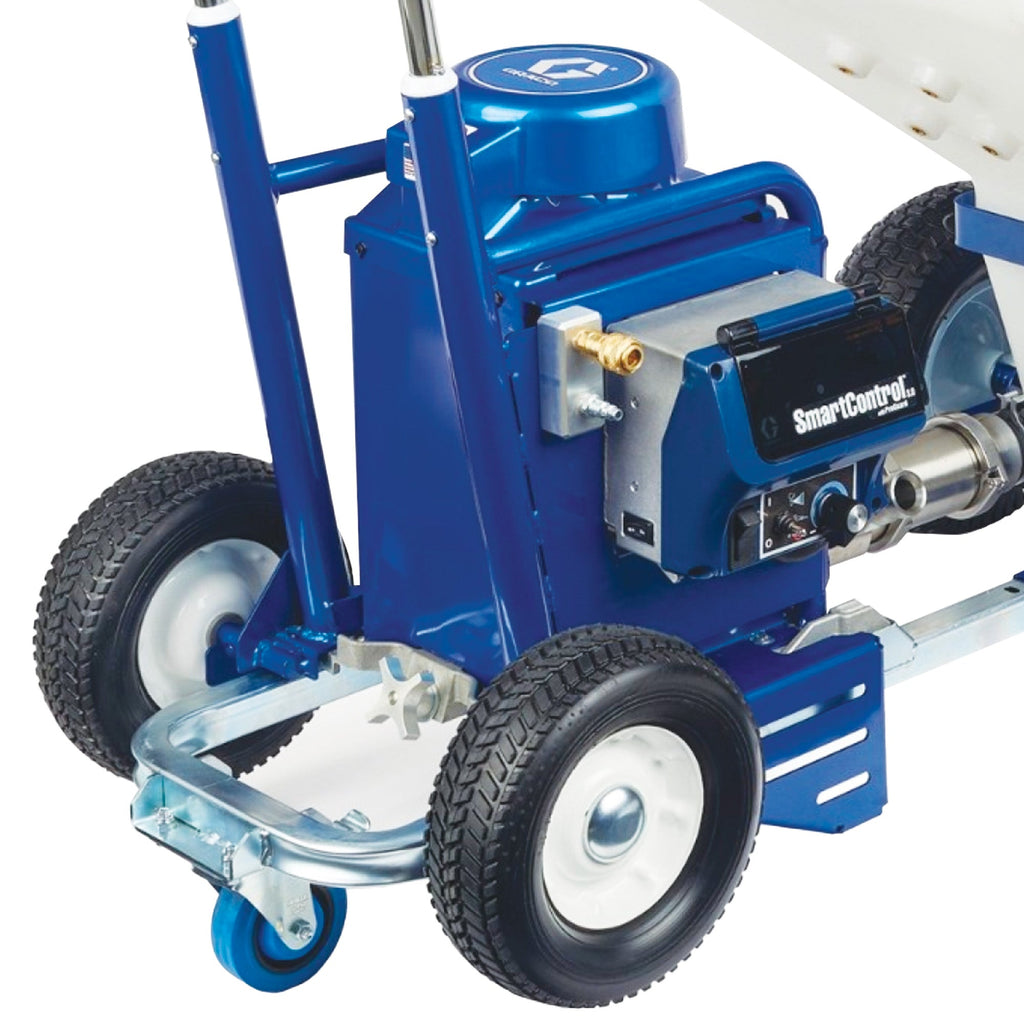

    230V MaxPower DC Motor

    • Use with standard 16/20 amp circuits
    • No-maintenance, brushless design keeps debris out
    • Heavy Duty Drivetrain

    SmartControl 3.0

    • Delivers smooth, consistent material flow
    • Provides Airless or Flow mode
    • LED Display shows pressure, gallons, and more

    Heavy-Duty Modular Frame

    • Steel construction withstands jobsite abuse
    • Easy, no-tools connect and disconnect
    • Small, compact and balanced design for easy maneuvering – even when full
    • Locking front swivel caster wheel

    Oversized Hopper with Lid

    • 6 Bags
    • 25 Gallons (90 Liters) for less refilling
    • Steep-sided design keeps material flowing

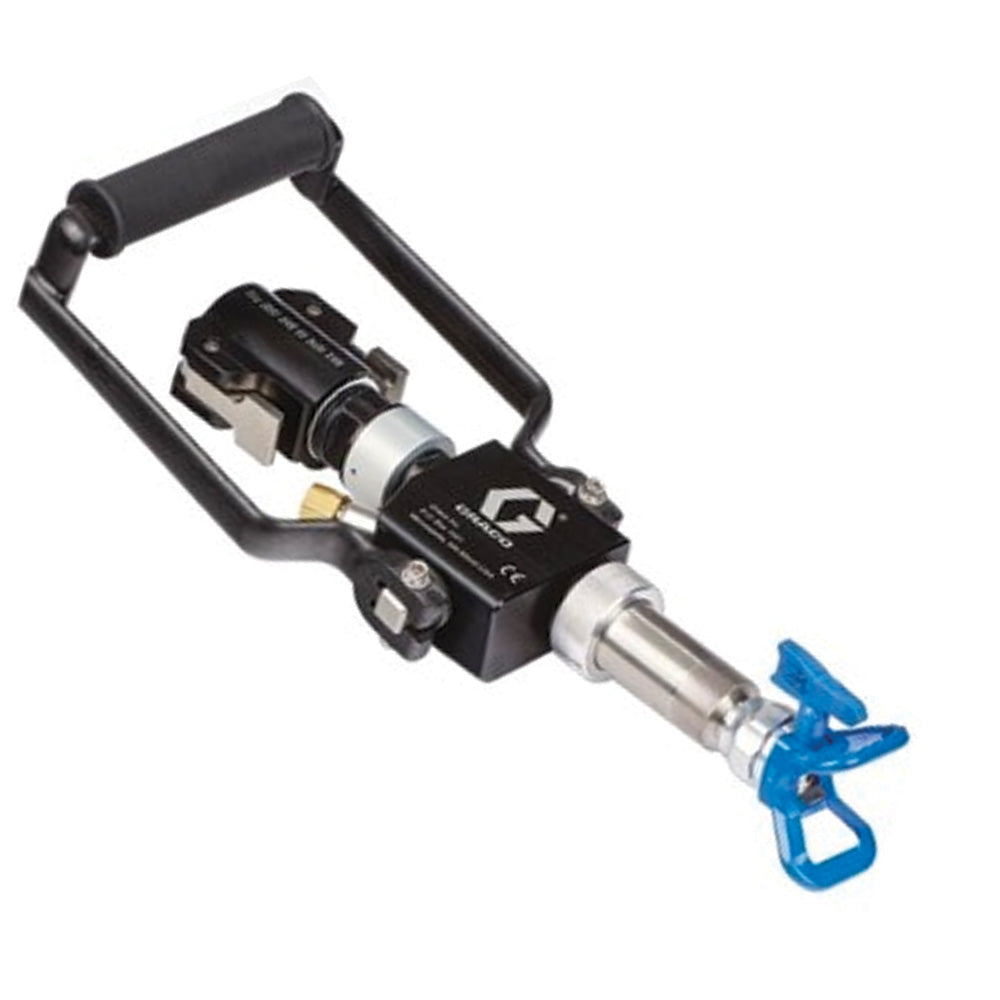

    T-MAX Lance Gun

    • Ergonomic design for more comfort
    • Oversized passages & live swivel
    • “Stay-Open” design allows effortless spray with less fatigue
    • Proven construction withstands jobsite abuse

    Industry-Proven Endurance Pump

    • Lasts 2X longer than competing pumps
    • 1000 psi (69 bar) and 3.2 gpm (12 lpm)
    • Quick-Access design: access any part of the pump in seconds without tools, even with a full hopper of material

    Precision Advantage Drive

    • The longest lasting drive
    • Improved jobsite conditions with extremely quiet operation
    • Lifetime Warranty

    Hoses & Applicators

    • Flexible hose sets available in various lengths
    • Choose between Inline Lance for airless application, or STX and Pole applicators for air-assisted decorative finishes
