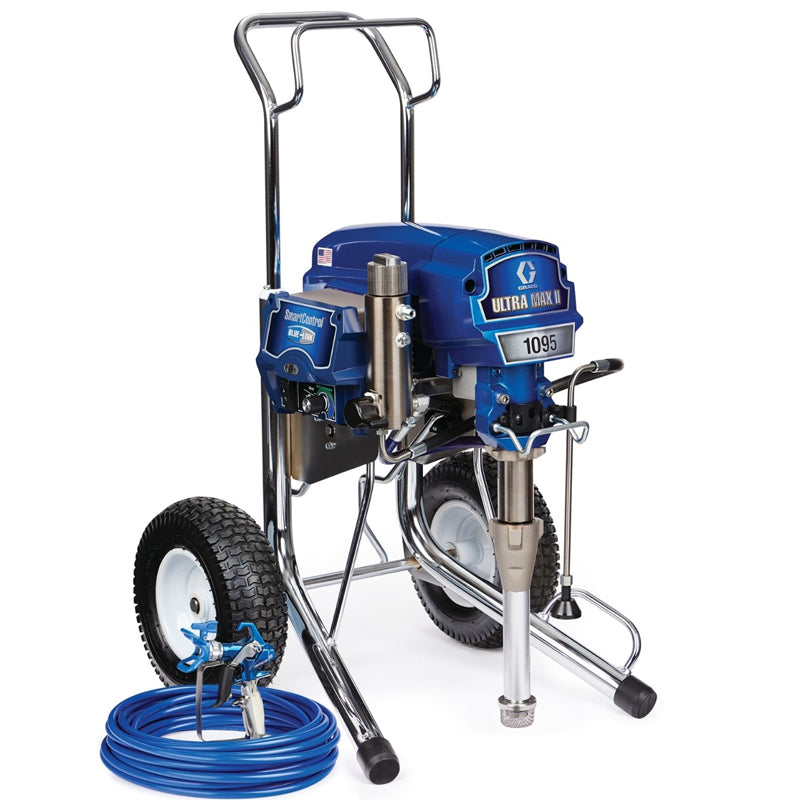

Graco Ultra 1095 Hi-Boy Electric Airless Sprayer
$8,845.74
SKU: 17E620
Out of stock
Pay in 4 interest-free payments with
Payment & Security | Refund Policy
Graco Ultra 1095 Hi-Boy Electric Airless Sprayer
$8,845.74
Description
Graco Ultra 1095 Hi-Boy Electric Airless Sprayer
Durable Endurance Piston Pump
- Lasts 2X longer than the next leading brand
- Long Life V-Max Blue Packings, Chromex rod and hardened stainless steel cylinder
- Faster cleaning with the QuikAccess intake valve
ProConnect One-Part Pump Replacement System
- Eliminate costly downtime
- Pump swaps in minutes – no tools, pins or parts to lose
Advantage Drive
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation and a lifetime warranty
Easy Out Pump Filter
- Easy maintenance & less clogging
- Exclusive inside-out filtering process ensures a quality finish
Durable MaxPower TEFC DC Motor
- Get more work done
- High torque produces the most power possible for all painting applications
SmartControl 1.0
- Even pressure delivery
- Constantly monitors performance and adjusts motor speed to match your tip size and spraying needs
- Ideal for RAC X LP tips commonly used in fine finish and low overspray applications
NEW Contractor PC Spray Gun
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete no-tools gun rebuild in seconds with ProConnect cartridge
Graco's Complete Line of Electric Airless Sprayers Brochure
Compare Table
Click here to open table |
 |
 |
 |
 |
 |
 |
 |
| 695 STANDARD | 795 STANDARD | 1095 STANDARD | 695 PC PRO | 795 PC PRO | 1095 PC PRO | 1095 IRONMAN | |
| Warranty | 3 year | 3 year | 3 year | 3 year | 3 year | 3 year | 3 year |
| Part Numbers: | Lo-Boy 17E610 - Hi-Boy 17E613 | Lo-Boy 17E616 - Hi-Boy 17E617 | 17E620 | 17E614 | 17E619 | 17E621 | 17E623 |
| Maximum Tip Size | 0.031" | 0.033" | 0.035" | 0.031" | 0.033" | 0.035" | 0.035" |
| Maximum bar (psi) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) |
| Maximum (lpm) | 3.6 | 4.1 | 4.5 | 3.6 | 4.1 | 4.5 | 4.5 |
| Motor hp | 2.0 brushless DC | 2.2 brushless DC | 2.4 brushless DC | 2.0 brushless DC | 2.2 brushless DC | 2.4 brushless DC | 2.4 brushless DC |
| Weight - Kg | Lo-Boy 17E610 42Kg Hi-Boy 17E613 42kg |
Lo-Boy 17E616 44kg Hi-Boy 17E617 44kg |
55kg | 50kg | 52kg | 64kg | 56kg |
| Pump | Endurance Pump | Endurance Pump | Endurance Pump | Vortex Maxlife | Vortex Maxlife | Vortex Maxlife | Vortex Maxlife Extreme |
| ProConnect 2 | ■ | ■ | ■ | ■ | |||
| BlueLink System | ■ | ■ | ■ | ■ | ■ | ■ | ■ |
| Control | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 |
| Motor | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless |
| Gun | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC |
| Hose | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 |
| Tip | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 |
|
|
|
|
|
|
|
|
| 695 STANDARD | 795 STANDARD | 1095 STANDARD | 695 PC PRO | 795 PC PRO | 1095 PC PRO | 1095 IRONMAN | |
| Warranty | 3 year | 3 year | 3 year | 3 year | 3 year | 3 year | 3 year |
| Part Numbers: | Lo-Boy 17E610 - Hi-Boy 17E613 | Lo-Boy 17E616 - Hi-Boy 17E617 | 17E620 | 17E614 | 17E619 | 17E621 | 17E623 |
| Maximum Tip Size | 0.031" | 0.033" | 0.035" | 0.031" | 0.033" | 0.035" | 0.035" |
| Maximum bar (psi) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) |
| Maximum (lpm) | 3.6 | 4.1 | 4.5 | 3.6 | 4.1 | 4.5 | 4.5 |
| Motor hp | 2.0 brushless DC | 2.2 brushless DC | 2.4 brushless DC | 2.0 brushless DC | 2.2 brushless DC | 2.4 brushless DC | 2.4 brushless DC |
| Weight - Kg | Lo-Boy 17E610 42Kg Hi-Boy 17E613 42kg |
Lo-Boy 17E616 44kg Hi-Boy 17E617 44kg |
55kg | 50kg | 52kg | 64kg | 56kg |
| Pump | Endurance Pump | Endurance Pump | Endurance Pump | Vortex Maxlife | Vortex Maxlife | Vortex Maxlife | Vortex Maxlife Extreme |
| ProConnect 2 | ■ | ■ | ■ | ■ | |||
| BlueLink System | ■ | ■ | ■ | ■ | ■ | ■ | ■ |
| Control | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 |
| Motor | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless |
| Gun | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC |
| Hose | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 |
| Tip | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 |
Reviews
Dimensions
product
74.93 cm
97.79 cm
67.31 cm
Weight
May require help to carry
Total Weight:
65.3172 kg
