Graco Ultra 390PC Lo-Boy Cart Electric Airless Sprayer (17C387)
$3,380.00

Description

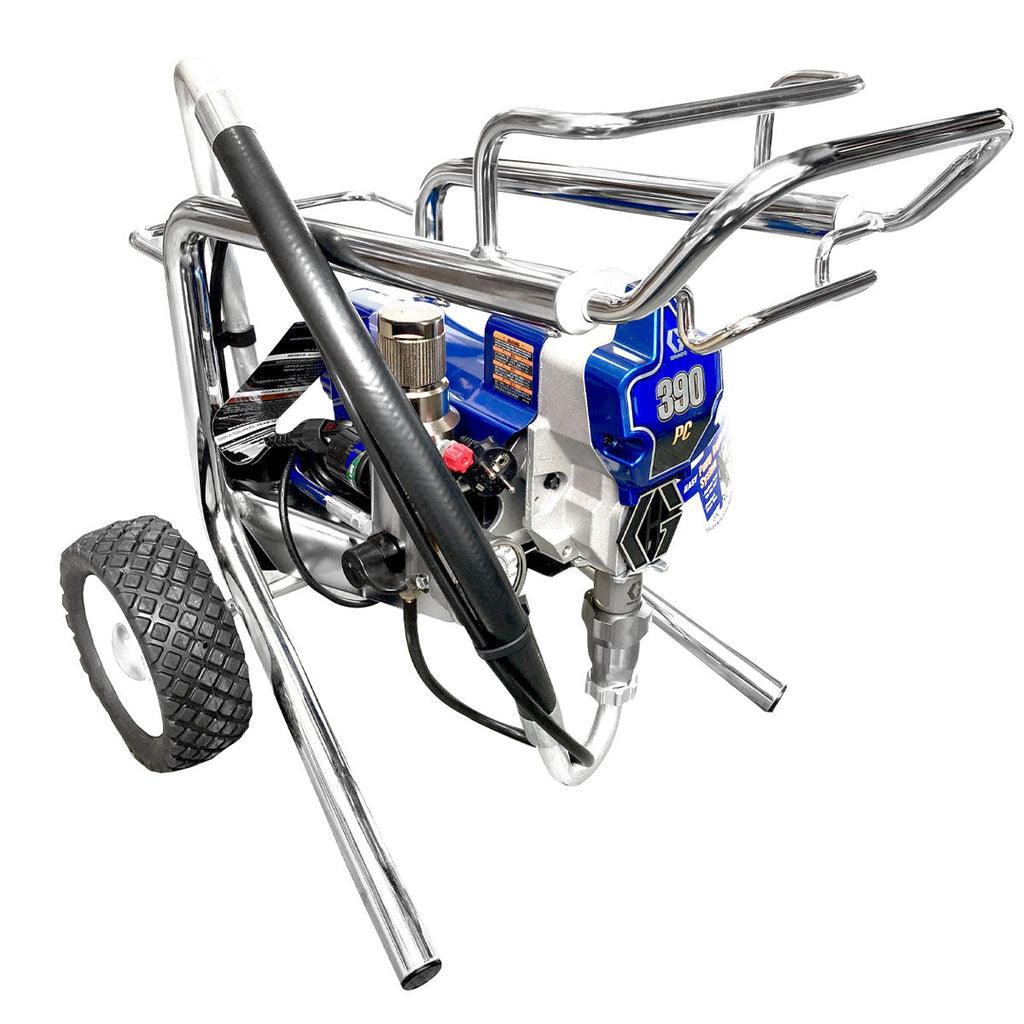

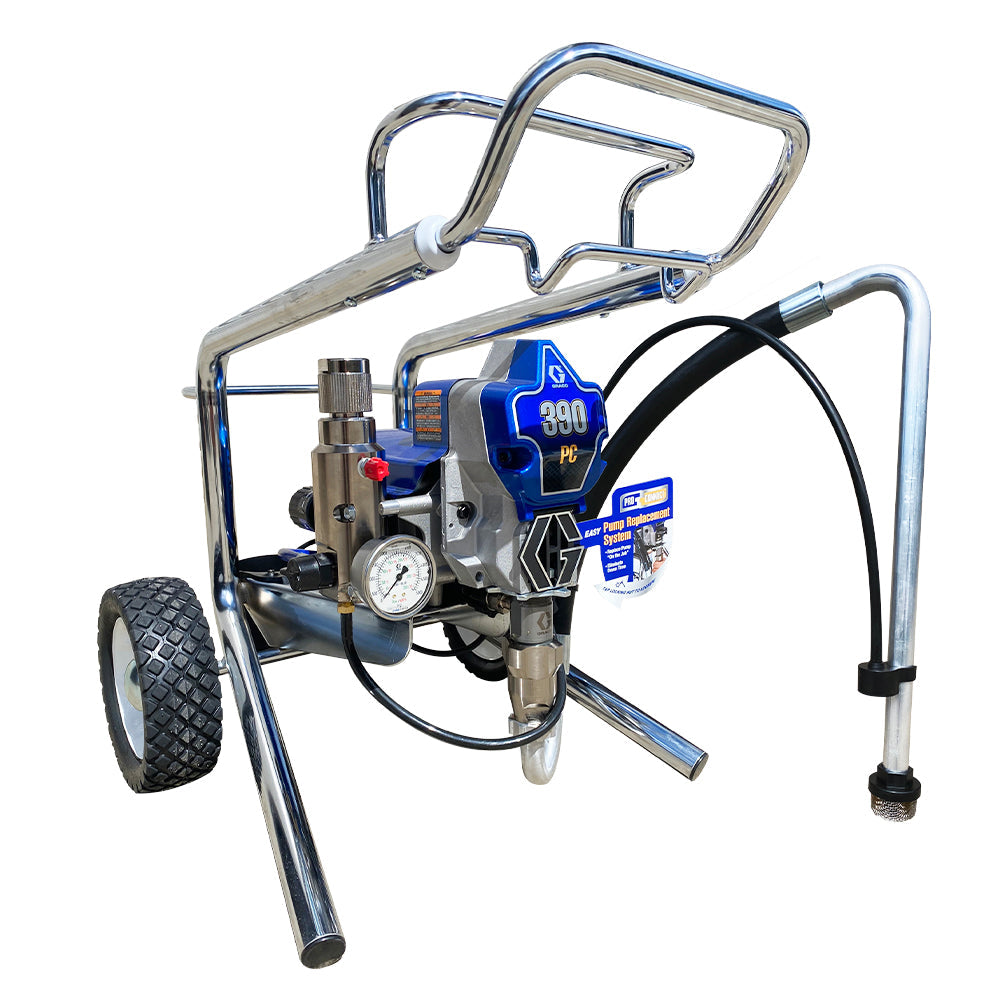

Graco Ultra 390 PC Lo-Boy Electric Airless Sprayer

The Graco Ultra 390 PC is a professional-grade workhorse designed for contractors who demand reliable performance and rugged durability. This Lo-Boy model features a low-profile chrome-plated steel frame with integrated wheels and a collapsible handle, making it exceptionally portable and easy to transport around the jobsite.

Powered by a 5/8 HP DC motor, the 390 PC delivers a steady 2.0 lpm flow rate at pressures up to 3,300 psi, supporting tip sizes up to 0.021". It features the legendary Endurance Pump system with long-life V-Max packings and a Chromex rod, ensuring a long service life and minimal downtime. The integrated ProConnect system allows for fast, on-the-job pump replacement, while the Easy Out Filter and QuickAccess intake valve make daily maintenance and cleanup faster than ever.



Compare Table

Click here to open table
GX 21 190 PC Express 390 PC 395 PC PRO
Warranty 1 year 1 year 1 year 1 year
Part Numbers: 17H219 Stand 17C384 Stand 17C386
Lo-Boy 17C387
Hi-Boy 17C388
Stand 17E881
Max. Tip Size 0.021" 0.021" 0.021" 0.023"
Max. flow - I/min (gpm) 1.8(0.47) 1.8(0.47) 1.8(0.47) 2.0(0.52)
Max. pressure - bar (PSI) 207 (3000) 207 (3000) 227 (3300) 227 (3300)
Weight - Kg(Ibs) 13.2Kg 14Kg Stand 17C386 - 14Kg
Lo-Boy 17C387 - 20Kg
Hi-Boy 17C388 - 24Kg
19Kg
Motor Power (hp) 0.87 DC 0.62 DC 0.62 DC 0.87 TEFC DC
Frame Direct Immersion
Hopper Suction Tube
Ball Knocker - PushPrime Button
Hydraulic Pressure Gauge
ProXChange Pump System
Pump Endurance Piston Endurance Piston Endurance Piston Endurance Piston
ProConnect
Control Electronic Electronic SmartControl 1.0
Tips 517 RAC X LTX 515 RAC X LTX 517 RAC X LTX 517 LP 315
Guard RAC X - 246215 RAC X - 246215
Gun filter (mesh) Easy Out 60 - 288749
Gun SG3 SG3 Contractor PC Contractor PC
Pump filter (mesh) 40 - 288747
Hose 1/4" x 15m - 247340 Blue Max II Airless 64 mm x 15m (1/4 in x 50ft) Blue Max II Airless 64 mm x 15m (1/4 in x 50ft) Blue Max II Airless 64 mm x 15m (1/4 in x 50ft)

Specifications

  • Max Tip Size: 0.021"
  • Max Pressure: 3,300 PSI
  • Flow Rate: 2.0 lpm
  • Motor: 5/8 HP DC
  • Weight: 15.6 kg
  • Pressure Control: Mechanical with Pressure Gauge
  • Frame Type: Lo-Boy Cart (Collapsible)

Features

  • Endurance™ Pump: Built with hardened stainless steel and long-life packings for maximum reliability and durability.
  • ProConnect™ Replacement: Eliminates costly downtime by allowing the pump to be replaced in minutes directly on the jobsite.
  • Lo-Boy Cart Design: Low center of gravity for stability, featuring large wheels and a collapsible handle for easy storage and maneuvering.
  • Swivel Inlet Suction: Constructed of solid aluminium; allows for easy removal of the suction hose without the need for tools.
  • Precision Pressure Control: Delivers a consistent spray pattern with minimal fluctuations for a professional-grade finish.
  • Easy Out™ Pump Filter: Filters from the inside out to prevent the filter from collapsing and reduces tip clogs.

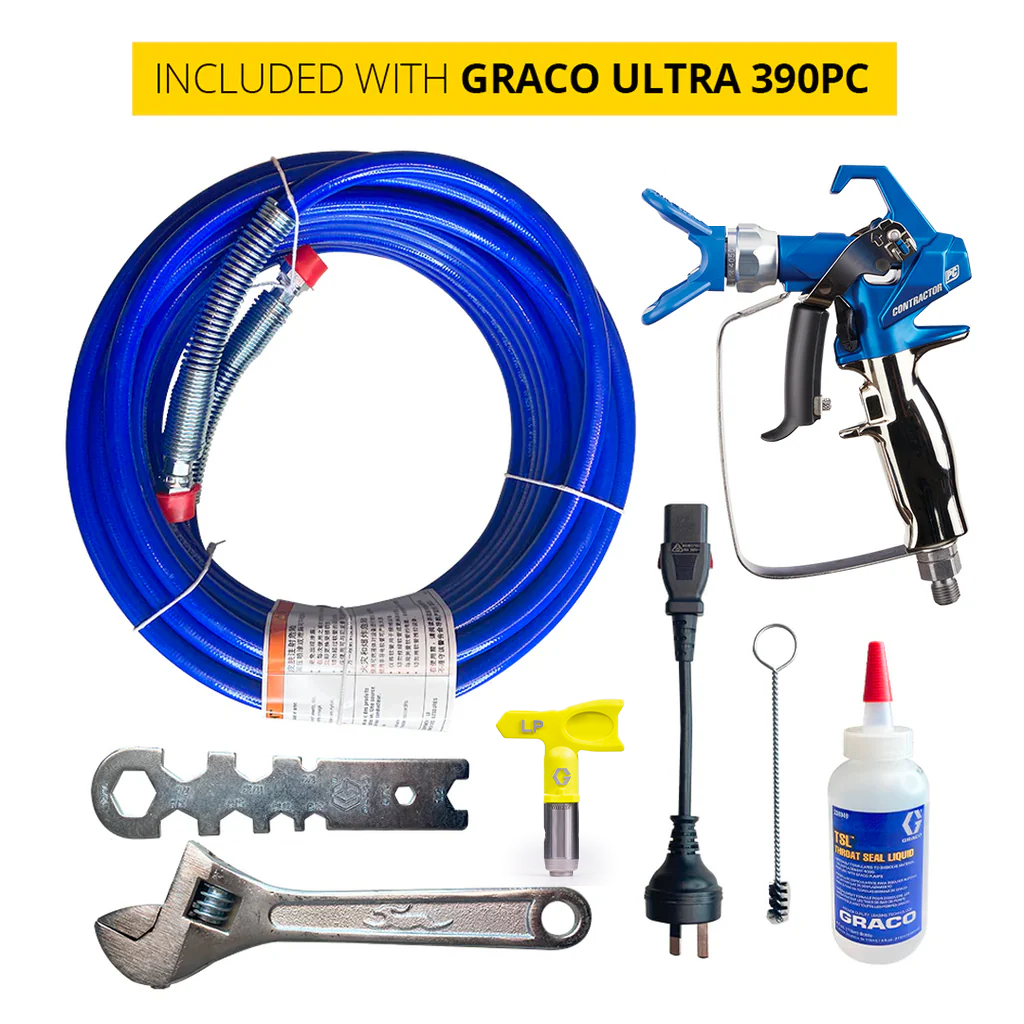

What's Included

  • Contractor PC™ Airless Spray Gun
  • RAC X™ Tip Guard & RAC X LTX 517 SwitchTip™
  • BlueMax™ II Airless Hose (1/4 in x 50 ft / 15 m)

Reviews

Dimensions

Width
Width
Height
Height
Length
Length
product
54.61 cm
60.96 cm
71.12 cm

Weight

Courier

May require help to carry

Total Weight: 36.75 kg
