Graco Ultra Cordless Paint Sprayer with DeWalt Battery 17N221

Save 5%

$815 $856

or 4 payments of $203.75 AUD with Afterpay Info

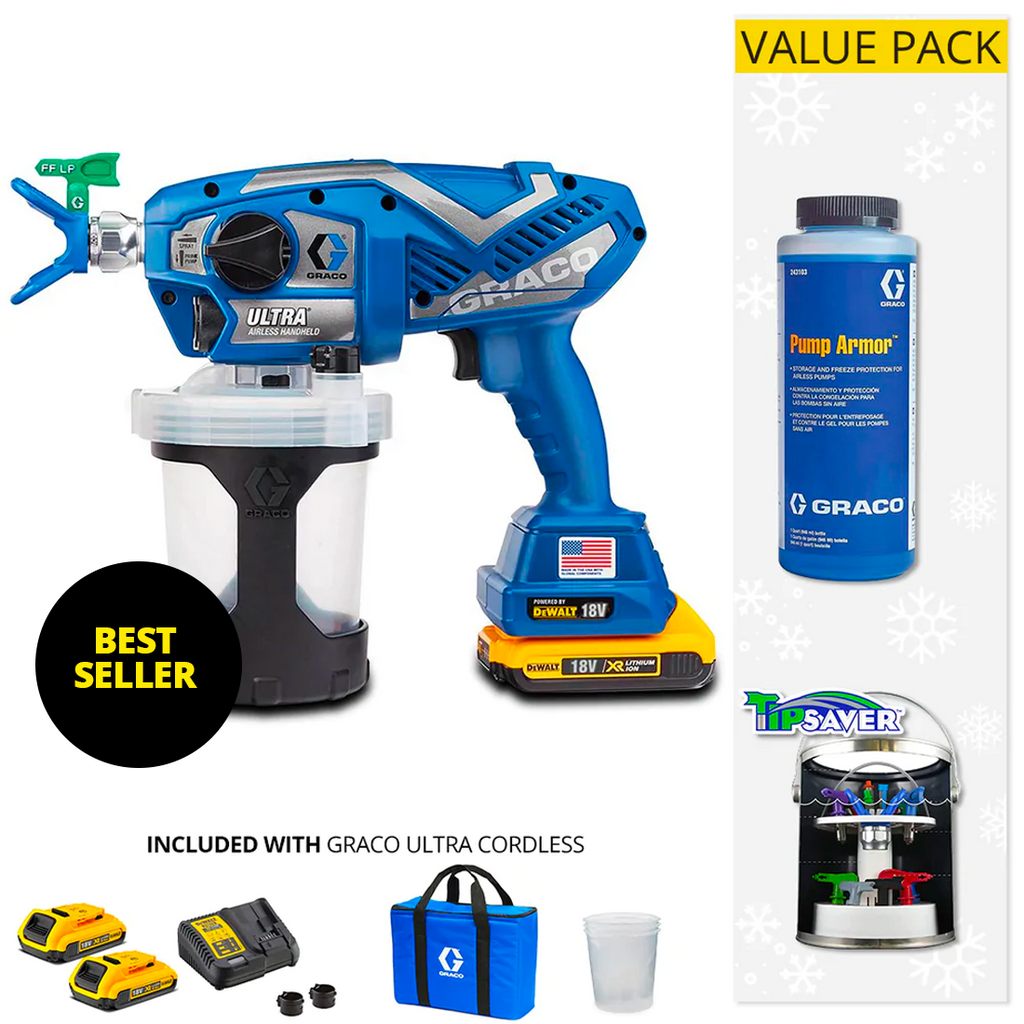

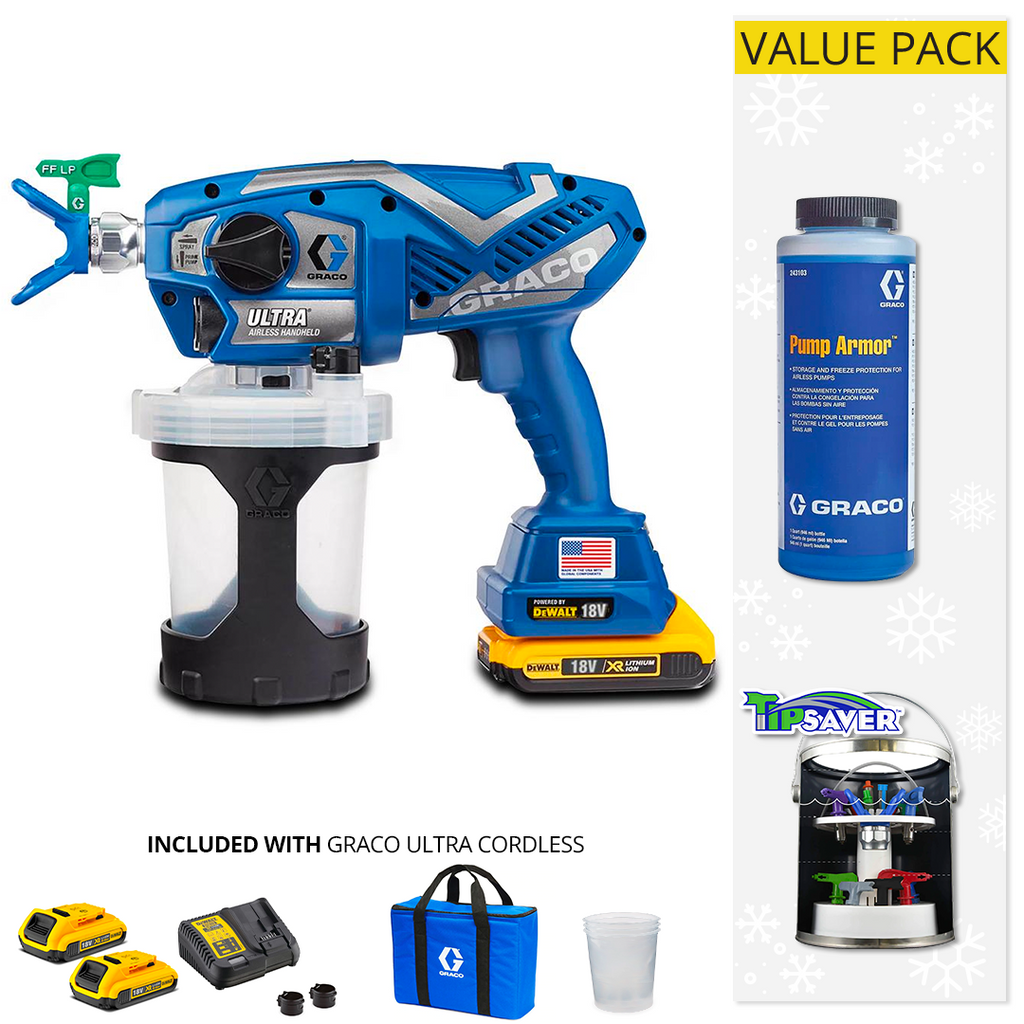

Summer free pack - Paint Access - Worth $56.81 -plus Free delivery

1-  Pump Armor 1L (Single) - 243103

1- Graco Airless Fine Finish RACX FFLP SwitchTip Green 312  - FFLP312


*Offer ends 28 February or while stocks last.

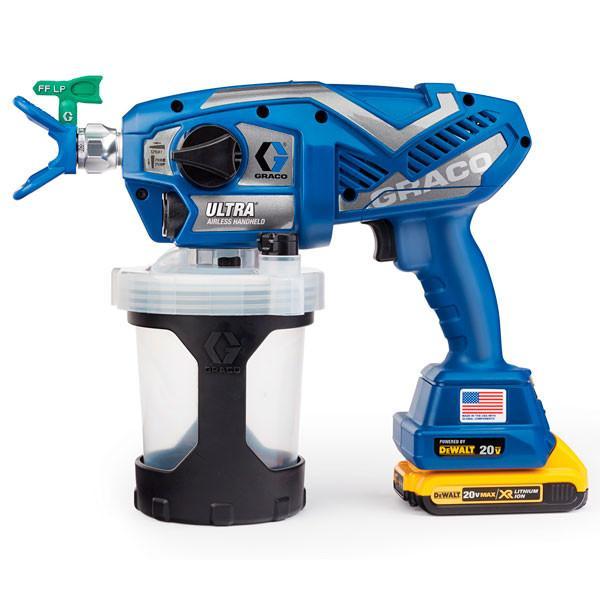

Graco Ultra Cordless Airless Handheld Sprayer with DeWalt Battery


Sprays more materials than old models. The Ultra Handheld can spray Primers, Stains, Water-based Paints, Acrylics, Oil-based Paints, Enamels and Latex. NOT SOLVENT-BASED materials.

Ultra airless handheld sprayers are designed specifically for small interior, exterior and specialty projects. The true advantages of the Ultra handheld sprayers are the Perfect Airless Finish, ultimate portability on the job, and that it is ready to spray in seconds. Painting contractors can easily spray those small jobs without having to start-up their larger airless sprayer.



Graco Cordless Handheld Airless Sprayers Manual

graco triax paintaccess

Triax Triple Piston Pump

Unmatched Performance

  • Durable stainless steel and carbide components bonded with a high strength polymer
  • Incredible durability in a light weight design
  • 500-2,000 PSI
  • .008-.016 Tip Support

Reliable Startup

  • No inlet check valve to get stuck
  • Automatic Outlet Ball Knocker

Perfect Airless Finish

  • Smooth and even at any hand speed
  • No Thinning
  • Single Coat Coverage




dewalt 20v max battery paintaccess

Powered by DEWALT XR Lithium Ion System


Proven quality, contractor recognized battery manufacturer

3-LED fuel gauge system allows immediate feedback on state of charge

Lightweight design and 30% faster charge time (35 minutes)

Each cordless machine comes standard with 2 batteries

Compatible with any DEWALT 18V Lithium Ion battery

Spray up to 1 gallon with each charge thanks to the DEWALT 18V Lithium Ion system


    proconnect paintaccess


    On-The-Job Pump Replacement System

    One Tool Replacement - Replace the pump in 3 steps using only a screwdriver

    • Remove Phillips screws and door
    • Remove and replace pump
    • Reinstall door and screws



    smart control paintaccess


    Spray at any hand speed with professional finish every time

    Precision pressure control that delivers a consistent spray fan without pressure fluctuations



     RAC X FF LP Tips Paintaccess

    RAC X FF LP Tips

    Provides superior finish at low pressure

    Works on all Graco Airless Sprayers - everything from handhelds to large airless

    Large range of sizes available to meet the job requirements

    Reverse-A-Clean (RAC) SwitchTips deliver exceptional spraying results and make cleaning tip clogs simple



    32oz flexliner paint bags paintaccess

    32 oz FlexLiner Paint Bags

    Disposable liners eliminate cleanup time

    Easy Setup

    • Fill FlexLiner Bag with material and attach to the handheld
    • Squeeze out any remaining air
    • Spray

    Easy Cleanup

    • Fill FlexLiner Bag with cleaning fluid like PumpArmor
    • Shake sprayer
    • Spray into a bucket

    No suction tube to clean

    Toss or reuse, it's your choice



    procontrol II paintaccess



    The sprayers comes ready to use with everything you need to get spraying

    • Adjust motor speed to spray at virtually any speed that the job demands - hear it working
    • More control allows users to spray at the speed they choose - a professional finish, fast or slow




    graco ultra package paintaccess

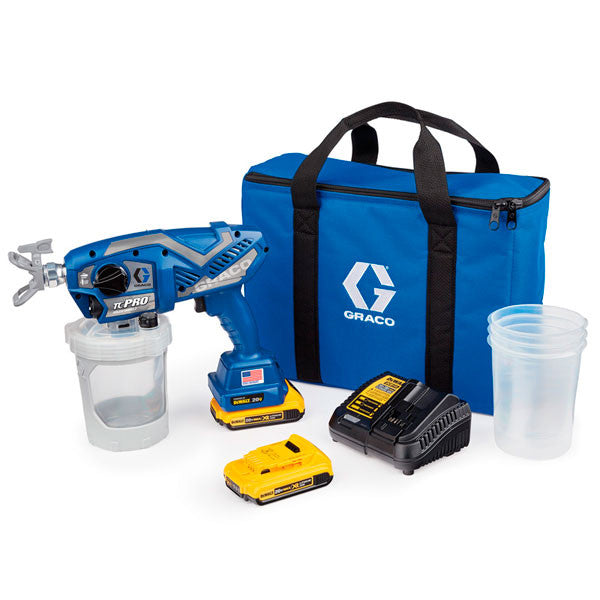

    Just Add Paint

    The sprayers comes ready to use with everything you need to get spraying

    • RAC X FF LP 514 Tip
    • 2 - DEWALT 18V-Max Compact Lithium Ion Batteries
    • DEWALT 18V-Max Lithium Ion Battery Charger
    • 4 -1 Litre FlexLiner Bags
    • Durable Storage Bag



    Part Numbers: 17M362 17N221 17N225
    Max. Tip Size 0.016" 0.016" 0.016"
    Motor AC DC DC Brushless
    Max. pressure - bar (PSI) 138 (2000) 138 (2000) 138 (2000)
    Weight - kg (lbs) <2.1 (4.6) 2.4 (5.3) 2.4 (5.3)
    Material and Solvent compatibility Waterbased Waterbased Water-Solvent
    Speed Selector ProControlTM II ProControlTM II ProControlTM II
    Cup system Throw-away Throw-away Throw-away
    Tips 514 514 210 + 514
    Guard RAC XTM - RAC XTM - RAC XTM - 17P573
    Guard 60 60 60 + 100
    Power supply 3m power cable 2 x 18V DEWALT® battery 2 x 18V DEWALT® battery
    Battery charger
    Cup + lid 1 L (1 cup, 1 lid) 1 L (1 cup, 1 lid) 1 L (1 cup, 1 lid)
    Cup liners 4 4 4
    Storage bag/case Bag Bag Bag





    Hot Solvent Compatible
    Pressure Control Yes Yes Yes
    Pressure Range 34 to 135 bar 34 to 135 bar 34 to 125 bar
    Tip Type Supported RAC X FF LP RAC X FF LP RAC X FF LP
    Batteries Included 2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion 2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion
    Filter Mesh Included 60 & 100 Mesh 60 & 100 Mesh 60 & 100 Mesh
    Fully Repairable Yes Yes Yes
    ProConnect System Yes Yes Yes
    Storage Bag Included Yes Yes Yes
