Graco Ultra Max II 650 PC Pro Lo-Boy Airless Sprayer
$3,683.00

Description

Graco Ultra Max II 650 PC Pro Lo-Boy Airless Sprayer

The Lightest weight 2-gun electric airless sprayer

The new Graco Ultra Max II 650 PC Pro Electric Airless Sprayer is the lightest weight 2-gun electric airless sprayer. It is a true workhorse – delivering the perfect combination of quality, performance, portability and durability.

Ultra Max II 650 PC Pro Benefits:

  • 2-Gun Capability to Complete Jobs Faster
  • One-Person Portability
  • Increased Capability to Handle Heavier Coatings
  • Lower Cost of Ownership

EnduranceTM Piston Pump

  • Lasts 2X longer than competing pumps
  • Larger intake to handle heavier coatings
  • ProConnectTM— Fast and easy on-the-job pump replacement system

2-Hose Connection Manifold

  • 2-Gun capability— supports up to .019 in tips
  • Easy OutTM filter provides easy maintenance and less clogging

Small, Compact Frame

  • Balanced design for easy transport and maneuvering
  • Chrome over steel construction withstands jobsite abuse

MaxPower Motor and Advantage DriveTM

  • High-torque brushless design delivers worry-free performance
  • The longest lasting drive with a Lifetime Warranty

SmartControlTM with Digital Display

  • Constantly monitors performance and adjusts motor speed to match your tip size and spraying needs
  • FastFlushTM delivers 4X faster cleaning with 1/2 the water

Contractor PC Spray Gun

  • All-Day comfort and control
  • Lightest weight gun in its class
  • Up to 50% lighter trigger pull force

Lowest Cost of Ownership

  • Endurance pump lasts 2X longer than competing pumps
    • Chromex piston rod with longer stroke
    • Chrome-plated stainless steel sleeve
    • V-Max Blue Packings
  • Eliminate downtime with ProConnect – fast and easy on-the-job repair
  • MaxPower Motor and Advantage Drive offer maintenance-free performance and Lifetime Warranty

Compare Table

Click here to open table
695 STANDARD 795 STANDARD 1095 STANDARD 695 PC PRO 795 PC PRO 1095 PC PRO 1095 IRONMAN
Warranty 3 year 3 year 3 year 3 year 3 year 3 year 3 year
Part Numbers: Lo-Boy 17E610 - Hi-Boy 17E613 Lo-Boy 17E616 - Hi-Boy 17E617 17E620 17E614 17E619 17E621 17E623
Maximum Tip Size 0.031" 0.033" 0.035" 0.031" 0.033" 0.035" 0.035"
Maximum bar (psi) 227 (3300) 227 (3300) 227 (3300) 227 (3300) 227 (3300) 227 (3300) 227 (3300)
Maximum (lpm) 3.6 4.1 4.5 3.6 4.1 4.5 4.5
Motor hp 2.0 brushless DC 2.2 brushless DC 2.4 brushless DC 2.0 brushless DC 2.2 brushless DC 2.4 brushless DC 2.4 brushless DC
Weight - Kg Lo-Boy 17E610 42Kg
Hi-Boy 17E613 42kg
Lo-Boy 17E616 44kg
Hi-Boy 17E617 44kg
55kg 50kg 52kg 64kg 56kg
Pump Endurance Pump Endurance Pump Endurance Pump Vortex Maxlife Vortex Maxlife Vortex Maxlife Vortex Maxlife Extreme
ProConnect 2
BlueLink System
Control SmartControl 4.0 SmartControl 4.0 SmartControl 4.0 SmartControl 4.0 SmartControl 4.0 SmartControl 4.0 SmartControl 4.0
Motor MaxPower Brushless MaxPower Brushless MaxPower Brushless MaxPower Brushless MaxPower Brushless MaxPower Brushless MaxPower Brushless
Gun Contractor PC Contractor PC Contractor PC Contractor PC Contractor PC Contractor PC Contractor PC
Hose Blue Max II 1/4 x 15 Blue Max II 1/4 x 15 Blue Max II 1/4 x 15 Blue Max II 1/4 x 15 Blue Max II 1/4 x 15 Blue Max II 1/4 x 15 Blue Max II 1/4 x 15
Tip RAC X LTX 517 - LP 315 RAC X LTX 517 - LP 315 RAC X LTX 517 - LP 315 RAC X LTX 517 - LP 315 RAC X LTX 517 - LP 315 RAC X LTX 517 - LP 315 RAC X LTX 517 - LP 315

Specifications

Amperage (A)15
Compatible Replacement Pump19Y298
Engine Size (HP)1.8
FeaturesEndurance Chromex Pump, SmartControl 3.0, MaxPower Brushless, Advantage Drive, ProConnect, FastFlush, Easy Out Filter, Contractor PC Gun
Filter Mesh Size60
Fluid Outlet Size (in)1/4
Fluid Outlet Thread TypeNPSM
Frame ConfigurationLo-Boy
Frequency (Hz)50/60
Hose Inlet Diameter (in)

1/4

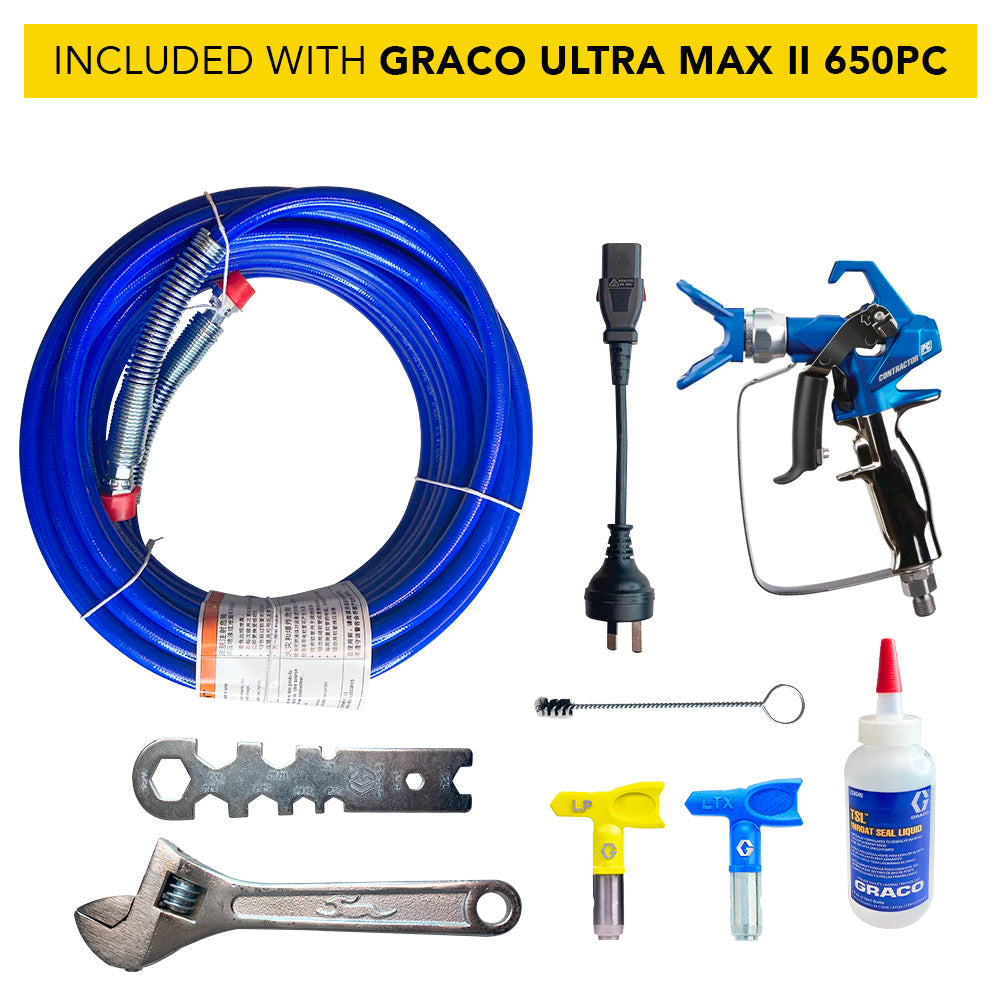

What's Included

RAC X SwitchTip, 517
PART NO.DESCRIPTIONQTYUNIT
17Y042Contractor PC Airless Spray Gun with RAC X 517 SwitchTip1ea
LTX5171ea
246215RAC X HandTite Tip Guard1ea
240794BlueMax II Airless Hose, 1/4 in x 50 ft1ea
238049TSL Throat Seal Liquid, 4 oz1ea

Reviews

Dimensions

Width
Width
Height
Height
Length
Length
product
58.42 cm
73.66 cm
66.04 cm

Weight

Courier

May require help to carry

Total Weight: 40.82 kg
