Graco Ultra Max II 695 Standard Electric Airless Sprayer - Hi-Boy Cart (17E613)
$6,581.98
SKU: 17E613
Out of stock
Payment & Security | Refund Policy
Graco Ultra Max II 695 Standard Electric Airless Sprayer - Hi-Boy Cart (17E613)
$6,581.98
Description

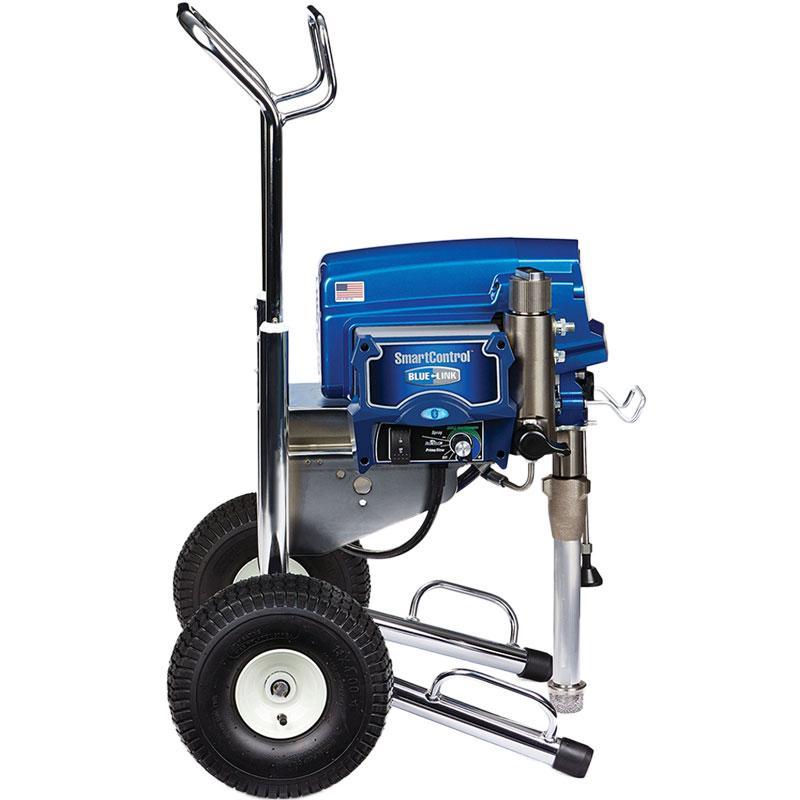

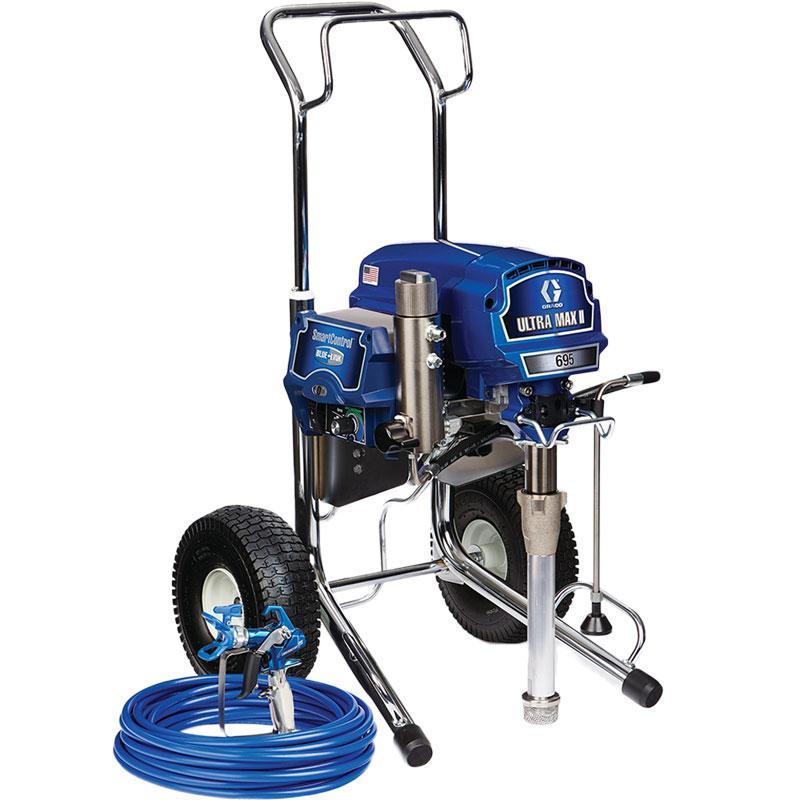

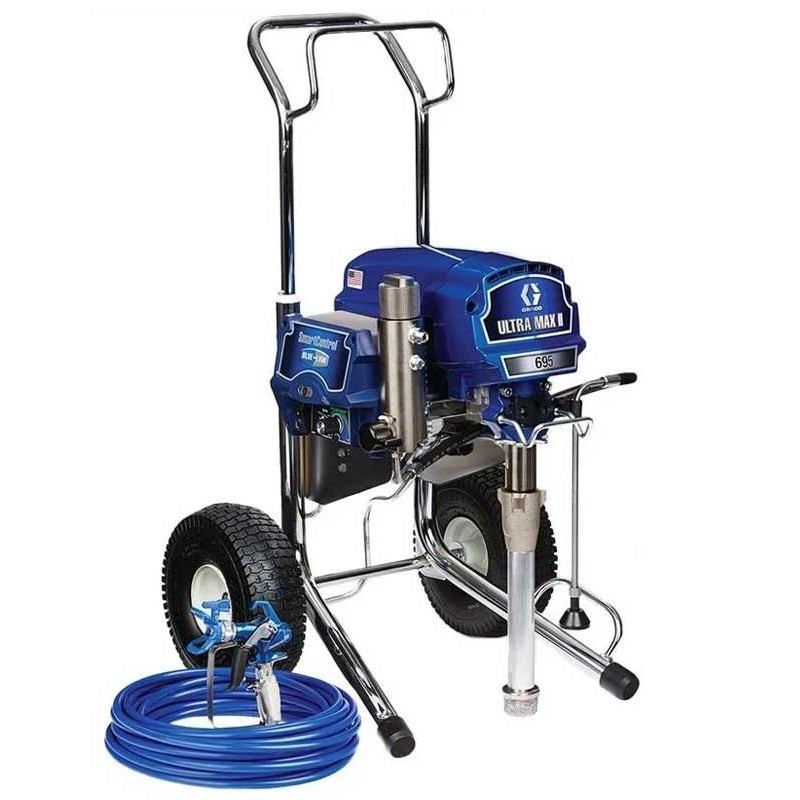

Graco Ultra Max II 695 Standard Electric Airless Sprayer - Hi-Boy Cart
The industry standard for professional contractors who spray a variety of residential coatings
Also available in Lo-Boy model. Same price. Ask us for details.
The Standard Series sprayer comes with these "Only On A Graco" features:
- Advantage Drive System Runs quiet and has a lifetime guarantee.
- MaxPower Brushless DC Motor Never change brushes with this maintenance-free, totally enclosed motor.
- SmartControl 3.0 Pressure Control Delivers consistent spray fan without pressure fluctuations at all spraying pressures, and includes ProGuard technology.

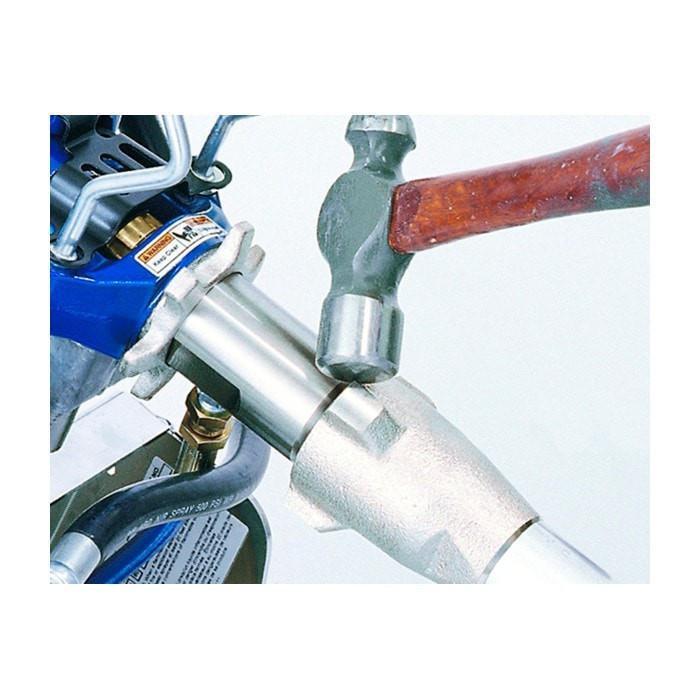

- Endurance Pump Amazingly durable and easy-to-service design means less downtime on the job.
- Easy Out Pump Filter Spill less material when removing the filter element.
- Rugged Cart Design Chrome over steel makes this durable cart last for years.
- Heavy-Duty Prime Valve Maintenance-free design withstands high pressure dumping.
0.031" Max Tip / 3,300 psi / 3.6 Ipm
2.0 HP Brushless DC Motor, Lifetime Warranty
ProGuard Sprayer protection System
Contractor Gun
Tilt Back Welded Steel Cart Design
EasyOut Pump Filter
Weight - 43kg
The industry standard for professional contractors who spray a full range of coatings
Makes spraying faster and easier!

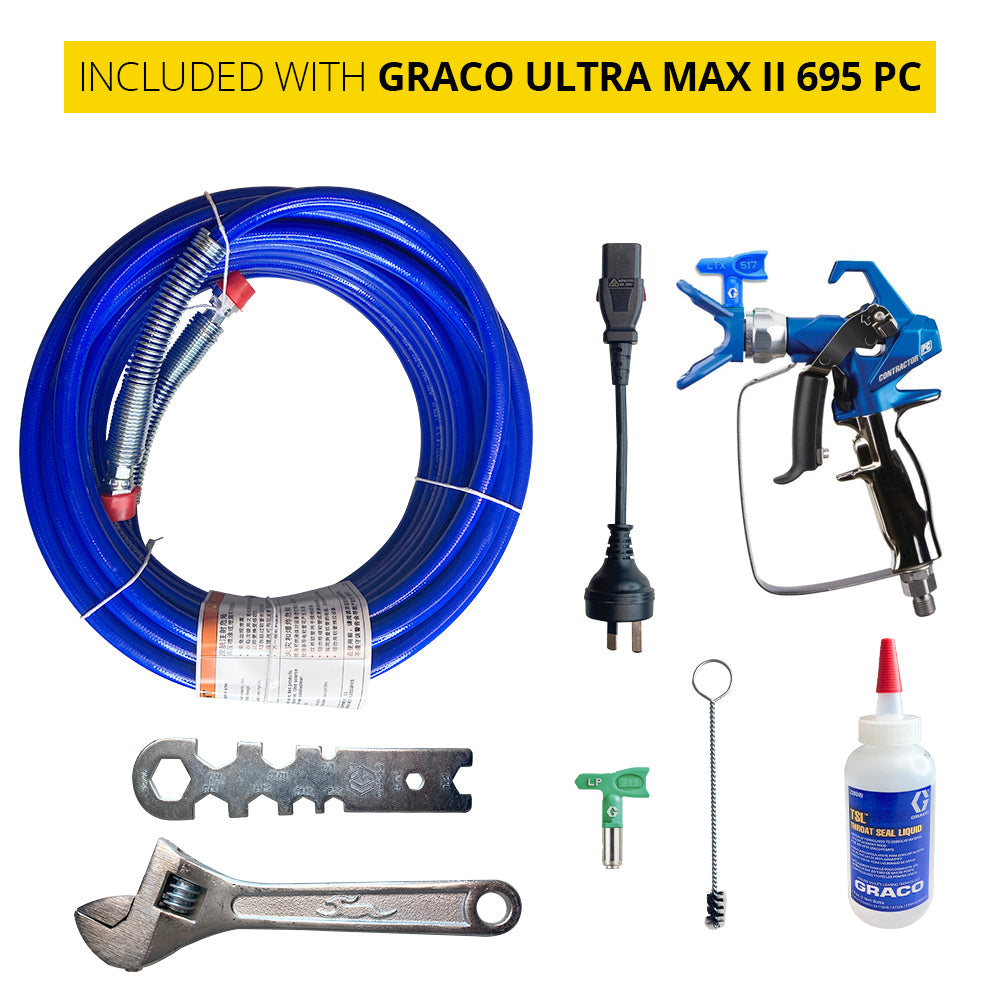

Units include:
- New Contractor Airless Gun
- RAC X 517 SwitchTip and Guard
- 1/4 in x 50 ft (6.4 mm x 15.2 m) BlueMax II Airless Hose
Compare Table
Click here to open table |
 |
 |
 |
 |
 |
 |
 |
| 695 STANDARD | 795 STANDARD | 1095 STANDARD | 695 PC PRO | 795 PC PRO | 1095 PC PRO | 1095 IRONMAN | |
| Warranty | 3 year | 3 year | 3 year | 3 year | 3 year | 3 year | 3 year |
| Part Numbers: | Lo-Boy 17E610 - Hi-Boy 17E613 | Lo-Boy 17E616 - Hi-Boy 17E617 | 17E620 | 17E614 | 17E619 | 17E621 | 17E623 |
| Maximum Tip Size | 0.031" | 0.033" | 0.035" | 0.031" | 0.033" | 0.035" | 0.035" |
| Maximum bar (psi) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) |
| Maximum (lpm) | 3.6 | 4.1 | 4.5 | 3.6 | 4.1 | 4.5 | 4.5 |
| Motor hp | 2.0 brushless DC | 2.2 brushless DC | 2.4 brushless DC | 2.0 brushless DC | 2.2 brushless DC | 2.4 brushless DC | 2.4 brushless DC |
| Weight - Kg | Lo-Boy 17E610 42Kg Hi-Boy 17E613 42kg |
Lo-Boy 17E616 44kg Hi-Boy 17E617 44kg |
55kg | 50kg | 52kg | 64kg | 56kg |
| Pump | Endurance Pump | Endurance Pump | Endurance Pump | Vortex Maxlife | Vortex Maxlife | Vortex Maxlife | Vortex Maxlife Extreme |
| ProConnect 2 | ■ | ■ | ■ | ■ | |||
| BlueLink System | ■ | ■ | ■ | ■ | ■ | ■ | ■ |
| Control | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 |
| Motor | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless |
| Gun | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC |
| Hose | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 |
| Tip | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 |
|
|
|
|
|
|
|
|
| 695 STANDARD | 795 STANDARD | 1095 STANDARD | 695 PC PRO | 795 PC PRO | 1095 PC PRO | 1095 IRONMAN | |
| Warranty | 3 year | 3 year | 3 year | 3 year | 3 year | 3 year | 3 year |
| Part Numbers: | Lo-Boy 17E610 - Hi-Boy 17E613 | Lo-Boy 17E616 - Hi-Boy 17E617 | 17E620 | 17E614 | 17E619 | 17E621 | 17E623 |
| Maximum Tip Size | 0.031" | 0.033" | 0.035" | 0.031" | 0.033" | 0.035" | 0.035" |
| Maximum bar (psi) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) |
| Maximum (lpm) | 3.6 | 4.1 | 4.5 | 3.6 | 4.1 | 4.5 | 4.5 |
| Motor hp | 2.0 brushless DC | 2.2 brushless DC | 2.4 brushless DC | 2.0 brushless DC | 2.2 brushless DC | 2.4 brushless DC | 2.4 brushless DC |
| Weight - Kg | Lo-Boy 17E610 42Kg Hi-Boy 17E613 42kg |
Lo-Boy 17E616 44kg Hi-Boy 17E617 44kg |
55kg | 50kg | 52kg | 64kg | 56kg |
| Pump | Endurance Pump | Endurance Pump | Endurance Pump | Vortex Maxlife | Vortex Maxlife | Vortex Maxlife | Vortex Maxlife Extreme |
| ProConnect 2 | ■ | ■ | ■ | ■ | |||
| BlueLink System | ■ | ■ | ■ | ■ | ■ | ■ | ■ |
| Control | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 |
| Motor | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless |
| Gun | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC |
| Hose | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 |
| Tip | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 |
Reviews
Dimensions
product
74.93 cm
96.52 cm
66.04 cm
Weight
May require help to carry
Total Weight:
54.8846 kg
