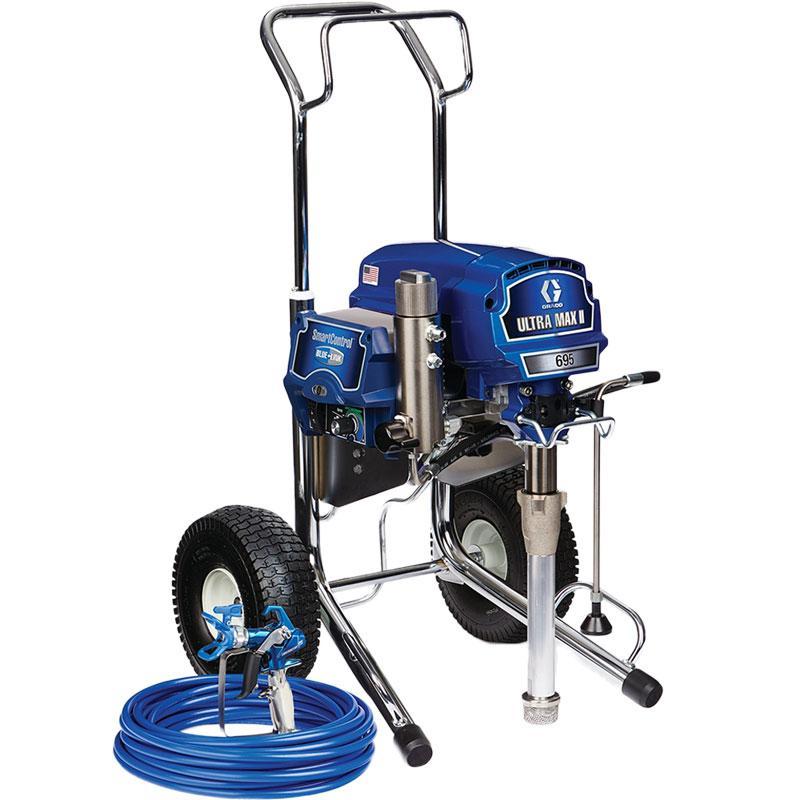

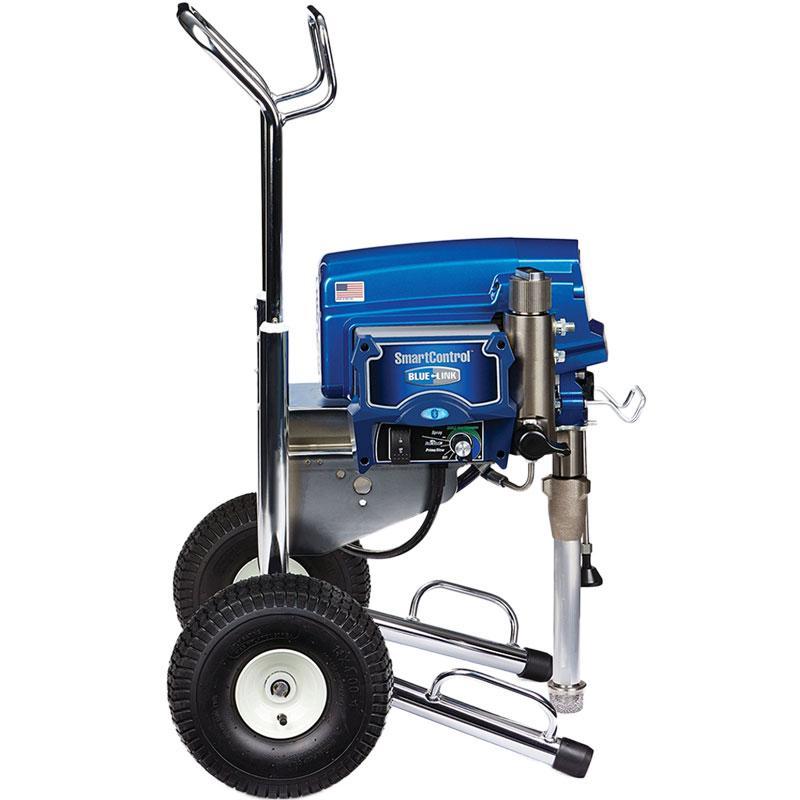

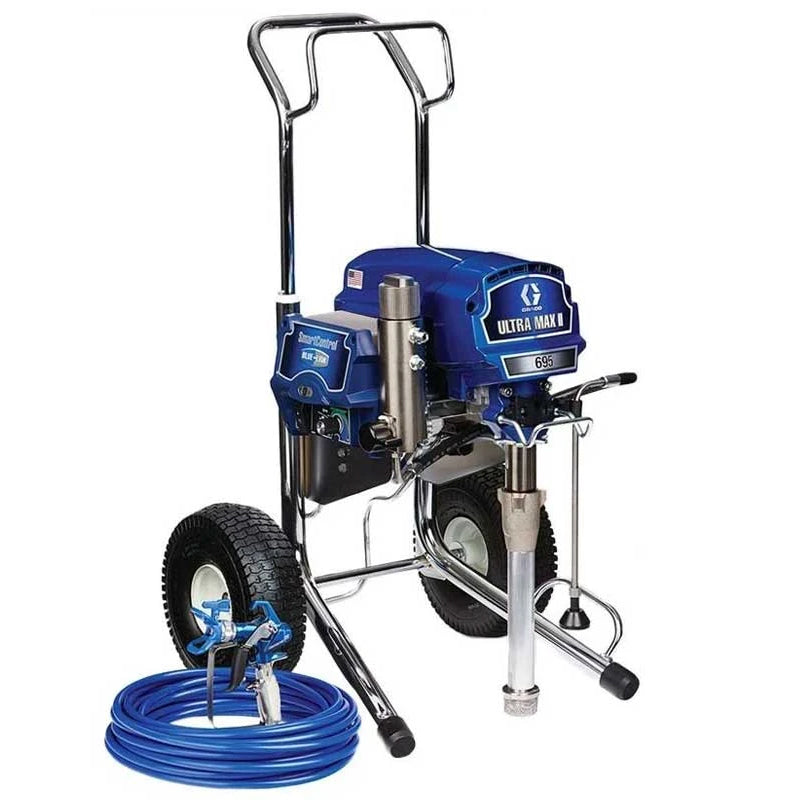

Graco Ultra Max II 695 Standard Electric Airless Sprayer - Hi-Boy/Lo-Boy Cart With Bonus
GRACO
Save 4%
$7,190.00
SKU: 17E613-B9
Out of stock
Pay in 4 interest-free payments with
Payment & Security | Refund Policy
Graco Ultra Max II 695 Standard Electric Airless Sprayer - Hi-Boy/Lo-Boy Cart With Bonus
$7,190.00
Description

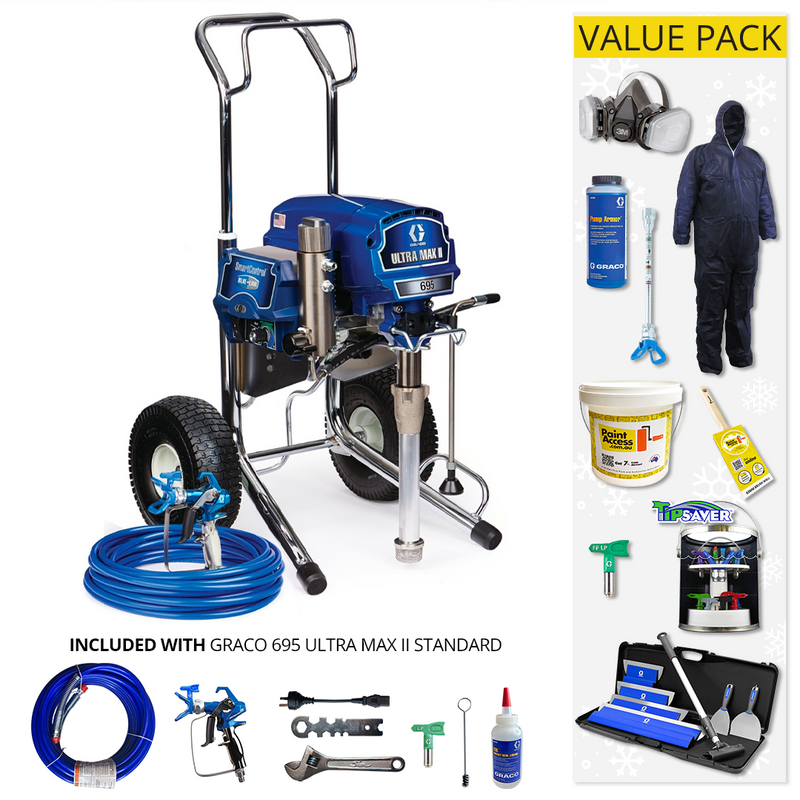

Graco Ultra Max II 695 Standard Electric Airless Sprayer - Hi-Boy/Lo-Boy Cart With Bonus

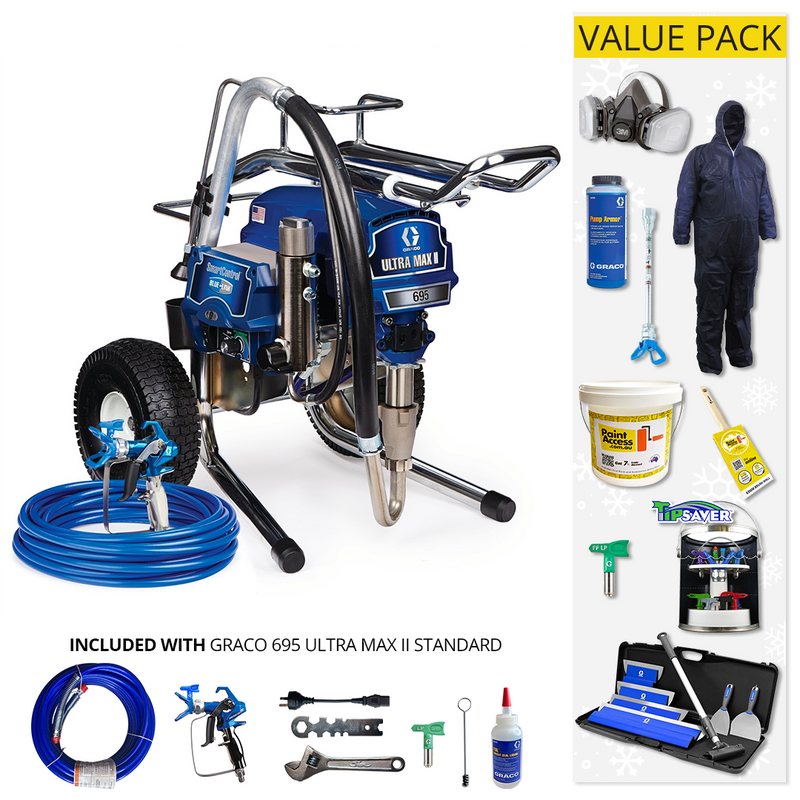

Special Value Pack - PaintAccess
The Graco Ultra Max II 695 Standard Electric Airless Sprayer is designed for professional contractors who need reliable, high-performance equipment for a wide range of painting applications. Available in both Hi-Boy and Lo-Boy configurations, this sprayer offers versatility and durability for both residential and commercial projects.
The Ultra Max II 695 Standard features a powerful 2.0 HP brushless DC motor that delivers consistent performance. It is equipped with the industry-proven Endurance Chromex Pump, which provides twice the life of competing pumps. This sprayer includes advanced features like SmartControl 4.0, BlueLink Job & Sprayer Management System, and the ergonomic Contractor PC Spray Gun, ensuring high efficiency and ease of use.
The industry standard for professional contractors who spray a variety of residential coatings

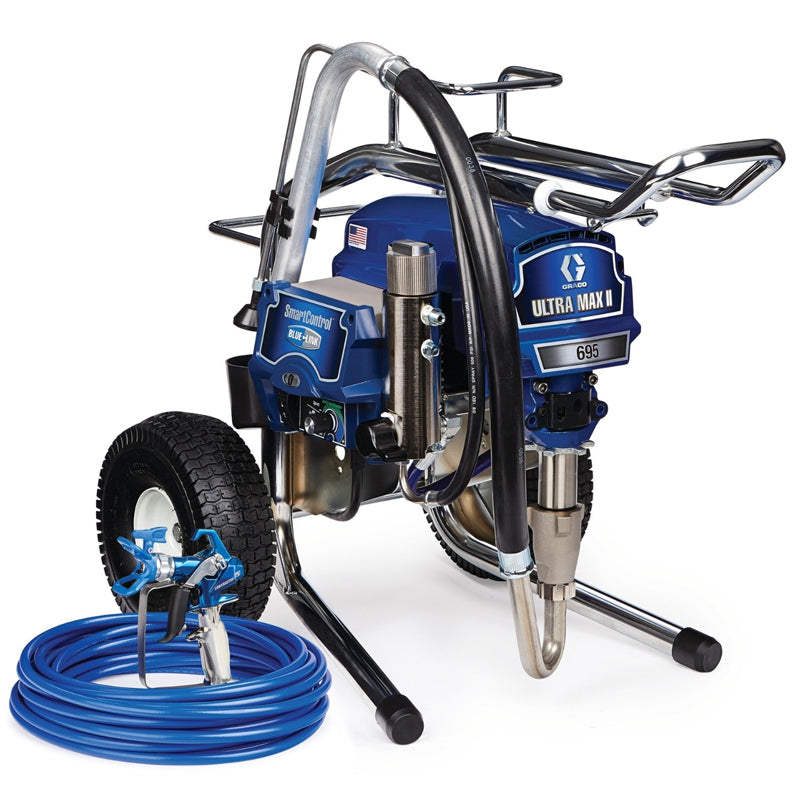

Also available in Lo-Boy model. Same price. Ask us for details.
The industry standard for professional contractors who spray a full range of coatings
Compare Table
Click here to open table |
 |
 |
 |
 |
 |
 |
 |
| 695 STANDARD | 795 STANDARD | 1095 STANDARD | 695 PC PRO | 795 PC PRO | 1095 PC PRO | 1095 IRONMAN | |
| Warranty | 3 year | 3 year | 3 year | 3 year | 3 year | 3 year | 3 year |
| Part Numbers: | Lo-Boy 17E610 - Hi-Boy 17E613 | Lo-Boy 17E616 - Hi-Boy 17E617 | 17E620 | 17E614 | 17E619 | 17E621 | 17E623 |
| Maximum Tip Size | 0.031" | 0.033" | 0.035" | 0.031" | 0.033" | 0.035" | 0.035" |
| Maximum bar (psi) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) |
| Maximum (lpm) | 3.6 | 4.1 | 4.5 | 3.6 | 4.1 | 4.5 | 4.5 |
| Motor hp | 2.0 brushless DC | 2.2 brushless DC | 2.4 brushless DC | 2.0 brushless DC | 2.2 brushless DC | 2.4 brushless DC | 2.4 brushless DC |
| Weight - Kg | Lo-Boy 17E610 42Kg Hi-Boy 17E613 42kg |
Lo-Boy 17E616 44kg Hi-Boy 17E617 44kg |
55kg | 50kg | 52kg | 64kg | 56kg |
| Pump | Endurance Pump | Endurance Pump | Endurance Pump | Vortex Maxlife | Vortex Maxlife | Vortex Maxlife | Vortex Maxlife Extreme |
| ProConnect 2 | ■ | ■ | ■ | ■ | |||
| BlueLink System | ■ | ■ | ■ | ■ | ■ | ■ | ■ |
| Control | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 |
| Motor | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless |
| Gun | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC |
| Hose | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 |
| Tip | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 |
|
|
|
|
|
|
|
|
| 695 STANDARD | 795 STANDARD | 1095 STANDARD | 695 PC PRO | 795 PC PRO | 1095 PC PRO | 1095 IRONMAN | |
| Warranty | 3 year | 3 year | 3 year | 3 year | 3 year | 3 year | 3 year |
| Part Numbers: | Lo-Boy 17E610 - Hi-Boy 17E613 | Lo-Boy 17E616 - Hi-Boy 17E617 | 17E620 | 17E614 | 17E619 | 17E621 | 17E623 |
| Maximum Tip Size | 0.031" | 0.033" | 0.035" | 0.031" | 0.033" | 0.035" | 0.035" |
| Maximum bar (psi) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) |
| Maximum (lpm) | 3.6 | 4.1 | 4.5 | 3.6 | 4.1 | 4.5 | 4.5 |
| Motor hp | 2.0 brushless DC | 2.2 brushless DC | 2.4 brushless DC | 2.0 brushless DC | 2.2 brushless DC | 2.4 brushless DC | 2.4 brushless DC |
| Weight - Kg | Lo-Boy 17E610 42Kg Hi-Boy 17E613 42kg |
Lo-Boy 17E616 44kg Hi-Boy 17E617 44kg |
55kg | 50kg | 52kg | 64kg | 56kg |
| Pump | Endurance Pump | Endurance Pump | Endurance Pump | Vortex Maxlife | Vortex Maxlife | Vortex Maxlife | Vortex Maxlife Extreme |
| ProConnect 2 | ■ | ■ | ■ | ■ | |||
| BlueLink System | ■ | ■ | ■ | ■ | ■ | ■ | ■ |
| Control | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 | SmartControl 4.0 |
| Motor | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless | MaxPower Brushless |
| Gun | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC | Contractor PC |
| Hose | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 | Blue Max II 1/4 x 15 |
| Tip | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 | RAC X LTX 517 - LP 315 |
Specifications
Features
What's Included
Reviews
Dimensions
product
74.93 cm
96.52 cm
66.04 cm
Weight
May require help to carry
Total Weight:
57.88 kg
product
58.42 cm
83.82 cm
91.44 cm
Weight
May require help to carry
Total Weight:
65.14 kg
