Graco Ultra QuickShot (20B479)

GRACO
Save 9%
$1,999.00
SKU: 20B479
FREE DELIVERY*
Order valueShipping price
$0 – $150$29
$150+$39
*Free delivery only for custom orders.

Quantity

Out of stock
Add to Cart
Out of stock
Add to cart

Seen it cheaper?

Ask for a PaintAccess Deal
Chat with us Call 02 5838 5959

Pay in 4 interest-free payments with

Payment & Security | Refund Policy

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Graco Ultra QuickShot (20B479)
$1,999.00

Description

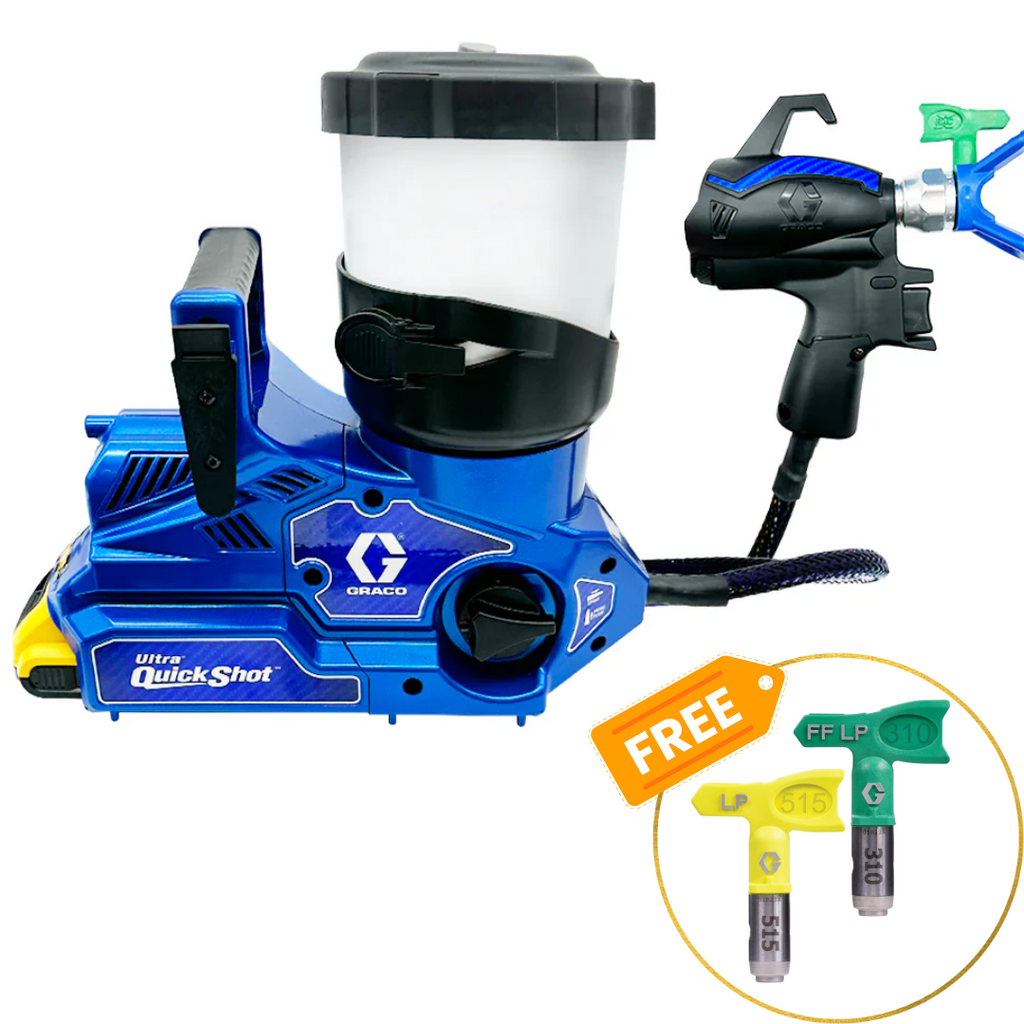

Graco Ultra QuickShot

The Ultra QuickShot is breakthrough technology from Graco which they say is "designed to deliver a high quality finish on all small jobs". Graco have designed the Ultra QuickShot with portability in mind. The QuickShot is a battery operated airless sprayer which allows the user to paint in tight spaces while retaining the precision and control of a paint sprayer.

And the spray gun isn't just Graco's smallest and lightest, it's the smallest and lightest airless paint sprayer gun ever built. It also has Graco's on-demand precision flow-control system for quick adjustment and easy dial-in of desired pressure (100-2,000 psi)

Technical Specifications:

Battery Voltage (V) 20
Maximum Operating Temperature (°C) 32
Maximum Storage Temperature (°C) 45
Maximum Tip Size (in) .016
Maximum Working Pressure (MPa) 14
Maximum Working Pressure (bar) 138
Maximum Working Pressure (psi) 2000
Minimum Operating Temperature (°C) 4
Minimum Storage Temperature (°C) 0
Model Ultra
Overall Height (cm) 26.7
Overall Length (cm) 30.5
Overall Width (cm) 15.2
Power Source Battery Powered
Series QuickShot
Sound Pressure Level (dB(A)) 83
Type Airless Spray Package
Weight (kg) 2.9


Compare Table

Click here to open table
ULTRA® AIRLESS HANDHELD AC ULTRA® AIRLESS HANDHELD DC ULTRAMAX® AIRLESS HANDHELD DC ULTRA® QUICKSHOT CORDLESS
Warranty 1 year 1 year 1 year 1 year
Part Numbers: 17M362 17N221 17N225 20B479
Max. Tip Size 0.016" 0.016" 0.016" 0.016"
Motor AC DC DC Brushless DC Brushless
Max. pressure - bar (PSI) 138 (2000) 138 (2000) 138 (2000) 138 (2000)
Weight - kg (lbs) <2.1kg 2.4kg 2.4kg 2.9kg
Material and Solvent compatibility Waterbased Waterbased Water-Solvent Water-Solvent
Repairable ■ ■ ■ ■
SmartControlTM ■ ■ ■ ■
Speed Selector ProControlTM II ProControlTM II ProControlTM II On Demand Pressure and Flow control
Cup system Throw-away Throw-away Throw-away Reusable
Tips 514 514 210 + 514 210 + 514
Guard RAC XTM - RAC XTM - RAC XTM - 17P573 RAC XTM - 17P573
Inlet filter 60 60 60 + 100 60 + 100
Power supply 3m power cable 2 x 18V DEWALT® battery 2 x 18V DEWALT® battery 2 x 18V DEWALT® battery
Battery charger ■ ■ ■
Cup + lid 1 L (1 cup, 1 lid) 1 L (1 cup, 1 lid) 1 L (1 cup, 1 lid) 1 L (1 cup, 1 lid)
Cup liners 4 4 4
Storage bag/case Bag Bag Bag Bag
Hot Solvent Compatible ■ ■
Pressure Control Yes Yes Yes Yes
Pressure Range 34 to 135 bar 34 to 135 bar 34 to 135 bar 34 to 135 bar
Tip Type Supported RAC X FF LP RAC X FF LP RAC X FF LP RAC X FF LP
Batteries Included 2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion 2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion 2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion
Filter Mesh Included 60 & 100 Mesh 60 & 100 Mesh 60 & 100 Mesh 60 & 100 Mesh
Fully Repairable Yes Yes Yes Yes
ProConnect System Yes Yes Yes Yes
Storage Bag Included Yes Yes Yes Yes

Videos

Features

  • Fantastic spray control with an ability to quickly adjust pressure for every application.
  • Capacity to spray a wide range of paints and other coatings including paints and solvents.
  • Ideal for small jobs including window and door frames, and furniture.
  • Instant-response electric sprayer that virtually eliminates "spits".
  • Light trigger-pull which reduces fatigue

What's Included

  • Ultra QuickShot unit
  • Spray gun
  • 2m flexible hose for full reach and easy hose management
  • Durable, long-life triple piston pump with ProConnect
  • 0.94 litre Pour-N-Go cup
  • 2 x DEWALT 18V Lithium-ion batteries
  • DEWALT Lithium Ion Battery Charger

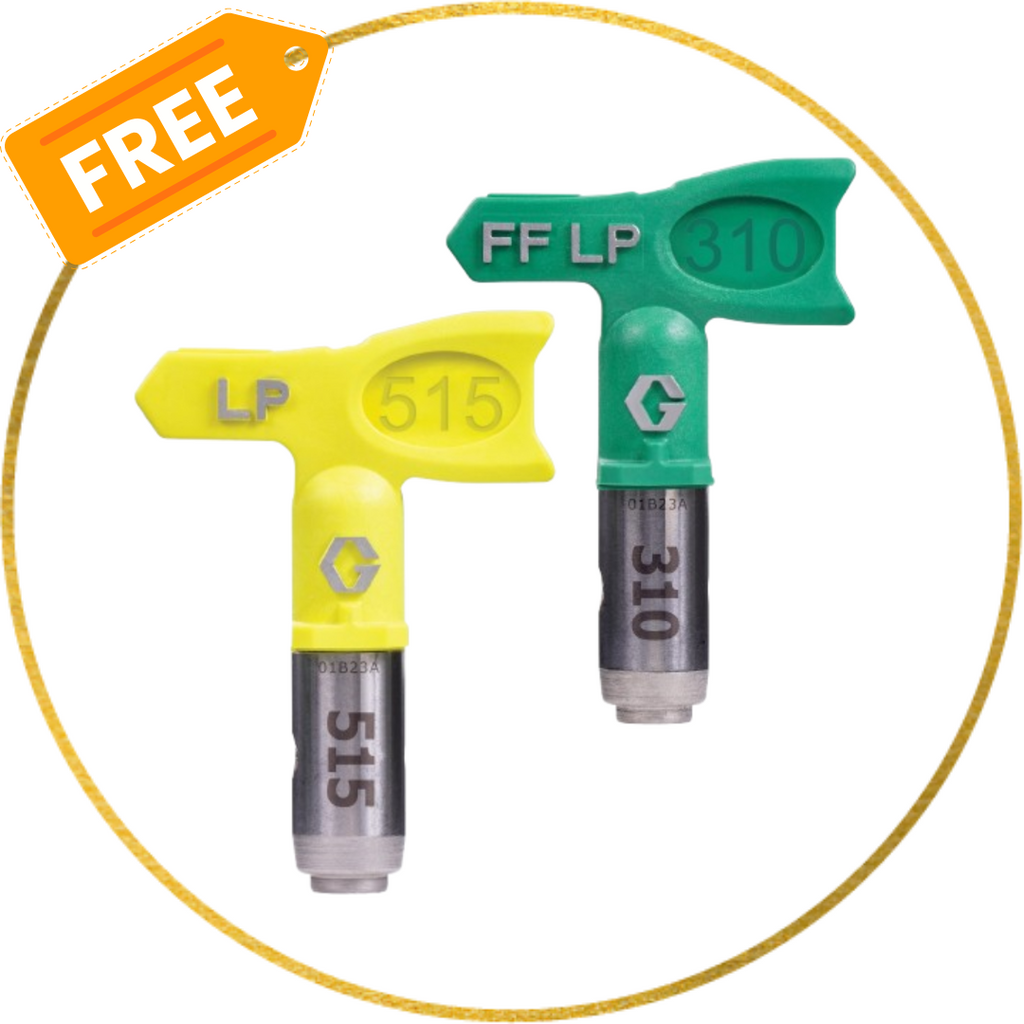

  • Fine Finish Low Pressure RAC X FF LP SwitchTip (514)
  • Fine Finish Low Pressure RAC X FF LP SwitchTip (210)
  • RAC X HandTite Tip Guard
  • Storage Case (Graco recently updated the quality, may be different from the photos)
  • Belt and Holster Attachment
  • Inlet Filter 60 Mesh
  • Inlet Filter 100 Mesh

FAQ

How many batteries does it come with?
It comes with 2 x DeWalt 18V batteries
What type of jobs is QuickShot designed for?
The main purpose of this sprayer is small touch-up jobs: doors, trims, wood work, skirting boards, etc. It is not suitable for large area applications.
What are the advantages of it compared to Graco Handheld Ultra or UltraMax?
The main advantage is that it is very easy and comfortable. You can simply attach it to the belt or PaintAccess backpack (purchased separately) and use it whenever you need it. It means both of your hands are free when you want to do something else. Apart from that, it is equipped with gravity fed cup, which makes it much easier for the pump to operate, thus extended maintenance.
Is battery charger included in the kit?
Yes, every QuickShot comes with a battery charger, so you can spray paint right away.
How long does 1 full battery charge last?
Roughly half an hour with a standard usage.

Dimensions

Width
Width
Height
Height
Length
Length
product
19.05 cm
31.75 cm
44.45 cm

Weight

Courier

Easy To Carry

Total Weight: 6.8039 kg

Guides & Documents

3A9323EN-A.pdf 3J0440EN-A.pdf 3A9301EN-J.pdf
