Oldfields Aluminium MINI Zippy Scaffold Base Unit 1.2m

$750.00
Vendor: Oldfields
For Pick-Up Only. Oldfields Aluminium MINI Zippy Scaffold Base Unit  OPTIONAL Mini Zippy Scaffold Base Unit Guardrail Extension Pack Light duty foldable scaffold – Quality mobile working platform designed for Commercial...

Oldfields ScaffoldFor Pick-Up Only.

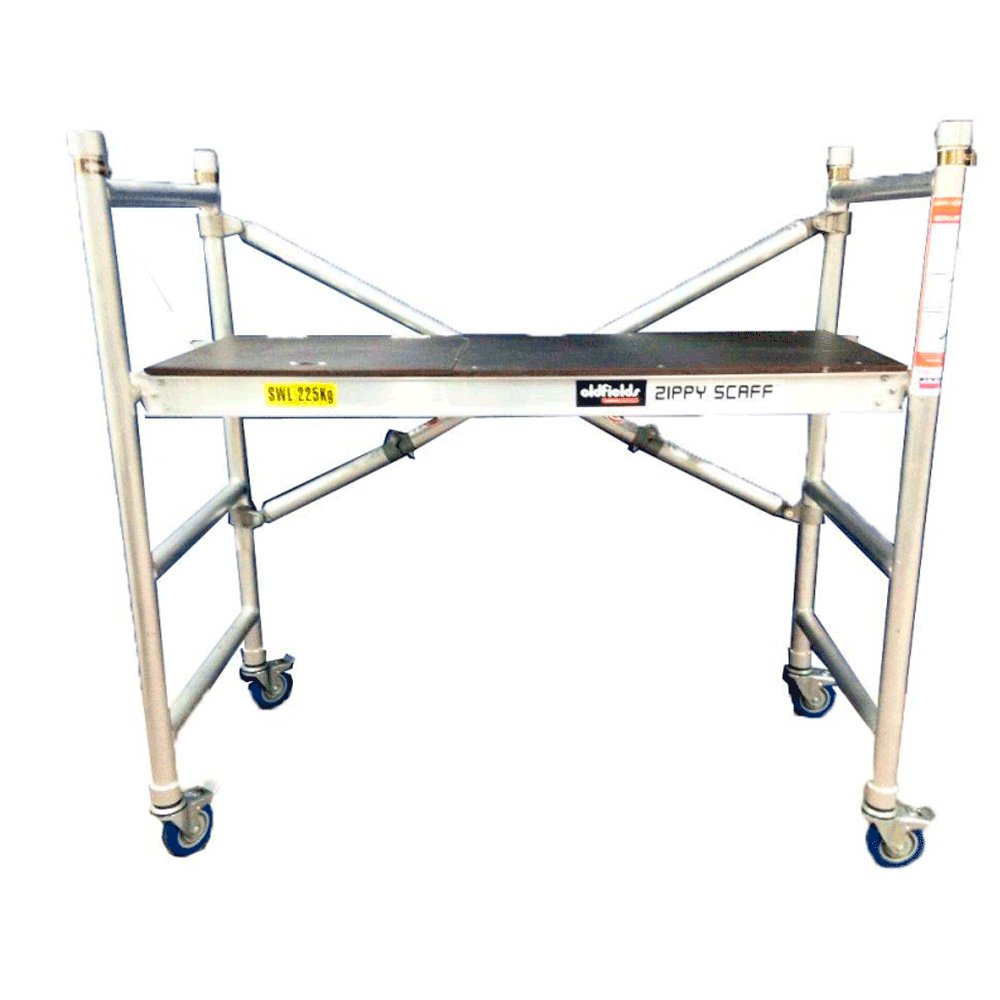

Oldfields Aluminium MINI Zippy Scaffold Base Unit

OPTIONAL Mini Zippy Scaffold Base Unit Guardrail Extension Pack

Light duty foldable scaffold – Quality mobile working platform designed for Commercial and DIY use.

Zippy Scaffolding foldable aluminium scaffold is an extremely versatile folding scaffold built with different trades in mind – including decorators, electricians, insulation contractors, plasterers and sign-writers. Movement is easy – when folded up it can be wheeled through a standard doorway. Ready for use in seconds, it can also act as a trolley for moving equipment around the home, office, factory or work site. Alternate working heights can easily be achieved in seconds by adjusting the working platform.



2 Pick-Up Locations:

St. Leonards, NSW 2065 - 14/6-8 Herbert Street, PaintAccess

Campbelltown, NSW 2560 - 8 Farrow Road, Oldfields



FEATURES

  • Lightweight
  • Compact and portable
  • Capacity rating to 225kg
  • Erect and dismantle in seconds
  • Built-in ladder access
  • Adjustable heights
  • Top working platform of up to 1.5m if optional extension pack fitted



Specifications:

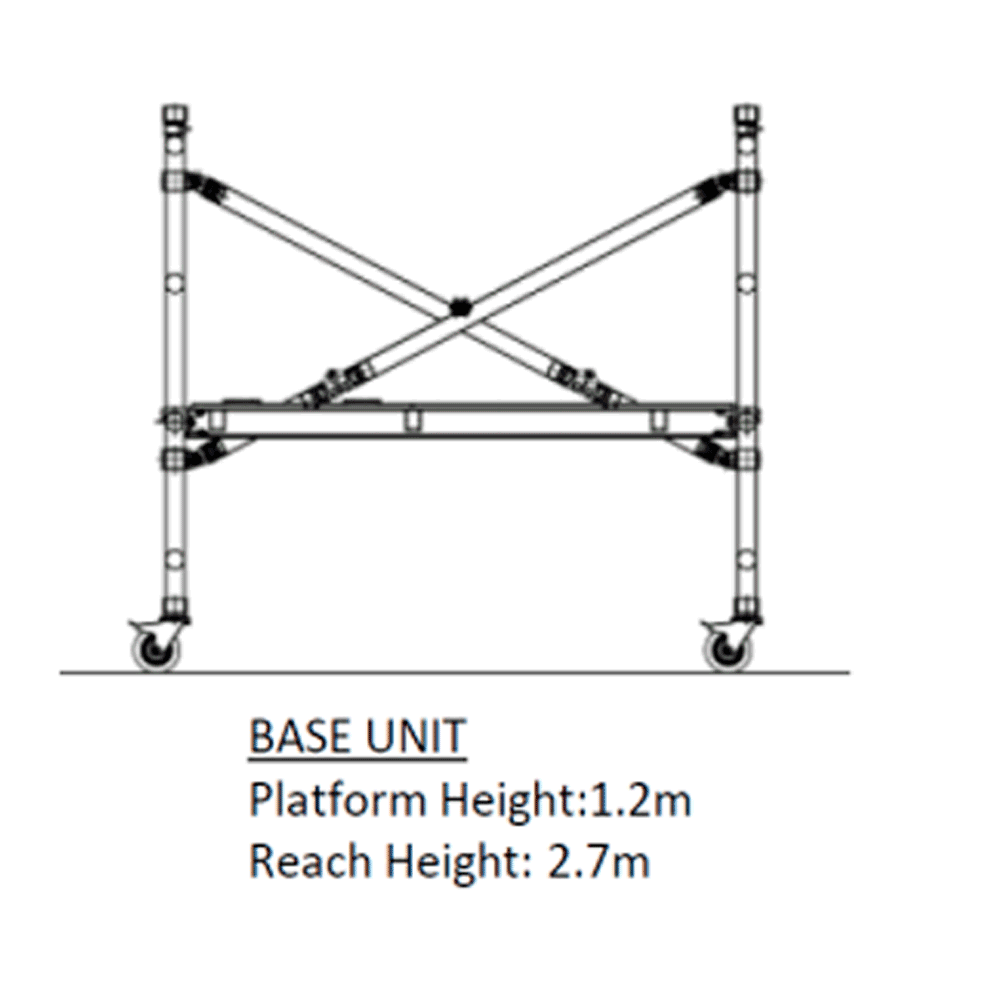

Base Unit (Overall): 1.5m Long x 0.74m Wide x 1.5m High
Standing Heights: 0.3m/0.6m/0.9m/1.2m - 1.5*m (*with extension pack)

Reach height: estimated 2.7m - 3.5*m (*with extension pack)
Working Load (Max): 225kg
Boxed Weight: Base Unit 50kg (includes deck)
Boxed Weight: Guardrail Extension Pack 33kg

Need a UTE or a VAN to pick up these items. May fit in the back of a station wagon with seats down.



Safety/ Technical Requirements:

* Extension pack with Outriggers required as per AS/NZS 1576
Plant design registered with WorkCover NSW

Disclaimer: AS/NZ1576 states that all single width towers are to be fitted with outriggers when platform is at 1.9m and above





Assembly Instructions and Safety Warnings

Zippy Scaff-Mini Folding Scaffold Base Unit with Guardrail Pack Assembly Instructions July 2016
