Oldfields Fibreglass Scaffold Guardrail Extension Pack 1.9m

$1,100.00
For Pick-Up Only. Oldfields Fibreglass Guardrail Extension Pack MUST HAVE OLDFIELDS FIBREGLASS SCAFFOLDING BASE UNIT TO CONNECT Light duty foldable scaffold – Quality mobile working platform designed for Commercial and...

Oldfields ScaffoldFor Pick-Up Only.

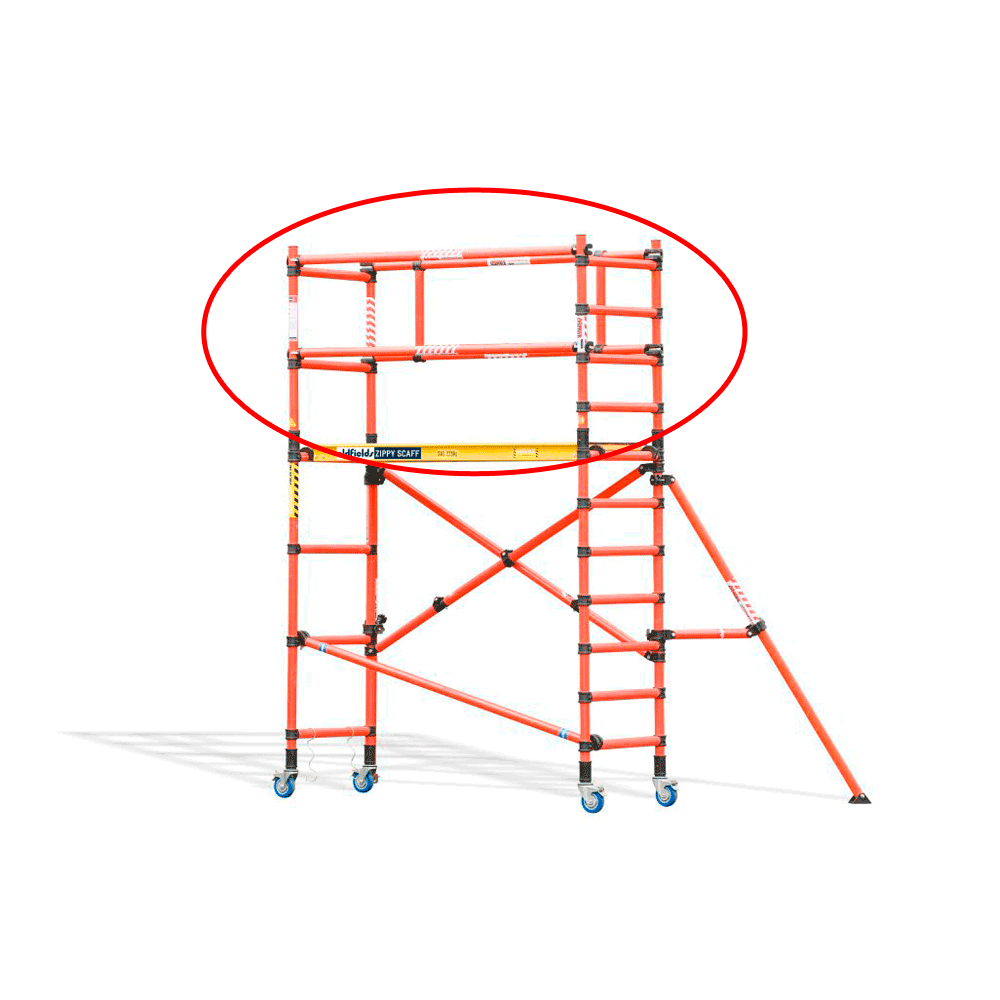

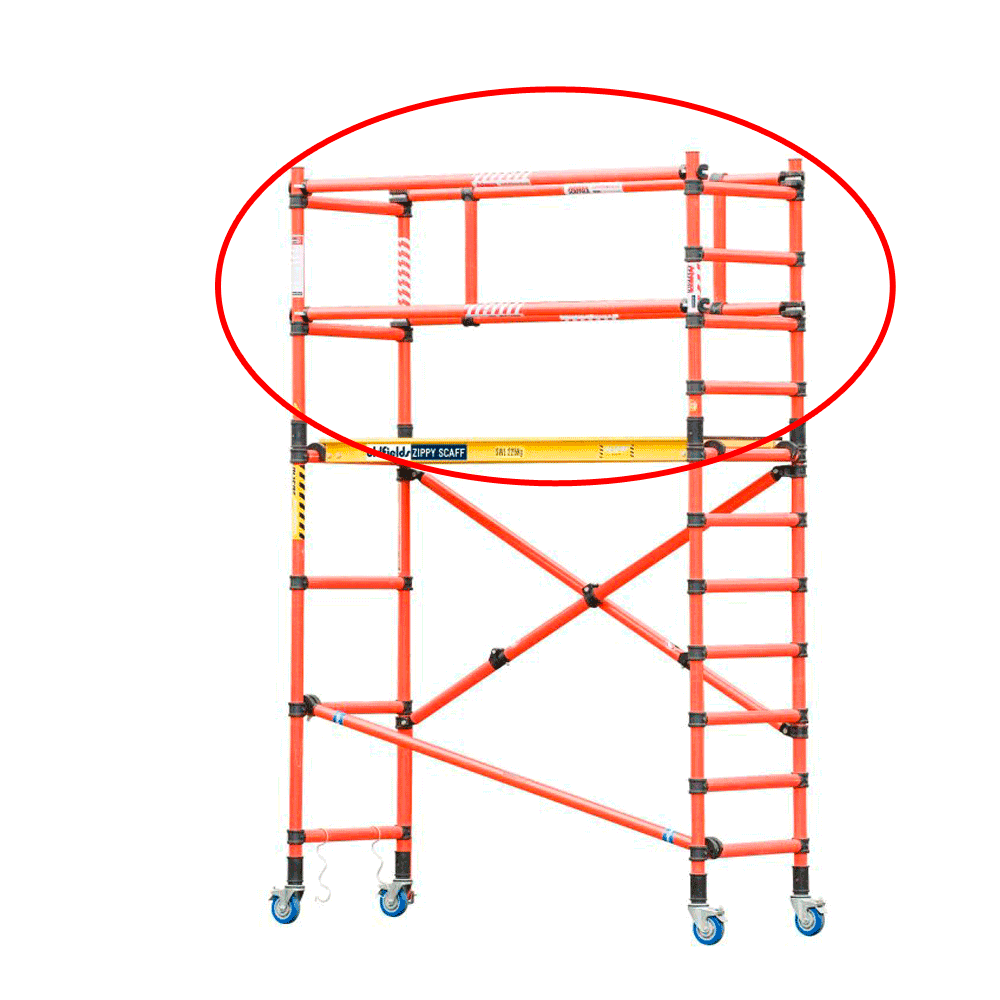

Oldfields Fibreglass Guardrail Extension Pack

MUST HAVE OLDFIELDS FIBREGLASS SCAFFOLDING BASE UNIT TO CONNECT

Light duty foldable scaffold – Quality mobile working platform designed for Commercial and DIY use.

Zippy Scaff fibreglass is an extremely versatile folding scaffold built with different trades in mind – including decorators, electricians, insulation contractors, plasterers and sign-writers. Movement is easy – when folded up it can be wheeled through a standard doorway. Ready for use in seconds, it can also act as a trolley for moving equipment around the home, office, factory or work site. Alternate working heights can easily be achieved in seconds by adjusting the working platform.



2 Pick-Up Locations:

St. Leonards, NSW 2065 - 14/6-8 Herbert Street, PaintAccess

Campbelltown, NSW 2560 - 8 Farrow Road, Oldfields



FEATURES

  • Lightweight, Compact and portable
  • Capacity rating to 225kg
  • Erect and dismantle in seconds
  • Built-in ladder access
  • Adjustable heights
  • Top working platform up to 1.9



Specifications:

Base Unit (Overall): 1.96m Long x 0.74m Wide x 1.96m High
Standing Heights: 0.4m/0.9m/1.2m/1.9m

Reach height: estimated 3.9m
Working Load (Max): 225kg
Boxed Weight: Base Unit 45kg (includes deck)
Boxed Weight: Guardrail Extension Pack 25kg



Need a UTE or a VAN to pick up these items. May fit in the back of a station wagon with seats down.



Safety/ Technical Requirements:

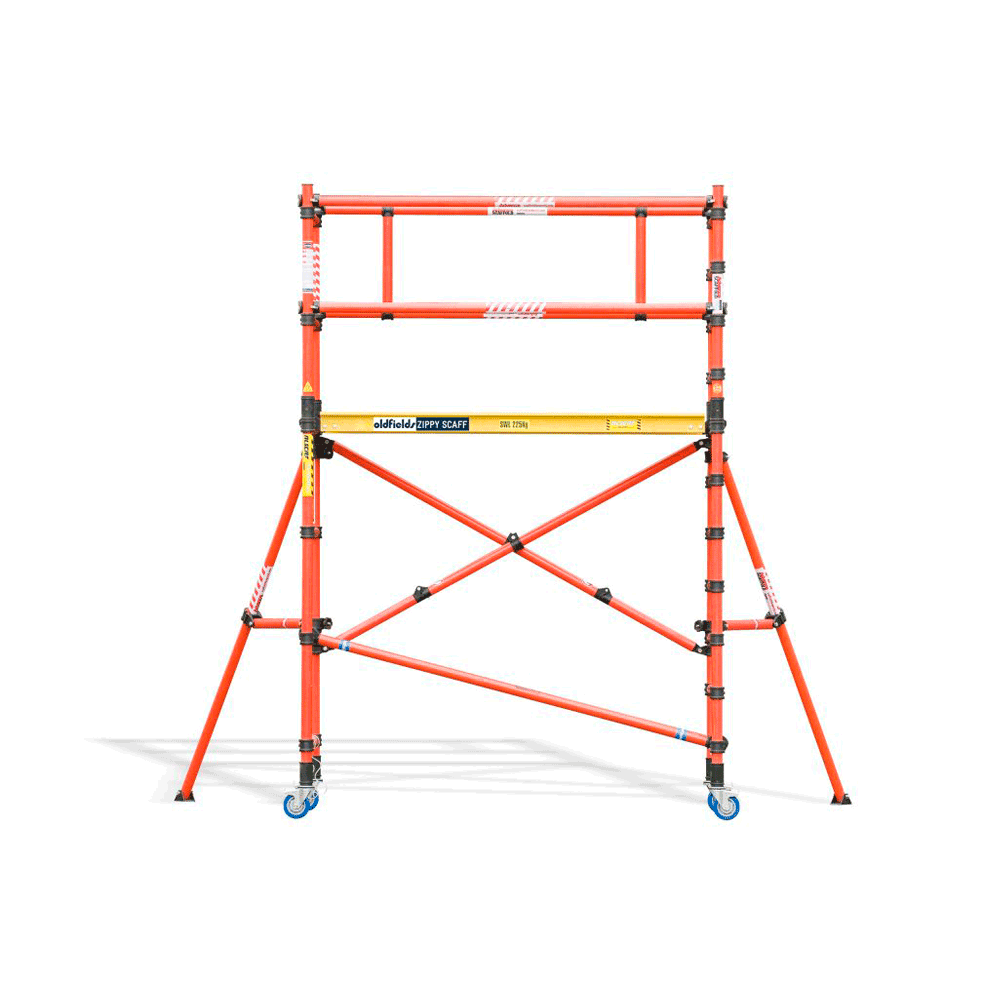

* Extension pack with Outriggers required as per AS/NZS 1576
Plant design registered with WorkCover NSW

5kV DC Insulation resistance
110kV AC High voltage withstand
220kV AC High voltage withstand
80kV DC High voltage withstand
Light duty rated SWL – 225kgs
AS/NZS 1576.3-1995 compliant

Disclaimer: AS/NZ1576 states that all single width towers are to be fitted with outriggers when platform is at 1.9m and above





Assembly Instructions and Safety Warnings

Zippy Scaff-Mini Folding Scaffold Base Unit with Guardrail Pack Assembly Instructions July 2016
