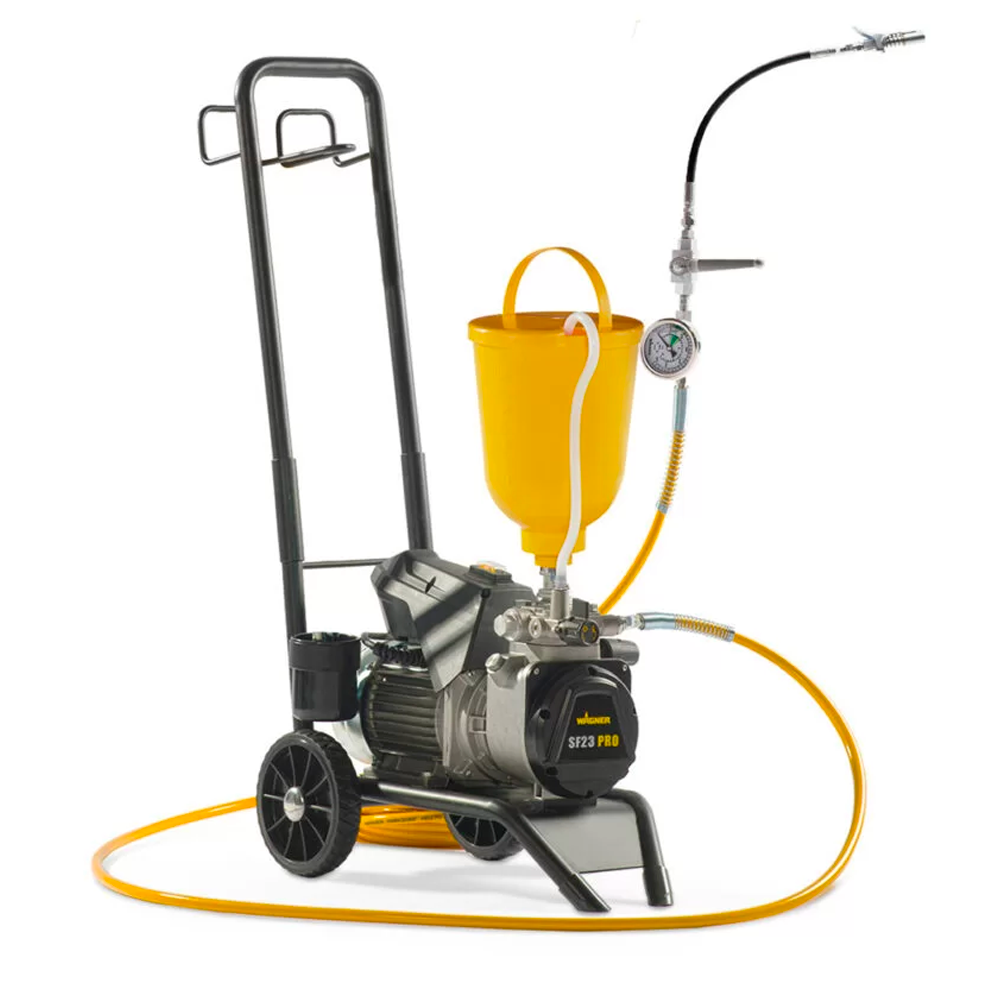

Wagner SF23 PRO i Crack Injection Pump


Professional Crack Injection unit for concrete repair work.

Suitable for a range of materials including epoxy, polyurethane (PU), SPUR foam and aqueous solutions.

Verstaile and robust, the perfect all-rounder for multiple application types.
Compact – smallest in its class, mobile and lightweight.
Robust – ideal for demanding construction site use.

Comes complete on Collapsible Cart including 5 litre Hopper, 15 metre Airless Hose, HEA Pressure Gauge, Injection Lance with ball valve, & Tool Kit (incl. wrench 41mm/22mm/19mm and screw driver)

Spare Parts:

  • 2393043 Inlet valve assy SF23 Pro
  • 2342946 Outlet valve assy PL3500
  • 700-100C Injection lance w/ball valve
  • 0341265 Hopper set 5L
  • 0037607 Filter mesh hopper 5L
  • 0340908 Return tube 5L hopper


  • Precise, user-friendly and efficient in filling and redevelopment
  • QLS – Quality Long Stroke diaphragm pump ideal for both high and low viscosity materials
  • Suitable for a range of materials: epoxy, polyurethane (PU), SPUR foam and aqueous solutions
  • Precise Injection – Easy to use with all packings commercially available.
  • 5 litre hopper (20L hopper available as additional accessory


  • Part No. 2395486i
  • Power 1.7 HP / 1.3 kW
  • Pressure 3600 psi
  • Flow Rate 2.6 l/min
  • Weight 27 kg
  • Max Tip Size 0.023″
  • Max Hose Length 90 m
  • Annual Usage 8,000 litres Hose Length 15 m
  • Lance Included Injection Lance Complete
