	ULTRA® AIRLESS HANDHELD AC	ULTRA® AIRLESS HANDHELD DC	ULTRAMAX AIRLESS HANDHELD D
Warranty	1 year	1 year	1 year
Part Numbers:	17M362	17N221	17N225
Max. Tip Size	0.016"	0.016"	0.016"
Motor	AC	DC	DC Brushless
Max. pressure - bar (PSI)	138 (2000)	138 (2000)	138 (2000)
Weight - kg (lbs)	<2.1kg	2.4kg	2.4kg
Material and Solvent compatibility	Waterbased	Waterbased	Water-Solvent
Repairable	■	■	■
SmartControlTM	■	■	■
Speed Selector	ProControlTM II	ProControlTM II	ProControlTM II
Cup system	Throw-away	Throw-away	Throw-away
Tips	514	514	210 + 514
Guard	RAC XTM -	RAC XTM -	RAC XTM - 17P573
Inlet filter	60	60	60 + 100
Power supply	3m power cable	2 x 18V DEWALT® battery	2 x 18V DEWALT® battery
Battery charger		■	■
Cup + lid	1 L (1 cup, 1 lid)	1 L (1 cup, 1 lid)	1 L (1 cup, 1 lid)
Cup liners	4	4	4
Storage bag/case	Bag	Bag	Bag
	ULTRA® AIRLESS HANDHELD AC	ULTRA® AIRLESS HANDHELD DC	ULTRAMAX AIRLESS HANDHELD D

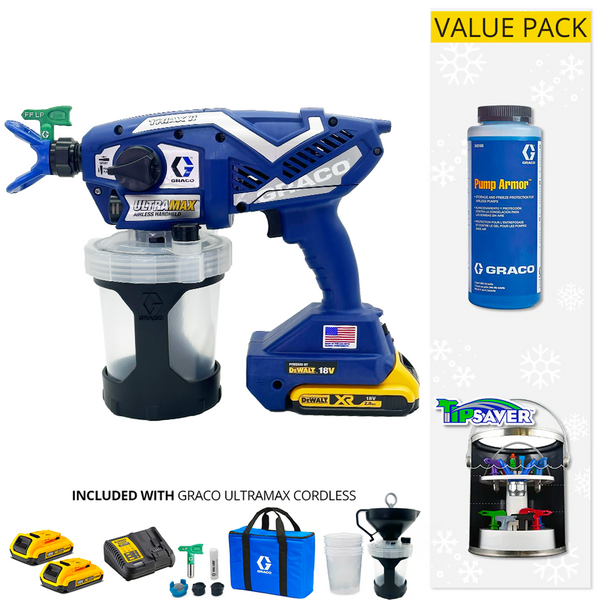

Summer free pack - Paint Access

1- Pump Armor 1L (Single) - 243103

1- Tipsaver Spray Equipment Cleaner/Organizer, 22TS50

1 - 2-Pin Moisture Meter - E12082

*Offer ends 29 February or while stocks last.

Graco Ultra MAX Cordless Airless Handheld Sprayer with DeWalt Battery

NOW AVAILABLE!

Graco Ultra Max can be used with oil based and water based paints!

Ultra airless handheld sprayers are designed specifically for small interior, exterior and specialty projects. The true advantages of the Ultra handheld sprayers are the Perfect Airless Finish, ultimate portability on the job, and that it is ready to spray in seconds. Painting contractors can easily spray those small jobs without having to start-up their larger airless sprayer.

Sprays more materials than old models. The Ultra Handheld can spray Primers, Stains, Water-based Paints, Acrylics, Oil-based Paints, Enamels and Latex. Sprays Water, Solvent Mineral Spirits & Flammable Based Materials. Spray in any direction, even upside down!

Graco Cordless Handheld Airless Sprayers Manual

Triax Triple Piston Pump

Unmatched Performance

Durable stainless steel and carbide components bonded with a high strength polymer
Incredible durability in a light weight design
500-2,000 PSI
.008-.016 Tip Support

Reliable Startup

No inlet check valve to get stuck
Automatic Outlet Ball Knocker

Perfect Airless Finish

Smooth and even at any hand speed
No Thinning
Single Coat Coverage

dewalt 20v max battery paintaccess

Powered by DEWALT XR Lithium Ion System

GUARANTEED TOUGH^TM

Proven quality, contractor recognized battery manufacturer

3-LED fuel gauge system allows immediate feedback on state of charge

Lightweight design and 30% faster charge time (35 minutes)

Each cordless machine comes standard with 2 batteries

Compatible with any DEWALT 18V Lithium Ion battery

Spray up to 1 gallon with each charge thanks to the DEWALT 18V Lithium Ion system

proconnect paintaccess

ProConnect

On-The-Job Pump Replacement System

One Tool Replacement - Replace the pump in 3 steps using only a screwdriver

Remove Phillips screws and door
Remove and replace pump
Reinstall door and screws

SmartControl

Spray at any hand speed with professional finish every time

Precision pressure control that delivers a consistent spray fan without pressure fluctuations

RAC X FF LP Tips Paintaccess

RAC X FF LP Tips

Provides superior finish at low pressure

Works on all Graco Airless Sprayers - everything from handhelds to large airless

Large range of sizes available to meet the job requirements

Reverse-A-Clean (RAC) SwitchTips deliver exceptional spraying results and make cleaning tip clogs simple

32 oz FlexLiner Paint Bags

Disposable liners eliminate cleanup time

Easy Setup

Fill FlexLiner Bag with material and attach to the handheld
Squeeze out any remaining air
Spray

Easy Cleanup

Fill FlexLiner Bag with cleaning fluid like PumpArmor
Shake sprayer
Spray into a bucket

No suction tube to clean

Toss or reuse, it's your choice

procontrol II paintaccess

ProControl

Graco's ProControl puts you in control!

Adjust motor speed to spray at virtually any speed that the job demands - hear it working
More control allows users to spray at the speed they choose - a professional finish, fast or slow

hot solvent graco paintaccess

Hot Solvent Compatible

Sprays hot solvents such as solvent-based lacquer

Can spray everything from water to solvents and flammable-based materials

graco ultra max package paintaccess

Just Add Paint

The sprayer comes ready to use with everything you need to get spraying

RAC X FF LP210 Tip
RAC X FF LP 514 Tip
2 - DEWALT 18V-Max Compact Lithium Ion Batteries
DEWALT 18V-Max Lithium Ion Battery Charger
4-1 Litre FlexLiner Bags
Durable Storage Bag

Fire and Explosion Hazard Warnings:

Connect the grounding cord when spraying flammable or static producing oil-based materials.
If there is static sparking or if you feel a shock, stop spraying immediately and connect the sprayer to a properly grounded electrical outlet with the ground wire provided.

Grounding Instructions:

Move the sprayer away from the spray area to a non-hazardous location. Plug the ground wire into the sprayer.
Unwind the ground wire from the spool and plug it into a properly grounded electrical outlet.
If the ground wire is not long enough to reach a grounded electrical outlet, a 3-wire grounded extension cord may be used to reach a grounded outlet.

	ULTRA® AIRLESS HANDHELD AC	ULTRA® AIRLESS HANDHELD DC	ULTRAMAX AIRLESS HANDHELD D
Hot Solvent Compatible			■
Pressure Control	Yes	Yes	Yes
Pressure Range	34 to 135 bar	34 to 135 bar	34 to 125 bar
Tip Type Supported	RAC X FF LP	RAC X FF LP	RAC X FF LP
Batteries Included		2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion	2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion
Filter Mesh Included	60 & 100 Mesh	60 & 100 Mesh	60 & 100 Mesh
Fully Repairable	Yes	Yes	Yes
ProConnect System	Yes	Yes	Yes
Storage Bag Included	Yes	Yes	Yes
