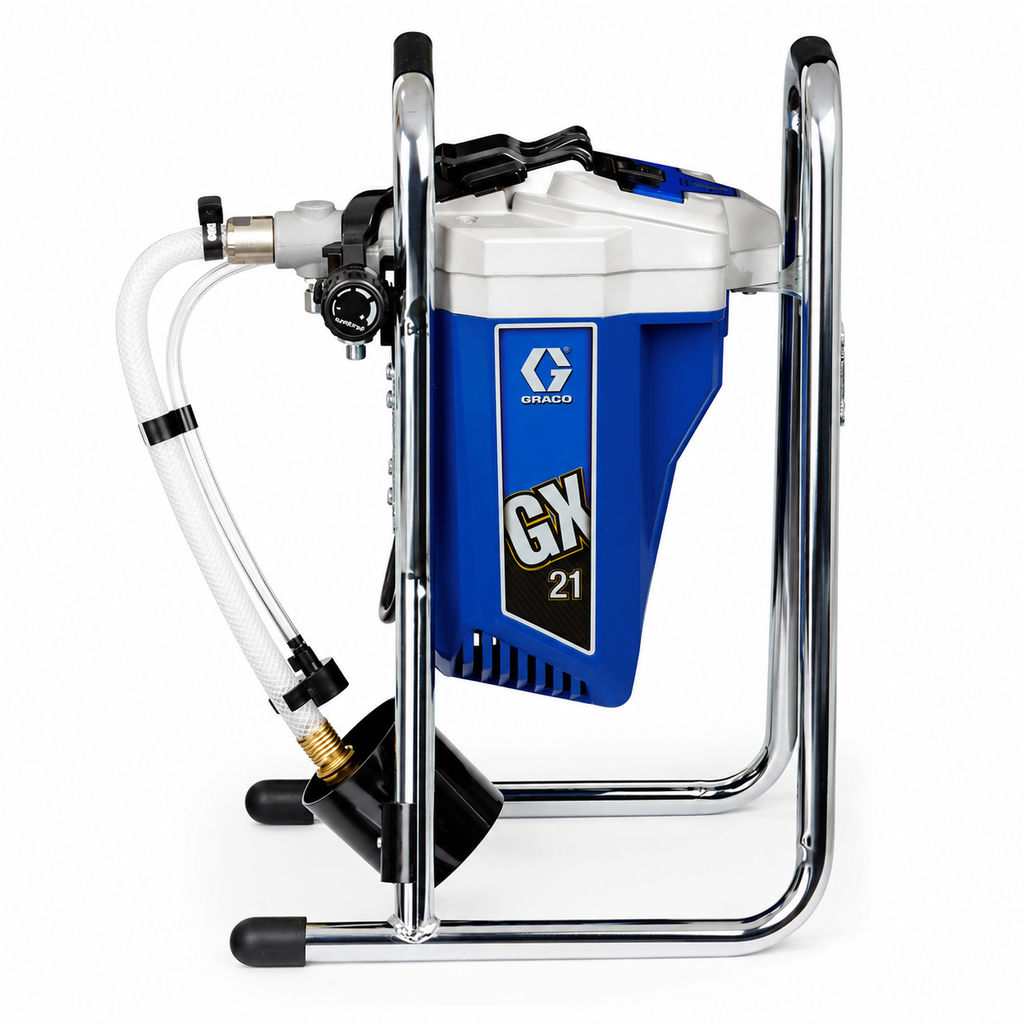

Graco GX 21 Airless Paint Sprayer (17H219) with Value Pack
$2,250.00

Description

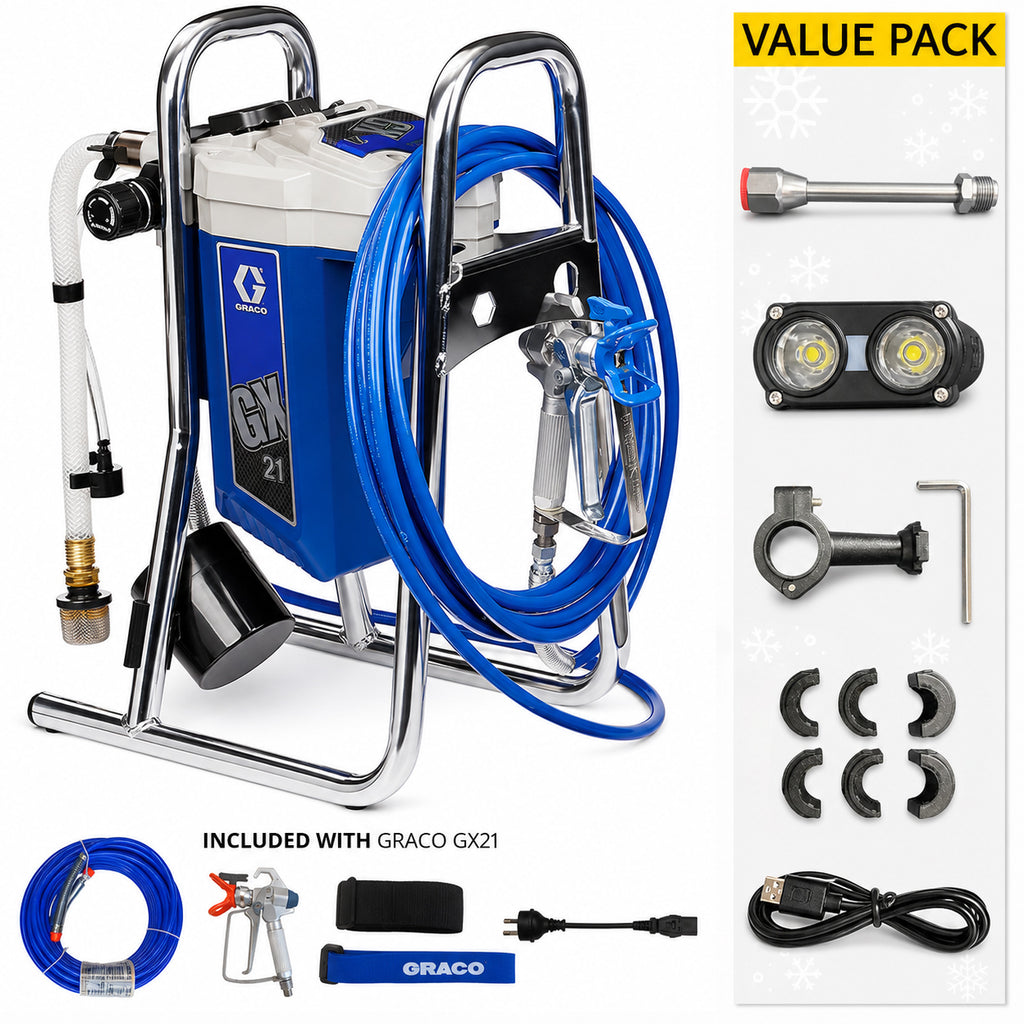

Special Value Pack - PaintAccess:

The Graco GX 21 is a fast, portable, and highly affordable solution designed specifically for the small finishing jobs every professional contractor faces. Optimized for the application of architectural paints and coatings, it combines Graco’s legendary piston pump performance with an extremely lightweight design. This sprayer is ideal for renovation, residential maintenance, and small commercial projects where speed and a smooth finish are essential.

Compare Table

Click here to open table
GX 21 190 PC Express 390 PC 395 PC PRO
Warranty 1 year 1 year 1 year 1 year
Part Numbers: 17H219 Stand 17C384 Stand 17C386
Lo-Boy 17C387
Hi-Boy 17C388		 Stand 17E881
Max. Tip Size 0.021" 0.021" 0.021" 0.023"
Max. flow - I/min (gpm) 1.8(0.47) 1.8(0.47) 1.8(0.47) 2.0(0.52)
Max. pressure - bar (PSI) 207 (3000) 207 (3000) 227 (3300) 227 (3300)
Weight - Kg(Ibs) 13.2Kg 14Kg Stand 17C386 - 14Kg
Lo-Boy 17C387 - 20Kg
Hi-Boy 17C388 - 24Kg		 19Kg
Motor Power (hp) 0.87 DC 0.62 DC 0.62 DC 0.87 TEFC DC
Frame Direct Immersion
Hopper Suction Tube
Ball Knocker - PushPrime Button ■
Hydraulic Pressure Gauge ■ ■
ProXChange Pump System ■
Pump Endurance Piston Endurance Piston Endurance Piston Endurance Piston
ProConnect ■ ■ ■
Control Electronic Electronic SmartControl 1.0
Tips 517 RAC X LTX 515 RAC X LTX 517 RAC X LTX 517 LP 315
Guard RAC X - 246215 RAC X - 246215
Gun filter (mesh) Easy Out 60 - 288749
Gun SG3 SG3 Contractor PC Contractor PC
Pump filter (mesh) 40 - 288747
Hose 1/4" x 15m - 247340 Blue Max II Airless 64 mm x 15m (1/4 in x 50ft) Blue Max II Airless 64 mm x 15m (1/4 in x 50ft) Blue Max II Airless 64 mm x 15m (1/4 in x 50ft)

Videos

Specifications

  • Fluid Outlet Size (in): 1/4
  • Fluid Outlet Size (mm): 6.35
  • Fluid Outlet Thread Type: NPSM
  • Frame Configuration: DI Stand
  • Maximum Flow Rate (l/min): 1.8
  • Maximum Operating Temperature (°C): 46
  • Maximum Storage Temperature (°C):71
  • Maximum Tip Size (in): 0.021
  • Maximum Working Pressure (MPa): 20.7
  • Maximum Working Pressure (bar): #207
  • Maximum Working Pressure (kPa): 20700
  • Minimum Operating Temperature (°C): 4
  • Minimum Storage Temperature (°C): -35
  • Model: GX
  • Overall Height (cm): 46.7
  • Overall Height (mm): 467
  • Overall Length (cm): 47.5
  • Overall Length (mm): 475
  • Overall Width (cm): 34.3
  • Overall Width (mm): 343
  • Series: 21
  • Sound Power Level (dB(A)): 93
  • Type: Airless Sprayer
  • Voltage (V): 230
  • Weight (kg): 11.3
  • Wetted Material: Stainless Steel, Brass, Leather, Carbide, Nylon, Aluminium, PVC, Polypropylene, Fluoroelastomer, UHMWPE

Features

  • Extreme Portability: Lighter than any competitive system in its class, featuring an Easy Carry Handle and a lid design that prevents splashes and spills during transport.
  • Direct Immersion Design: Draws paint directly from containers ranging from 1 to 30 litres. The flexible, clear suction set is compatible with both water and solvent-based paints and is easy to clean.
  • ProX Power-Piston Pump: Features a small pressure dead-band to ensure the finest finish possible. The pump includes a lifetime lubricated wiper pad for maintenance-free operation.
  • ProXChange™ Pump Replacement: Exclusive modular design allows for fast, on-the-job pump replacement without tools. This eliminates labor costs and expensive downtime if a pump requires service mid-project.
  • Professional SG3™ Gun: Comes equipped with a RAC X™ SwitchTip™ and a 15m hose, providing a professional-grade spraying experience right out of the box.

Reviews

Dimensions

Width
Width
Height
Height
Length
Length
product
31.75 cm
60.96 cm
49.53 cm

Weight

Courier

May require help to carry

Total Weight: 21.14 kg
