Graco GX 21 Airless Paint Sprayer
$2,230.00

Description

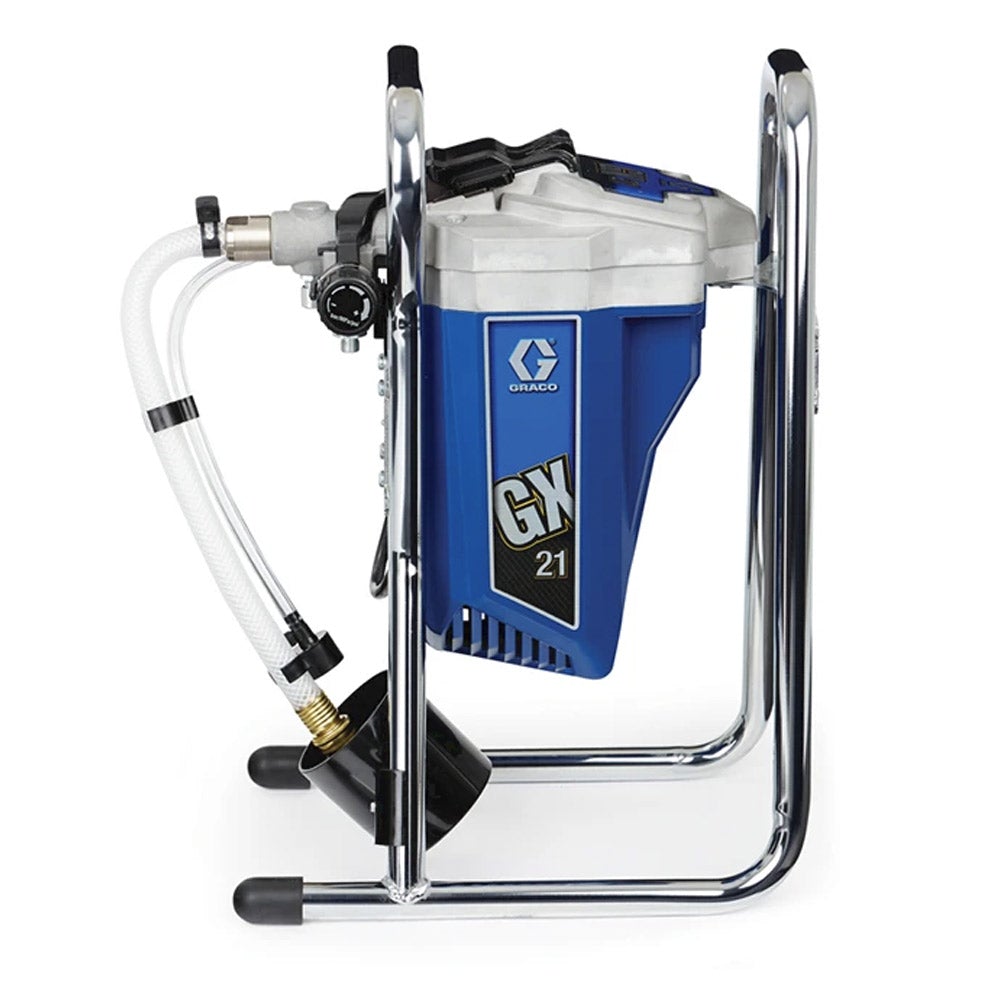

Graco GX 21 Airless Paint Sprayer

The GX 21 is the fast, portable and affordable solution for small finishing jobs every finishing contractor faces. Graco's proven piston pump and RAC X SwitchTip quickly lay down a smooth finish. The ProXChange Pump provides fast on-the-job pump replacement – no tools required.

For portable airless spraying of architectural paints and coatings.


    Compare Table

    Click here to open table
      GX19 FF GX19 GX 21 190 PC Express 390 PC 390PC Cordless 395 PC PRO
    Warranty 1 year 1 year 1 year 1 year 3 years 3 years 3 years
    Part Numbers: 25U855 17H223 17H219 Stand 17C384 Stand 17C386
    Lo-Boy 17C387
    Hi-Boy 17C388    		 Stand 25T882 Stand 17E881
    Max. Tip Size 0.019" 0.019" 0.021" 0.021" 0.021" 0.021" 0.023"
    Max. flow - I/min (gpm) 1.4 (0.38) 1.4 (0.38) 1.8(0.47) 1.8(0.47) 1.8(0.47) 1.8(0.47) 2.0(0.52)
    Max. pressure - bar (PSI) 207 (3000) 207 (3000) 207 (3000) 207 (3000) 227 (3300) 227 (3300) 227 (3300)
    Weight - Kg(Ibs) 16Kg 12.3Kg 13.2Kg 14Kg Stand 17C386 - 14Kg
    Lo-Boy 17C387 - 20Kg
    Hi-Boy 17C388 - 24Kg    		 14Kg 19Kg
    Motor Power (hp) 0.5 DC  0.5 DC 0.87 DC 0.62 DC 0.62 DC 0.62 DC 0.87 TEFC DC
    Frame     Direct Immersion
    Hopper  ■  ■ Suction Tube
    Ball Knocker - PushPrime Button  ■  ■ ■
    Hydraulic Pressure Gauge  ■  ■ ■    ■  ■ ■
    ProXChange Pump System  ■  ■ ■
    Pump  Endurance Piston  Endurance Piston Endurance Piston Endurance Piston Endurance Piston  Endurance Piston Endurance Piston
    ProConnect       ■ ■ ■ ■
    Control       Electronic Electronic  Electronic SmartControl 1.0
    Tips   FFLP210 517 RAC X LTX 515 RAC X LTX 517 RAC X LTX 517 RAC X LTX 517 LP 315
    Guard  RAC X - 246215  RAC X - 246215 RAC X - 246215 RAC X - 246215
    Gun filter (mesh)   Easy OutTM 100 - 287033 Easy Out 60 - 288749
    Gun Contractor PC FTxTM- 288430 FTx FTx Contractor PC Contractor PC Contractor PC
    Pump filter (mesh)     40 - 288747
    Hose  1/4" x 15m - 247340 1/4" x 15m - 247340 1/4" x 15m - 247340 Blue Max II Airless 64 mm x 15m (1/4 in x 50ft) Blue Max II Airless 64 mm x 15m (1/4 in x 50ft) Blue Max II Airless 64 mm x 15m (1/4 in x 50ft) Blue Max II Airless 64 mm x 15m (1/4 in x 50ft)
      GX19 FF GX19 390PC Cordless

    Videos

    Specifications

    FLUID OUTLET SIZE (IN) - 1/4

    FLUID OUTLET SIZE (MM) - 6.35

    FLUID OUTLET THREAD TYPE - NPSM

    FRAME CONFIGURATION - DI Stand

    MAXIMUM FLOW RATE (GPM) - 0.47

    MAXIMUM FLOW RATE (L/MIN) - 1.8

    MAXIMUM TIP SIZE (IN) - 0.021

    MAXIMUM WORKING PRESSURE (PSI) - 3000

    MAXIMUM WORKING PRESSURE (KPA) - 20700

    MAXIMUM WORKING PRESSURE (MPA) - 20.7

    OVERALL WIDTH (MM) - 343

    MODEL - GX

    MAXIMUM WORKING PRESSURE (BAR) - 207

    Features

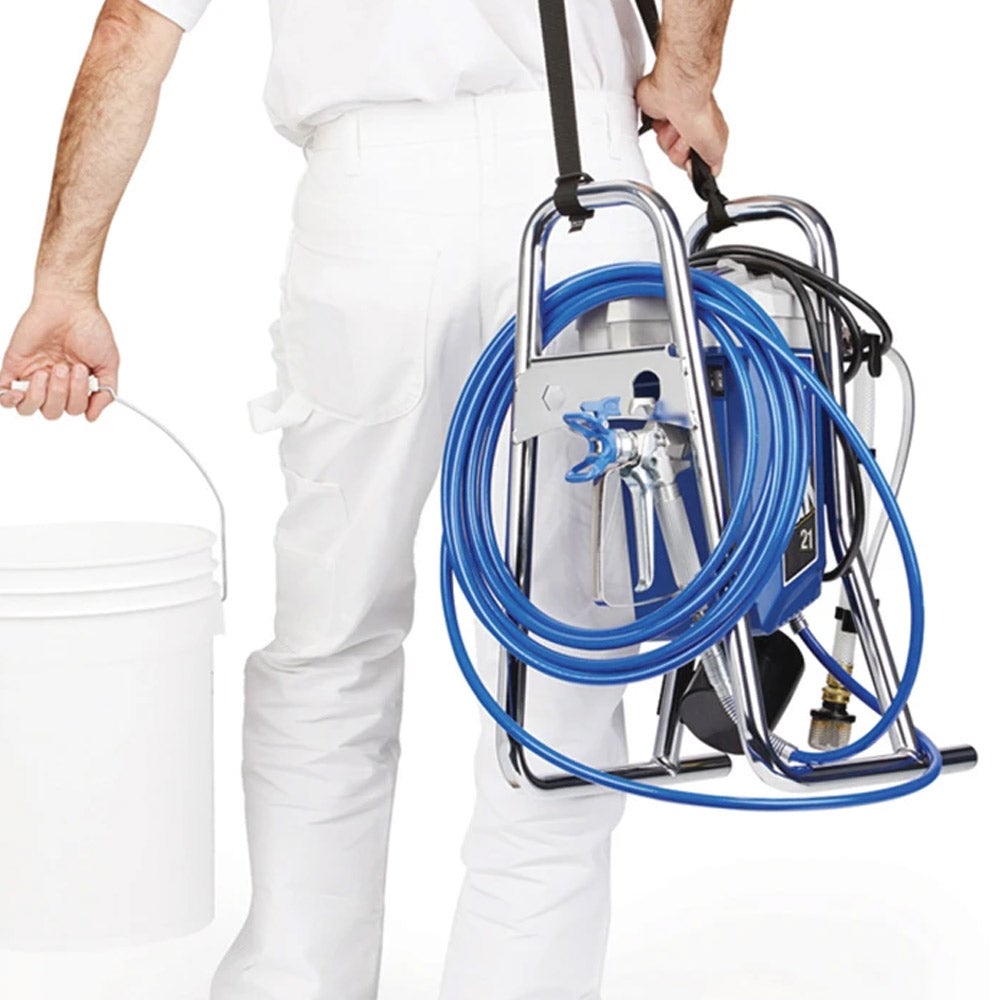

    Extremely Portable

    Lighter than any competitive system

    Easy Carry Handle makes transportation easy

    Lid prevents splashes and spills while carrying


    5.7 Litre Hopper

    Ideal for spraying small amounts of material

    Smooth inside surface cleans up fast

    Lid included for spill-proof portability

    Hopper easily attaches to sprayer without tools for easy cleaning

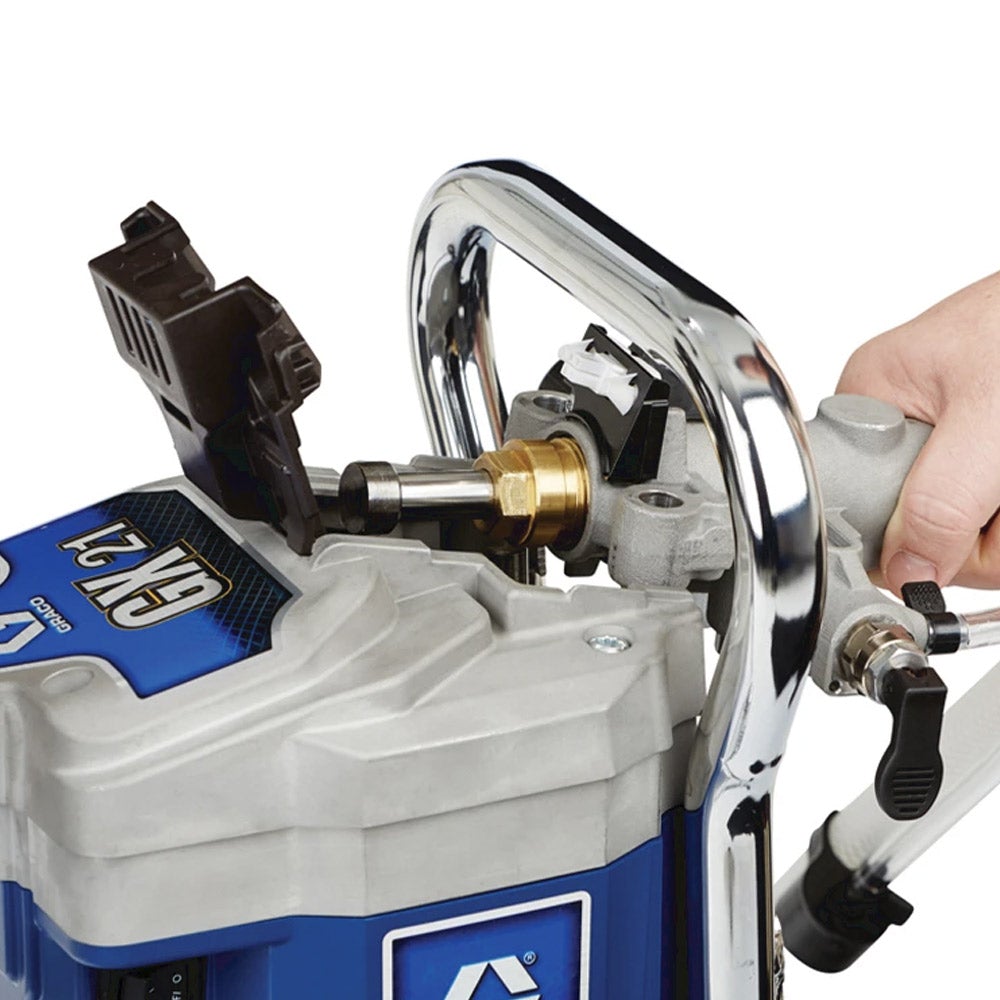

    ProX Power-Piston Pump featuring ProXChange

    Small deadband pressure enures the finest finish possible

    Exceptional durability and long life piston pumps

    Exclusive lifetime lubricated wiper pad for maintenance free operation

    Modular pump components for easy maintenance

    Fast and easy on-the-job pump replacement - no tools needed

    Eliminate labour costs and down time expenses


    Contractor Ftx Spray Gun

    Form fitted handle provides maximum control and comfort

    100-mesh gun filter included to minimize tip clogs and protect finish

    EasyGlide swivel provides maximum flexibility for effortless hose management


    Precision-Cut RAC X FF LP SwitchTip

    Sprays at lower pressures with less overspray and up to 2X life

    Finer atomisation and softer edges for easier overlapping with pre-orifice design

    Allows for fast application of materials

    Delivers a softer, more controlled spray fan

    Ability to quickly clear tip clogs

    Includes solvent seal for extremely hot solvents

    Reviews

    FAQ

    Can I use the Graco GX 21 to paint my Colorbond roof with Weathershield?
    Yes, as long as your Graco GX 21 is at the same level as the roof you are painting.
    How easy is it to clean the Graco GX 21?
    Quite easy. It should take around 2.5 buckets of clean warm water and about 20 minutes.
    Can I replace the pump in the Graco GX 21?
    Yes, it’s very easy to replace yourself with the right pump replacement kit, or you can bring your unit into PaintAccess and we’ll have one of our experts do it for you.
    What’s the maximum size paint sprayer tip I can use with the Graco GX 21?
    The maximum size you can use is a 0.21 sprayer tip.
    What kind of tip can I use with the Graco GX 21?
    You can use either Graco Green or Blue sprayer tips.

    Dimensions

    Width
    Width
    Height
    Height
    Length
    Length
    product
    31.75 cm
    60.96 cm
    49.53 cm

    Weight

    Courier

    Easy To Carry

    Total Weight: 18.1437 kg
