GRACO Paint Sprayer TrueCoat 360 16Y391

TrueCoat 360. is a perfect choice for home improvement projects like doors, trim, interior walls, outdoor furniture, garage doors and fences. Spray in any direction to achieve a professional-grade finish in just one coat.

• Stainless Steel Piston Pump - Delivers high pressure power to spray unthinned paints
• VacuValve Technology - Squeeze out all the air to spray in any direction - even upside down
• Reverse-A-Clean Spray Tip - High precision spray tip reverses to quickly clean material clogs

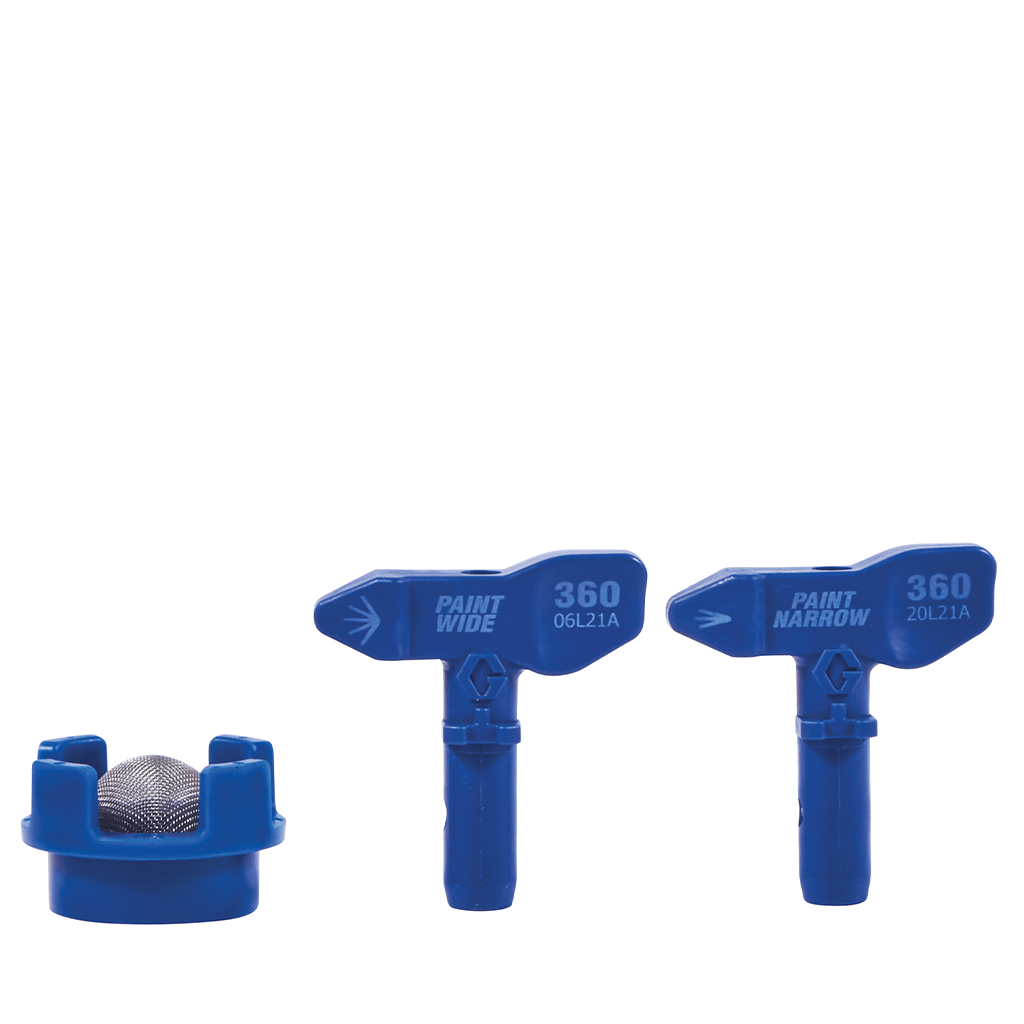

• On-Board Tip Storage - Quickly switch between the 4 in narrow and 12 in wide spray tips (tips are included)
• FlexLiner Paint Bag System - Fast cleanup, recycle or reuse

Specifications

Compatible Tip Size (in)	0.015
Frame Configuration	Handheld
Includes	4 in Spray Tip, 12 in Spray Tip, 2 - 32 oz FlexLiner Bags
Maximum Tip Size (in)	0.015
Maximum Working Pressure (MPa)	10.3
Maximum Working Pressure (psi)	1500
Model	TrueCoat
Overall Height (in)	9.75
Overall Length (in)	12.50
Overall Width (in)	5.25

	TrueCoat 360	TrueCoat 360 DSP	TrueCoat 360 VSP	Magnum Project Painter Plus	Magnum X5	Magnum X7	Magnum ProX17	Magnum ProX19
Warranty	1 year	1 year	1 year	1 year	1 year	1 year	1 year	1 year
Recommended Annual Usage(Litres per year)*	95 litres	95 litres	95 litres	190 litres	475 litres	475 litres	1135 litres	1895 litres
Maximum Spray Tip Size	.015	.015	.015	.015	.015	.017	.017	.019
Max. pressure - bar (PSI)	103	103	103	193	207	207	207	207
Performance Rating (lpm=Litres per minute)	0.76	0.76	0.76	0.91	1.02	1.17	1.29	1.44
Maximum Hose Length (m)	N/A	N/A	N/A	15	23	30	46	46
Motor	AC	AC	AC	0.375 hp Universal	0.5 hp Universal	0.625 hp Universal	0.750 hp DC	0.875 hp DC
Sprayer Weight (kg)	1.6	1.6	1.8	4.5	5.9	10.4	12.2	17.2
Piston Pump	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Hardened Stainless Steel	Hardened Stainless Steel	ProX Power Piston Pump	ProX Power Piston Pump
Spray Gun	N/A	N/A	N/A	Metal SG2	Metal SG2	Metal SG2	Metal SG3	Metal SG3
Spray Tip	10 & 30 cm	10 & 30 cm	10 & 30 cm	515	515	515	515	515
Paint Hose	N/A	N/A	N/A	6.4 mm x 7.6 m	6.4 mm x 7.6 m	6.4 mm x 7.6 m	6.4 mm x 15 m	6.4 mm x 15 m
Pump Armor	No	No	No	Yes	Yes	Yes	Yes	Yes
Quick Start Guide	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Pulls directly from 1 to 15 Litre container				■	■	■	■	■
Fastest way to complete small painting projects	■	■	■
Variable Pressure Control			■	■	■	■	■	■
PushPrimeTM – Helps reduce priming problems due to debris/poor cleaning					■	■	■	■
Filter – Filter debris in paint to reduce Spray Tip plugs	■	■	■	■	■	■	■	■
Pump Filter – Extra filtration to improve finish							■	■
Can spray turp and white spirit based materials							■	■
On-the-job Pump Repair							■	■
Power Flush – Connect to garden hose for fast clean-up				■	■	■	■	■
	TrueCoat 360	TrueCoat 360 DSP	TrueCoat 360 VSP	Magnum Project Painter Plus	Magnum X5	Magnum X7	Magnum ProX17	Magnum ProX19
