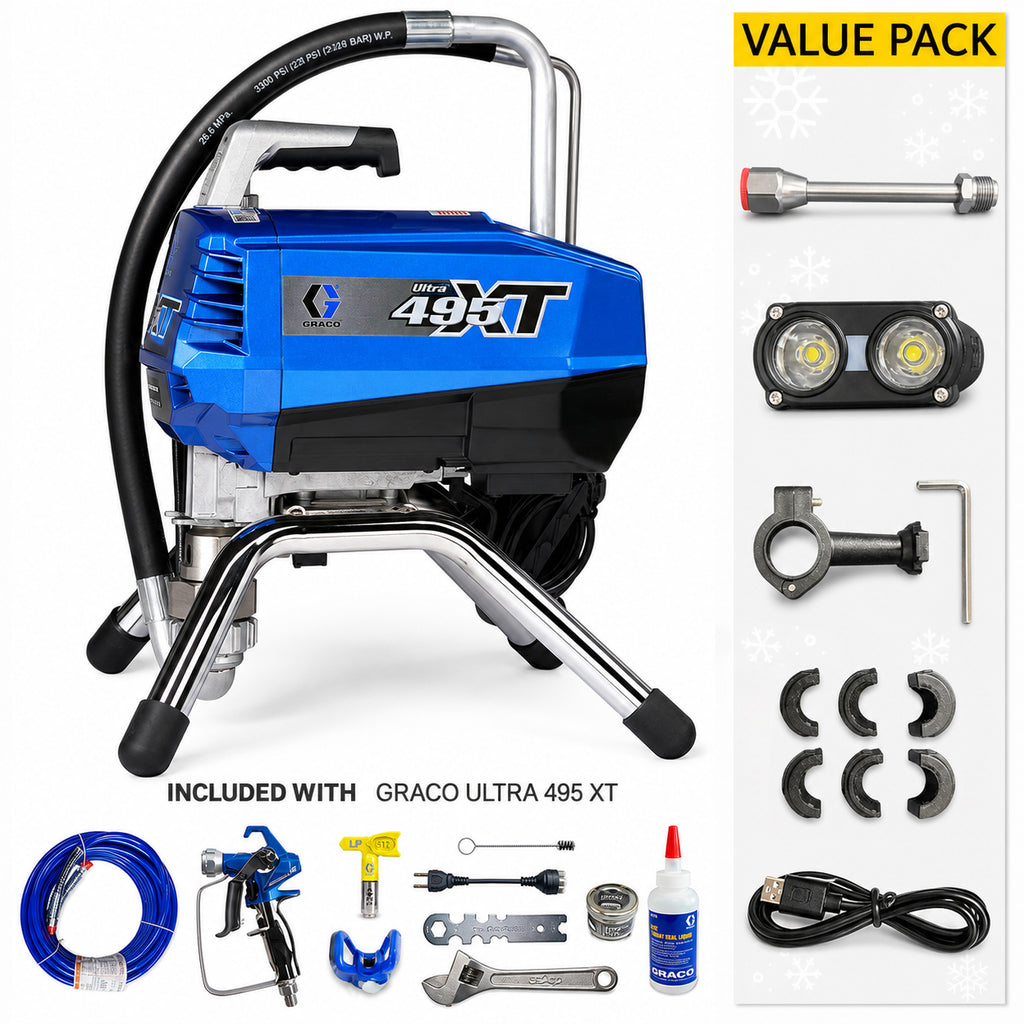

Graco Ultra 495 XT Electric Airless Sprayer Stand (19D532) With Value Pack
$6,399.00

Description

Graco Ultra 495 XT Electric Airless Sprayer Stand (19D532) With Value Pack

Special Value Pack - PaintAccess:

Standard Graco Kit Contents:

  • Contractor PC Spray Gun
  • RAC X LP 517 SwitchTip
  • RAC X HandTite Tip Guard
  • BlueMax II Airless Hose (1/4 inch x 50 feet)
  • CrushProof Inlet Strainer

The Ultra 495 XT delivers an airless spray experience like no other. Made in the USA with a 1.7 HP Xtreme Torque motor, featuring Next Generation Rapid-Response Pressure Control, elevated performance, and the longest life pump in its class. The 495 XT is sure to become a staple in your fleet.

Compare Table

Click here to open table
  Ultra 490 XT Ultra 495 XT Ultra 650 XT Ultra 695 XT Ultra 795 XT Ultra 1095 XT
WARRANTY  3 years  3 years  3 years  3 years  3 years  3 years
MAXIMUM TIP SIZE INCREASED TIP SUPPORT 0.025" Max Tip INCREASED TIP SUPPORT 0.027" Max Tip 0.029" Max Tip 0.031" Max Tip 0.033" Max Tip INCREASED TIP SUPPORT 0.037" Max Tip
MAXIMUM PSI (BAR) 3,300 (227) 3,300 (227) 3,300 (227) 3,300 (227) 3,300 (227) 3,300 (227)
MAXIMUM GPM (LPM)

INCREASED FLOW

0.70 (2.6)

INCREASED FLOW

0.80 (3.0)

INCREASED FLOW

0.90 (3.4)

INCREASED FLOW

1.05 (4.0)

INCREASED FLOW

1.20 (4.5)

INCREASED FLOW

1.30 (4.9)
XTREME TORQUE MOTOR (HP) (1.3) (1.7) (1.9) (2.1) (2.3) (2.7)
WEIGHT LB (KG) 31 (14) Stand 31 (14) Stand 69 (31) Hi-Boy 93 (42) Standard 94 (43) Standard 112 (51) Standard
GUN SUPPORT:
1 GUNS
2 GUNS
3 GUNS		 0.025"
–		 0.027"
-		 0.029"
0.019"		 0.031"
0.023"		 0.033"
0.025"
0.019"		 0.037"
0.029"
0.023"
SERIES TYPE MIDSIZE STANDARD STANDARD STANDARD
MODEL
 Cart Design – Part Number Stand – 19D531 Stand – 19D532
Lo-Boy –19D534
Hi-Boy –19D533		 Lo-Boy – 20B327
Hi-Boy – 20B328		 Hi-Boy – 19F712 Hi-Boy – 19F715 Hi-Boy – 19F720
PUMP
 NEW PISTON PUMP Endurance Vortex Endurance Vortex Endurance Vortex Endurance Vortex Endurance Vortex Endurance Vortex
NEW VORTEX PISTON ROD Chromex Chromex Chromex Chromex Chromex Chromex
SLEEVE - - Hardened SST Hardened SST Hardened SST Hardened SST
NEW PROCONNECT
REPLACEMENT SYSTEM
 ✓ ✓ ✓ ✓ ✓ ✓
FEATURES
NEWRAPID-RESPONSE
PRESSURE CONTROL
 ✓ ✓ ✓ ✓ ✓ ✓
NEWSELECTABLE
PERFORMANCE MODES
 ✓ ✓ ✓ ✓ ✓ ✓
NEW LED DISPLAY ✓ ✓ ✓ ✓ ✓ ✓
NEW TURBOCLEAN ✓ ✓ ✓ ✓ ✓ ✓
NEW WATCHDOG PUMP PROTECTION ✓ ✓ ✓ ✓ ✓ ✓
EASY OUT FILTER (60 MESH) ✓ ✓ ✓ ✓ ✓ ✓
NEW QUIKREEL HOSE REEL       Optional Optional Optional
NEW SMARTDISPLAY XT Optional Optional Optional Optional Optional Optional
FLAT PROOF TIRES       Optional Optional Optional
CRUSHPROOF INLET STRAINER       Optional Optional Optional
CONTRACTOR PC GUN ✓ ✓ ✓ ✓ ✓ ✓
SWITCHTIP RAC X LP 517 RAC X LP 517 RAC X LP 517 RAC X LP 517 RAC X LP 517 RAC X LP 517
HOSE 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless
WEAR PARTS
REPLACEMENT PUMP 		19D873 19D873 2002382 2001548 / 2001549* 2001573 / 2001574* 2001550 / 2001551*

REPAIR KIT 		18B260 18B260 18B260 248212 / 17H838** 248212 / 17H838** 248213 / 17H839**

Videos

Specifications

  • Frame Configuration: Stand
  • Maximum Tip Size: 0.027 inches
  • Maximum Flow: 2.65 l/min (0.7 GPM)
  • Maximum Pressure: 3300 PSI (227 bar)
  • Motor Power: 1.7 HP (1268 Watts)
  • Voltage: 240V

Features

Xtreme Torque Motor Technology

  • 15X more torque than traditional motors
  • 8X more magnets provide unmatched power and performance
  • 90% lower running speeds extend motors life
  • 10X quieter

RapidResponse Control

  • Instantly responds to deliver the best finish quality
  • More performance across its full tip size range
  • Industry's largest operating pressure range (50-3,300 psi)

Selectable Performance Modes

  • Two selectable spray modes offer unique performance levels to boost efficiency on every job
  • Bring on the savings and achieve Xtreme Control with Low Pressure Mode (50 - 2,000 psi)
  • Use High Pressure Mode for Xtreme Performance (500 – 3,300 psi)

Easy-to-Read LED Digital Display

  • Visible in even the toughest spraying conditions

Endurance Vortex Piston Pump with ProConnect

  • Endurance Vortex Rod lasts 3X longer than the closest competitor
  • ProConnect Pump Removal for fast on-the-job service

TurboClean Cleaning System

  • Industry’s fastest pump cleaning system
  • Delivers 6X faster cleaning with 1/2 the water
  • Convenient location

WatchDog Pump Protection

  • Prevents damage by shutting off pump when it's time to refill

Durable Filtration

  • Easy Out Filter provides easy maintenance and less clogging

Easy Transport

  • Only 31 lbs (Stand)

Gun, Hose and Tip Included

  • Contractor PC Gun & RAC X LP 517 SwitchTip

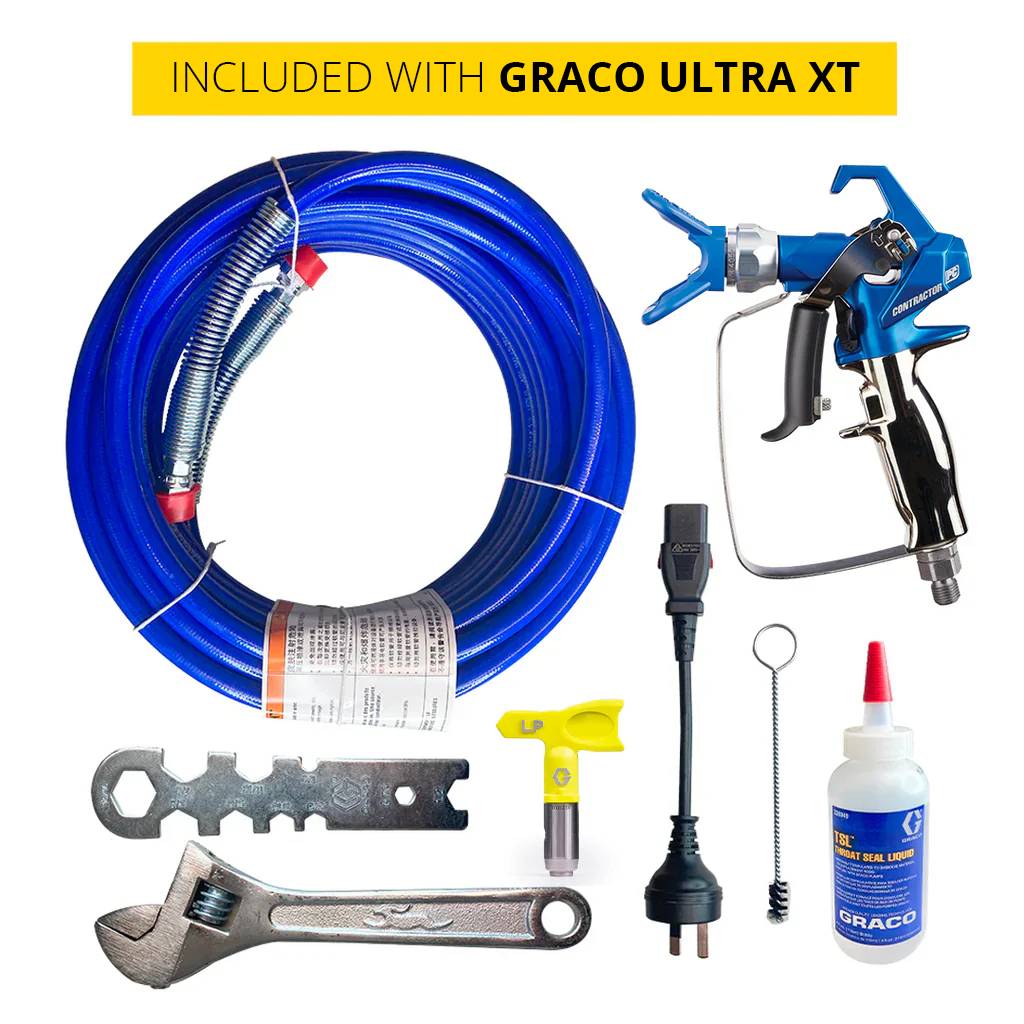

What's Included

Included with a sprayer:

  • Contractor PC Spray Gun
  • RAC X LP 517 SwitchTip
  • RAC X HandTite Tip Guard
  • BlueMax II Airless Hose (1/4 inch x 50 feet)
  • CrushProof Inlet Strainer

Bonus:

Reviews

FAQ

What is the purpose of the Rapid-Response Pressure Control?
The Rapid-Response Pressure Control provides the steadiest spray pressure across its wide operating range (50-3,300 psi), ensuring a consistent and high-quality finish. This system instantly responds to pressure changes to maintain optimal performance​.
How does the selectable performance mode benefit the user?
Selectable performance modes allow you to switch between low pressure (50-2,000 psi) for more control and high pressure (500-3,300 psi) for more demanding tasks. This versatility makes the sprayer suitable for a wide range of applications, effectively functioning like two sprayers in one.
What materials can the Graco Ultra 495 XT handle?
This sprayer is designed to handle a variety of materials, including latex, enamels, stains, primers, and lacquers. Its robust build and versatile pressure settings make it suitable for both residential and commercial projects.
What is the warranty on the Graco Ultra 495 XT?
The Graco Ultra 495 XT comes with a three-year warranty, providing peace of mind and protection against manufacturing defects. This extensive warranty reflects the durability and reliability of the sprayer​.
How does the Endurance Vortex Piston Pump improve the sprayer's performance?
The Endurance Vortex Piston Pump uses Vortex rod technology that rotates to ensure even wear, significantly extending the life of the pump. This feature, combined with the ProConnect system, ensures the sprayer remains operational with minimal downtime.

Dimensions

Width
Width
Height
Height
Length
Length
product
55.88 cm
78.74 cm
63.50 cm

Weight

Courier

May require help to carry

Total Weight: 39.92 kg

Guides & Documents

3A6285EN-L.pdf 3A9095EN-C.pdf 3J0616EN-A.pdf
