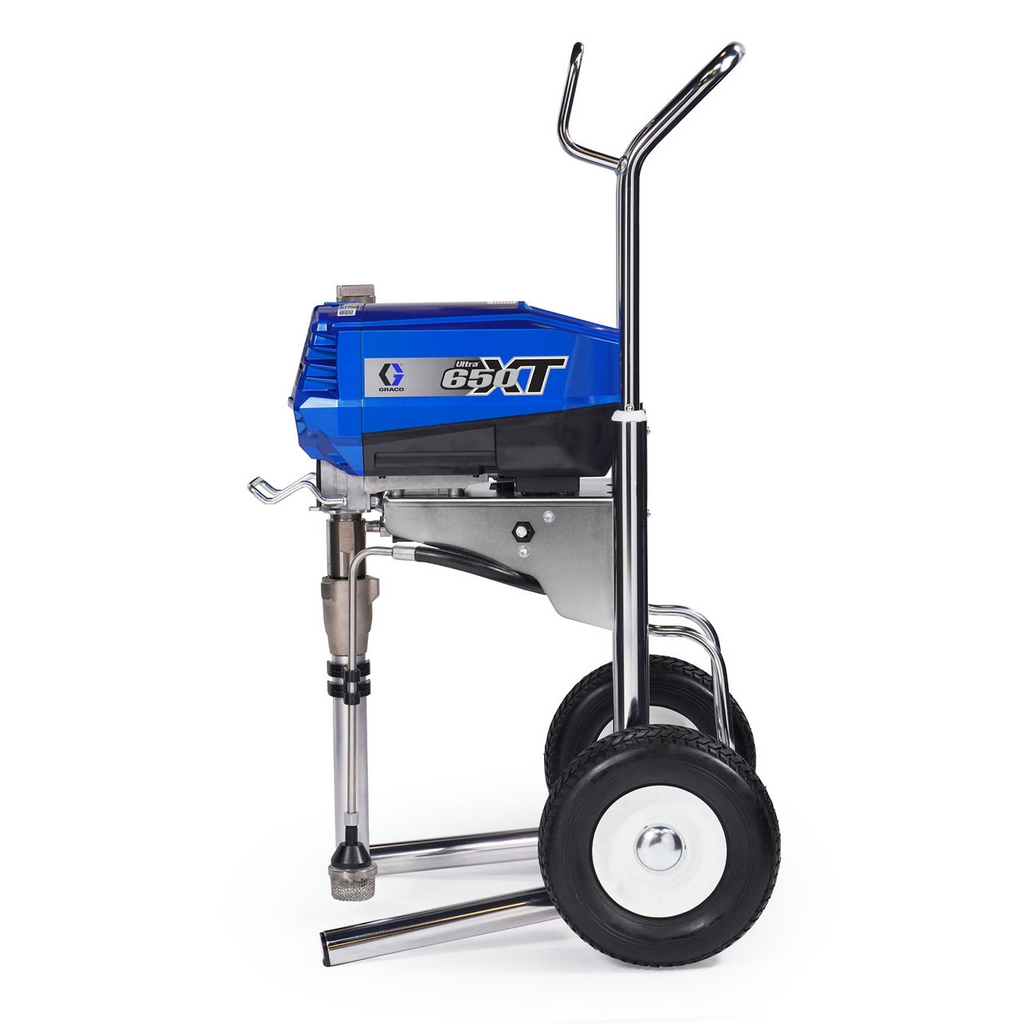

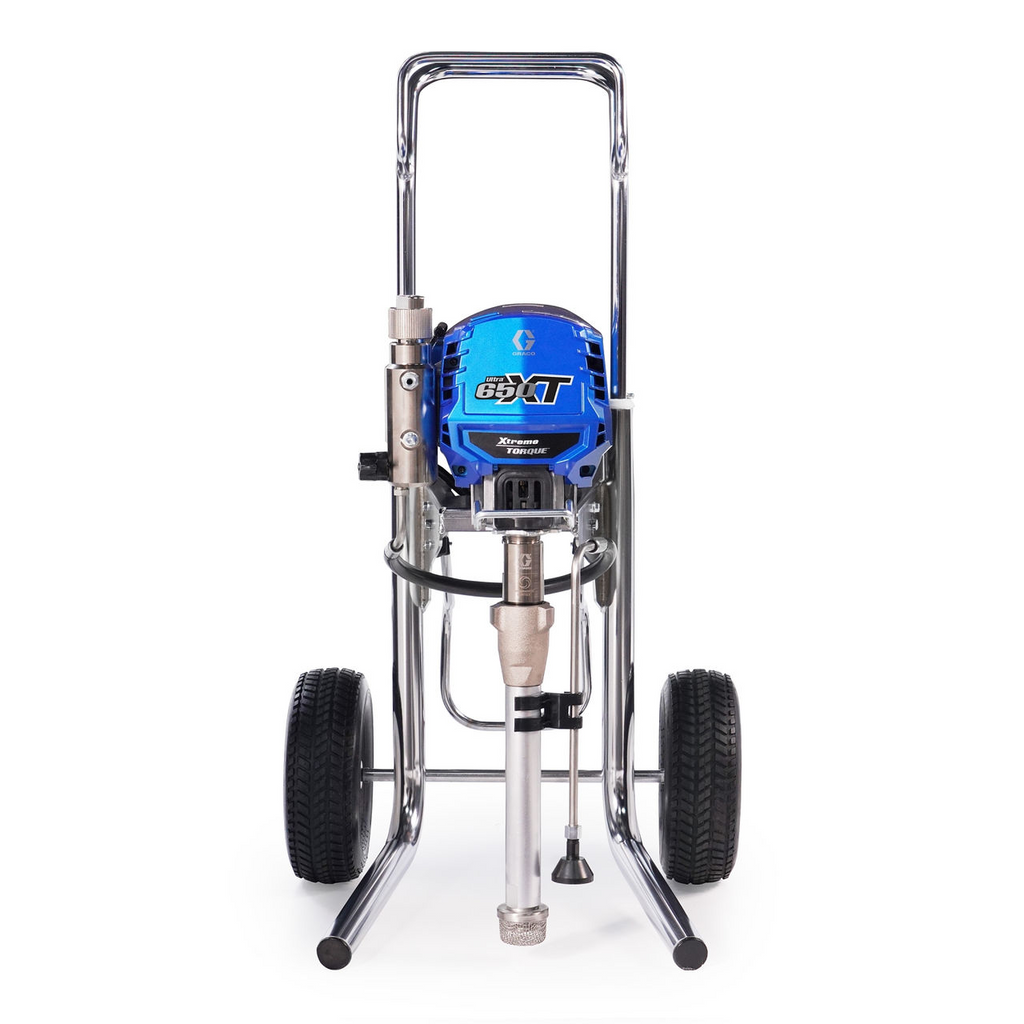

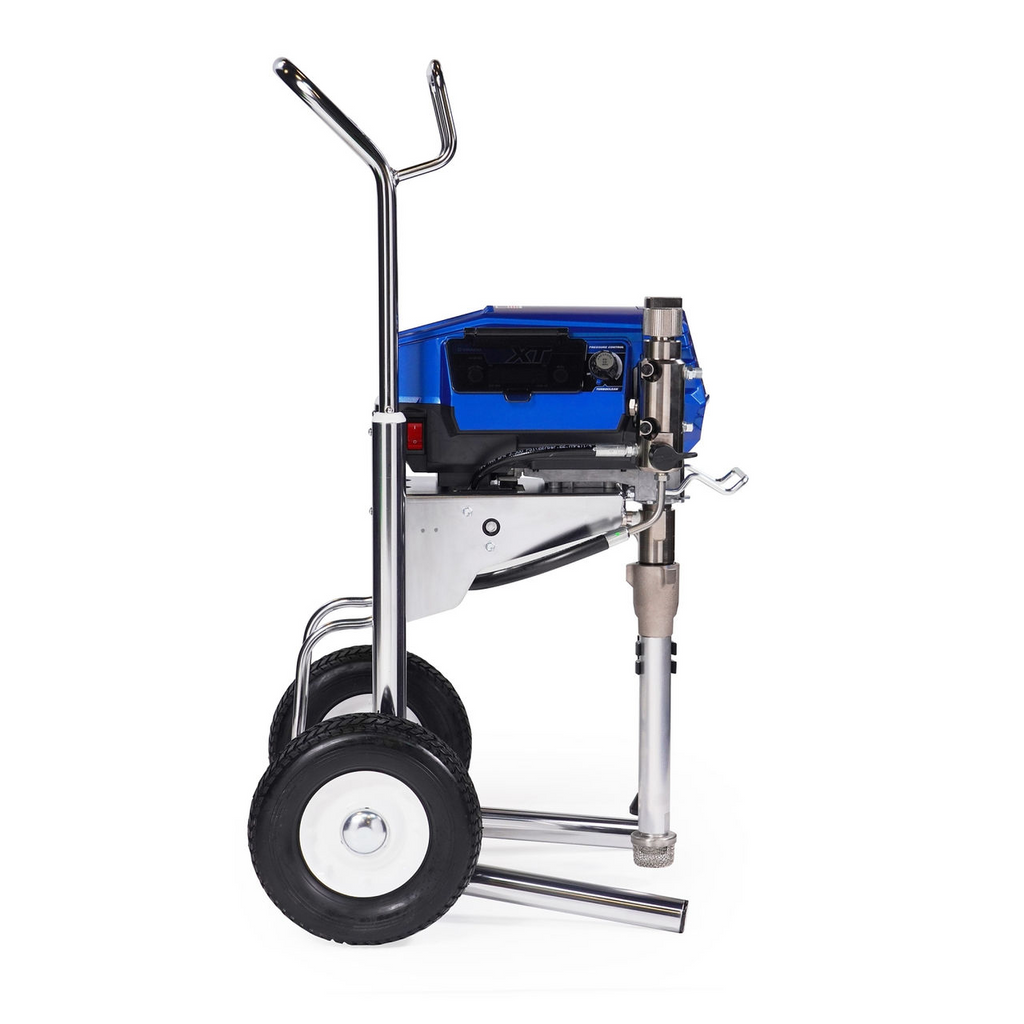

Graco Ultra 650 XT Electric Airless Sprayer Hi-Boy 20B328
$7,227.90
Description
Graco Ultra 650 XT Electric Airless Sprayer Hi-Boy
The Ultra 650 XT delivers an airless spray experience like no other. Made in the USA with a 1.9 HP Xtreme Torque motor, featuring Next Generation Rapid-Response Pressure Control, elevated performance, and the longest life pump in its class. The 650 XT is sure to become a staple in your fleet.
1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless
1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless
1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless
1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless
1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless
1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless
1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless
WEAR PARTS
REPLACEMENT PUMP
2002382
2001548 / 2001549*
2001549
2001573 / 2001574*
2001574
2001550 / 2001551*
2001551
REPAIR KIT
18B260
248212 / 17H838**
17H841**
248212 / 17H838**
17H841**
248213 / 17H839**
17H842**
Ultra 650 XT
Ultra 695 XT
Ultra 795 XT
Ultra 1095 XT
MAXIMUM TIP SIZE
0.029" Max Tip
0.031" Max Tip
0.033" Max Tip
INCREASED TIP SUPPORT 0.037" Max Tip
MAXIMUM PSI (BAR)
3,300 (227)
3,300 (227)
3,300 (227)
3,300 (227)
MAXIMUM GPM (LPM)
3,300 (227)
3,300 (227)
3,300 (227)
3,300 (227)
XTREME TORQUE MOTOR (HP)
(1.9)
(2.1)
(2.3)
(2.7)
WEIGHT LB (KG)
69 (31) Hi-Boy
93 (42) Standard
94 (43) Standard
112 (51) Standard
GUN SUPPORT: 1 GUNS 2 GUNS 3 GUNS
0.029" 0.019"
0.031" 0.023"
0.033" 0.025" 0.019"
0.037" 0.029" 0.023"
SERIES TYPE
MIDSIZE
STANDARD
PROCONTRACTOR
STANDARD
PROCONTRACTOR
STANDARD
PROCONTRACTOR
MODEL
Cart Design – Part Number
Lo-Boy – 20B327 Hi-Boy – 20B328
Hi-Boy – 19F712
Hi-Boy – 19F714
Hi-Boy – 19F715
Hi-Boy – 19F717
Hi-Boy – 19F720
Hi-Boy – 19F721
PUMP
NEW PISTON PUMP
Endurance Vortex
Endurance Vortex
Endurance Vortex
Endurance Vortex
Endurance Vortex
Endurance Vortex
Endurance Vortex
NEW VORTEX PISTON ROD
Chromex
Chromex
MaxLife
Chromex
MaxLife
Chromex
MaxLife Extreme
SLEEVE
Hardened SST
Hardened SST
MaxLife
Hardened SST
MaxLife
Hardened SST
MaxLife
NEW PROCONNECT REPLACEMENT SYSTEM
✓
✓
✓
✓
✓
✓
✓
FEATURES
NEW RAPID-RESPONSE PRESSURE CONTROL
✓
✓
✓
✓
✓
✓
✓
NEW SELECTABLE PERFORMANCE MODES
✓
✓
✓
✓
✓
✓
✓
NEW LED DISPLAY
✓
✓
✓
✓
✓
✓
✓
NEW TURBOCLEAN
✓
✓
✓
✓
✓
✓
✓
NEW WATCHDOG PUMP PROTECTION
✓
✓
✓
✓
✓
✓
✓
EASY OUT FILTER (60 MESH)
✓
✓
✓
✓
✓
✓
✓
NEW QUIKREEL HOSE REEL
Optional
✓
Optional
✓
Optional
✓
NEW SMARTDISPLAY XT
Optional
Optional
✓
Optional
✓
Optional
✓
FLAT PROOF TIRES
Optional
✓
Optional
✓
Optional
✓
CRUSHPROOF INLET STRAINER
Optional
✓
Optional
✓
Optional
✓
CONTRACTOR PC GUN
✓
✓
✓
✓
✓
✓
✓
SWITCHTIP
RAC X LP 517
RAC X LP 517
RAC X LP 517
RAC X LP 517
RAC X LP 517
RAC X LP 517
RAC X LP 517
HOSE
1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless
1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless
1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless
1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless
1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless
1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless
1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless
WEAR PARTS
REPLACEMENT PUMP
2002382
2001548 / 2001549*
2001549
2001573 / 2001574*
2001574
2001550 / 2001551*
2001551
REPAIR KIT
18B260
248212 / 17H838**
17H841**
248212 / 17H838**
17H841**
248213 / 17H839**
17H842**
Videos
Specifications
Maximum Tip Size: 0.029 inches
Maximum Flow: 3.5 l/min (0.92 GPM)
Maximum Pressure: 3300 PSI (227 bar)
Motor Power: 1.9 HP (1417 Watts)
Weight: 49 kg (108 lbs)
Voltage: 240V
Features
Xtreme Torque Motor Technology
15X more torque than traditional motors
8X more magnets provide unmatched power and performance
90% lower running speeds extend motors life
10X quieter
RapidResponse Control
Instantly responds to deliver the best finish quality
More performance across its full tip size range
Industry's largest operating pressure range (50-3,300 psi)
Selectable Performance Modes
Two selectable spray modes offer unique performance levels to boost efficiency on every job
Bring on the savings and achieve Xtreme Control with Low Pressure Mode (50 - 2,000 psi)
Use High Pressure Mode for Xtreme Performance (500 – 3,300 psi)
Easy-to-Read LED Digital Display
Visible in even the toughest spraying conditions
Endurance Vortex Piston Pump with ProConnect
Endurance Vortex Rod lasts 3X longer than the closest competitor
ProConnect Pump Removal for fast on-the-job service
TurboClean Cleaning System
Industry’s fastest pump cleaning system
Delivers 6X faster cleaning with 1/2 the water
Convenient location
WatchDog Pump Protection
Prevents damage by shutting off pump when it's time to refill
Durable Filtration
Easy Out Filter provides easy maintenance and less clogging
Easy Transport
Only 68 lbs (Hi-Boy)

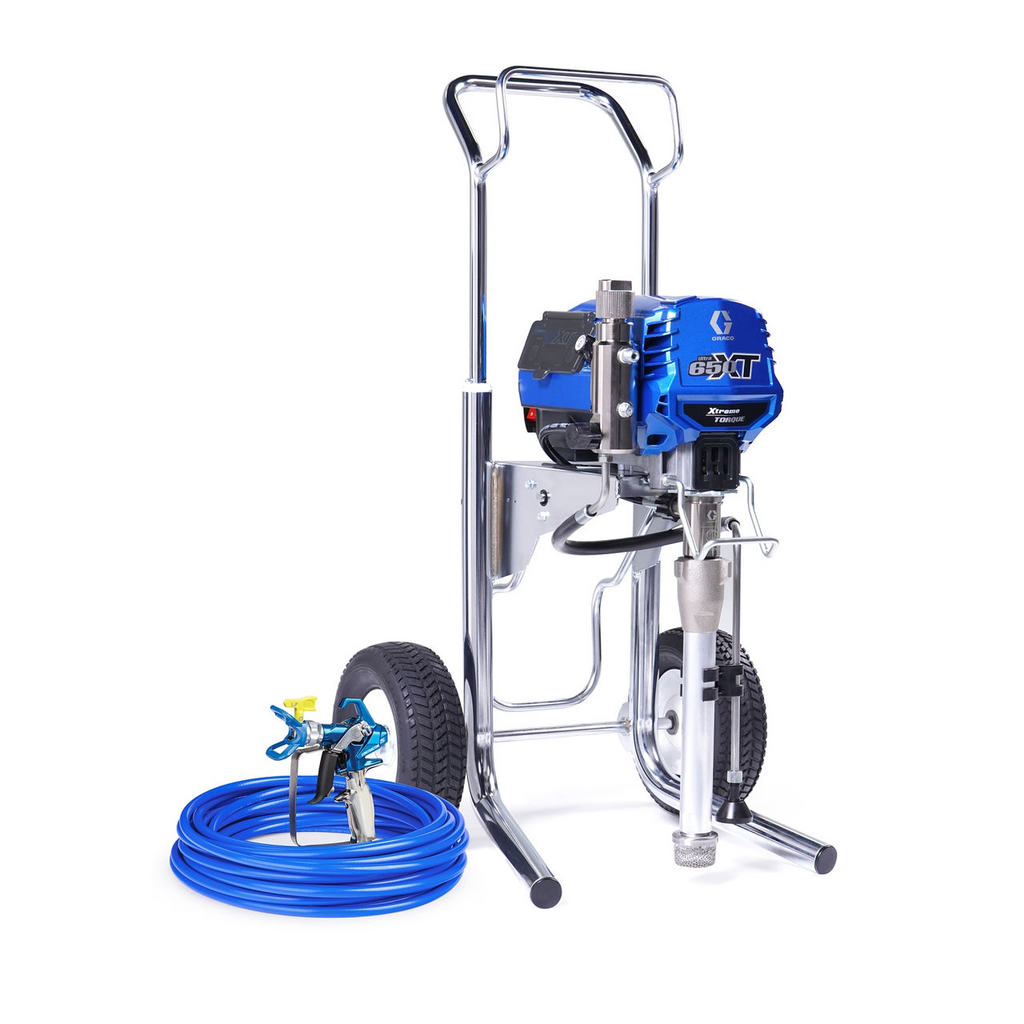

Gun, Hose and Tip Included Contractor PC Gun & RAC X LP 517 SwitchTip

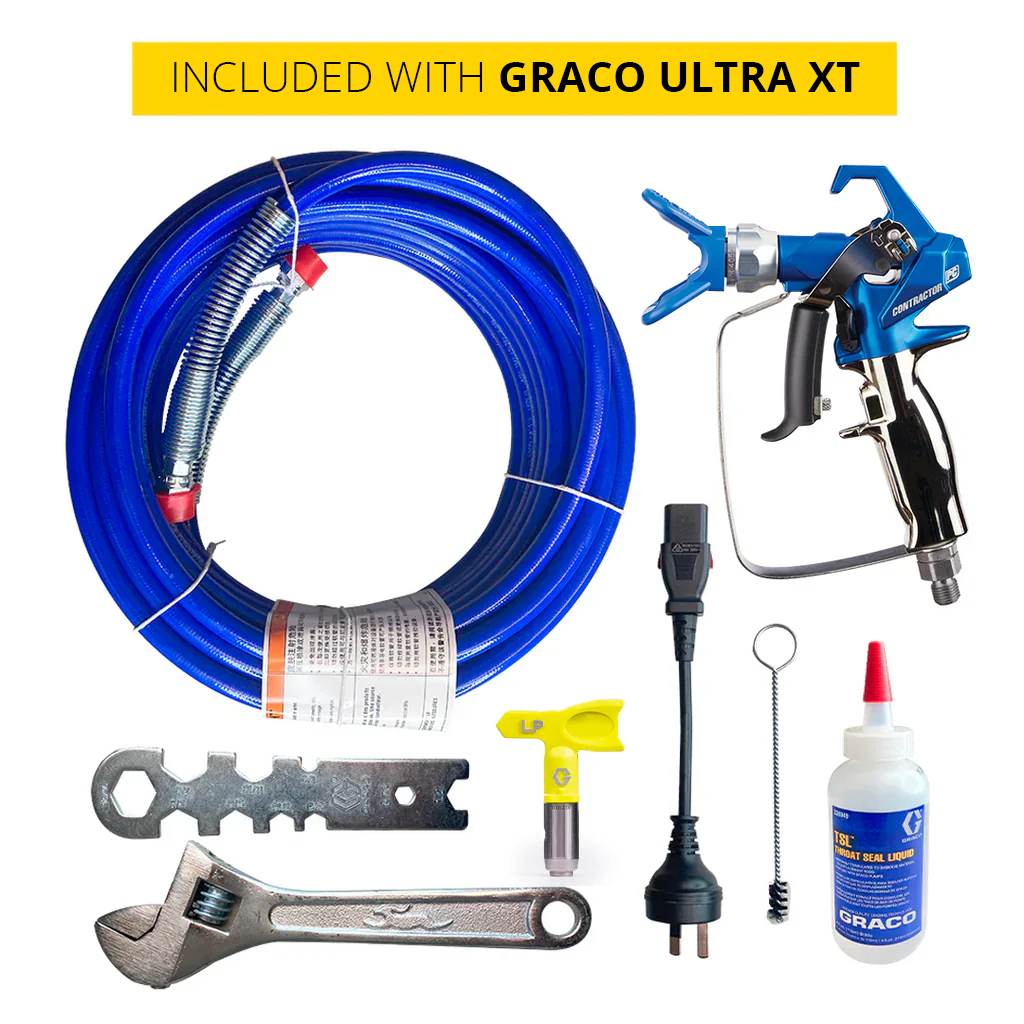

What's Included
Contractor PC Spray Gun
RAC X LP 517 SwitchTip
RAC X HandTite Tip Guard
BlueMax II Airless Hose (1/4 inch x 50 feet)
CrushProof Inlet Strainer
FlatProof Tires
Reviews
FAQ
What materials can the Ultra 650 XT handle?
This sprayer is versatile and can handle various materials, including latex paints, enamels, stains, primers, and lacquers. Its robust build and adjustable pressure settings make it ideal for both residential and commercial projects.
How does the Endurance Vortex Piston Pump improve the sprayer's performance?
The Endurance Vortex Piston Pump uses Vortex rod technology that rotates to ensure even wear, significantly extending the life of the pump. This feature, combined with the ProConnect system, ensures the sprayer remains operational with minimal downtime.
What makes the Graco Ultra 650 XT stand out?
The Graco Ultra 650 XT is equipped with a powerful 1.9 HP Xtreme Torque motor and features the Next Generation Rapid-Response Pressure Control. This sprayer is known for its elevated performance and durability, boasting the longest life pump in its class as well as delivering the quietest performance compared to similar sprayers from previous generations.
What is the purpose of the Rapid-Response Pressure Control?
The Rapid-Response Pressure Control ensures the steadiest spray pressure across a wide range (50-3,300 psi). It instantly adjusts to pressure changes to maintain optimal performance, providing a consistent and high-quality finish.
How does the selectable performance mode benefit users?
The selectable performance modes allow users to switch between low pressure for more control and high pressure for more demanding tasks. This versatility makes the Ultra 650 XT suitable for a wide range of applications, effectively functioning like two sprayers in one.
