Graco Ultra 650 XT Electric Airless Sprayer Hi-Boy (20B328) With Value Pack

Graco Ultra 650 XT Electric Airless Sprayer Hi-Boy (20B328) With Value Pack

GRACO

Save 6%

$5,733.00

SKU: 20B328-B1

Quantity

Out of stock

Pay in 4 interest-free payments with

Payment & Security | Refund Policy

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

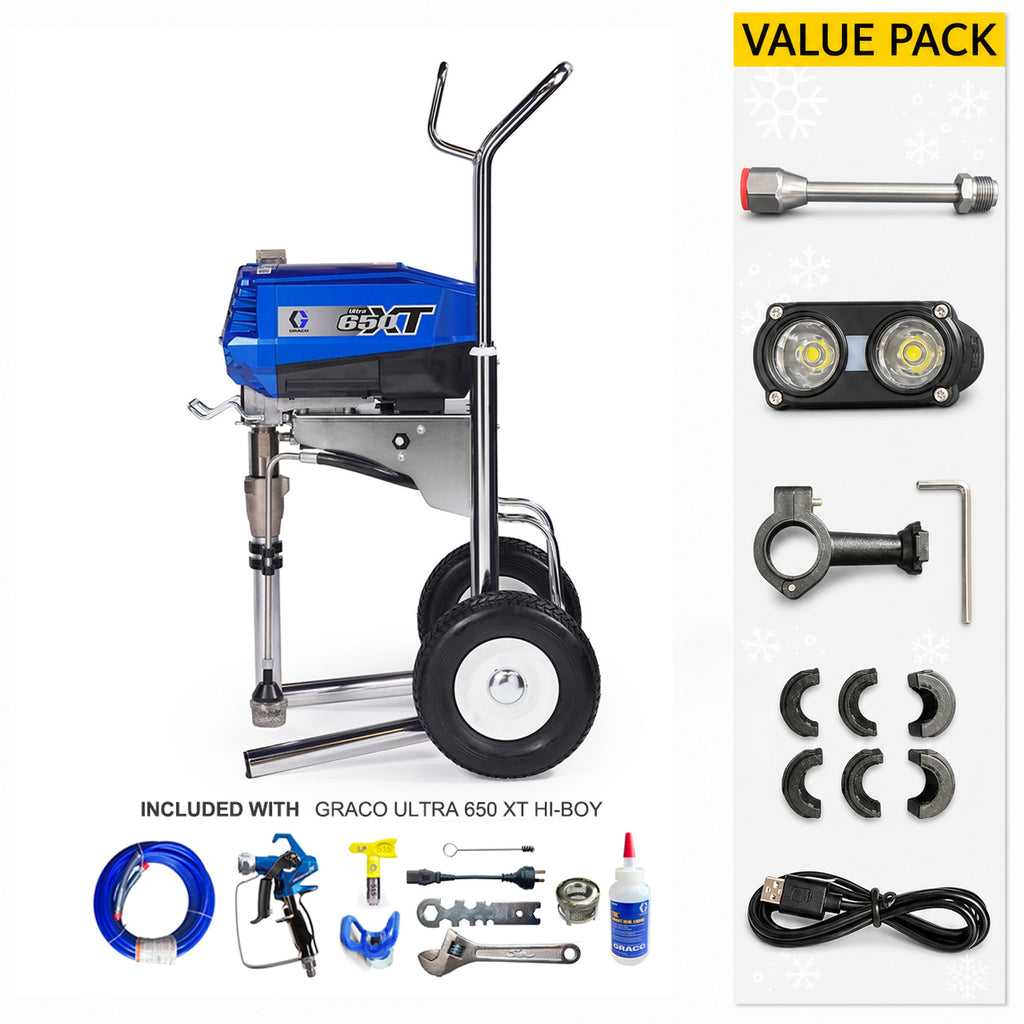

Graco Ultra 650 XT Electric Airless Sprayer Hi-Boy (20B328) With Value Pack

$5,733.00

Description

Graco Ultra 650 XT Electric Airless Sprayer Hi-Boy

Special Value Pack - PaintAccess:

Rechargeable LED Light with Mount (SKU: DansLEDext001)

Standard Graco Kit Contents:

Graco Ultra 650 XT Electric Airless Sprayer Hi-Boy (SKU: 20B328)
Contractor PC Spray Gun
RAC X LP 517 SwitchTip
RAC X HandTite Tip Guard
BlueMax II Airless Hose (1/4 inch x 50 feet)
CrushProof Inlet Strainer

The Ultra 650 XT delivers an airless spray experience like no other. Made in the USA with a 1.9 HP Xtreme Torque motor, featuring Next Generation Rapid-Response Pressure Control, elevated performance, and the longest life pump in its class. The 650 XT is sure to become a staple in your fleet.

Compare Table

Click here to open table


		Ultra 650 XT	Ultra 695 XT		Ultra 795 XT		Ultra 1095 XT
WARRANTY		3 years	3 years		3 years		3 years
MAXIMUM TIP SIZE		0.029" Max Tip	0.031" Max Tip		0.033" Max Tip		INCREASED TIP SUPPORT 0.037" Max Tip
MAXIMUM PSI (BAR)		3,300 (227)	3,300 (227)		3,300 (227)		3,300 (227)
MAXIMUM GPM (LPM)		INCREASED FLOW 0.90 (3.4)	INCREASED FLOW 1.05 (4.0)		INCREASED FLOW 1.20 (4.5)		INCREASED FLOW 1.30 (4.9)
XTREME TORQUE MOTOR (HP)		(1.9)	(2.1)		(2.3)		(2.7)
WEIGHT LB (KG)		69 (31) Hi-Boy	93 (42) Standard		94 (43) Standard		112 (51) Standard
GUN SUPPORT: 1 GUNS 2 GUNS 3 GUNS		0.029" 0.019"	0.031" 0.023"		0.033" 0.025" 0.019"		0.037" 0.029" 0.023"
SERIES TYPE		MIDSIZE	STANDARD	PROCONTRACTOR	STANDARD	PROCONTRACTOR	STANDARD	PROCONTRACTOR
MODEL	Cart Design – Part Number	Lo-Boy – 20B327 Hi-Boy – 20B328	Hi-Boy – 19F712	Hi-Boy – 19F714	Hi-Boy – 19F715	Hi-Boy – 19F717	Hi-Boy – 19F720	Hi-Boy – 19F721
PUMP	NEW PISTON PUMP	Endurance Vortex	Endurance Vortex	Endurance Vortex	Endurance Vortex	Endurance Vortex	Endurance Vortex	Endurance Vortex
	NEW VORTEX PISTON ROD	Chromex	Chromex	MaxLife	Chromex	MaxLife	Chromex	MaxLife Extreme
	SLEEVE	Hardened SST	Hardened SST	MaxLife	Hardened SST	MaxLife	Hardened SST	MaxLife
	NEW PROCONNECT REPLACEMENT SYSTEM	✓	✓	✓	✓	✓	✓	✓
FEATURES	NEW RAPID-RESPONSE PRESSURE CONTROL	✓	✓	✓	✓	✓	✓	✓
	NEW SELECTABLE PERFORMANCE MODES	✓	✓	✓	✓	✓	✓	✓
	NEW LED DISPLAY	✓	✓	✓	✓	✓	✓	✓
	NEW TURBOCLEAN	✓	✓	✓	✓	✓	✓	✓
	NEW WATCHDOG PUMP PROTECTION	✓	✓	✓	✓	✓	✓	✓
	EASY OUT FILTER (60 MESH)	✓	✓	✓	✓	✓	✓	✓
	NEW QUIKREEL HOSE REEL		Optional	✓	Optional	✓	Optional	✓
	NEW SMARTDISPLAY XT	Optional	Optional	✓	Optional	✓	Optional	✓
	FLAT PROOF TIRES		Optional	✓	Optional	✓	Optional	✓
	CRUSHPROOF INLET STRAINER		Optional	✓	Optional	✓	Optional	✓
	CONTRACTOR PC GUN	✓	✓	✓	✓	✓	✓	✓
	SWITCHTIP	RAC X LP 517	RAC X LP 517	RAC X LP 517	RAC X LP 517	RAC X LP 517	RAC X LP 517	RAC X LP 517
	HOSE	1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless	1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless	1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless	1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless	1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless	1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless	1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless
WEAR PARTS	REPLACEMENT PUMP	2002382	2001548 / 2001549*	2001549	2001573 / 2001574*	2001574	2001550 / 2001551*	2001551
WEAR PARTS	REPAIR KIT	18B260	248212 / 17H838**	17H841**	248212 / 17H838**	17H841**	248213 / 17H839**	17H842**

Videos

Specifications

Maximum Tip Size: 0.029 inches
Maximum Flow: 3.5 l/min (0.92 GPM)
Maximum Pressure: 3300 PSI (227 bar)
Motor Power: 1.9 HP (1417 Watts)
Weight: 49 kg (108 lbs)
Voltage: 240V

Features

Xtreme Torque Motor Technology

15X more torque than traditional motors
8X more magnets provide unmatched power and performance
90% lower running speeds extend motors life
10X quieter

RapidResponse Control

Instantly responds to deliver the best finish quality
More performance across its full tip size range
Industry's largest operating pressure range (50-3,300 psi)

Selectable Performance Modes

Two selectable spray modes offer unique performance levels to boost efficiency on every job
Bring on the savings and achieve Xtreme Control with Low Pressure Mode (50 - 2,000 psi)
Use High Pressure Mode for Xtreme Performance (500 – 3,300 psi)

Easy-to-Read LED Digital Display

Visible in even the toughest spraying conditions

Endurance Vortex Piston Pump with ProConnect

Endurance Vortex Rod lasts 3X longer than the closest competitor
ProConnect Pump Removal for fast on-the-job service

TurboClean Cleaning System

Industry’s fastest pump cleaning system
Delivers 6X faster cleaning with 1/2 the water
Convenient location

WatchDog Pump Protection

Prevents damage by shutting off pump when it's time to refill

Durable Filtration

Easy Out Filter provides easy maintenance and less clogging

Easy Transport

Only 68 lbs (Hi-Boy)

Gun, Hose and Tip Included
Contractor PC Gun & RAC X LP 517 SwitchTip

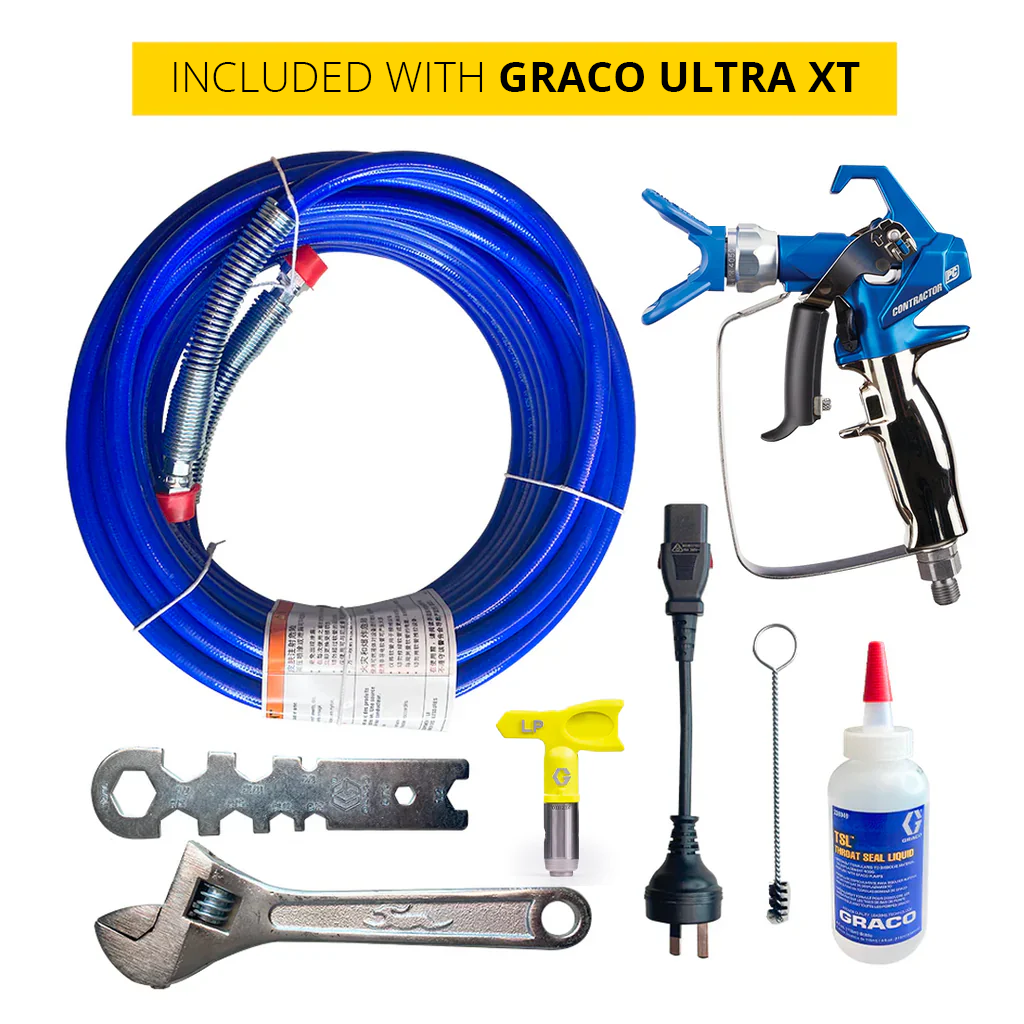

What's Included

Included with a sprayer:

Contractor PC Spray Gun
RAC X LP 517 SwitchTip
RAC X HandTite Tip Guard
BlueMax II Airless Hose (1/4 inch x 50 feet)
CrushProof Inlet Strainer

Bonus:

Rechargeable LED Light with Mount (SKU: DansLEDext001)

Reviews

FAQ

What materials can the Ultra 650 XT handle?

This sprayer is versatile and can handle various materials, including latex paints, enamels, stains, primers, and lacquers. Its robust build and adjustable pressure settings make it ideal for both residential and commercial projects.

How does the Endurance Vortex Piston Pump improve the sprayer's performance?

The Endurance Vortex Piston Pump uses Vortex rod technology that rotates to ensure even wear, significantly extending the life of the pump. This feature, combined with the ProConnect system, ensures the sprayer remains operational with minimal downtime.

What makes the Graco Ultra 650 XT stand out?

The Graco Ultra 650 XT is equipped with a powerful 1.9 HP Xtreme Torque motor and features the Next Generation Rapid-Response Pressure Control. This sprayer is known for its elevated performance and durability, boasting the longest life pump in its class as well as delivering the quietest performance compared to similar sprayers from previous generations.

What is the purpose of the Rapid-Response Pressure Control?

The Rapid-Response Pressure Control ensures the steadiest spray pressure across a wide range (50-3,300 psi). It instantly adjusts to pressure changes to maintain optimal performance, providing a consistent and high-quality finish.

How does the selectable performance mode benefit users?

The selectable performance modes allow users to switch between low pressure for more control and high pressure for more demanding tasks. This versatility makes the Ultra 650 XT suitable for a wide range of applications, effectively functioning like two sprayers in one.
