Graco Ultra 695 XT Standard Series Electric Airless Sprayer Lo-Boy 19F553

GRACO
$0.00
SKU: 19F553

Quantity

Out of stock
Add to Cart
Out of stock
Add to Cart

Payment & Security | Refund Policy

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Graco Ultra 695 XT Standard Series Electric Airless Sprayer Lo-Boy 19F553
$0.00

Description

Graco Ultra 695 XT Standard Series Electric Airless Sprayer Lo-Boy 19F553

The Ultra 695 XT Standard Series delivers an airless spray experience like no other. Made in the USA with a 2.1 HP Xtreme Torque motor, featuring Next Generation Rapid-Response Pressure Control, and the longest life pump in its class. The 695 XT Standard is sure to change the way you spray.

Xtreme Production & Reliability. XT ProContractor Series electric airless sprayers are built specifically for professional contractors looking to increase production on the industry's most silent spraying platform. Complete with numerous time saving features and the industry's longest life pumps, an XT ProContractor will keep you out of the shop, and on the job.






Compare Table

Click here to open table
Ultra 650 XT Ultra 695 XT Ultra 795 XT Ultra 1095 XT
MAXIMUM TIP SIZE 0.029" Max Tip 0.031" Max Tip 0.033" Max Tip INCREASED TIP SUPPORT 0.037" Max Tip
MAXIMUM PSI (BAR) 3,300 (227) 3,300 (227) 3,300 (227) 3,300 (227)
MAXIMUM GPM (LPM) 3,300 (227) 3,300 (227) 3,300 (227) 3,300 (227)
XTREME TORQUE MOTOR (HP) (1.9) (2.1) (2.3) (2.7)
WEIGHT LB (KG) 69 (31) Hi-Boy 93 (42) Standard 94 (43) Standard 112 (51) Standard
GUN SUPPORT:
1 GUNS
2 GUNS
3 GUNS 		0.029"
0.019" 		0.031"
0.023" 		0.033"
0.025"
0.019" 		0.037"
0.029"
0.023"
SERIES TYPE MIDSIZE STANDARD PROCONTRACTOR STANDARD PROCONTRACTOR STANDARD PROCONTRACTOR
MODEL
 Cart Design – Part Number Lo-Boy – 20B327
Hi-Boy – 20B328 		Hi-Boy – 19F712 Hi-Boy – 19F714 Hi-Boy – 19F715 Hi-Boy – 19F717 Hi-Boy – 19F720 Hi-Boy – 19F721
PUMP
 NEW PISTON PUMP Endurance Vortex Endurance Vortex Endurance Vortex Endurance Vortex Endurance Vortex Endurance Vortex Endurance Vortex
NEW VORTEX PISTON ROD Chromex Chromex MaxLife Chromex MaxLife Chromex MaxLife Extreme
SLEEVE Hardened SST Hardened SST MaxLife Hardened SST MaxLife Hardened SST MaxLife
NEW PROCONNECT
REPLACEMENT SYSTEM
✓ ✓ ✓ ✓ ✓ ✓ ✓
FEATURES
NEW RAPID-RESPONSE
PRESSURE CONTROL
✓ ✓ ✓ ✓ ✓ ✓ ✓
NEW SELECTABLE
PERFORMANCE MODES
✓ ✓ ✓ ✓ ✓ ✓ ✓
NEW LED DISPLAY ✓ ✓ ✓ ✓ ✓ ✓ ✓
NEW TURBOCLEAN ✓ ✓ ✓ ✓ ✓ ✓ ✓
NEW WATCHDOG PUMP PROTECTION ✓ ✓ ✓ ✓ ✓ ✓ ✓
EASY OUT FILTER (60 MESH) ✓ ✓ ✓ ✓ ✓ ✓ ✓
NEW QUIKREEL HOSE REEL Optional ✓ Optional ✓ Optional ✓
NEW SMARTDISPLAY XT Optional Optional ✓ Optional ✓ Optional ✓
FLAT PROOF TIRES Optional ✓ Optional ✓ Optional ✓
CRUSHPROOF INLET STRAINER Optional ✓ Optional ✓ Optional ✓
CONTRACTOR PC GUN ✓ ✓ ✓ ✓ ✓ ✓ ✓
SWITCHTIP RAC X LP 517 RAC X LP 517 RAC X LP 517 RAC X LP 517 RAC X LP 517 RAC X LP 517 RAC X LP 517
HOSE 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless
WEAR PARTS
 REPLACEMENT PUMP 2002382 2001548 / 2001549* 2001549 2001573 / 2001574* 2001574 2001550 / 2001551* 2001551
REPAIR KIT 18B260 248212 / 17H838** 17H841** 248212 / 17H838** 17H841** 248213 / 17H839** 17H842**

Videos

Specifications

Maximum Tip Size: 0.031 inches

Maximum Flow: 3.5 l/min (0.92 GPM)

Maximum Pressure: 3300 PSI (227 bar)

Motor Power: 2.1 HP (1566 Watts)

Weight: 50 kg (110 lbs)

Voltage: 240V

Features

Xtreme Torque Motor Technology

  • 15X more torque than traditional motors
  • 8X more magnets provide unmatched power and performance
  • 90% lower running speeds extend motors life
  • 10X quieter

RapidResponse Control

  • Instantly responds to deliver the best finish quality
  • More performance across its full tip size range
  • Industry's largest operating pressure range (50-3,300 psi)

Selectable Performance Modes

  • Two selectable spray modes offer unique performance levels to boost efficiency on every job
  • Bring on the savings and achieve Xtreme Control with Low Pressure Mode (50 - 2,000 psi)
  • Use High Pressure Mode for Xtreme Performance (500 – 3,300 psi)

Easy-to-Read LED Digital Display

  • Visible in even the toughest spraying conditions

Endurance Vortex Piston Pump with ProConnect

  • Endurance Vortex Rod lasts 3X longer than the closest competitor
  • ProConnect Pump Removal for fast on-the-job service

TurboClean Cleaning System

  • Industry’s fastest pump cleaning system
  • Delivers 6X faster cleaning with 1/2 the water
  • Convenient location

WatchDog Pump Protection

  • Prevents damage by shutting off pump when it's time to refill

Durable Filtration

  • Easy Out Filter provides easy maintenance and less clogging

Upgrades with Modular Accessories

  • QuickReel hose management
  • SmartDisplay XT compatible with BlueLink
  • Endurance Vortex MAXLIFE EXTREME Pump
  • CrushProof Inlet Strainer
  • Rugged FlatProof tires

Gun, Hose and Tip Included

  • Contractor PC Gun & RAC X LP 517 SwitchTip

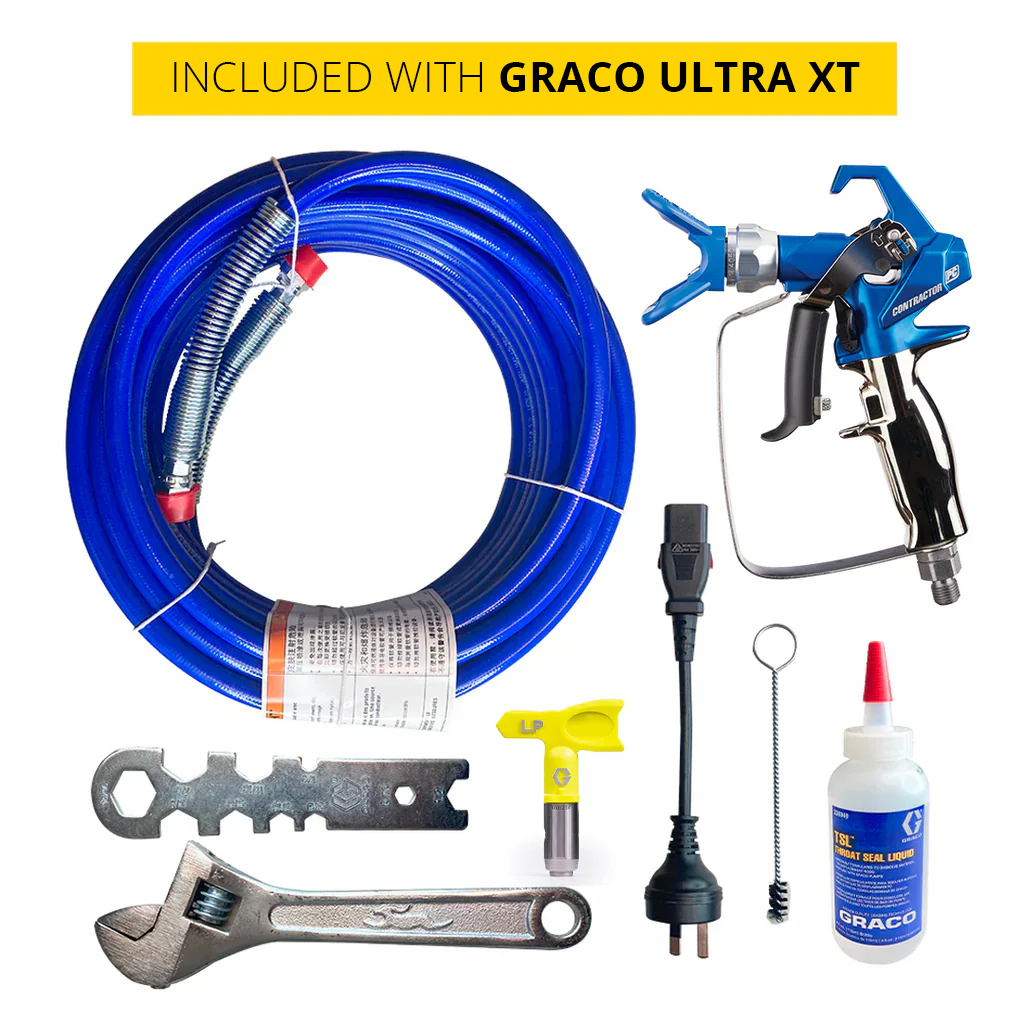

What's Included

Contractor PC Spray Gun

RAC X LP 517 SwitchTip

RAC X HandTite Tip Guard

BlueMax II Airless Hose (1/4 inch x 50 feet)

CrushProof Inlet Strainer

FlatProof Tires

Reviews

Dimensions

Width
Width
Height
Height
Length
Length
product
55.88 cm
78.74 cm
63.50 cm

Weight

Courier

May require help to carry

Total Weight: 39.92 kg

Guides & Documents

3A6285EN-L.pdf 3J0616EN-A.pdf
