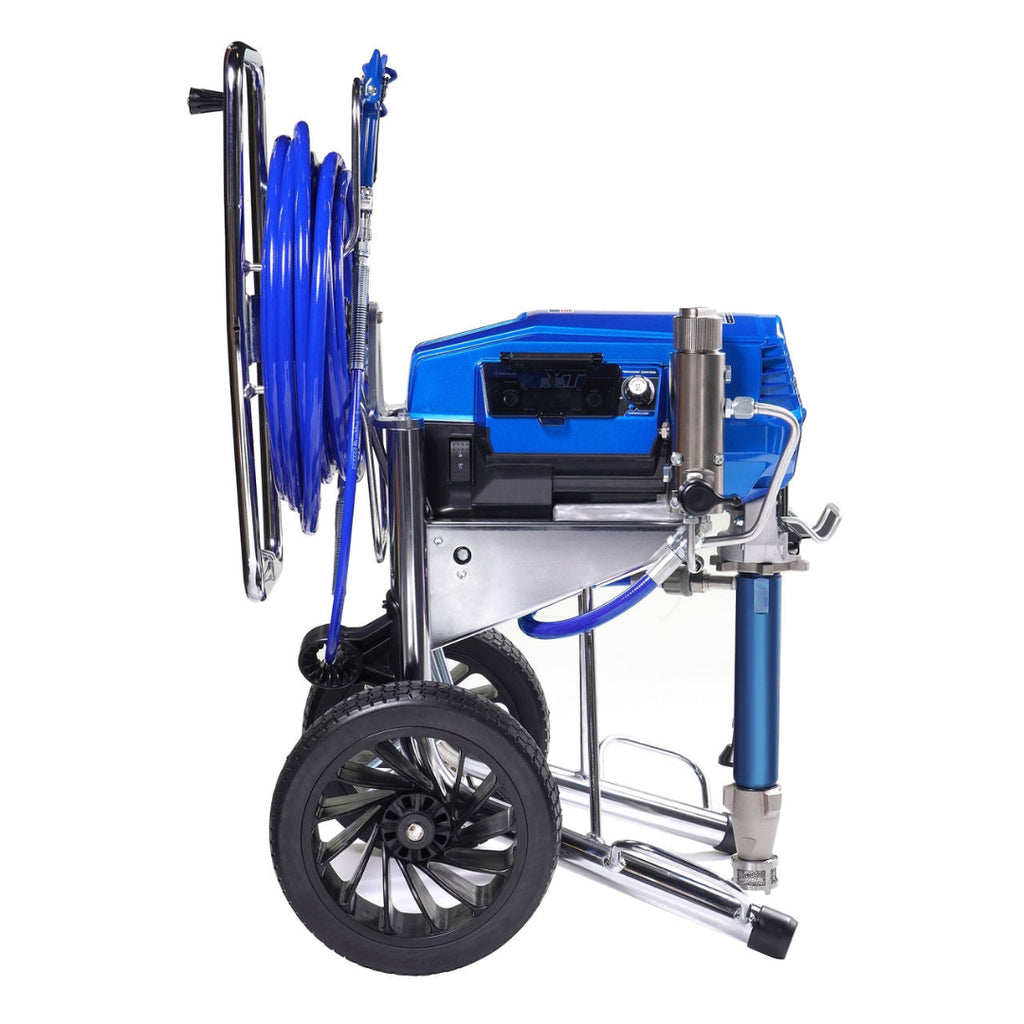

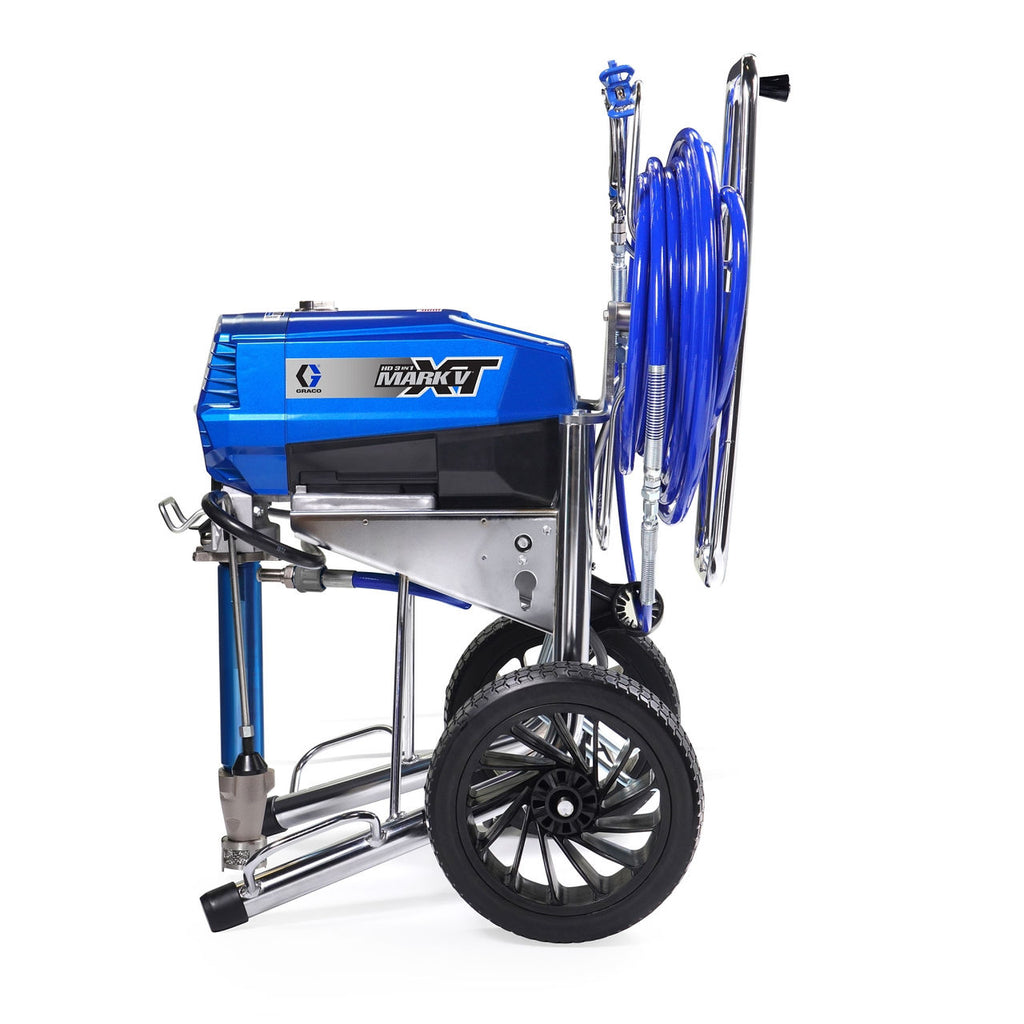

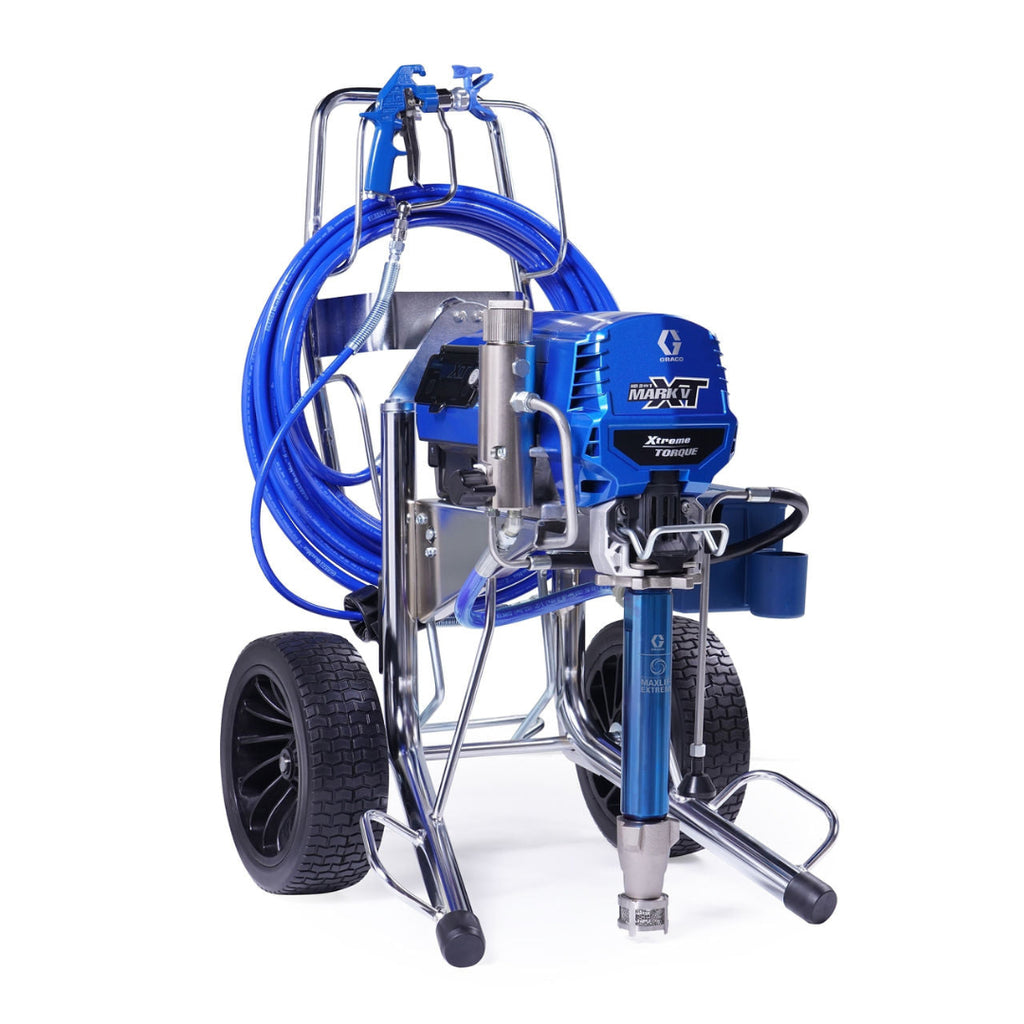

Graco Mark V XT HD 3-in-1 ProContractor Series Electric Airless Sprayer, ANZ/KR 19F724
$12,900.00

Description

Graco Mark V XT HD 3-in-1 ProContractor Series Electric Airless Sprayer, ANZ/KR

The MARK V XT ProContractor Series delivers an airless spray experience like no other. Made in the USA with a 2.9 HP Xtreme Torque motor, featuring Next Generation Rapid-Response Pressure Control and an Endurance Vortex MAXLIFE EXTREME pump. The MARK V XT ProContractor is guaranteed to last!

Xtreme Production & Reliability. XT ProContractor Series electric airless sprayers are built specifically for professional contractors looking to increase production on the industry's most silent spraying platform. Complete with numerous time saving features and the industry's longest life pumps, an XT ProContractor will keep you out of the shop and on the job.








Compare Table

Click here to open table
Ultra 650 XT Ultra 695 XT Ultra 795 XT Ultra 1095 XT
MAXIMUM TIP SIZE 0.029" Max Tip 0.031" Max Tip 0.033" Max Tip INCREASED TIP SUPPORT 0.037" Max Tip
MAXIMUM PSI (BAR) 3,300 (227) 3,300 (227) 3,300 (227) 3,300 (227)
MAXIMUM GPM (LPM) 3,300 (227) 3,300 (227) 3,300 (227) 3,300 (227)
XTREME TORQUE MOTOR (HP) (1.9) (2.1) (2.3) (2.7)
WEIGHT LB (KG) 69 (31) Hi-Boy 93 (42) Standard 94 (43) Standard 112 (51) Standard
GUN SUPPORT:
1 GUNS
2 GUNS
3 GUNS 		0.029"
0.019" 		0.031"
0.023" 		0.033"
0.025"
0.019" 		0.037"
0.029"
0.023"
SERIES TYPE MIDSIZE STANDARD PROCONTRACTOR STANDARD PROCONTRACTOR STANDARD PROCONTRACTOR
MODEL
 Cart Design – Part Number Lo-Boy – 20B327
Hi-Boy – 20B328 		Hi-Boy – 19F712 Hi-Boy – 19F714 Hi-Boy – 19F715 Hi-Boy – 19F717 Hi-Boy – 19F720 Hi-Boy – 19F721
PUMP
 NEW PISTON PUMP Endurance Vortex Endurance Vortex Endurance Vortex Endurance Vortex Endurance Vortex Endurance Vortex Endurance Vortex
NEW VORTEX PISTON ROD Chromex Chromex MaxLife Chromex MaxLife Chromex MaxLife Extreme
SLEEVE Hardened SST Hardened SST MaxLife Hardened SST MaxLife Hardened SST MaxLife
NEW PROCONNECT
REPLACEMENT SYSTEM
✓ ✓ ✓ ✓ ✓ ✓ ✓
FEATURES
NEW RAPID-RESPONSE
PRESSURE CONTROL
✓ ✓ ✓ ✓ ✓ ✓ ✓
NEW SELECTABLE
PERFORMANCE MODES
✓ ✓ ✓ ✓ ✓ ✓ ✓
NEW LED DISPLAY ✓ ✓ ✓ ✓ ✓ ✓ ✓
NEW TURBOCLEAN ✓ ✓ ✓ ✓ ✓ ✓ ✓
NEW WATCHDOG PUMP PROTECTION ✓ ✓ ✓ ✓ ✓ ✓ ✓
EASY OUT FILTER (60 MESH) ✓ ✓ ✓ ✓ ✓ ✓ ✓
NEW QUIKREEL HOSE REEL Optional ✓ Optional ✓ Optional ✓
NEW SMARTDISPLAY XT Optional Optional ✓ Optional ✓ Optional ✓
FLAT PROOF TIRES Optional ✓ Optional ✓ Optional ✓
CRUSHPROOF INLET STRAINER Optional ✓ Optional ✓ Optional ✓
CONTRACTOR PC GUN ✓ ✓ ✓ ✓ ✓ ✓ ✓
SWITCHTIP RAC X LP 517 RAC X LP 517 RAC X LP 517 RAC X LP 517 RAC X LP 517 RAC X LP 517 RAC X LP 517
HOSE 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless 1/4 in x 50 ft (6.4 mm x 15 m) Blue Max II Airless
WEAR PARTS
 REPLACEMENT PUMP 2002382 2001548 / 2001549* 2001549 2001573 / 2001574* 2001574 2001550 / 2001551* 2001551
REPAIR KIT 18B260 248212 / 17H838** 17H841** 248212 / 17H838** 17H841** 248213 / 17H839** 17H842**

Videos

Specifications

Maximum Tip Size: 0.041 inches

Maximum Flow: 6.0 l/min (1.6 GPM)

Maximum Pressure: 3300 PSI (227 bar)

Motor Power: 2.9 HP (2160 Watts)

Weight: 95 lbs (Hi-Boy model)

Features

Xtreme Torque Motor Technology

  • 15x more torque than traditional motors
  • 8x more magnets provide unmatched power and performance
  • 90% lower running speeds extend motor life
  • 10X quieter


RapidResponse Control

  • Instantly responds to deliver the best finish quality
  • More performance across its full tip size range
  • Industry's largest operating pressure range (50–3,300 psi)


Selectable Performance Modes

  • Two selectable spray modes offer unique performance levels to boost efficiency on every job
  • Bring on the savings and achieve Xtreme Control with Low Pressure Mode (50–2,000 psi)
  • Use High Pressure Mode for Xtreme Performance (500–3,300 psi)


Easy-to-Read LED Digital Display

  • Visible in even the toughest spraying conditions


Endurance Vortex Piston Pump with ProConnect

  • Endurance Vortex Rod lasts 3X longer than the closest competitor
  • ProConnect Pump Removal for fast on-the-job service
  • 25% longer pump stroke for longer life before repacking

QuikReel Hose Management System

  • Easy hose management
  • Deploy and rewind up to 90 metres (300 feet) of hose in seconds
  • No twisting, kinking and coiling
  • Use only the hose you need—the rest stays on the reel

TurboClean Cleaning System

  • Industry’s fastest pump cleaning system
  • Delivers 6X faster cleaning with 1/2 the water
  • Convenient location

BlueLink Job & Sprayer Management System

  • Streamline your business
  • Track every sprayer: Exact location & hourly productivity
  • Know job progress: On demand productivity facts and reporting from anywhere
  • Maximise uptime: Set maintenance schedules, alerts, & jobsite notes

WatchDog Pump Protection

  • Prevents damage by shutting off the pump when it's time to refill

Durable Filtration

  • Easy Out Filter provides easy maintenance and less clogging

Upgrades with Modular Accessories

  • QuickReel hose management
  • SmartDisplay XT compatible with BlueLink
  • Endurance Vortex MAXLIFE EXTREME Pump
  • CrushProof Inlet Strainer
  • Rugged FlatProof tires
  • Heavy-Duty Blue Texture Gun & RAC X LTX SwitchTip

What's Included

  • Ultra Max II 1095 PC Pro Sprayer
  • Contractor PC Spray Gun
  • TrueAirless 515 Spray Tip
  • Spray Tip Guard
  • 1/4 in x 50 ft DuraFlex Hose
  • Quick Start-Up Guide

Reviews

Dimensions

Width
Width
Height
Height
Length
Length
product
55.88 cm
78.74 cm
63.50 cm

Weight

Courier

May require help to carry

Total Weight: 39.92 kg

Guides & Documents

3J0616EN-A.pdf 3B0070EN-C.pdf
