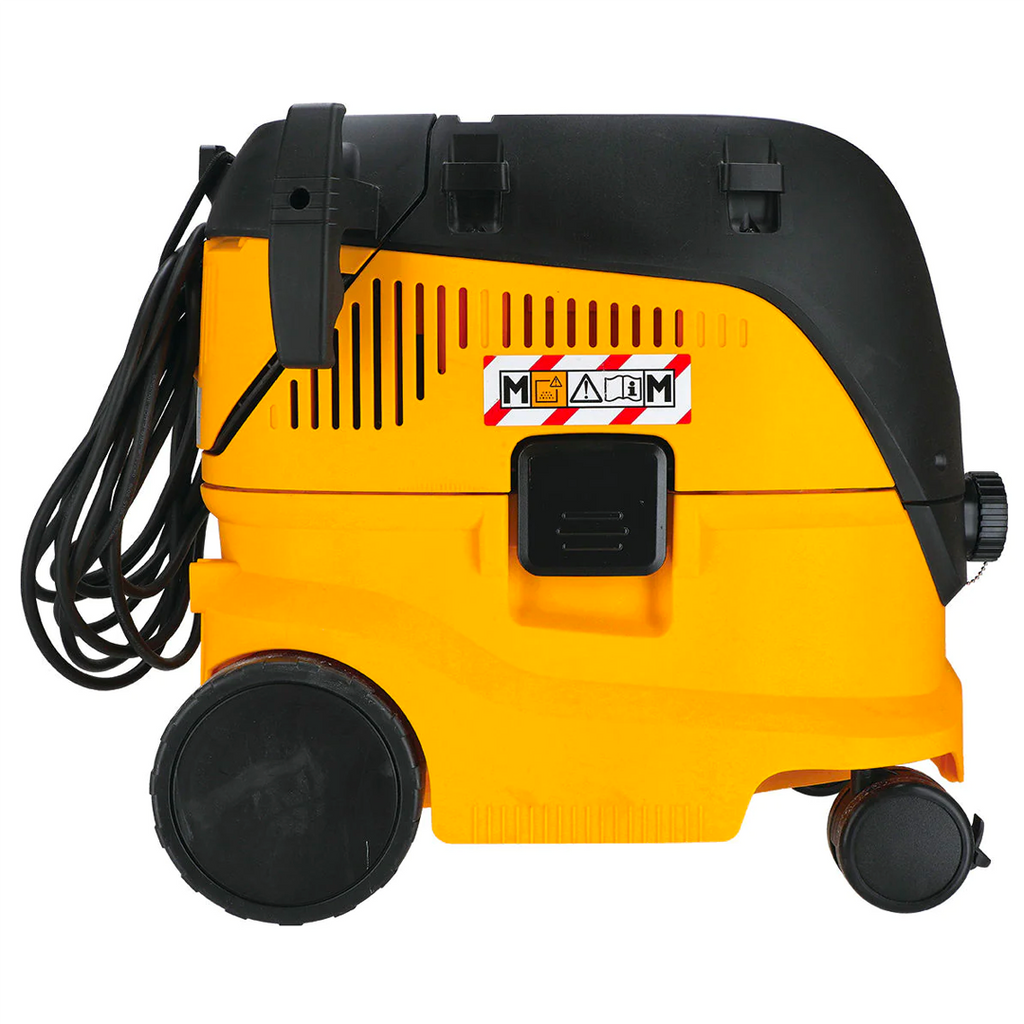

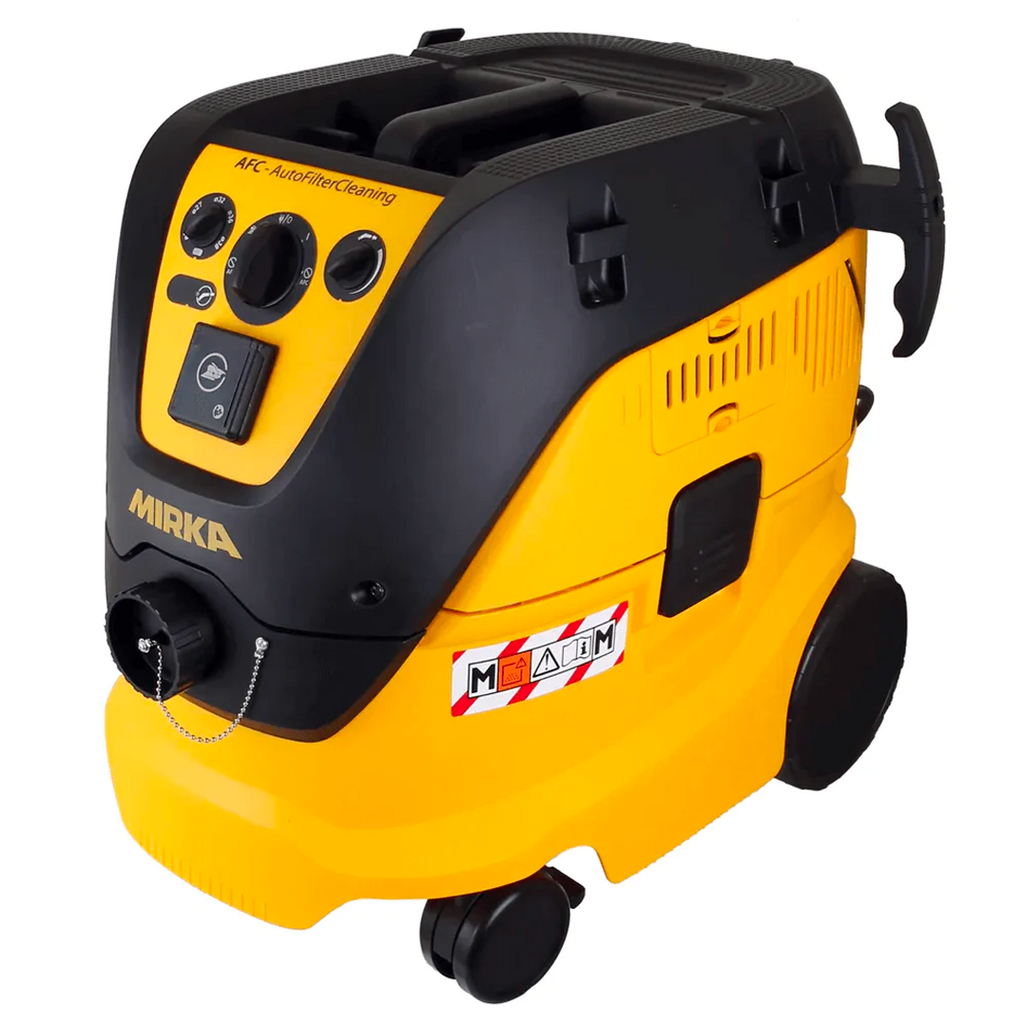

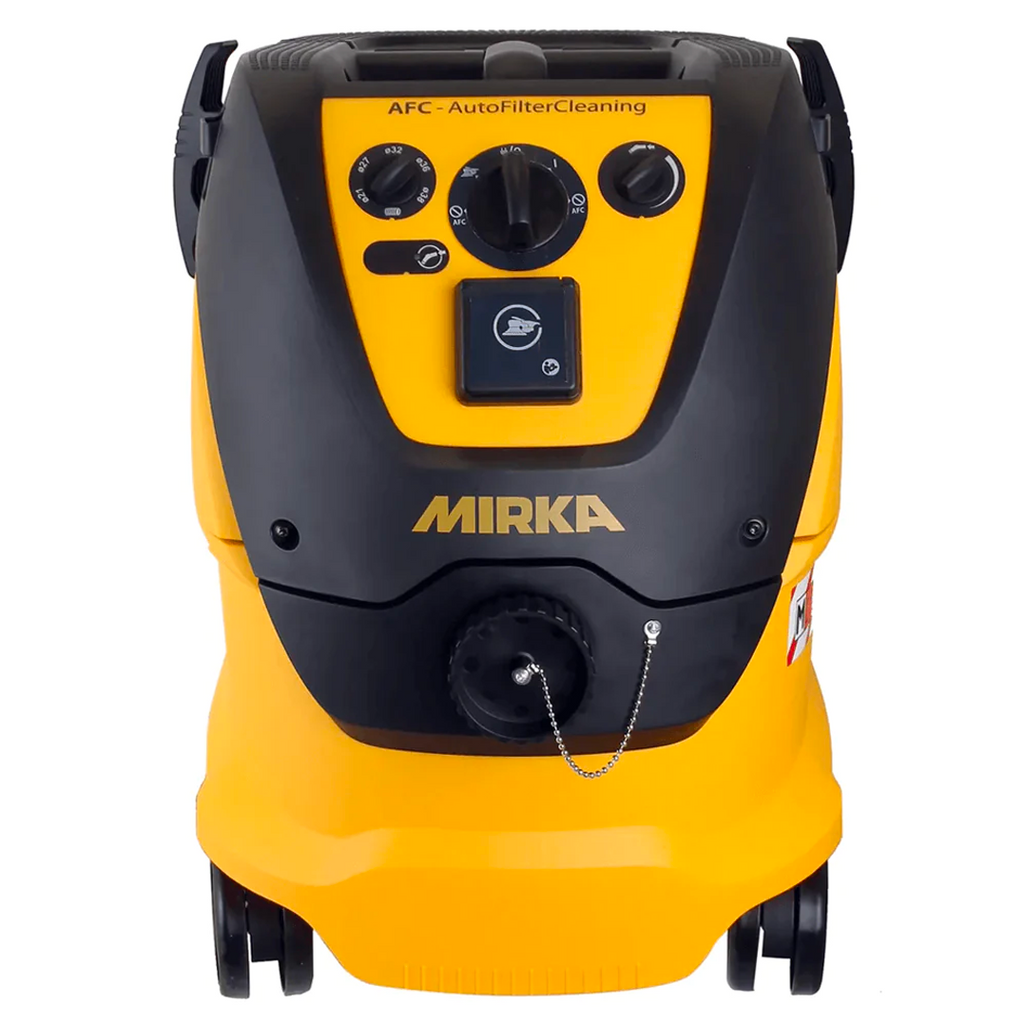

Mirka Dust Extractor 1230 M AFC


The Mirka dust extractor range has been extended with a new M Class version. Mirka’s dust extractors are specifically designed for dust-free sanding in combination with Mirka® abrasives and tools. The DE1230 M Class features a triple filtration option when used with HEPA filter and fleece dust bags. This M Class filtration model is equipped with an automatic filter cleaning system (AFC).

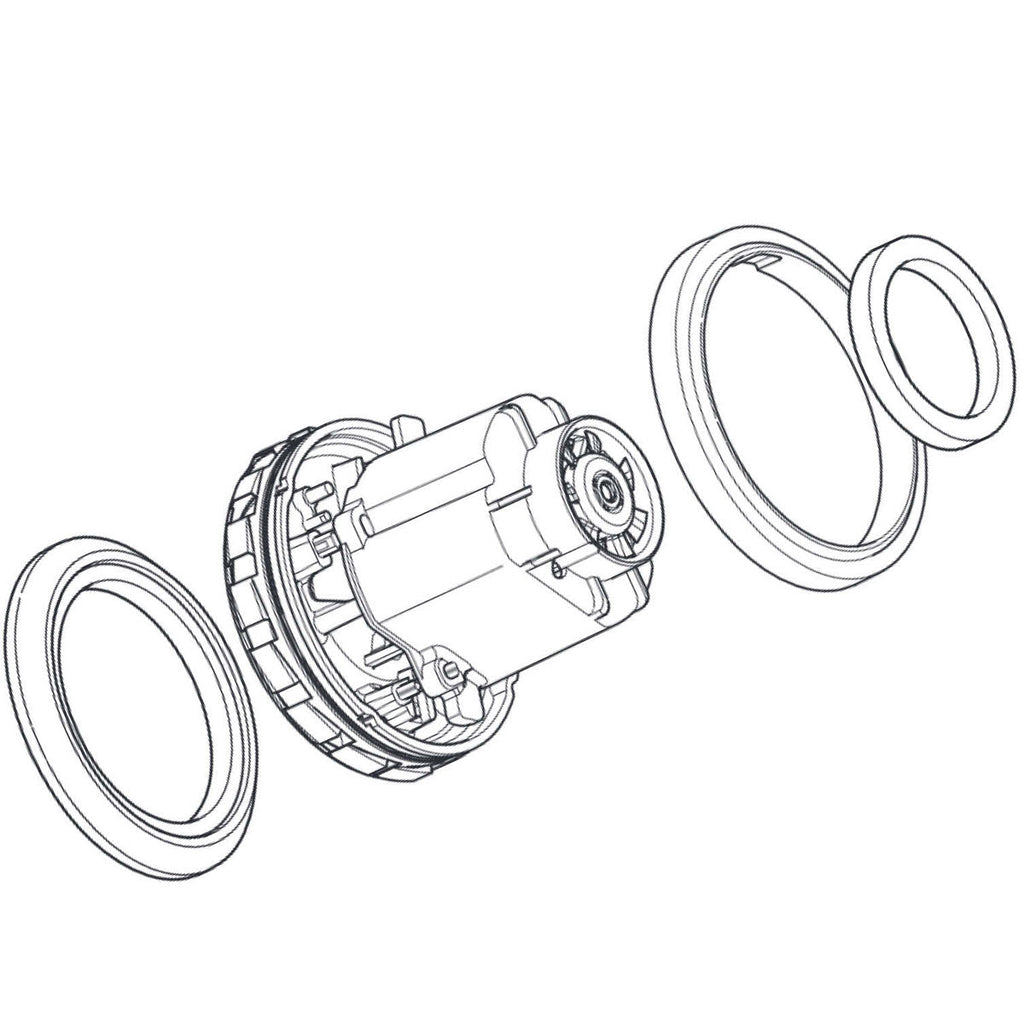

The Mirka® Dust Extractor 1230 M AFC is equipped with a high-performance 1200 W motor and a 1-stage turbine that creates 250 mbar suction with an airflow of 4500 l/min. It also includes the auto-start function.

$1,000 SafeWork small business rebate

Who can apply

Small business owners and sole traders who have an ABN and less than 50 full time employees. Charities and not-for-profits can also apply.

The application must be in the name of the registered business owner. The registered business owner must agree to the terms and conditions.

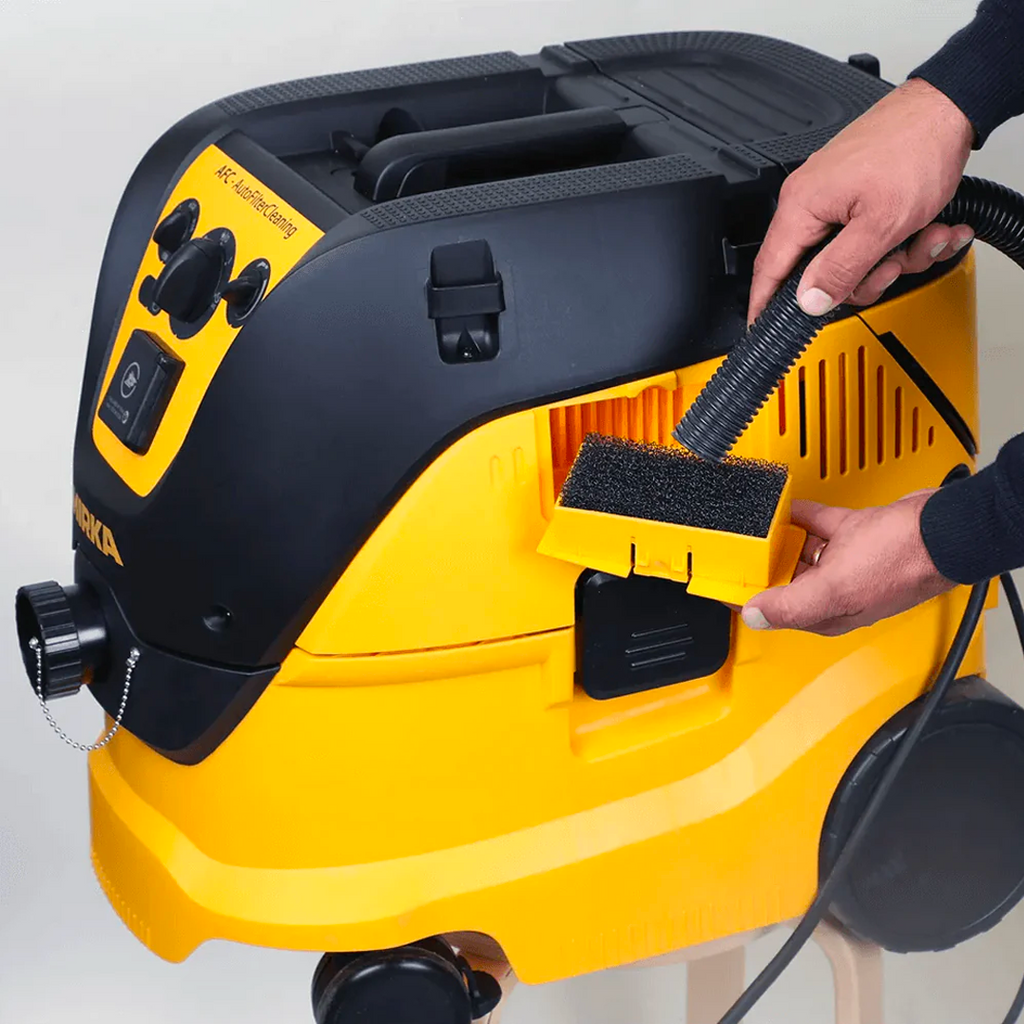

Easy way to clean the filter for longer life time and better performance


Proven performance for user protection OEL values > 1 mg/m3


Easy maneuverability on uneven floor surfaces


Runs only when power tool is running (pneumatic tools require additional accessory).


Keeps the hose in place. Hooks on side only.


1200W motor and 1-stage turbine creates 250 mbar pressure and 4500 l/min airflow.


Storage space on top. Fastening loops to secure items with rubber straps. Rubber straps available as accessories.

Important Reminder:
To prolong the lifeline of the machine, we strongly recommend attaching cable and hose only to Mirka Hose Sleeve and Mirka Velcro Straps. NO cable ties should be used for it does not support the free movement of cable and hose.

Compare Table

Click here to open table
Mirka® Dust Extractor
1025 L PC Mirka® Dust Extractor 1230 L PC mirka-dust-extractor-1230-m-afc
Mirka® Dust Extractor 1025 L PC Mirka® Dust Extractor 1230 L PC Mirka® Dust Extractor 1230M AFC
Code 8999080111 8999180111 8999228111
Voltage mains supply 220 - 240 V ̃ 220 - 240 V ̃ 220 - 240 V ̃
Mains frequency 50/60 Hz 50/60 Hz 50/60 Hz
Power input 1000 W 1200 W 1200 W
Volume airf low 3600 l/min 4500 l/min 4500 l/min
Vacuum 210 mbar 250 mbar 250 mbar
Noise level 64 dBA 60 dBA 60 dBA
Tank volume 25 l 30 l 30 l
Dimension W x D x H 375 x 395 x 530 mm 385 x 565 x 565 mm 385 x 565 x 565 mm
Weight 8 kg 14.5 kg 14.5 kg
Filter cleaning system Push & clean Push & clean Automatic Filter Cleaning
Dust class L L M
Dustbag 8999000211 8999100211 8999100211


Mains Frequency 50/60Hz
Power Input 1200w
Voltage Main Supplies 230v
Vacuum 250 mbar
Noise Level dBA 60 dBA
Tank Volume 30L
Dimension W x D x H 385x565x565mm
Weight 14.5kg
Filter Cleaning System push & clean
Dust Class L
