Graco TexSpray RTX 5500PX Texture Sprayer (17K680)
$16,100.00

Description

Graco 240V 2HP RTX 5500PX Electric Texture Sprayer

Graco TexSpray RTX 5500PX Pro Exterior Texture Sprayer (240V) is a high-capacity, compact power station engineered for large-scale residential and commercial contracting teams. Specially configured to tackle demanding exterior and interior texture applications, it features an advanced high-output system capable of spraying heavy, aggregate-filled architectural coatings with extreme consistency.

Equipped with smart automation and a tool-less replacement design, the RTX 5500PX maximizes on-site square-meter output while completely eliminating costly tool down-time.

      Compare Table

      Click here to open table
      COMPRESSOR FASTFINISH STANDARD FASTFINISH PRO HOPPER GUN GT-TEX HOPPER GUN RTX 5500 PX RTX 2500 PI
      Warranty 3 years 3 years 3 years 1 year 1 year 3 years 3 years
      Part Numbers: 25D491 25D495 25D493 25D496 25D497 17k680 17U219
      Compressor L/min 255 255 255 - - 21 20
      Max. air working pressure (PSI) 40 40 40 - - 100 100
      Weight - kg (lbs) 33.5kg 35.18kg 35.18kg 2.18kg 1.85kg 73.9kg 32.6kg
      Pressure Boosted Hopper Gun - - Pro Version ■ - -
      Hopper - 7.5L 5.5L 5.5L 7.5L 57L 56L
      Pressure/Flow dial - - Pro Version ■ - ■ ■
      Flat-Proof Tires ■ ■ ■ - - - -
      Nozzles - 4mm, 6mm, 8mm 4mm, 6mm, 8mm 4mm, 6mm, 8mm 4mm, 6mm, 8mm 3mm, 4mm, 8mm, 10mm, 12mm 3mm, 4mm, 8mm, 10mm, 12mm
      Air Orifice - 2mm, 2.5mm, 3mm 2mm, 2.5mm, 3mm 2mm, 2.5mm, 3mm 2mm, 2.5mm, 3mm - -
      Gun - G-TEX Gravity-Fed - 25D497 FastFinish Oressure-Boosted 25D496 ■ ■ Air Spray Trigger Gun -24S135 Air Spray Trigger Gun -24S135
      Hose Kit Air 3/8" x 15m - 17U302 Air 3/8" x 15m - 17U302 Air 3/8" x 15m - 17U302 Air 3/8" x 15m - 17U302 Air 3/8" x 15m - 17U302 Air & Fluid 32mm x 7.5m -17L005 Air & Fluid 25.4mm x 7.5m -17L005

      Videos

      Specifications

      • Application: Residential and Commercial Exteriors
      • Compatible Material: Simulated Acoustic, Drywall Mud, Elastomerics, Deck Coating, Cement-Based Material
      • Frame Configuration: Cart
      • Hopper Capacity (l): 57
      • Maximum Air Pressure (bar): 3.5
      • Maximum Air Pressure (kPa): 350
      • Maximum Air Pressure (psi): 50
      • Maximum Flow Rate (l/min): 20.8
      • Maximum Operating Temperature (°C): 46
      • Maximum Storage Temperature (°C): 71
      • Maximum Working Pressure (MPa): 0.7
      • Maximum Working Pressure (bar): 6.9
      • Maximum Working Pressure (kPa): 690
      • Minimum Operating Temperature (°C): 4
      • Minimum Storage Temperature (°C): -1.6
      • Model: TexSpray RTX
      • Overall Height (cm): 100
      • Overall Height (mm): 1000
      • Overall Length (cm): 86
      • Overall Length (mm): 860
      • Overall Width (cm): 58
      • Overall Width (mm): 580
      • Product Series: ProExterior
      • Series: 5500PX
      • Sound Power Level (dB(A)): 90.9
      • Sound Pressure Level (dB(A)): 81.8
      • Type: Air-Powered Sprayer
      • Weight (kg): 78.9
      • Wetted Material: Brass, Aluminium, Plastic, Stainless Steel, Plated Carbon Steel, Elastomer

      Features

      • SmartStart System (Trigger-Activated Power): Automatically halts both the compressor and pump the instant the gun trigger is released. Its built-in soft-start elimination prevents messy material bursts when re-triggering, ensuring a flawless finish while extending the system's runtime life.
      • RotoFlex HD Peristaltic Pump: Features an innovative braided sling that fully supports the internal pump tube, delivering an impressive 21 liters per minute (5.5 GPM) of continuous fluid delivery to fast-track large projects.
      • FlexChange Pump Section: A tool-free, modular pump swap configuration that allows you to change out the RotoFlex pump sleeve in seconds right on the job site.
      • Integrated Twin-Cylinder Compressor: A heavy-duty, high-output, maintenance-free air system that runs at lower RPMs to ensure thermal stability and long-term mechanical reliability.
      • External Air Input Node: Provides the option to link an auxiliary external air compressor to boost atomization performance during highly demanding finish layouts.

      What's Included

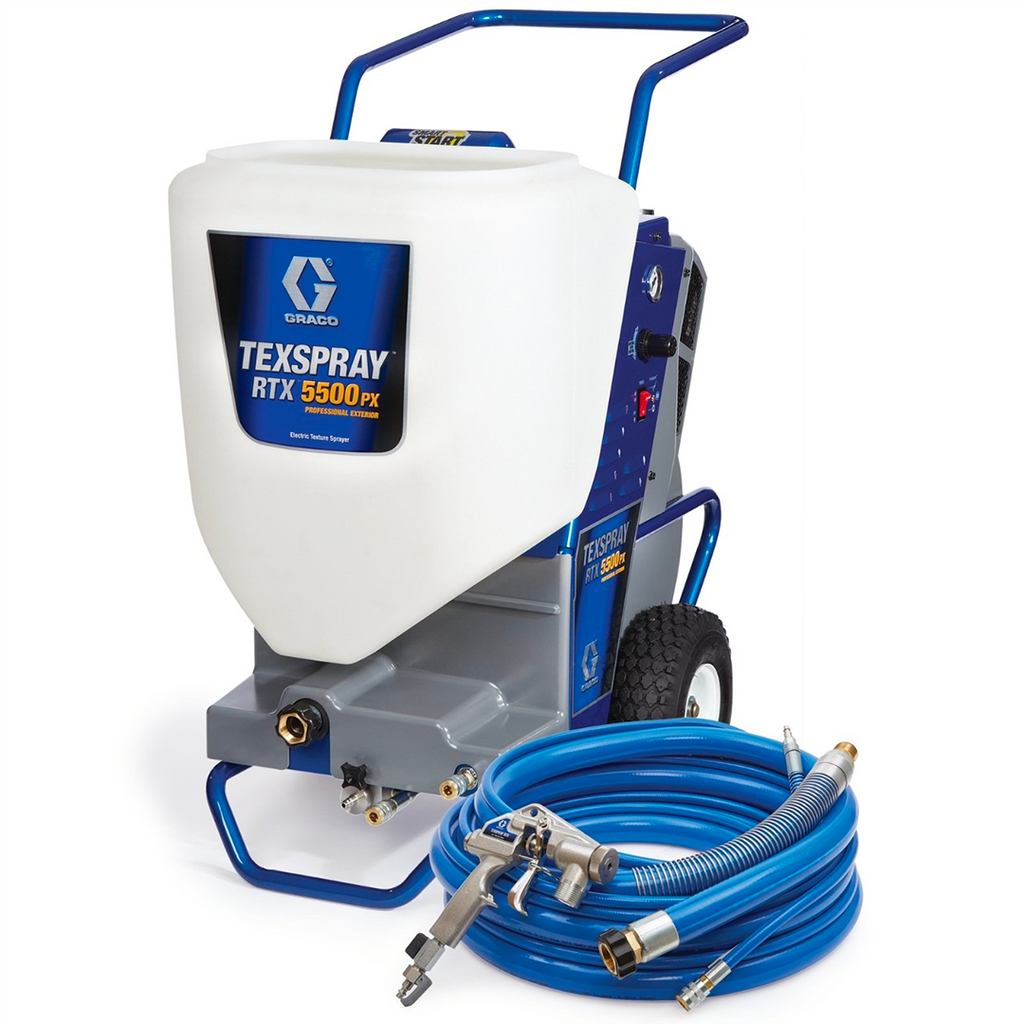

      • 7.5m x 32mm Hose
      • 3mm, 4mm, 6mm, 8mm, 10mm, 12mm Tips
      • WideTex Adapter with Hardened 4 mm, 6 mm, 8 mm, 10 mm, 12 mm XL W tips

      Reviews

      Dimensions

      Width
      Width
      Height
      Height
      Length
      Length
      product
      99.06 cm
      127 cm
      78.74 cm

      Weight

      Courier

      May require help to carry

      Total Weight: 165.1 kg
