Graco TexSpray RTX 2500PI Texture Sprayer (17U219)
$8,060.00

Description

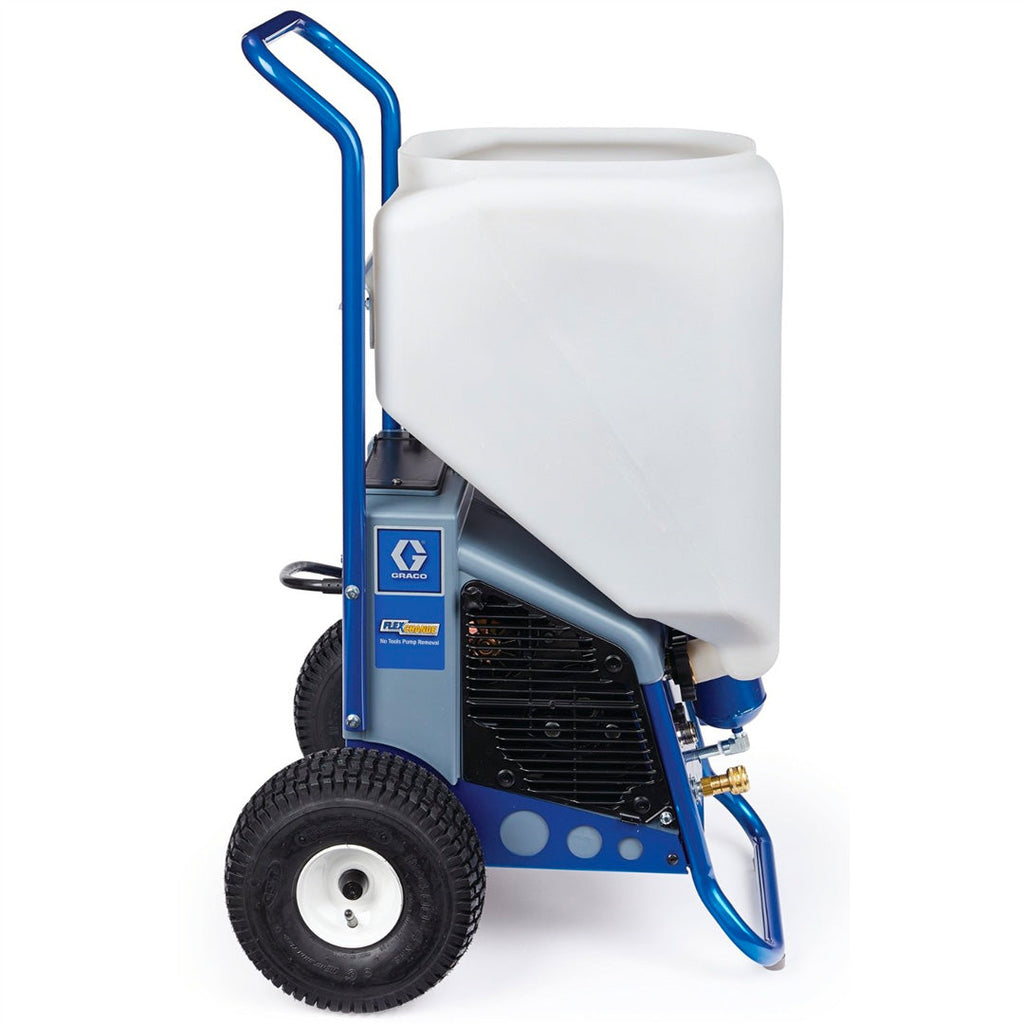

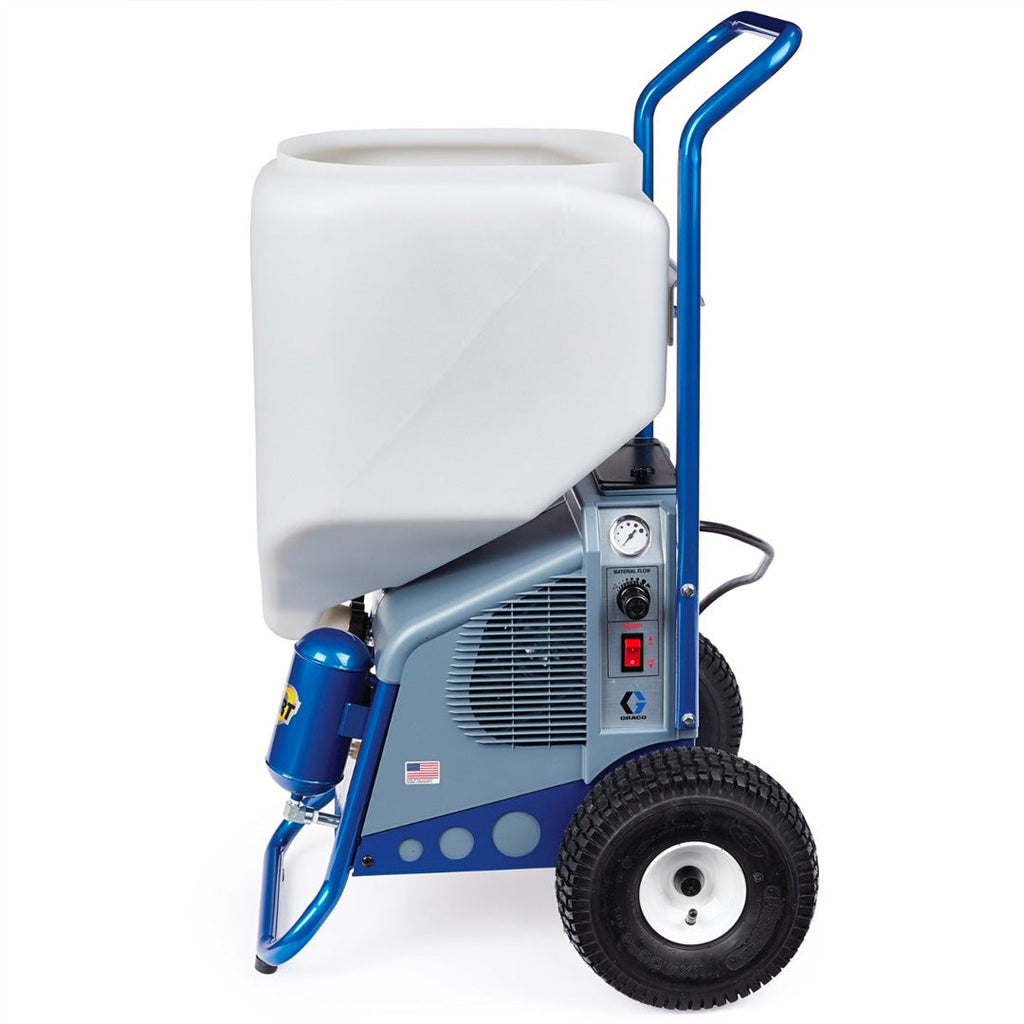

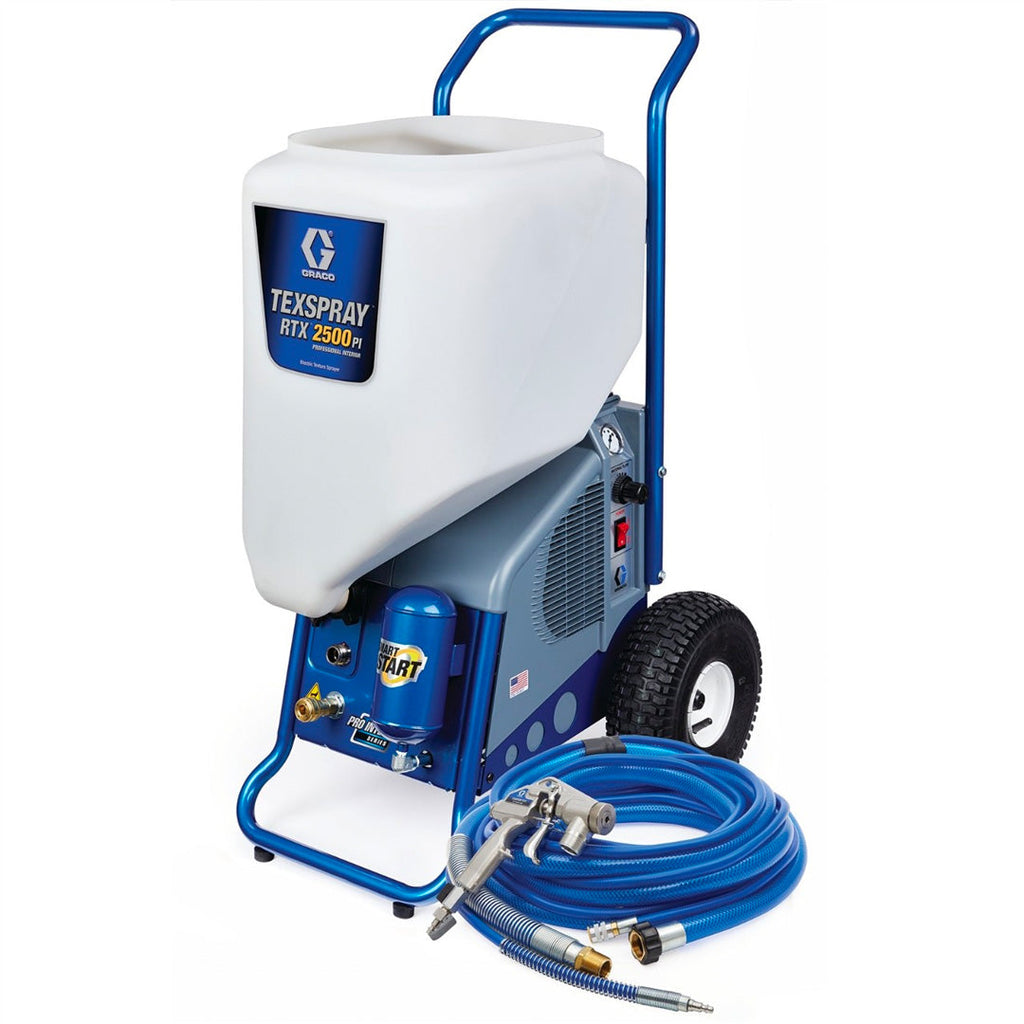

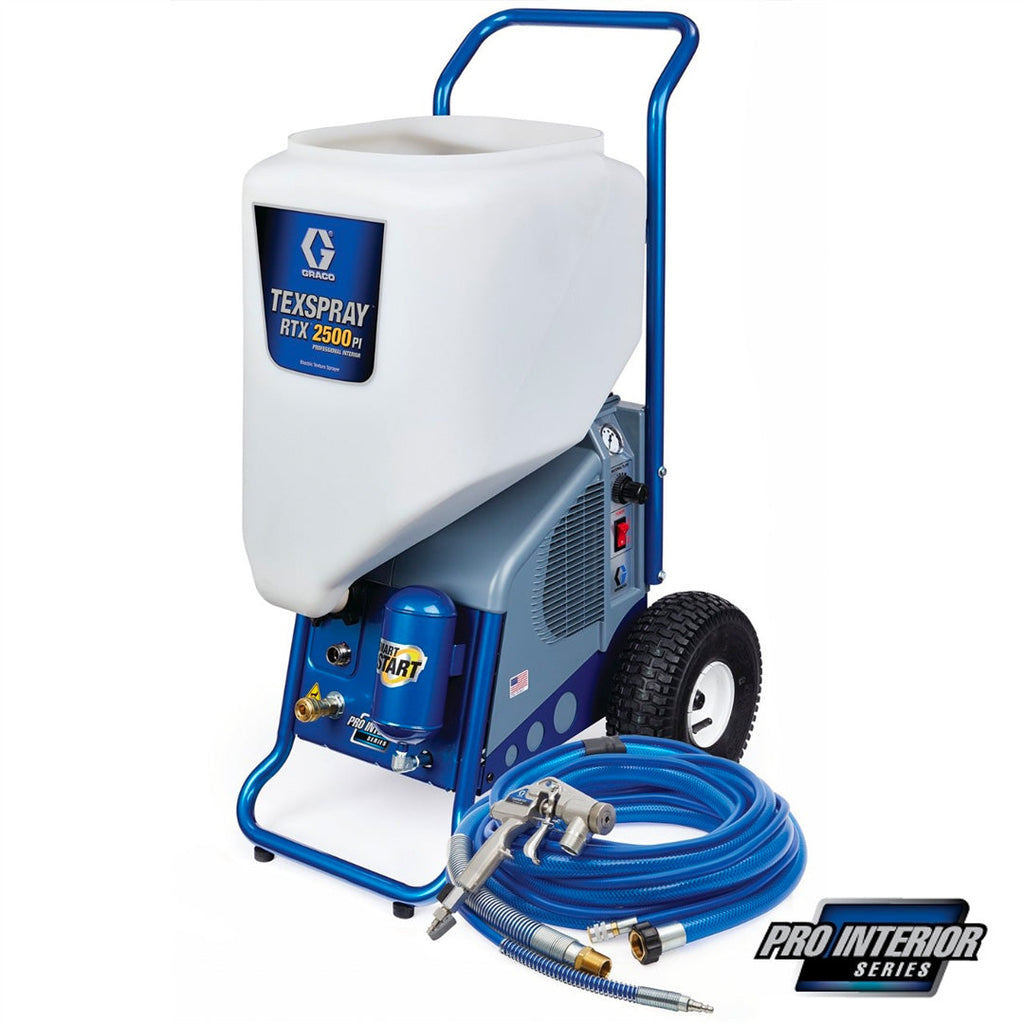

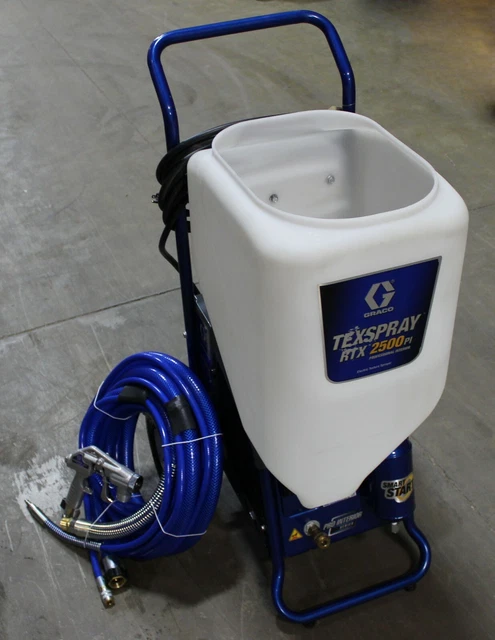

TexSpray RTX 2500PI Texture Sprayer

The RTX 2500PI is an optimised texture system perfect for tradesmen and contractors seeking the time-saving features required for thicker materials and medium-to-large jobs. The RTX 2500PI delivers 2.5 gallons per minute and can handle up to 75 feet of hose to help get the job done faster.

      Compare Table

      Click here to open table
      COMPRESSOR FASTFINISH STANDARD FASTFINISH PRO HOPPER GUN GT-TEX HOPPER GUN RTX 5500 PX RTX 2500 PI
      Warranty 3 years 3 years 3 years 1 year 1 year 3 years 3 years
      Part Numbers: 25D491 25D495 25D493 25D496 25D497 17k680 17U219
      Compressor L/min 255 255 255 - - 21 20
      Max. air working pressure (PSI) 40 40 40 - - 100 100
      Weight - kg (lbs) 33.5kg 35.18kg 35.18kg 2.18kg 1.85kg 73.9kg 32.6kg
      Pressure Boosted Hopper Gun - - Pro Version ■ - -
      Hopper - 7.5L 5.5L 5.5L 7.5L 57L 56L
      Pressure/Flow dial - - Pro Version ■ - ■ ■
      Flat-Proof Tires ■ ■ ■ - - - -
      Nozzles - 4mm, 6mm, 8mm 4mm, 6mm, 8mm 4mm, 6mm, 8mm 4mm, 6mm, 8mm 3mm, 4mm, 8mm, 10mm, 12mm 3mm, 4mm, 8mm, 10mm, 12mm
      Air Orifice - 2mm, 2.5mm, 3mm 2mm, 2.5mm, 3mm 2mm, 2.5mm, 3mm 2mm, 2.5mm, 3mm - -
      Gun - G-TEX Gravity-Fed - 25D497 FastFinish Oressure-Boosted 25D496 ■ ■ Air Spray Trigger Gun -24S135 Air Spray Trigger Gun -24S135
      Hose Kit Air 3/8" x 15m - 17U302 Air 3/8" x 15m - 17U302 Air 3/8" x 15m - 17U302 Air 3/8" x 15m - 17U302 Air 3/8" x 15m - 17U302 Air & Fluid 32mm x 7.5m -17L005 Air & Fluid 25.4mm x 7.5m -17L005

      Videos

      Specifications

      • Maximum Flow Rate (L/min) - 9.5
      • Maximum Hose Length (m) - 23
      • Maximum Working Pressure (MPa) - 0.7
      • Maximum Working Pressure (bar) - 6.9
      • Maximum Working Pressure (kPa) - 690
      • ModelTexSpray - RTX

      Features

      Jobsite Proven RotoFlex II Pump

      • Get the Job Done Quickly
      • 2.5 gpm output
      • Innovative braided pump tube for longest life

      SmartStart System

      • Trigger-Activated Power
      • Automatically start & stop the pump and compressor
      • Soft-start eliminates material blasts to ensure a quality finish
      • Reduces noise and vibration while extending pump and compressor life

      High-Output 6.1 cfm Air Compressor

      • 33% more air for demanding finishes
      • Maintenance-free design
      • Projects materials farther


      120V AC High-Output Electric Motor

      • Improved Power and Performance
      • Optimized single-motor design operates air compressor and RotoFlex pump

      Skip-Bond Material/Air Hose

      • Improved Handling & Flexibility
      • Both hoses are permanently bonded together for easy handling

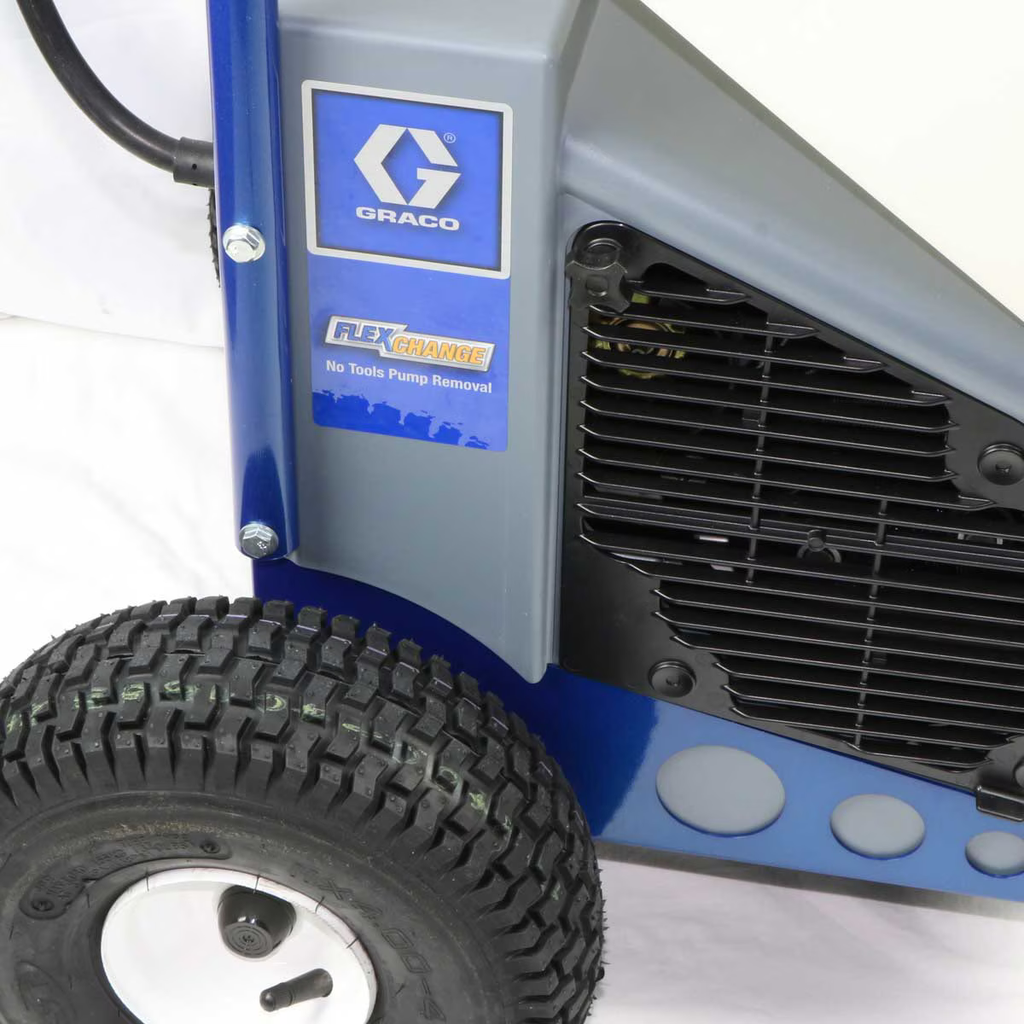

      FlexChange Pump Section

      • Eliminate Costly Downtime
      • Swap your RotoFlex pump in seconds - no tools required

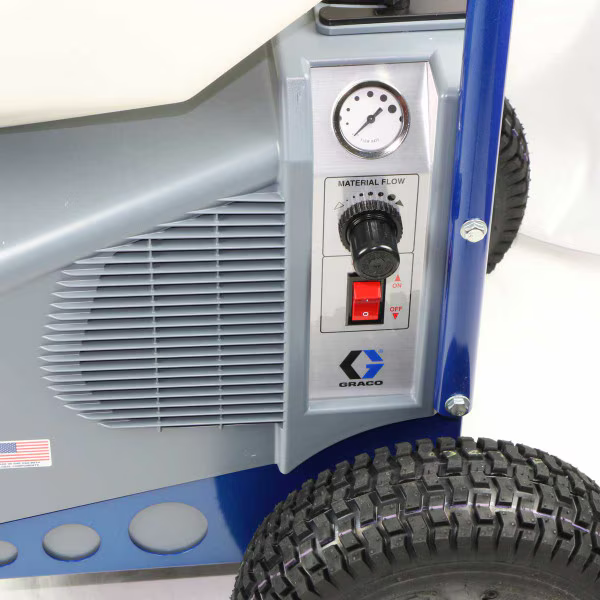

      Adjustable Material Flow Control

      • Maximum Control
      • Quickly adjust material flow up or down with easy-to-read gauge

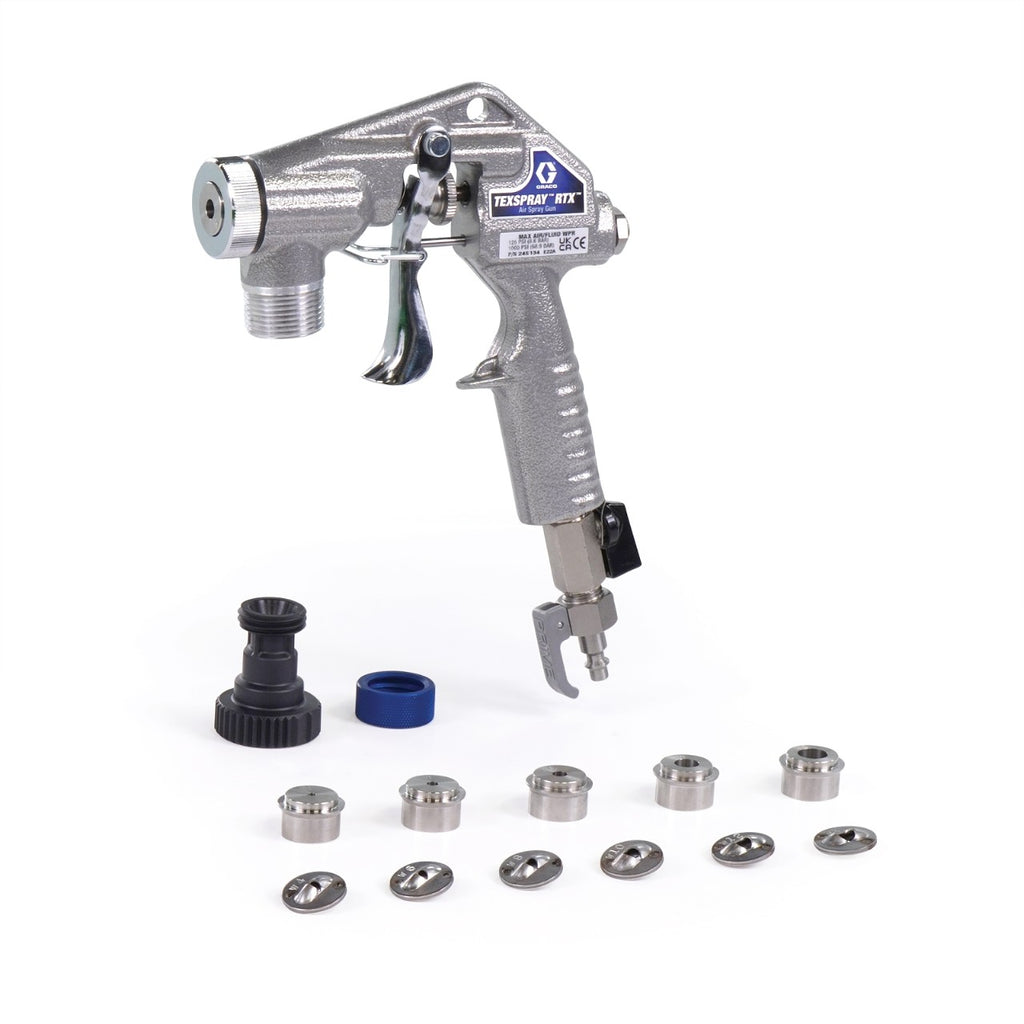

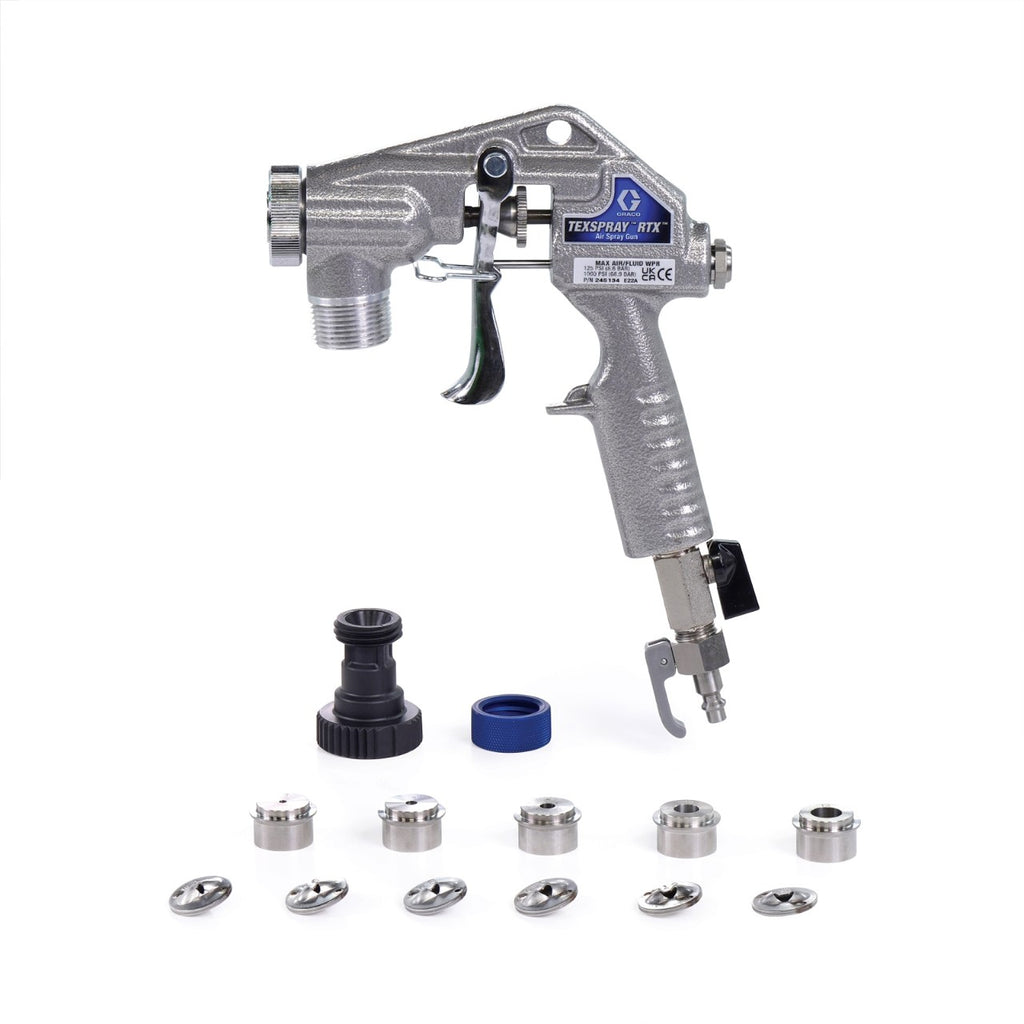

      Heavy-Duty Aluminum Trigger Gun

      • Total Spray Control
      • Select prime mode at the gun with Integrated Prime Selector
      • Spray more material longer with durable aluminum design & oversized passages


      WideTex Tips & Adapter

      • Increase Productivity by Over 20%
      • Spray uniform, repeatable patterns with less material and pressure adjustment

      Onboard Storage

      What's Included

      • Heavy-Duty Air Spray Trigger Gun
      • 1 in x 25 ft Material/Air Hose
      • 3 mm Round Nozzle
      • 4 mm Round Nozzle
      • 6 mm Round Nozzle
      • 8 mm Round Nozzle
      • 10 mm Round Nozzle
      • 12 mm Round Nozzle
      • 4 mm WideTex Tip
      • 6 mm WideTex Tip
      • 8 mm WideTex Tip
      • 10 mm WideTex Tip
      • 12 mm WideTex Tip
      • XL WideTex Tip
      • WideTex Adapter

      Reviews

      Dimensions

      Width
      Width
      Height
      Height
      Length
      Length
      product
      62.33 cm
      111.76 cm
      55.88 cm

      Weight

      Courier

      May require help to carry

      Total Weight: 64.773 kg

      Guides & Documents

      3A3373EN-C.pdf 3A5430EN-A.pdf 3A3258EN.pdf
