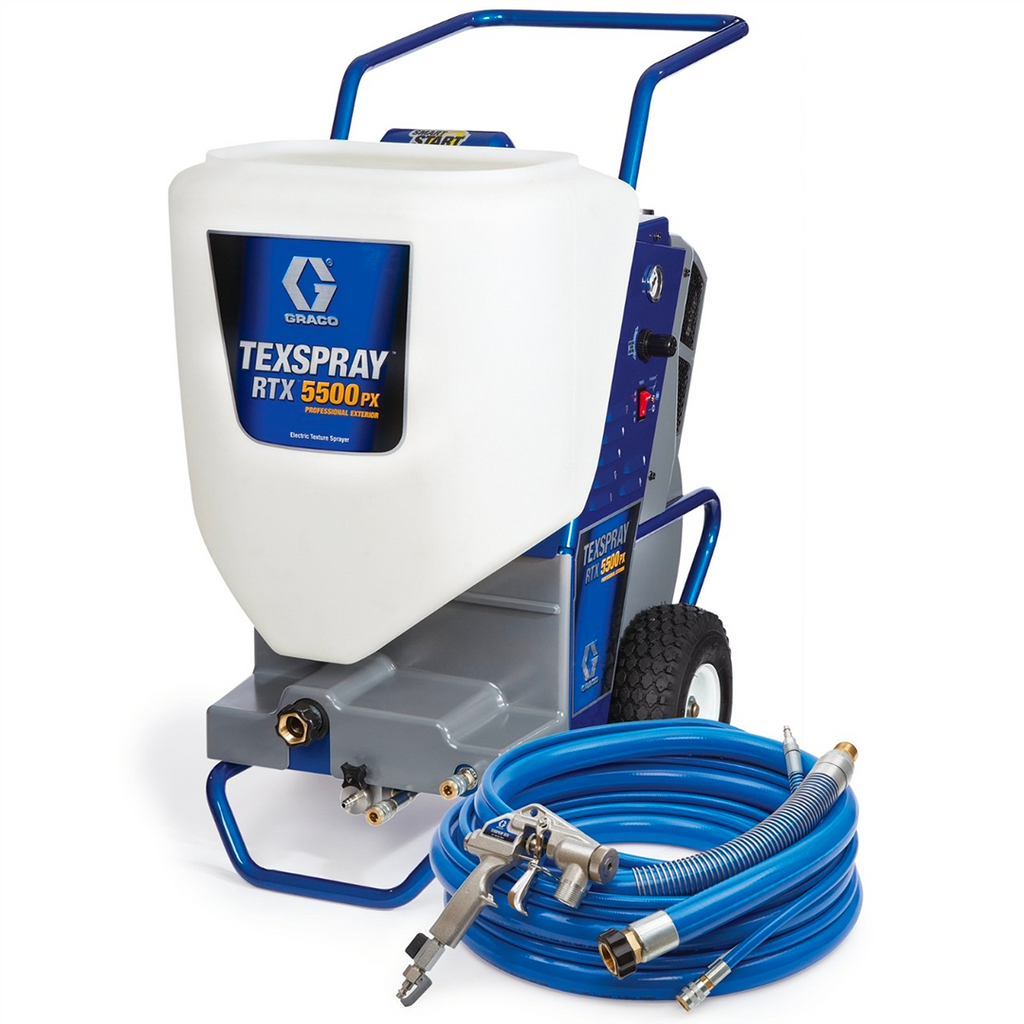

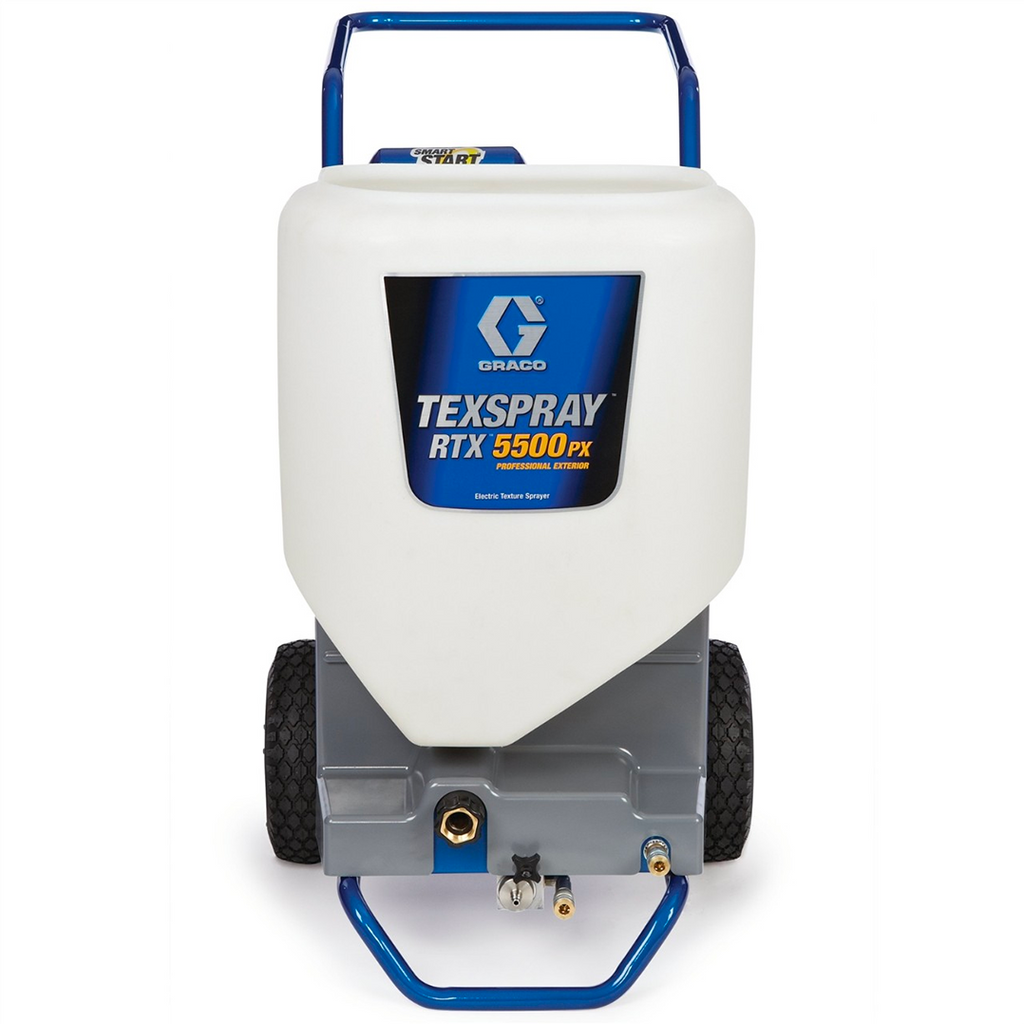

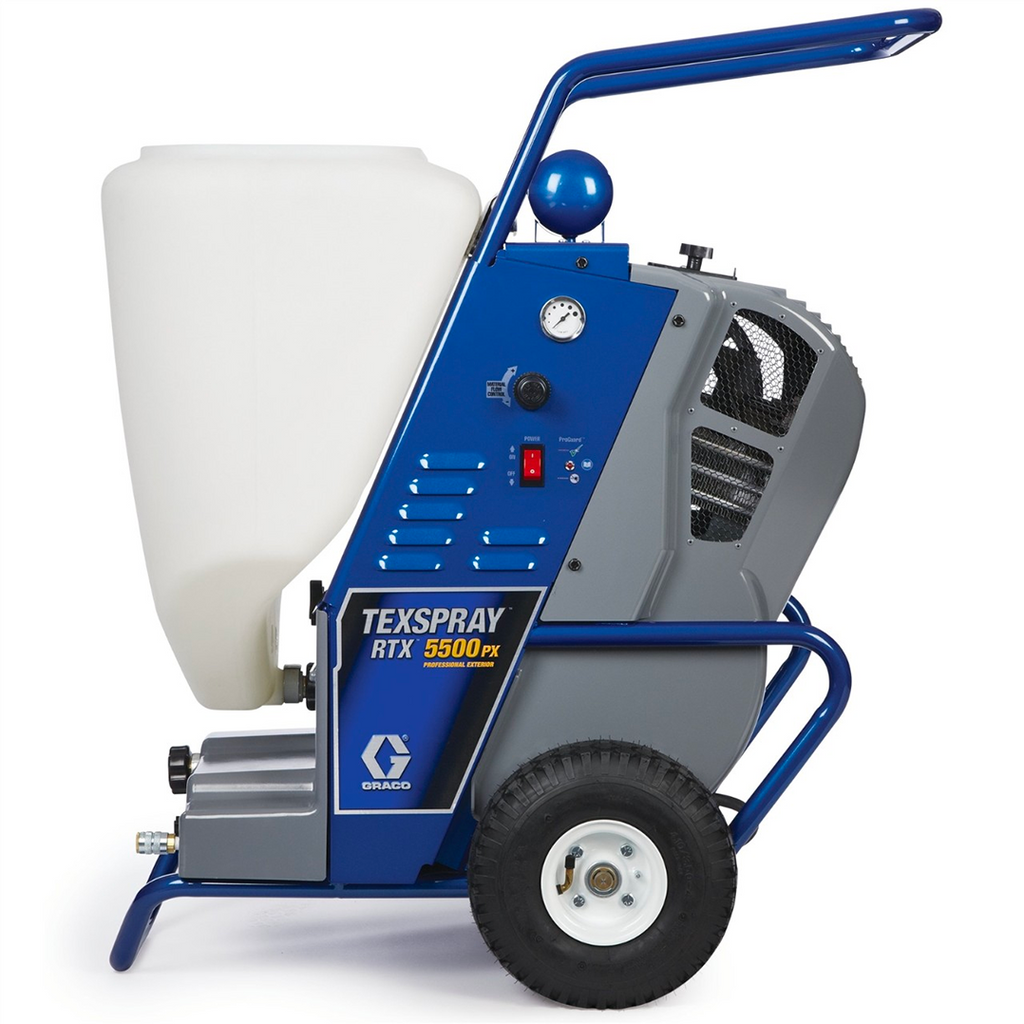

Graco TexSpray RTX 5500PX Texture Sprayer (17K680)
$15,790.00
Description
Graco 17K680 240V 2HP RTX 5500PX Electric Texture Sprayer
Graco RTX 5500 PX texture sprayer is Ideal for large residential and commercial contractors needing a Compact yet powerful texture sprayer capable of handling a wide variety of materials, such as synthetic stuccos, deck coatings, and more.
Documents
Compare Table
Click here to open table |
 |
 |
 |
 |
 |
 |
 |
| COMPRESSOR | FASTFINISH STANDARD | FASTFINISH PRO | HOPPER GUN | GT-TEX HOPPER GUN | RTX 5500 PX | RTX 2500 PI | |
| Warranty | 3 years | 3 years | 3 years | 1 year | 1 year | 3 years | 3 years |
| Part Numbers: | 25D491 | 25D495 | 25D493 | 25D496 | 25D497 | 17k680 | 17U219 |
| Compressor L/min | 255 | 255 | 255 | - | - | 21 | 20 |
| Max. air working pressure (PSI) | 40 | 40 | 40 | - | - | 100 | 100 |
| Weight - kg (lbs) | 33.5kg | 35.18kg | 35.18kg | 2.18kg | 1.85kg | 73.9kg | 32.6kg |
| Pressure Boosted Hopper Gun | - | - | Pro Version | ■ | - | - | |
| Hopper | - | 7.5L | 5.5L | 5.5L | 7.5L | 57L | 56L |
| Pressure/Flow dial | - | - | Pro Version | ■ | - | ■ | ■ |
| Flat-Proof Tires | ■ | ■ | ■ | - | - | - | - |
| Nozzles | - | 4mm, 6mm, 8mm | 4mm, 6mm, 8mm | 4mm, 6mm, 8mm | 4mm, 6mm, 8mm | 3mm, 4mm, 8mm, 10mm, 12mm | 3mm, 4mm, 8mm, 10mm, 12mm |
| Air Orifice | - | 2mm, 2.5mm, 3mm | 2mm, 2.5mm, 3mm | 2mm, 2.5mm, 3mm | 2mm, 2.5mm, 3mm | - | - |
| Gun | - | G-TEX Gravity-Fed - 25D497 | FastFinish Oressure-Boosted 25D496 | ■ | ■ | Air Spray Trigger Gun -24S135 | Air Spray Trigger Gun -24S135 |
| Hose Kit | Air 3/8" x 15m - 17U302 | Air 3/8" x 15m - 17U302 | Air 3/8" x 15m - 17U302 | Air 3/8" x 15m - 17U302 | Air 3/8" x 15m - 17U302 | Air & Fluid 32mm x 7.5m -17L005 | Air & Fluid 25.4mm x 7.5m -17L005 |
|
|
|
|
|
|
|
|
| COMPRESSOR | FASTFINISH STANDARD | FASTFINISH PRO | HOPPER GUN | GT-TEX HOPPER GUN | RTX 5500 PX | RTX 2500 PI | |
| Warranty | 3 years | 3 years | 3 years | 1 year | 1 year | 3 years | 3 years |
| Part Numbers: | 25D491 | 25D495 | 25D493 | 25D496 | 25D497 | 17k680 | 17U219 |
| Compressor L/min | 255 | 255 | 255 | - | - | 21 | 20 |
| Max. air working pressure (PSI) | 40 | 40 | 40 | - | - | 100 | 100 |
| Weight - kg (lbs) | 33.5kg | 35.18kg | 35.18kg | 2.18kg | 1.85kg | 73.9kg | 32.6kg |
| Pressure Boosted Hopper Gun | - | - | Pro Version | ■ | - | - | |
| Hopper | - | 7.5L | 5.5L | 5.5L | 7.5L | 57L | 56L |
| Pressure/Flow dial | - | - | Pro Version | ■ | - | ■ | ■ |
| Flat-Proof Tires | ■ | ■ | ■ | - | - | - | - |
| Nozzles | - | 4mm, 6mm, 8mm | 4mm, 6mm, 8mm | 4mm, 6mm, 8mm | 4mm, 6mm, 8mm | 3mm, 4mm, 8mm, 10mm, 12mm | 3mm, 4mm, 8mm, 10mm, 12mm |
| Air Orifice | - | 2mm, 2.5mm, 3mm | 2mm, 2.5mm, 3mm | 2mm, 2.5mm, 3mm | 2mm, 2.5mm, 3mm | - | - |
| Gun | - | G-TEX Gravity-Fed - 25D497 | FastFinish Oressure-Boosted 25D496 | ■ | ■ | Air Spray Trigger Gun -24S135 | Air Spray Trigger Gun -24S135 |
| Hose Kit | Air 3/8" x 15m - 17U302 | Air 3/8" x 15m - 17U302 | Air 3/8" x 15m - 17U302 | Air 3/8" x 15m - 17U302 | Air 3/8" x 15m - 17U302 | Air & Fluid 32mm x 7.5m -17L005 | Air & Fluid 25.4mm x 7.5m -17L005 |
Videos
Specifications
Dimensions
product
99.06 cm
127 cm
78.74 cm
Weight
May require help to carry
Total Weight:
165.1 kg
